Pressure Gauges

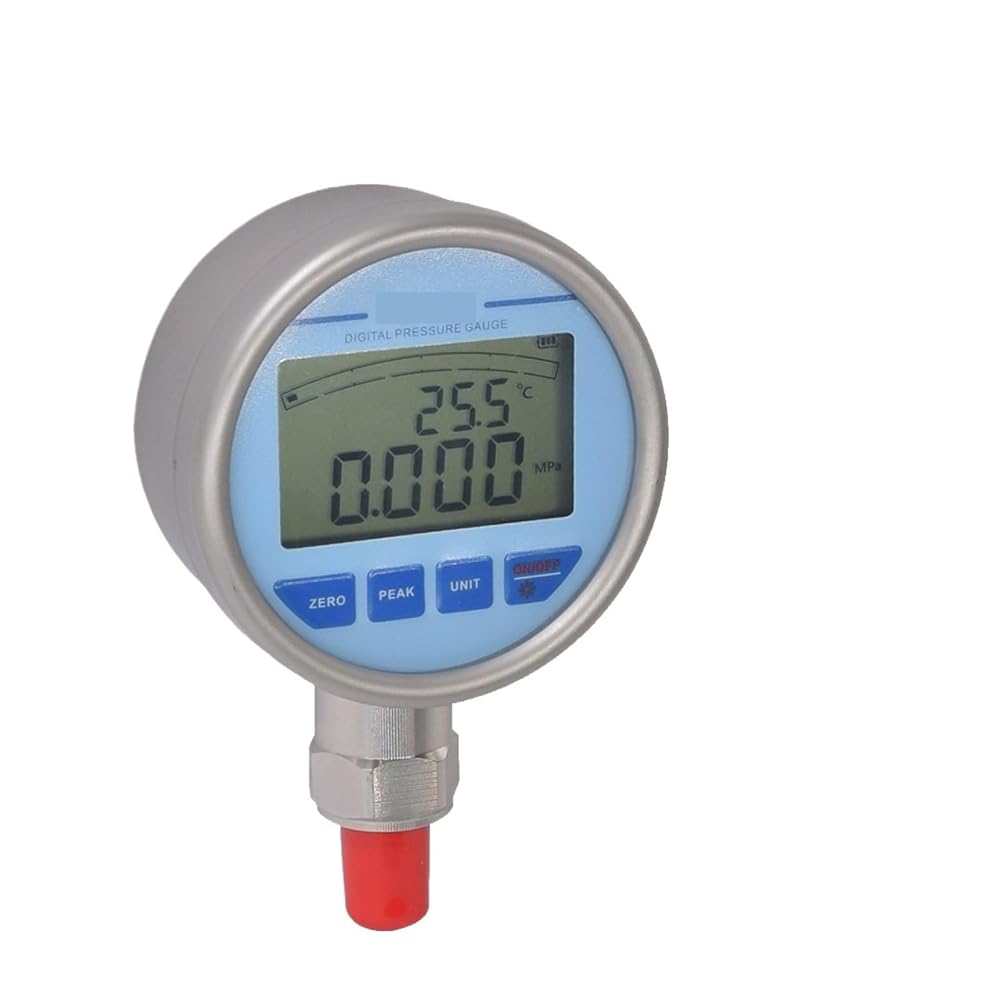

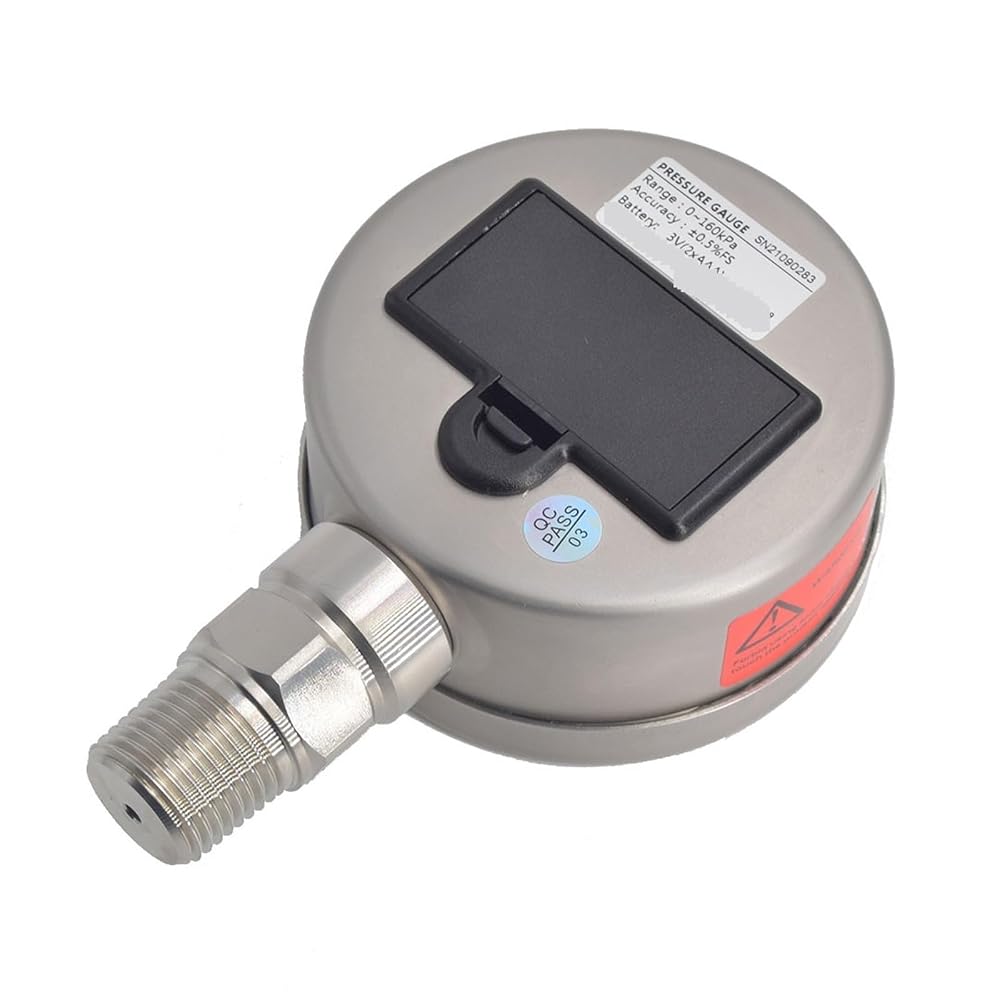

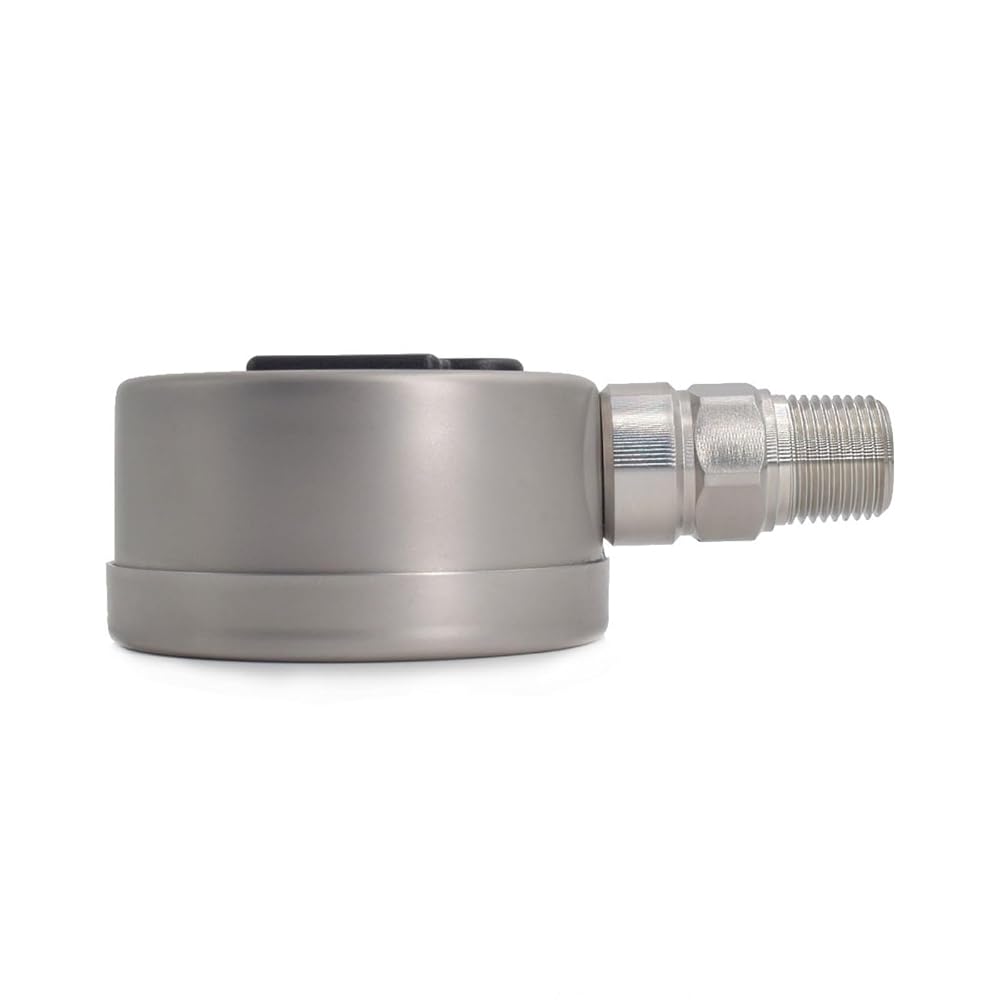

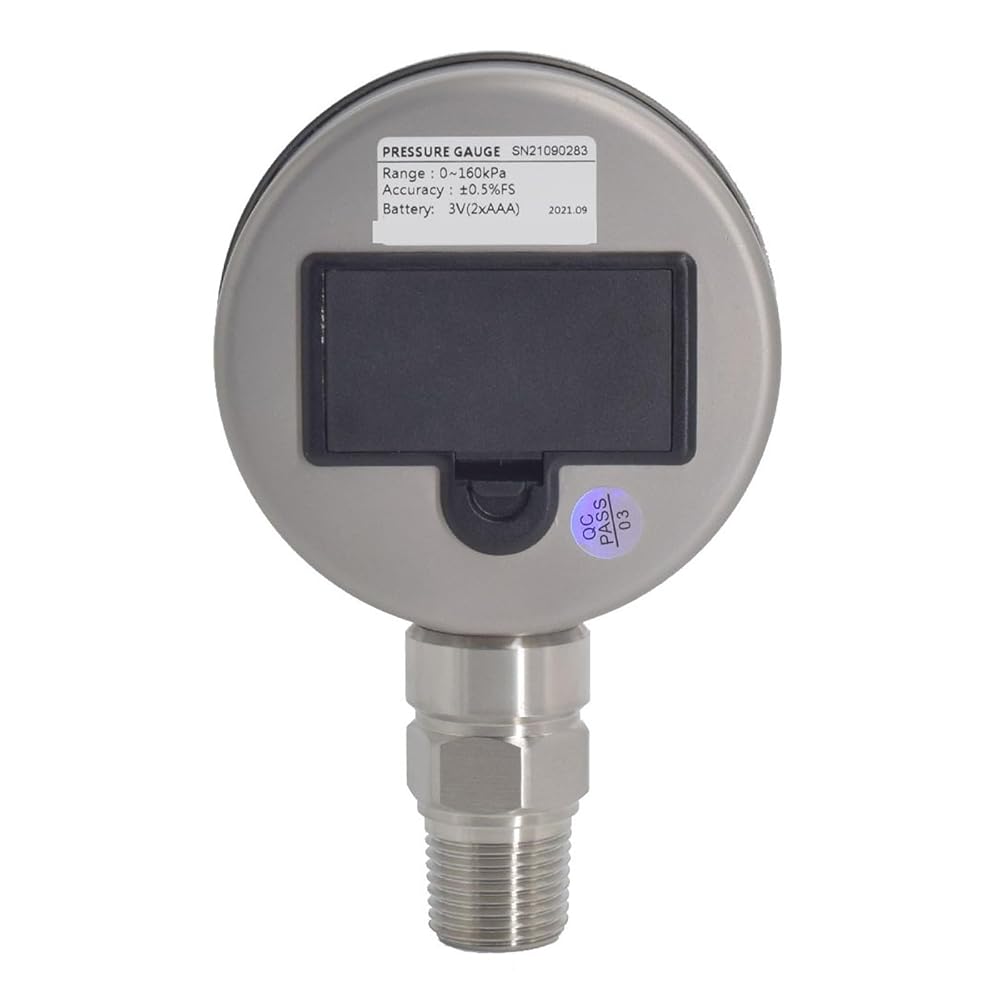

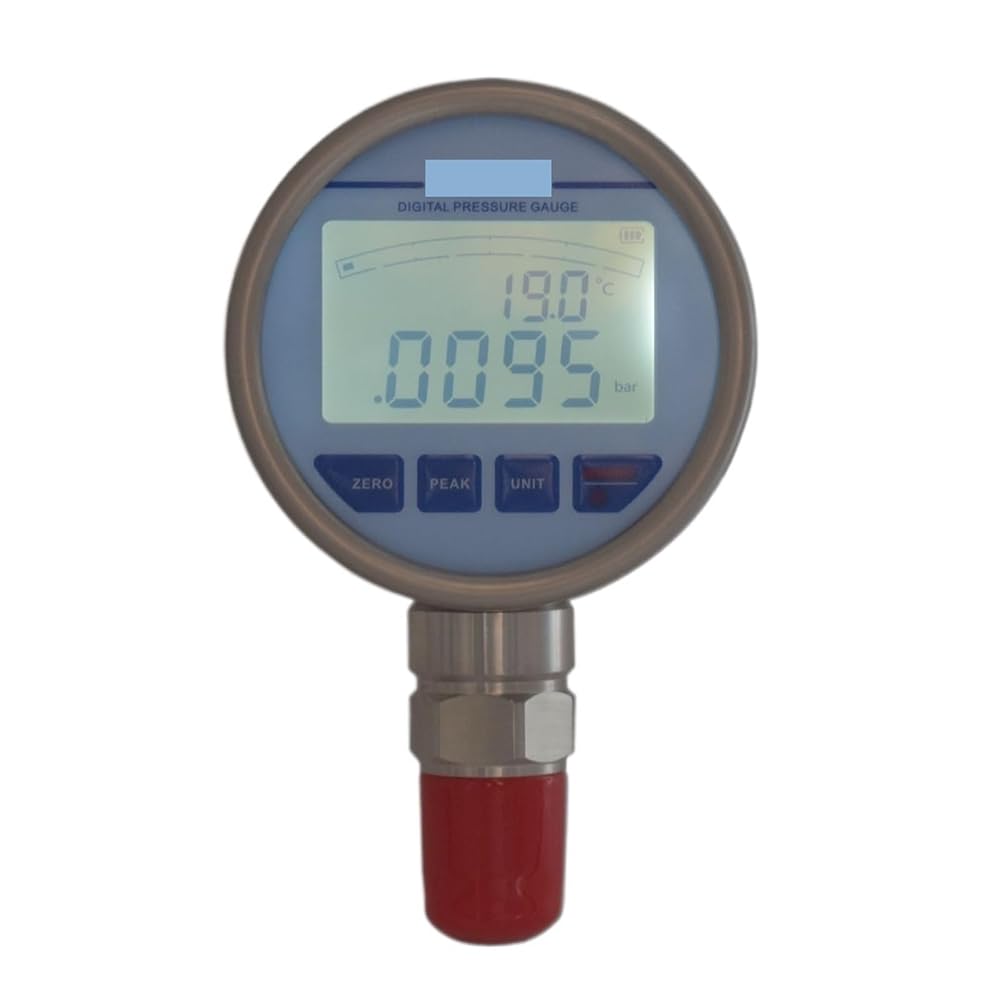

600bar Digital Hydraulic Pressure Gauge
Measurement range: -0.10.01~100MPa
Medium Type: Gas, water, oil, pure liquid
Pressure type: gauge pressure (standard), absolute pressure or sealed gauge pressure
Display digits: Four and half digits display
Overload: 200% fullMeasurement range
Resolution: -9999~19999
Pressure accuracy: ± 0.5% FS (standard)
Temperature accuracy: ± 2
Power supply: 3VDC 2PCS No.7 batteries(Battery Not Included)
Material: SUS304 stainless steel
Sensor: SUS316L stainless steel
Signal processing circuit: Industrial MCU, 24 bit AD conversion chip, high common mode rejection (CMR)
Sealing ring: Viton
Diameter: 80mm
Shell thickness: 1.5mm
Pressure interface: NPT1/2 NPT1/4 G1/2 G1/4 M20 * 1.5/ external thread(standard)
Compensation temperature: 0 ~ + 70
Operating temperature: - 20 ~ + 60
Protection grade: IP65
Model Number : 3710
Max Measuring Range : 200 PSI & Above
Display Type : DIGITAL
Dial Diameter : 2 - 3.9 Inches
Pressure accuracy : ± 0.5% FS (standard)
Resolution : -9999~9999
Temperature accuracy : ± 2
Pressure type : Gauge pressure (standard), absolute pressure or sealed gauge pressure
Material : SUS304 stainless steel
Diaphragm : SUS316L stainless steel
Battery : Two AAA
Connect Screw Thread : External thread(standard)/Intrernal
Application1 : Mechanical maintenance pressure measurement
Application2 : Pipeline pressure measurement
