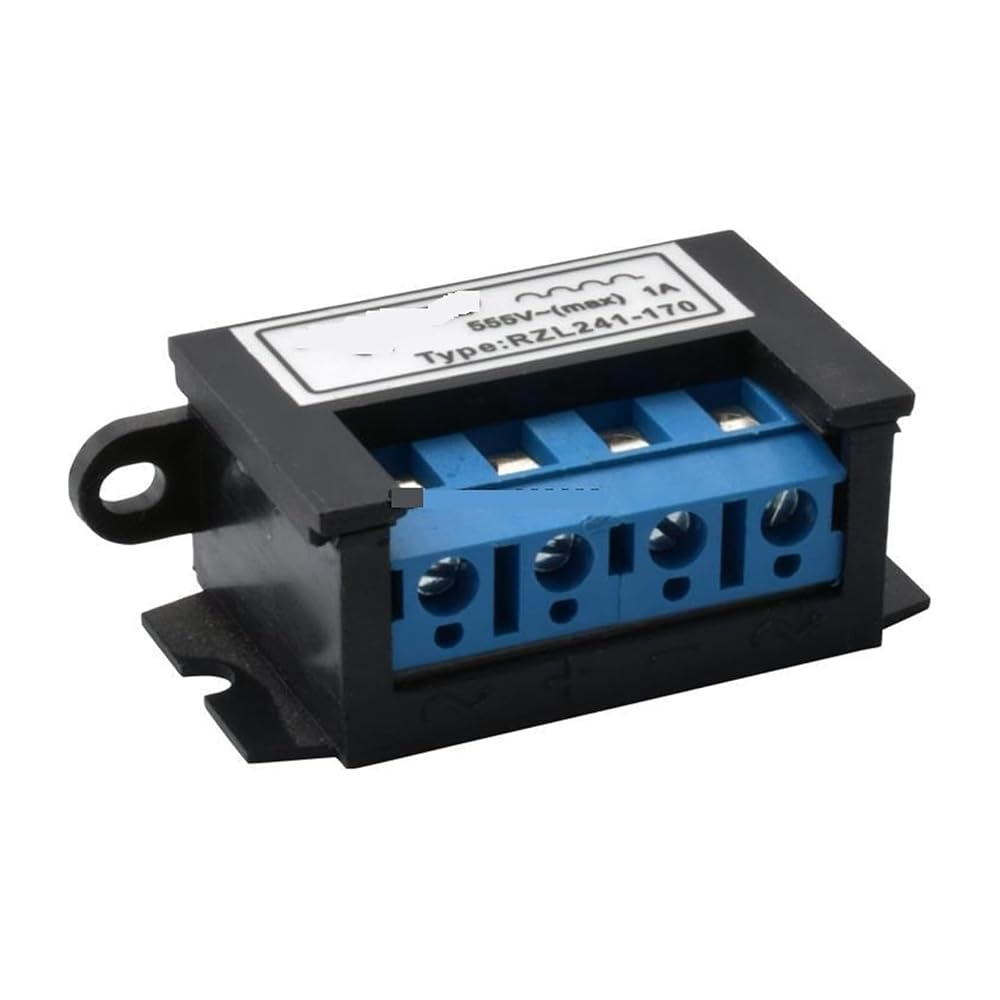

مقوم الفرامل RZL241-170 1A 460V وحدة RZL141-96 270V RZL141-170H | Rzl141-170h الموجة الكاملة in Kuwait

مقوم الفرامل RZL241-170 1A 460V وحدة RZL141-96 270V RZL141-170H | Rzl141-170h الموجة الكاملة

KWD 19
ماركة
XSWDASFGH
وزن
349 g
اللونRzl141-170h الموجة الكاملة
– 1 +

مميزات خاصة

  • rectifier
  • Safer in Working: Adopting internal working mode without internal mechanical contact non sparking use and low noise higher work safety.
  • Wide Application: Can be used for motor， power rectifiers heating dimming contactless switch stepping motor start etc.
  • Has Fine Feature: The and panel are electrically insulated and also has excellent welding structure and circulation ability.
  • Quick to Install: Comes with a compact size and a light weight as well the rectifier module can be conveniently installed within minutes.
  • Copper Baseplate: Enhanced copper base plate smooth fast heat dissipation prevent overheating protection and smooth operation.

وصف

rectifier
Product features
The design of the plastic shell is compact.
Small size.
It can be installed into the wiring box of the motor.
It has protective effect on the reverse peak voltage generated by the DC side switch.
The maximum ambient temperature is 80.
Rectifier type
Full/Half-wave Rectifier
Output Voltage with Full Rectifier
Vdc = Vac/1.1
Output Voltage with Half Rectifier
Vdc = Vac/2.2
Ambient temperature()
-25- +80
(40-60Hz)Uin=Input Voltage(40-60Hz)
Nominal Voltage magenet
Coil Voltage tolerance
U2(U Out)
AC Voltage supply
U1(U in)
99V
93-118V
220VAC
198V
182-230V
220VAC
170V
162-198V
380VAC
