Build Your Ultimate Line of Defense with Professional-Grade Circuit ProtectionWhen it comes to wiring high-power inverters, marine battery banks, or competition-level car audio systems, cutting corners on your fuse block is not an option. The Weasch Heavy-Duty 300A ANL Fuse Block is meticulously engineered from the ground up to provide a rock-solid, zero-voltage-drop connection for your most demanding 12V, 24V, and 32V DC electrical systems.Engineered with Uncompromising Materials
Unlike cheap, standard fuse holders that use standard plastics, our base is constructed from an industrial-grade PA+GF (Polyamide + Glass Fiber) blend, paired with a transparent PC (Polycarbonate) safety shield. Both components strictly adhere to the UL 94 V-0 flame-retardant standard. This means in the event of an extreme electrical surge, the block will self-extinguish and safely contain the heat, rather than melting or fueling a fire.Maximum Conductivity, Zero Bottlenecks

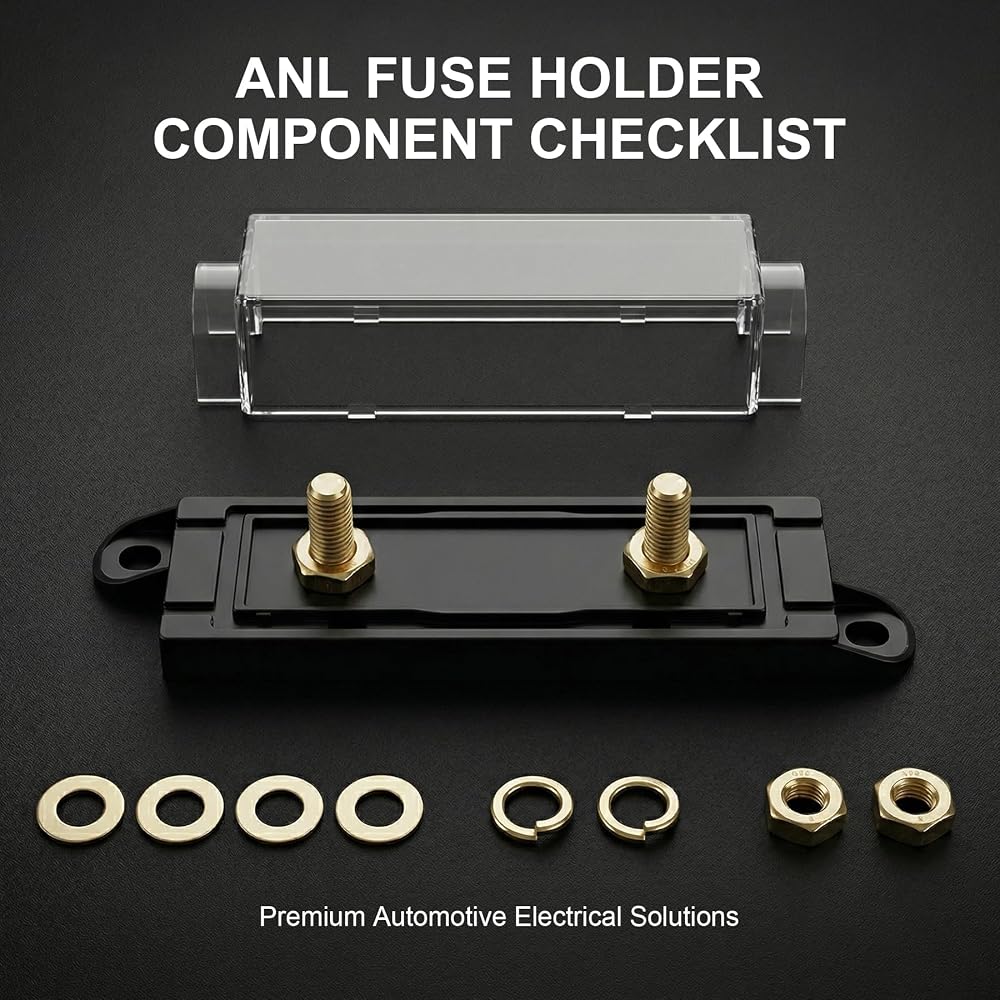

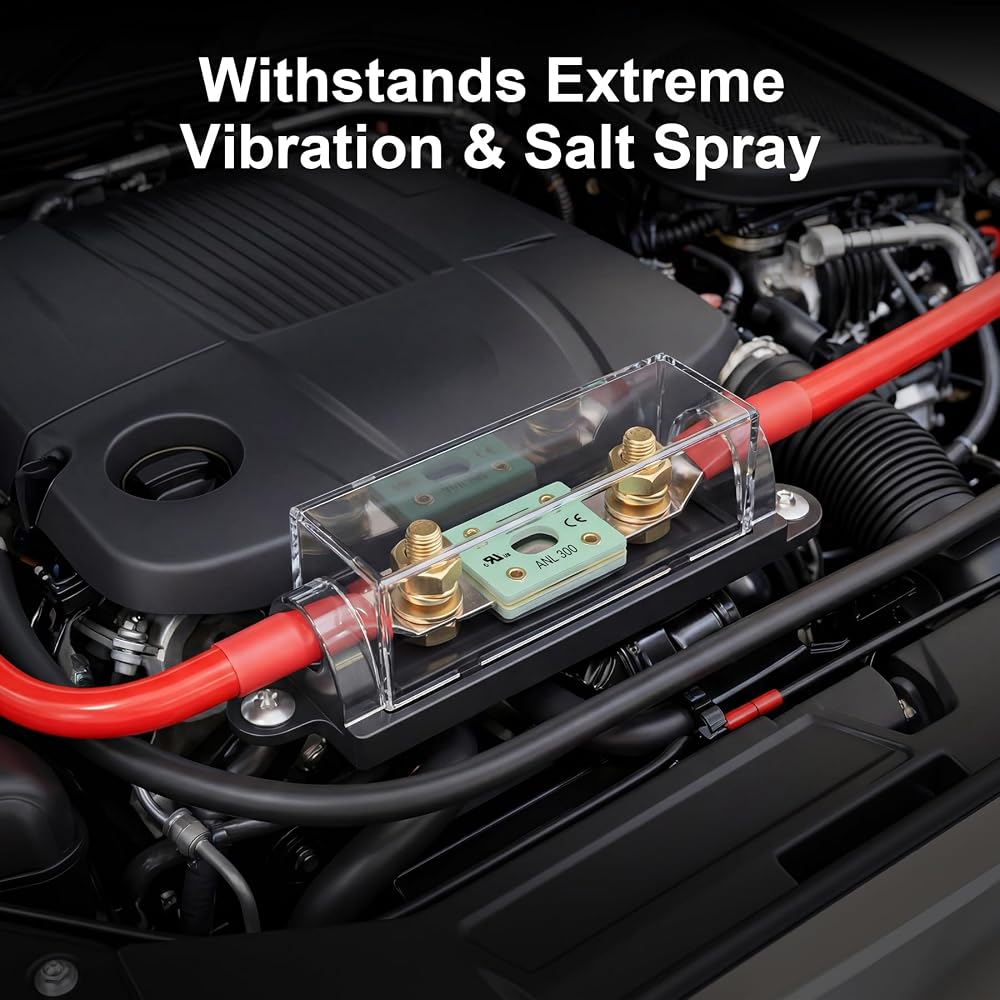

Power delivery is everything. We upgraded the hardware to heavy-duty carbon steel featuring a premium imitation-gold/nickel plating. This advanced plating not only resists marine salt spray and rust but guarantees minimal electrical resistance. The included M8 (approx. 5/16") threaded studs, along with carbon steel spring lock washers and hex nuts, ensure your terminal lugs stay securely clamped even under severe road or engine vibration.Precision Fit & Pro-Level Installation Designed for universal compatibility, this holder features a precise 61.5mm (approx. 2.4") center-to-center stud spacing to seamlessly accept any standard bolt-on ANL fuse. The transparent snap-on cover allows for instant visual inspection of the fuse status without exposing live wires.
Technical Specifications:
System Voltage: Optimized for up to 32V DC / 220V AC Max
Continuous Amperage: 300A
Base Material: PA+GF 94 V-0 (Polyamide + Glass Fiber)
Cover Material: PC 94 V-0 (Polycarbonate - Transparent)
Hardware: Carbon Steel with Imitation-Gold/Nickel
Plating Stud Size: M8 (5/16")
Recommended Mounting Torque: 5Nm

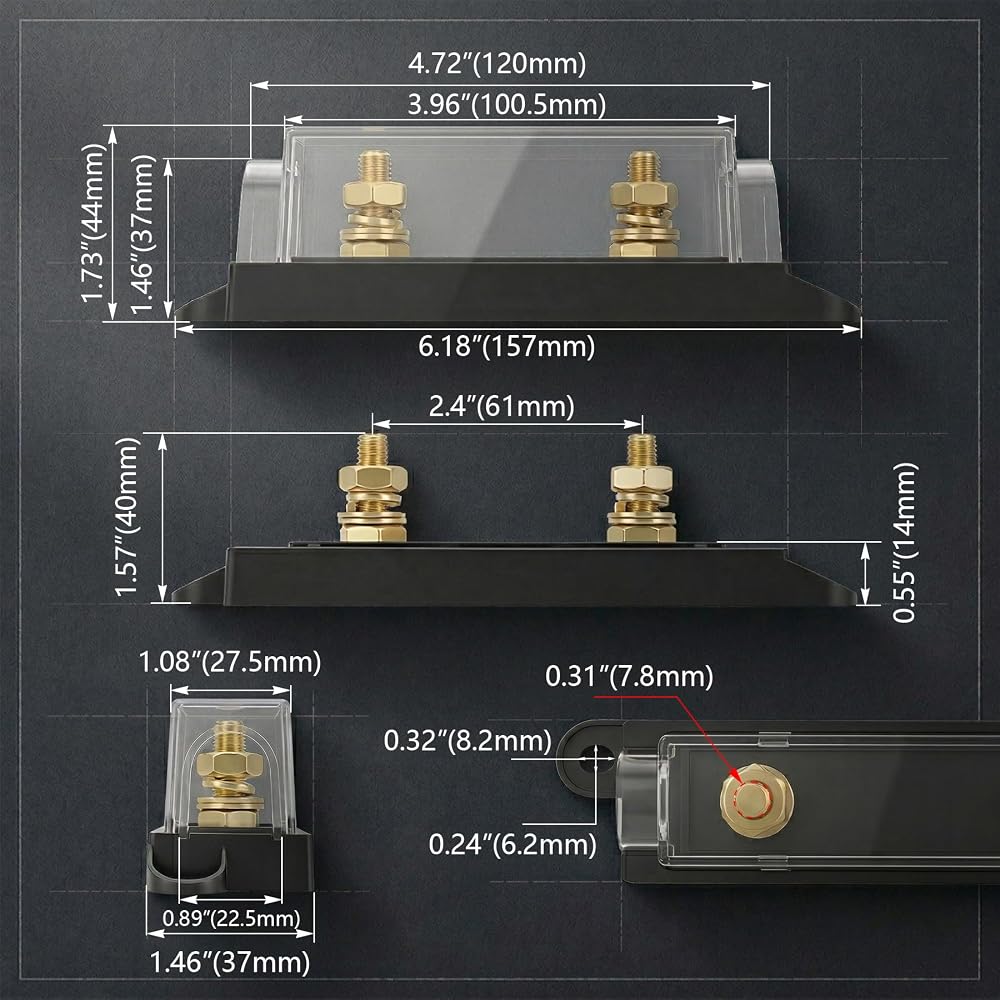

Dimensions: 156.5mm (Length) x 137.5mm (Mounting Hole Distance)
(Please Note: ANL Fuse is NOT included. Mounting screws for the base are not included)
