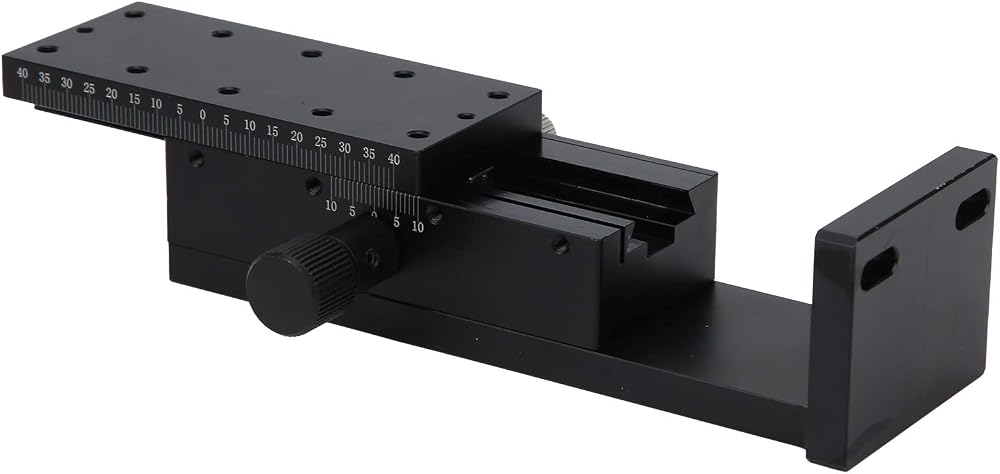

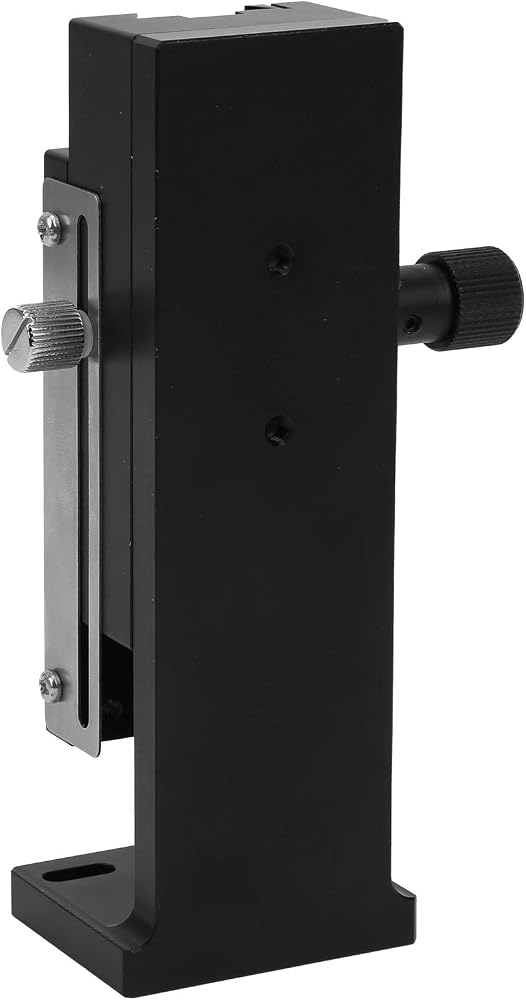

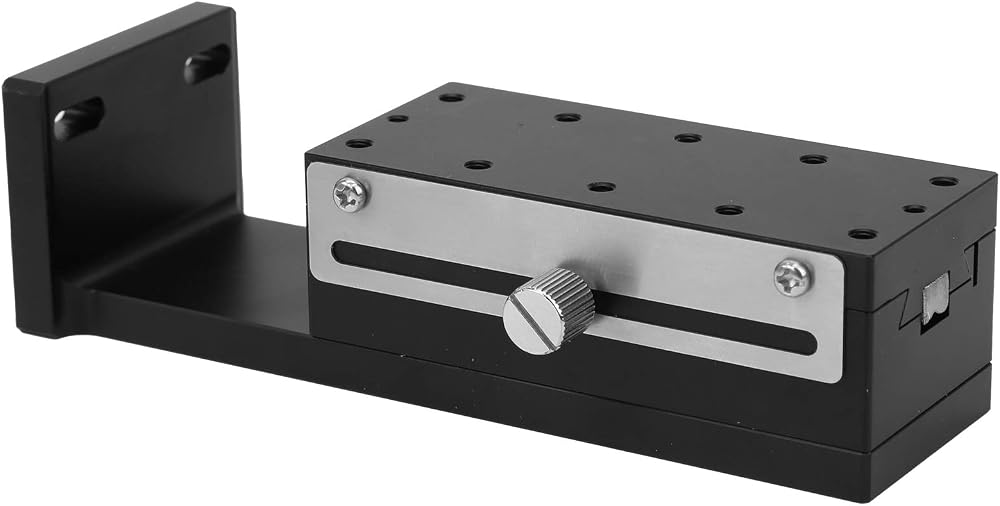

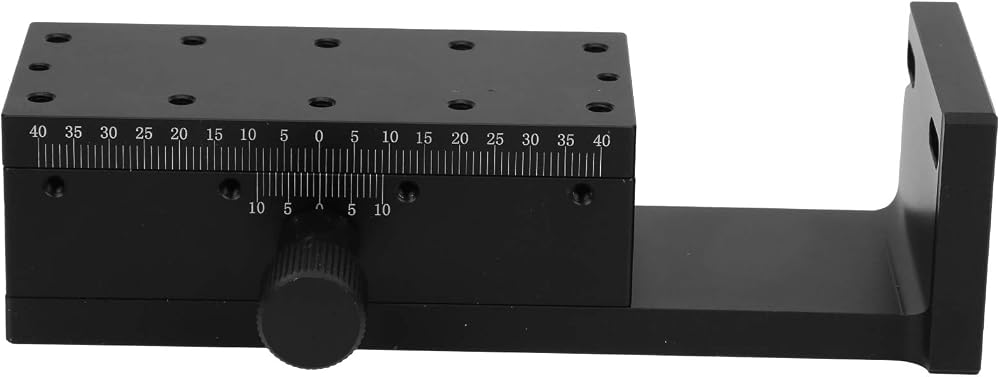

Manual Linear Positioning Stage, Dovetail Linear Stage Z Axis Manual Fine Tune Platform for Precision Applications 40x90mm

KWD 43.500
Brand
NDNCZDHC
Weight
0.5 kg
– 1 +

Special Features

  • Lightweight, the main body is made of aluminum alloy, which is strong and shockproof
  • Using gear rotating handle control and dovetail grooves guide rail, smoothly and stable movement.
  • With R angle safety protection, wth small size, easy to carry and store, convenient to use.
  • Wide range of applications, can be used in optical instrument devices, measuring devices, etc.
  • Ideal replacement for the old one and has a long service life.

Description

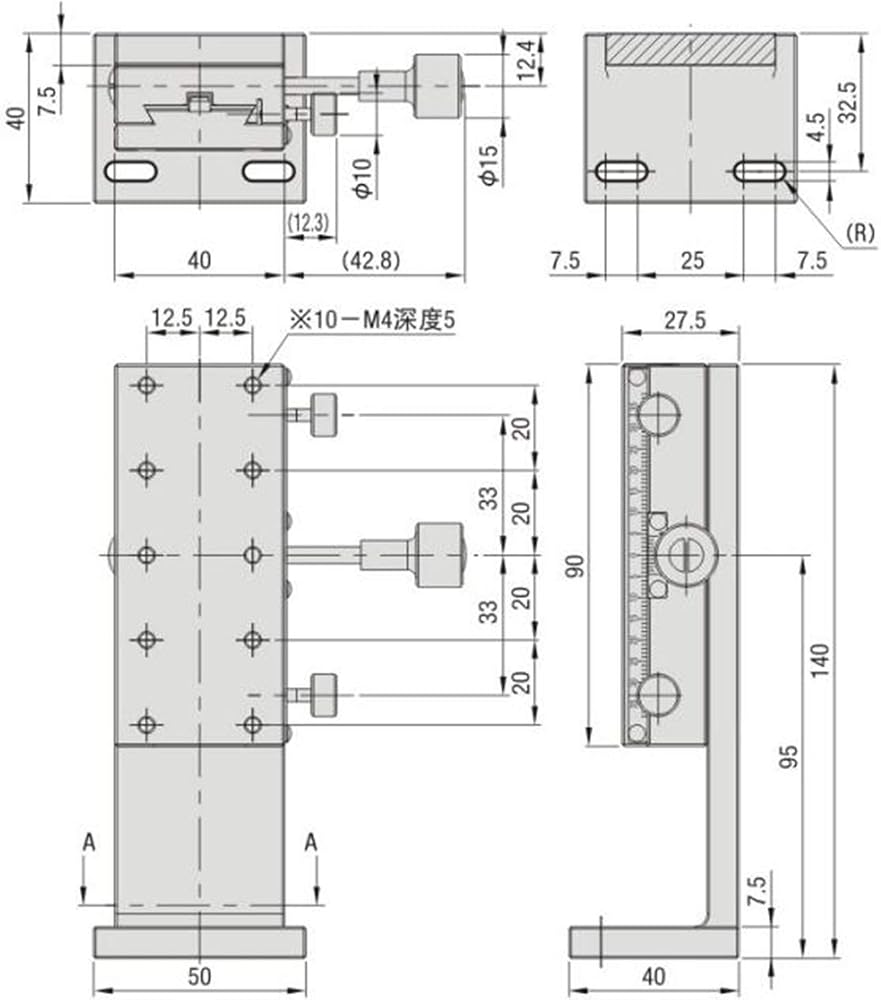

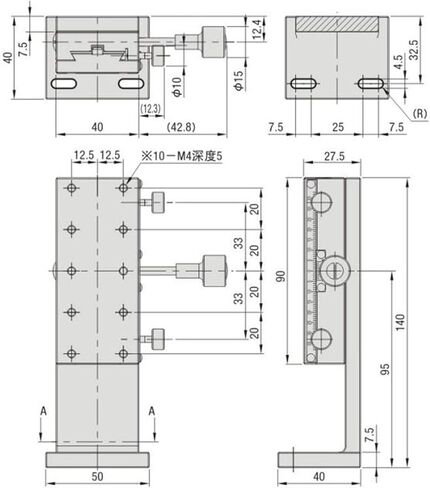

Item Type: Z‑Axis Manual Fine‑Tune Platform
Model: HBL-A90
Table Size: Approx. 40 x 90mm / 1.6 x 3.5in
Overall Product Height: Approx.133mm / 5.2in
Moving Direction: 1 direction of Z axis
Body Material: Aluminum alloy (black anodized)
Drive Mode: Manually rotate the knob to advance the gear drive (gear + rack)
Sliding Track: Gear guide
Rail Type: Dovetail grooves type
Number of Countertop Threaded Holes: 10
Threaded Hole Diameter: Approx. 4mm / 0.2in
Threaded Hole Depth: Approx. 6mm / 0.2in
Withstand Load: 14.8N
Travel Stroke: ± approx. 35mm / 1.4in
Minimum Scale: 0.01mm
Parallelism: 0.06mm
Moving parallelism0.1mm/60mm
Scope Of Application: Optical equipment, measuring devices, testing machines, microscopes, photographic equipment, handling machines, processing machines, printing machines and others

Package List：
1 x Z‑Axis Manual Fine‑Tune Platform
