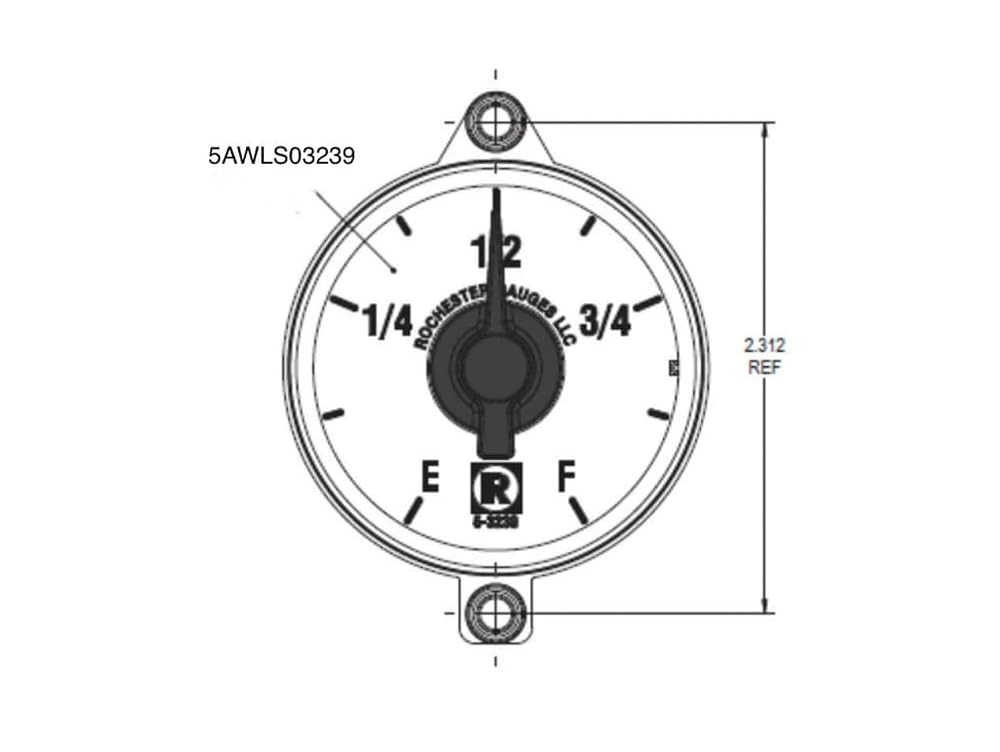

Rochester Gauges 5AWLS03239 — Sr. Direct-Reading Dial, 2 5/16" The Rochester Gauges 5AWLS03239 is a Senior (Sr.) size direct-reading dial, 2 5/16" in diameter, marked "5-3239" on the dial face. It provides direct local visual reading of liquid level at the gauge. This dial is magnetically driven and hermetically sealed, preventing moisture and fuel vapor from reaching inside the gauge lens and degrading the UV-rated lens material over time.

Important Superseded Part Number Note

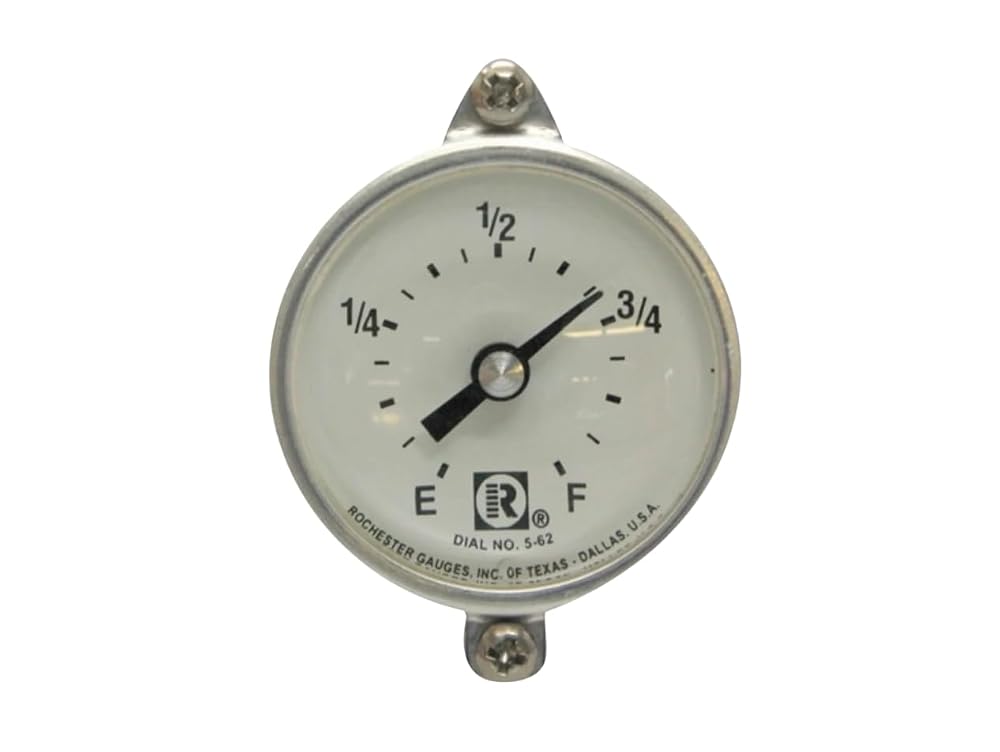

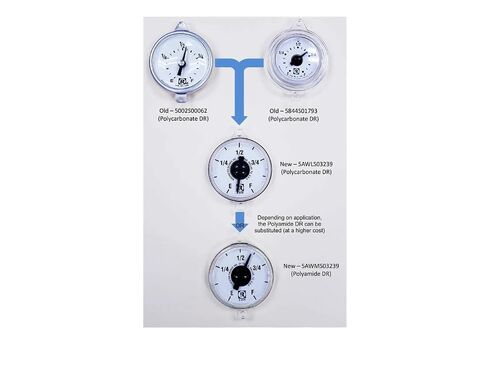

Per Rochester Sensors, this dial has replaced and superseded three discontinued part numbers: 5844S01793, 5002S00062, and 5141S00062. If you are looking to replace a dial originally supplied under any of these numbers, 5AWLS03239 is the correct current part.

Gauge Compatibility & Mounting
Fits Rochester 6500 Series and 8600 Series Senior gauges. Mounts to a mating Senior flange with a 2 1/2" bolt circle using four 1/4"-28 x 9/16" long bolts (hardware sold separately). Designed for top-mounting only.

Construction
Polycarbonate/polyamide, ultrasonically sealed | Magnetically driven, hermetically sealed | Accuracy: depends on gauge family and proper sizing (typically ±6% to ±8% of full scale for direct-read dials)

Cross Reference Numbers & Part Number Variations
Rochester 5AWLS03239 | Also listed as 5AWMS03239 | Dial face marking: 5-3239 | Replaces (discontinued): 5844S01793, 5002S00062, 5141S00062
