GTS209 Non-Contact Dynamic Rotating Torque Sensor, Integrated OLED Panel in Kuwait GTS209 Non-Contact Dynamic Rotating Torque Sensor, Integrated OLED Panel in Kuwait

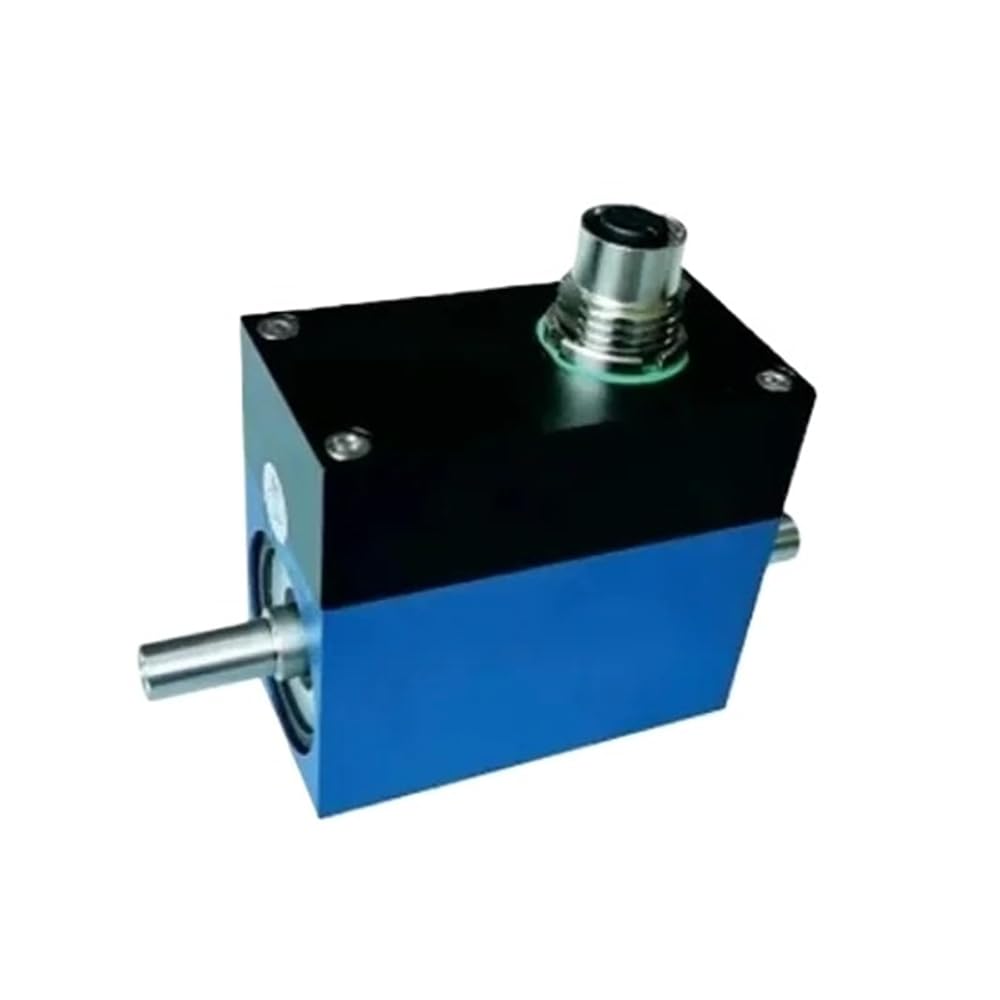

GTS209 Non-Contact Dynamic Rotating Torque Sensor, Integrated OLED Panel

KWD 477
– 1 +

Special Features

  • Precision Torque Measurement: Used for measuring dynamic torque and speed in motor testing and power transmission
  • Dynamic Performance: Capable of measuring rapidly changing torque values ​​at high speeds, providing real-time performance
  • Rugged Industrial Design: Designed for continuous in harsh environments and includes integrated overload protection

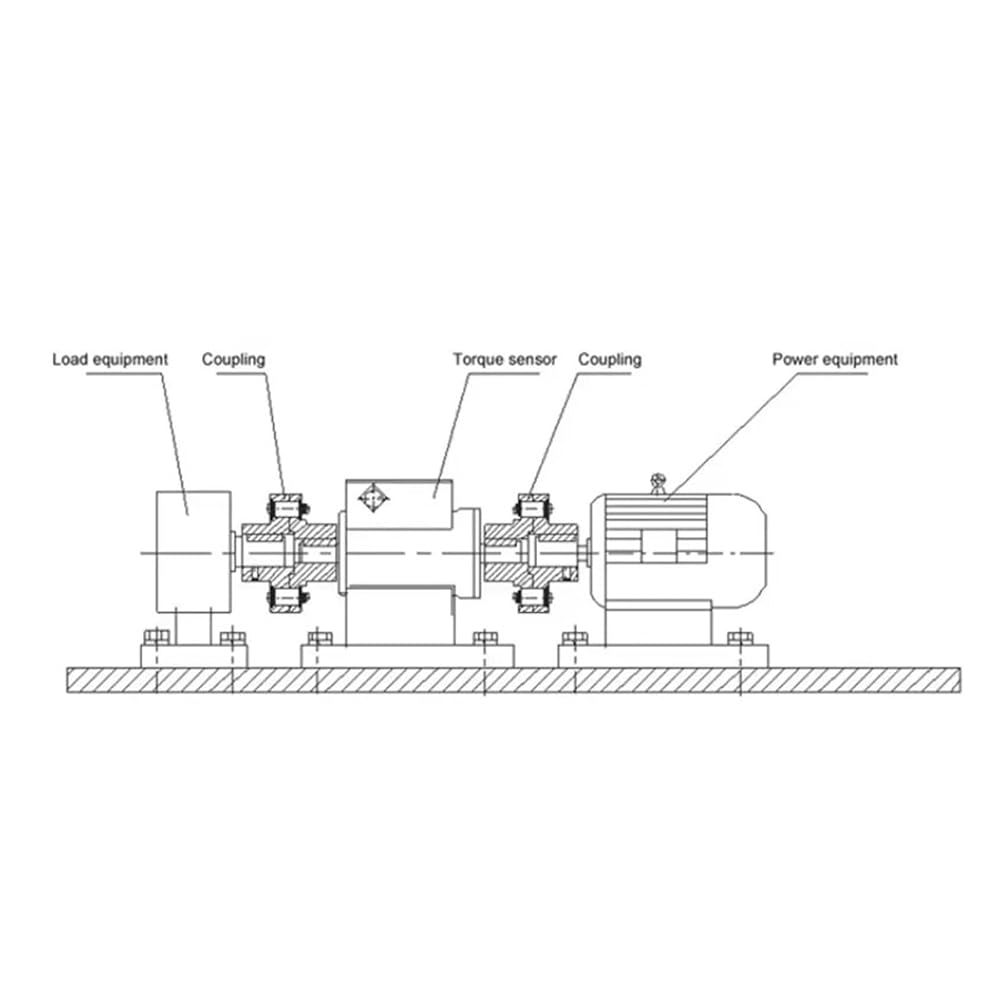

  • Easy Integration: Standard electrical interfaces and mounting options allow for easy installation on test benches and in mechanical equipment

Description

Features : with integrated OLED panel
Mounting Type : flanged mounting
Description : Torque Sensor, torque sensor
Model Number : GTS209
Type : force sensor
Use : motor
Theory : electric brush
Output : 10±5KHZ
Range : 0.1,0.2,0.3,0.5,1,2,3,5(Nm)
Accuracy : ±0.2%F.S(standard),±0.1%F.S(Optional)
Supply : 12~24VDC
Temp. Effect on Zero : ±0.2%F.S/10
Compensated Temp.Range : -10~+60
Operating Temp. Range : -20~+75
Safe Overload : 200%
Cable,Length : 5m
Electrical Connection : 8pin aviation plug
