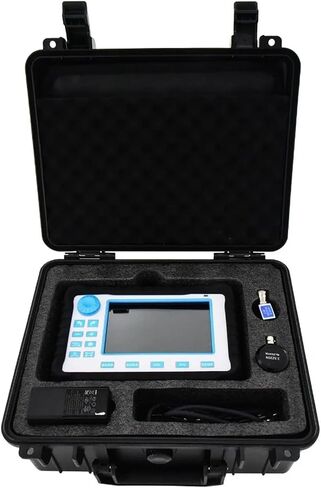

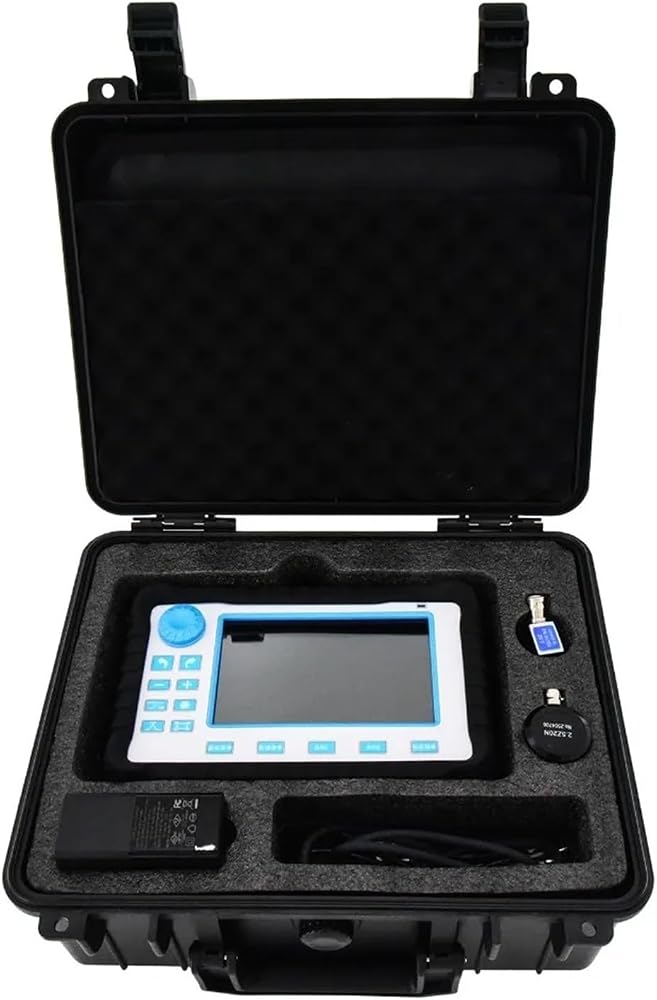

GUF750 Ultrasonic Flaw Detector is an ultra-compact, portable instrument that enables thickness measurements on metals or magnetically conductive materials, detects internal product defects (e.g. cracks, inclusions, porosity, etc.) and automatically locates, evaluates and diagnoses them. It is widely used in test laboratory, special inspection institute, shipbuilding, oil and gas equipment, aerospace, industry, chemical industry, electric power, iron and steel, metallurgy, railway, automobile manufacturing, machinery, boiler and pressure vessel, special equipment, petroleum pipeline, construction industry, mould manufacturing and other industries.
Features:
Precision UT Performance: 0.1-20MHz bandwidth with 100MSPS hardware sampling (400MSPS equivalent), 120dB gain (0.1dB step), and 0.5% horizontal linearity for sub-millimeter defect resolution.
Advanced Flaw Characterization: Dual-Gate (A/B) alarm with peak/leading-edge detection, RF/Full-wave demodulation, and compliant with AWS D1.1, NB/T 47013, GB/T 11345 standards.
700-Group Cross-Sectional Imaging: High-resolution B-scan synthesis (2mm sensitivity) with 500-frame recording, SD card data export (A/B-scans, thickness maps).
Industrial-Grade Pulse Control: Adjustable pulser (25-300V, 5ns step), square/dual-square wave modes, dynamic damping (100/1000), and 0-10KHz PRF.
Field-Ready Productivity: 12-hour runtime (7.4V 8000mAh), IP-rated chassis (-10°C to 55°C operational), dual LEMO-00 probe ports, and USB-C/Mini-USB connectivity.

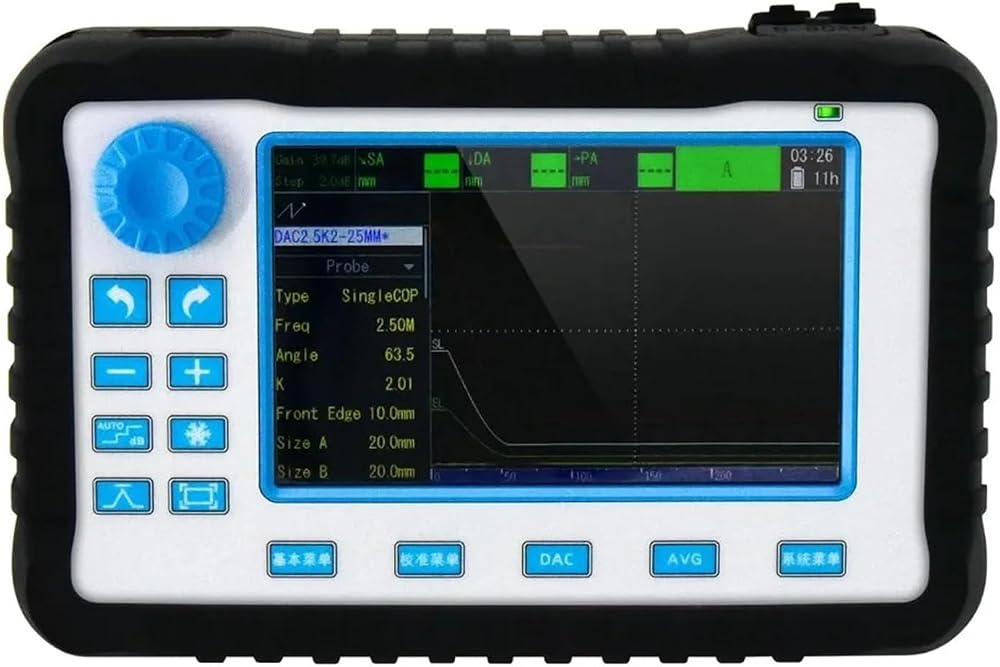

5.0-inch IPS high-definition display with a brand new UI interface.Support full-screen touch, quick gesture operation, virtual keyboard, easy to use.

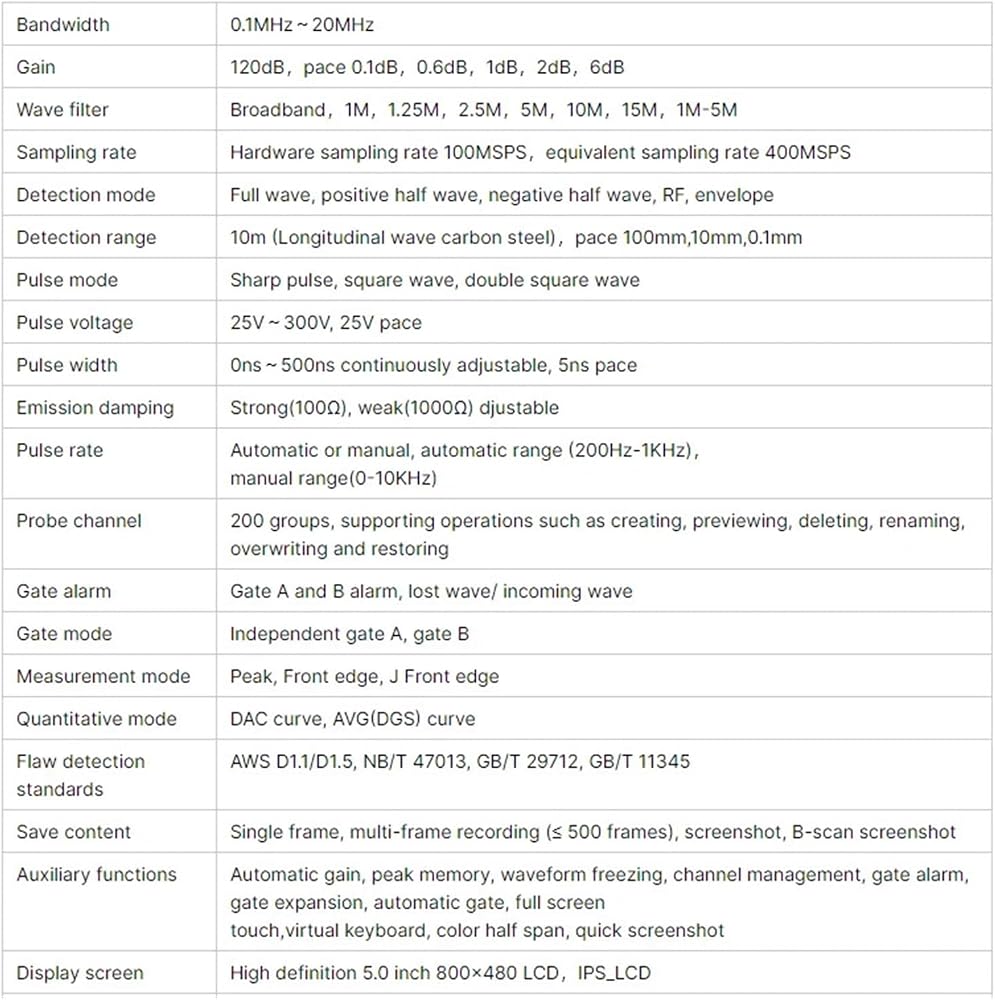

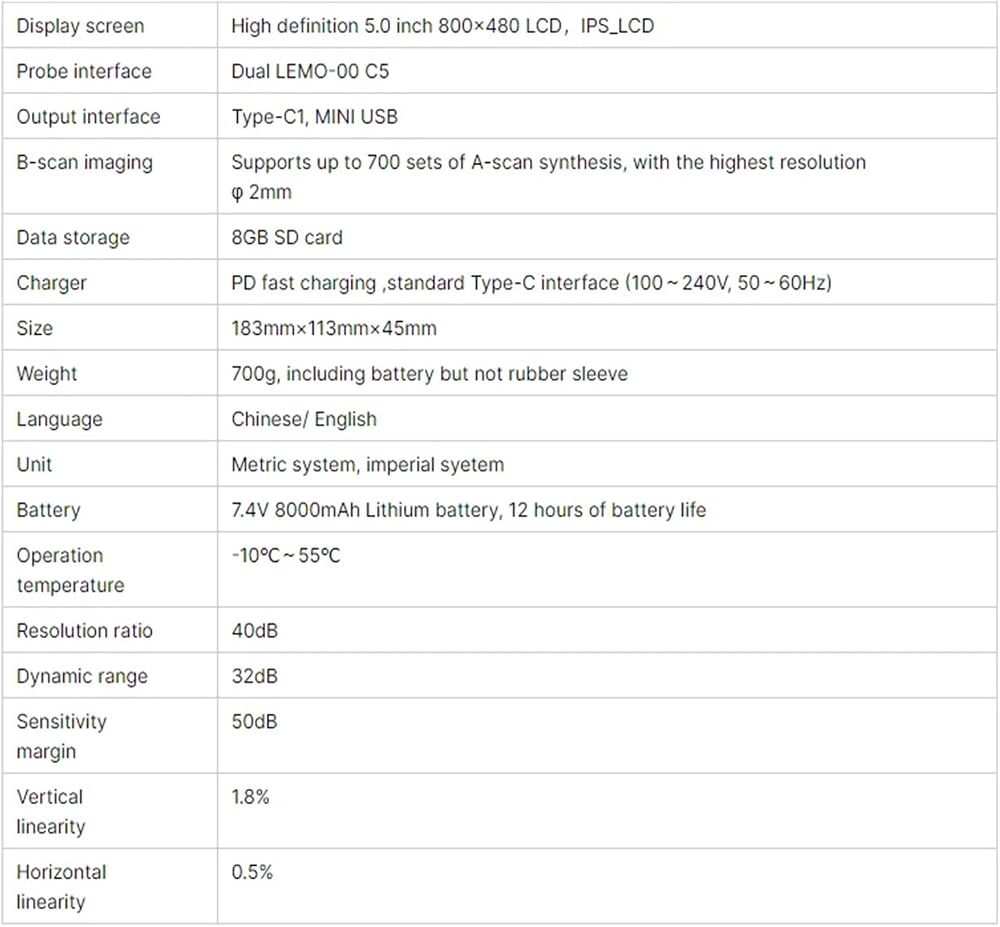

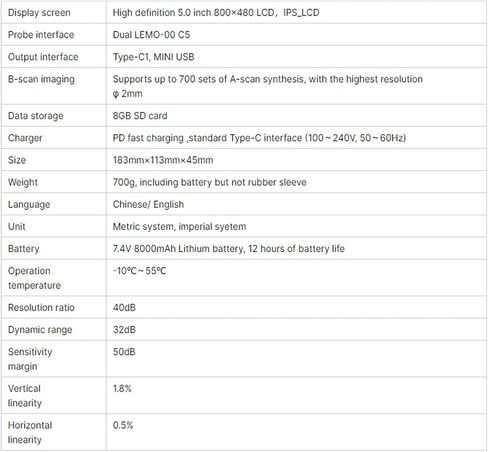

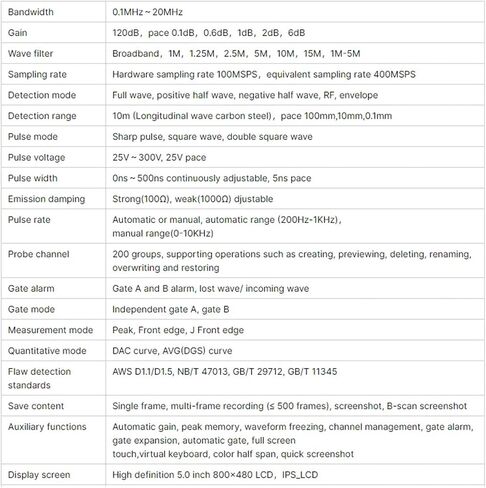

Product technical parameters

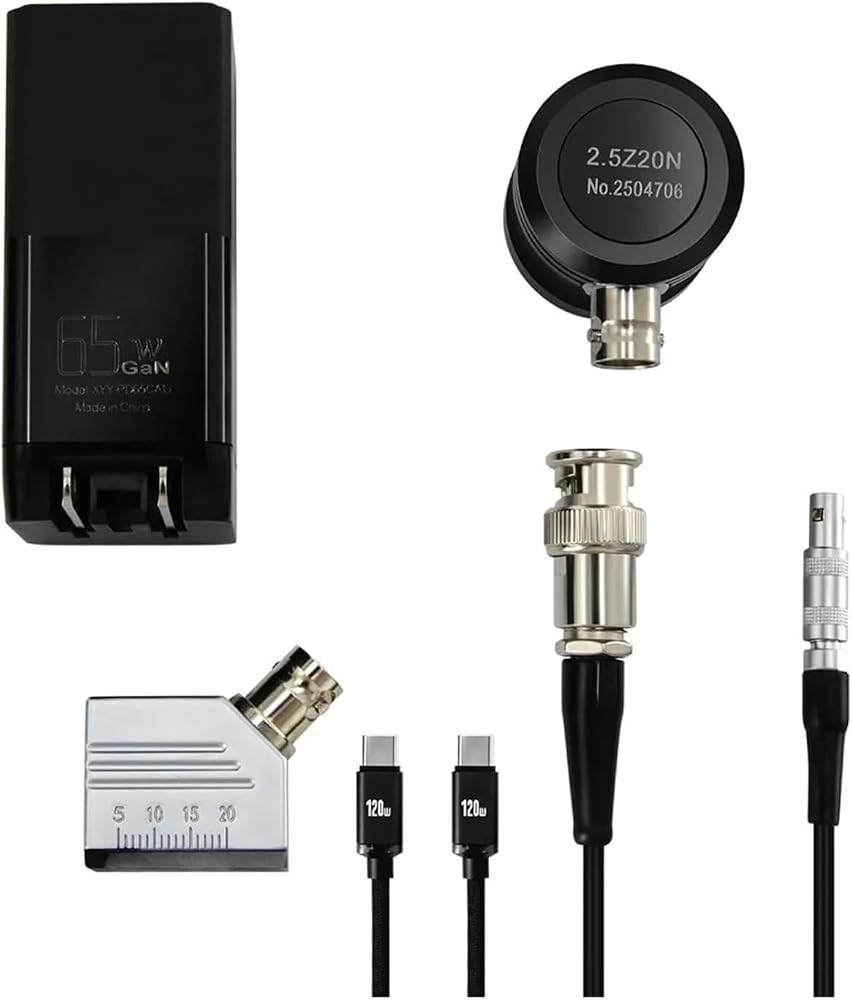

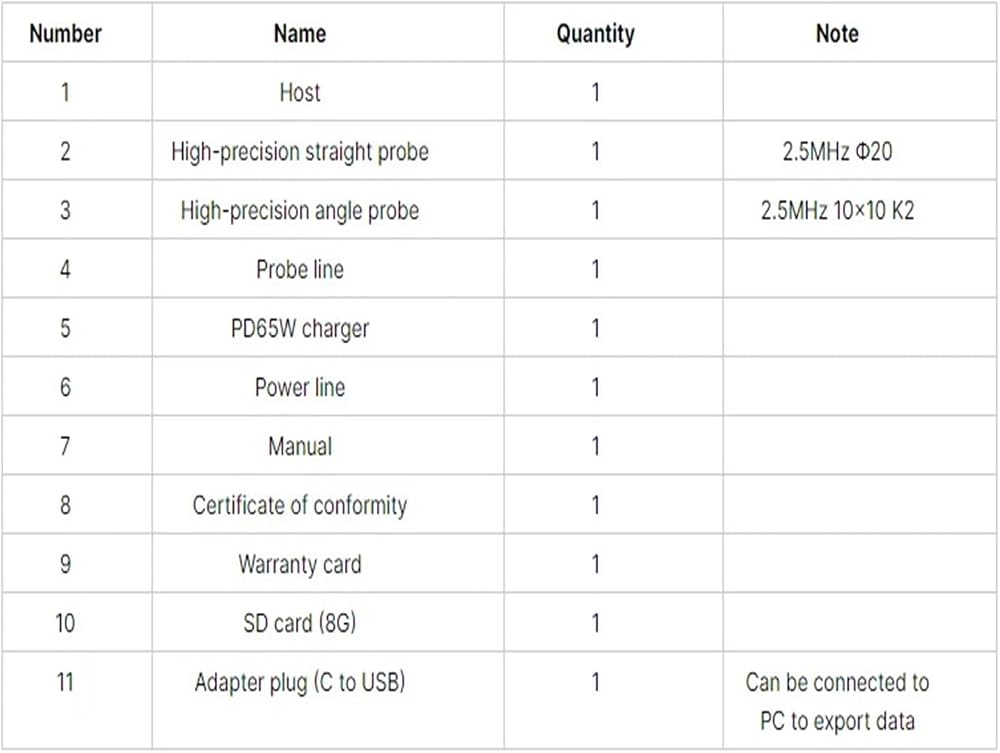

Standard configuration:
