1.Optimization of the circuit matching design,optimize the performance of the electrical design of the tube, high performance, long life.
2.Energy saving system higher luminous efficiency and better.
3. No noise, need not the starter, low voltage can be normal boot
4. The saving electricity was above 30%, and energy saving effect is obvious
5. The power factor is above 0.9, resistant to the electromagnetic interference, without impact to the circuit and other electrical
equipment

Description:

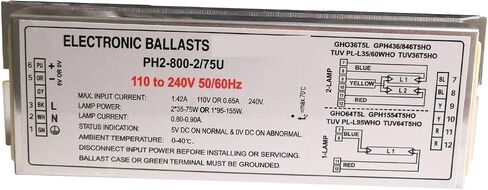

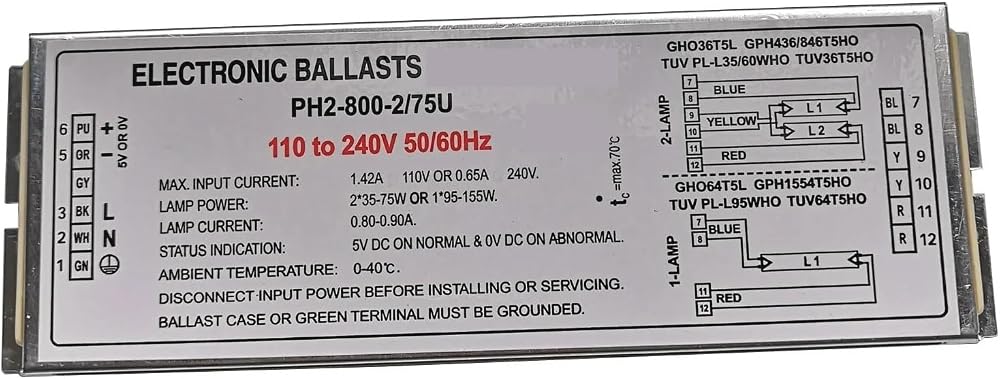

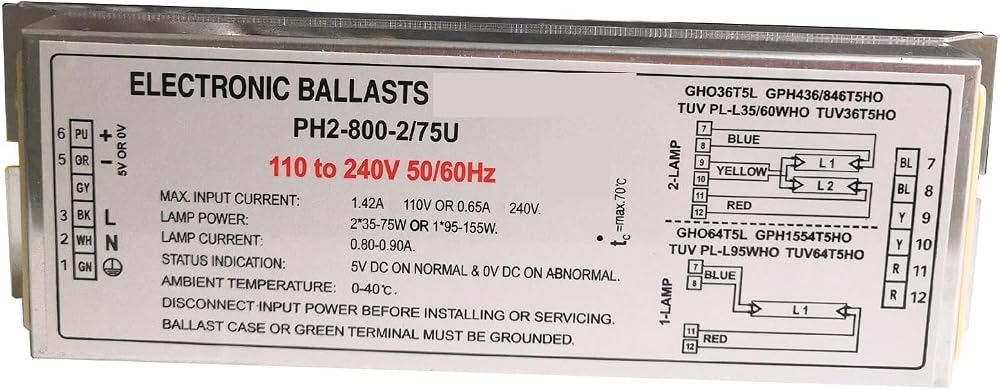

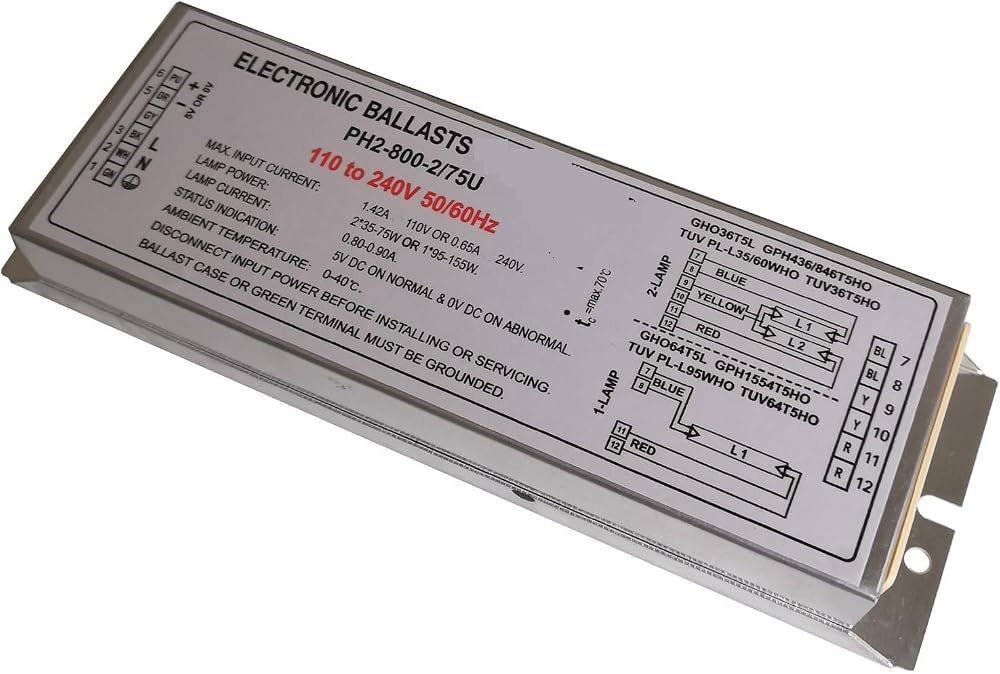

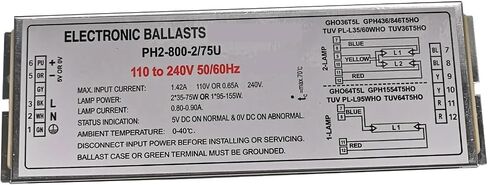

1. Model: PH2-800-2/75U

2. Lamp Power: 2X35-75W or 1X95-155W

3. Size: 198x64x29.9MM, WT:0.45Kg

4. PF>0.99

5. Ambient Temperature:0-40oC

6. Disconnect input power before installing or servicing, ballast case or green terminal must be grounded.

Features:

1. Max. Input Current: 0.65A, 230V

2. Voltage: 230V, 50/60Hz, Lamp Current: 0. 8-0.9A

3. Lamp Power: Both one lamp 95W-150W or two lamps 2X35W-75W

4. Status Indication: 5V DC on Normal& or DC on Abnormal

5 Lamp Type: GHO36T5L, GPH436/846T5HO, TUV PL-L35/60WHO, TUV36T5HO, GHO64T5L, GPH1554T5HO, TUV PL-L95WHO, TUV64T5HO
