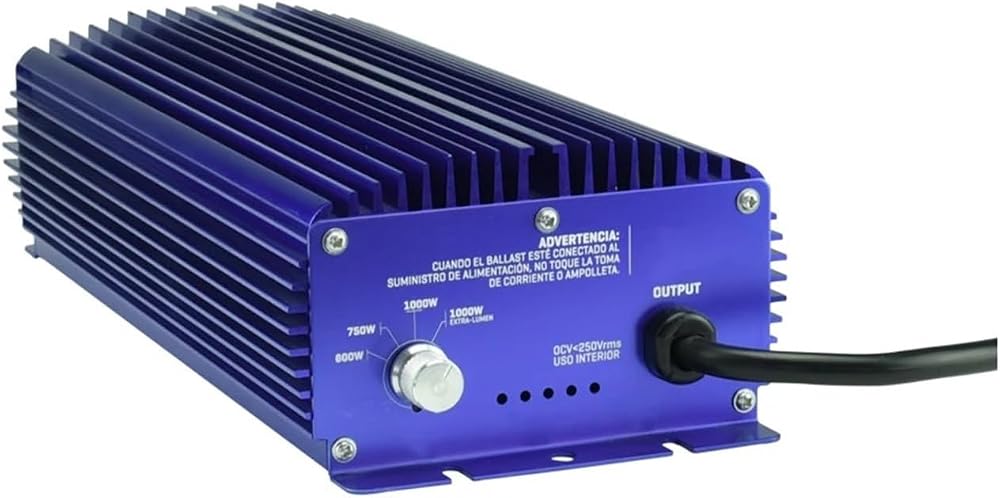

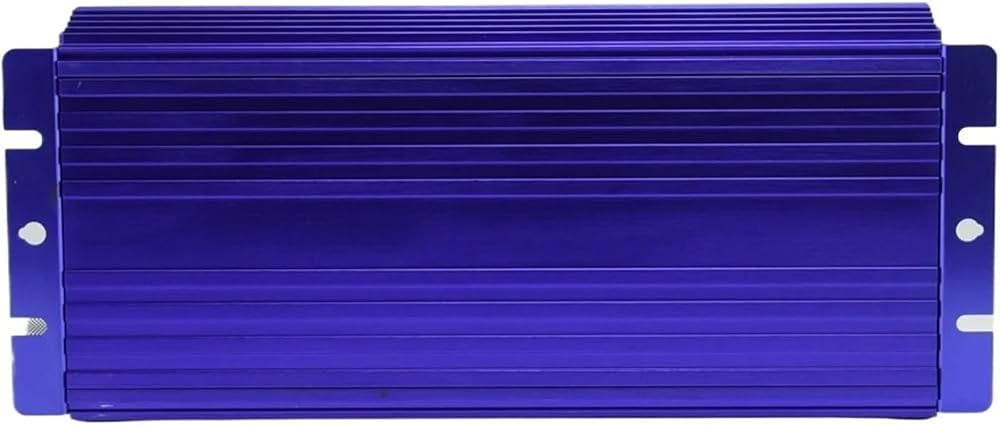

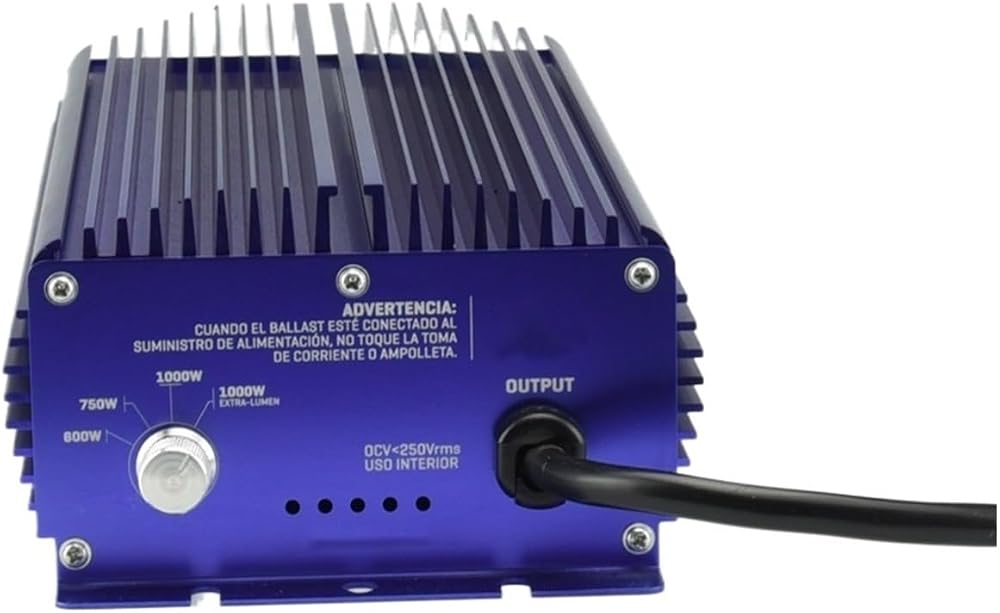

380v ballast 1000w for greenhouse application
Key Features of 1000W Electronic Ballast Dimmable
l - 208V/220V/230V/240V/277V/347V/380V sensing input, 50/60Hz
l - Easy installation, low profile, saving the space
l - Soft start and Random Start
l - Constantly output power when the voltage is fluctuating
l - Low Frequency Square Wave, fully compatible with 1000W lamps
l - Multi-protections: Open/Short circuit protection, High/Low voltage protection, Thermal protection, Hot-start protection
l - Prolong lifetime of lamp at least 10%
l - Energy saving up to 30%-50% compared with MAGNETIC BALLASTS
l - Running 10%-15% than other digital electronic ballasts in the market
l - 0.99 Power Factor, and less than 10% Total Harmonic Distortion
l - 6FT input power cord
Performance Description
Model
HLB-1000SW-220-380V
Rated Power
1000W
Input
Voltage Range
180Vac-400Vac
Rated Voltage
208/220/230/240/277/347/380Vac
Current
4.1A@240V | 3.8A@277V | 3.1A@347V | 2.8A@380V
Frequency
50~60Hz
Power
1060W±5%
Power Factor
0.99
THD
Output
Frequency Type
Low Frequency Square Wave
Frequency
100 Hz
Power
1000W±5%
Open Circuit Voltage
Ignition Voltage
3.5~5kV
Dimming Function
600W-630W-825W-1000W-1150W-AUTO
Required Lamp Voltage
200-250V
Efficiency(@240Vac)
>93%
Protection
Short Circuit
Yes
Open Circuit
Yes
Ignition Failure
Yes
End of Lamp Life(EOL)
Yes
Overheated
Yes
Soft-start
Yes
Over Voltage
Yes
Lamp
Lamp Type
1000W SE/DE HPS/MH/CMH lamps
Lamp Power
1000W
Lamp Voltage
200~250V
Physical Description
Dimension(L*W*H) mm
330x200x150
Net Weight
4.5kg(cord included)
Ventilation
No
IP30
Working Humidity
10%~90%
Operating Tempe
