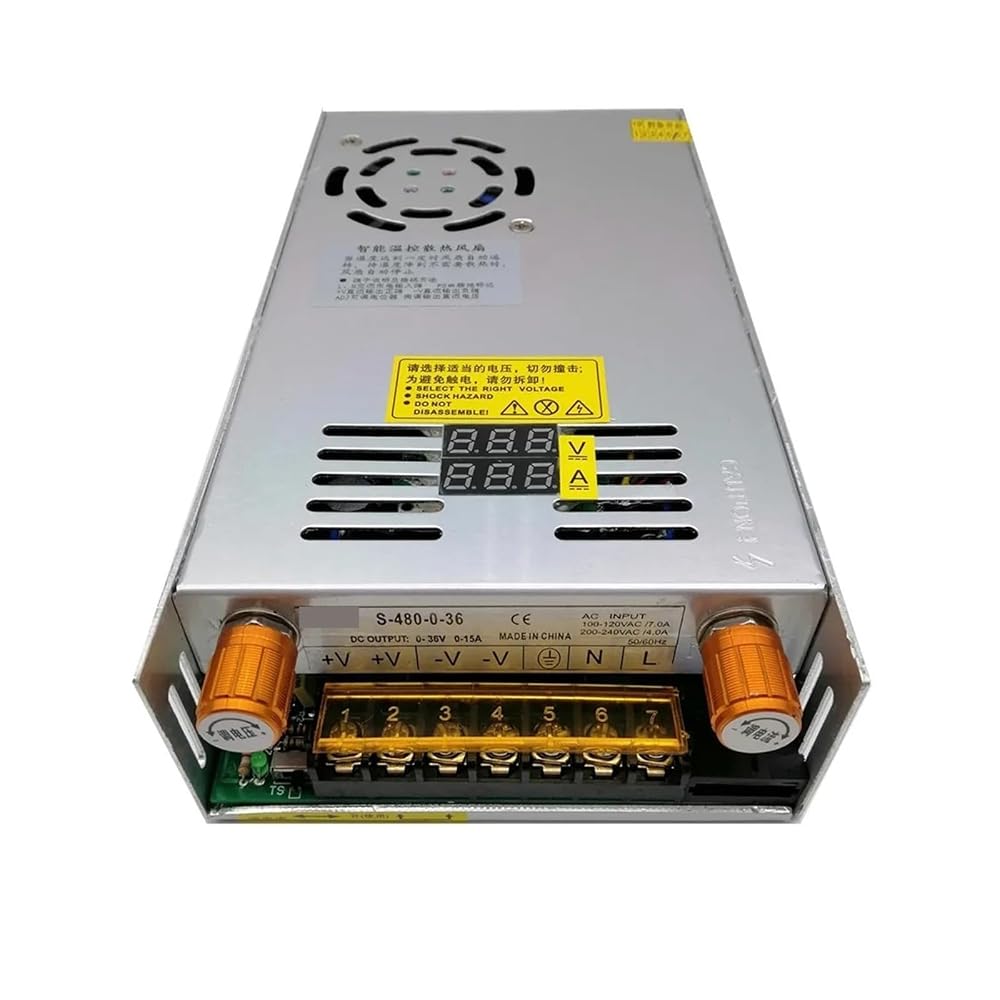

AC to DC Converter 12V 24V 36V 48V 60V 80V 120V 480W Digital Display Adjustable Switching Power Supply Adapter Transformer with Memory Function(0-80V 6A) in Kuwait

0-24V 20A Silver

KWD 25.500
ColorSilver
Size0-24V 20A
– 1 +

Special Features

  • 1. Our AC to DC Converter features an adjustable switching power supply with a wide output voltage range, including 12V, 24V, 36V, 48V, 60V, 80V, and 120V
  • 2. This adjustable switching power supply adapter provides exceptional current outputs, reaching up to 60A at 5V and up to 4A at 120V
  • 3. Equipped with short circuit and overload protection, this transformer guarantees safety during operation
  • 4. With a ripple voltage of no more than 100mV and excellent voltage adjustment rates, this adjustable switching power supply maintains stable output
  • 5. Measuring 21.5CM (length) x 11.5CM (width) x 5CM (height)

Description

1. Output voltage range: 0-- 5V continuously adjustable (adjustable to 8V), output current: 60A
Output voltage range: 0-12V continuously adjustable (adjustable to 15V), output current: 40A
Output voltage range: 0-24V continuously adjustable (adjustable to 27V), output current: 20A
Output voltage range: 0-36V continuously adjustable (adjustable to 38V), output current: 15A
Output voltage range: 0-48V continuously adjustable (adjustable to 50V), output current: 10A
Output voltage range: 0-60V continuously adjustable (adjustable to 62V), output current: 8A
Output voltage range: 0-80V continuously adjustable (adjustable to 81V), output current: 6A
Output voltage range: 0-120V continuously adjustable (adjustable to 121V), output current: 4A
Output voltage range: 0-220V continuously adjustable (adjustable to 222V), output current: 2.2A
2, Ripple voltage; no more than 100mV
3, The equivalent internal resistance of the regulator: not more than 0.O5
4, Voltage adjustment rate:
5, with short circuit, overload protection, automatic recovery function
Input voltage: AC
Rated power: 480W
Product size: 21.5CM (length) * 11.5CM (width) * 5CM (height),
Start surge current：20A@120VAC (cold start)
Output adjustment range：±100% (rated output voltage)
Overload protection：105%~200% (rated load), self-recovery
Overvoltage protection：115%~135% (rated output voltage)
Short circuit protection：self-recovery
Output start time：2S@120VAC 1.0S@230VAC
Output hold time：10mS@120VAC, 20mS@230VAC
Insulation strength：Input - Output: AC1500V, 1min
