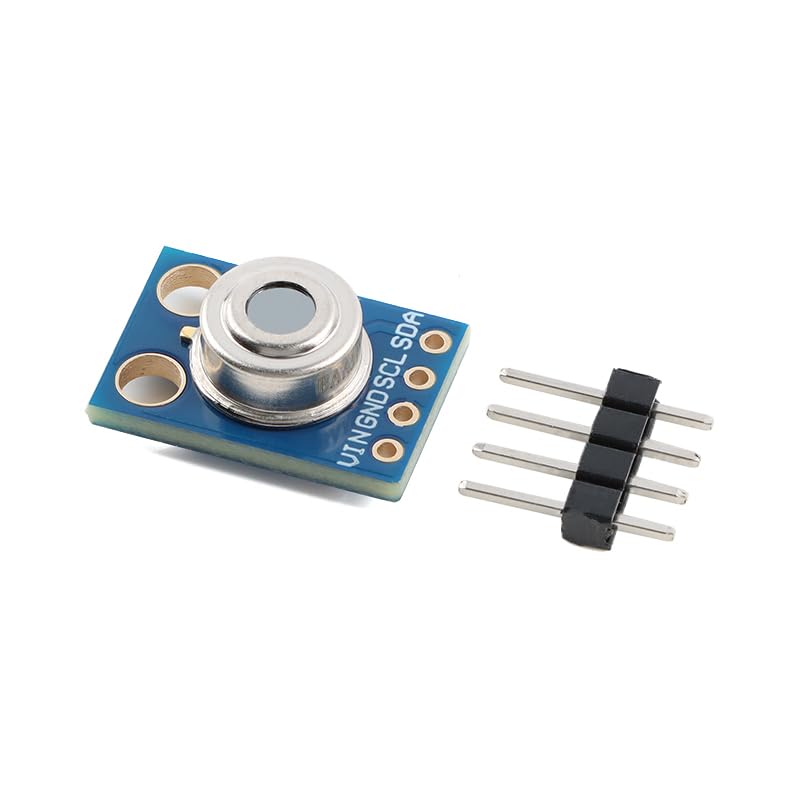

Product parameter
core chip: MLX90614ESF-BAA (new original, TO-39 metal package)
Operating voltage of : 3.0V-5.5V DC (compatible with 3.3V/5V logic level)
temperature range :
object temperature : -70°C to +380°C
Ambient temperature of : -40°C to +125°C
accuracy: ± 0.5°C (medical grade calibration at object temperature 0°C-50°C)
resolution : 0.02°C(17-bit ADC output)
communication interface : I²C (standard protocol, address default 0x5A)
for measuring distance of: ≤ 3cm (best accuracy range, BAA version)
response time of: power consumption :
Operating current: 1.5mA (typical)
Standby current: 2μA (sleep mode)
of viewing angle of: 35 ° (single-zone detection)
Working humidity : 10%-80% RH (non-condensing)

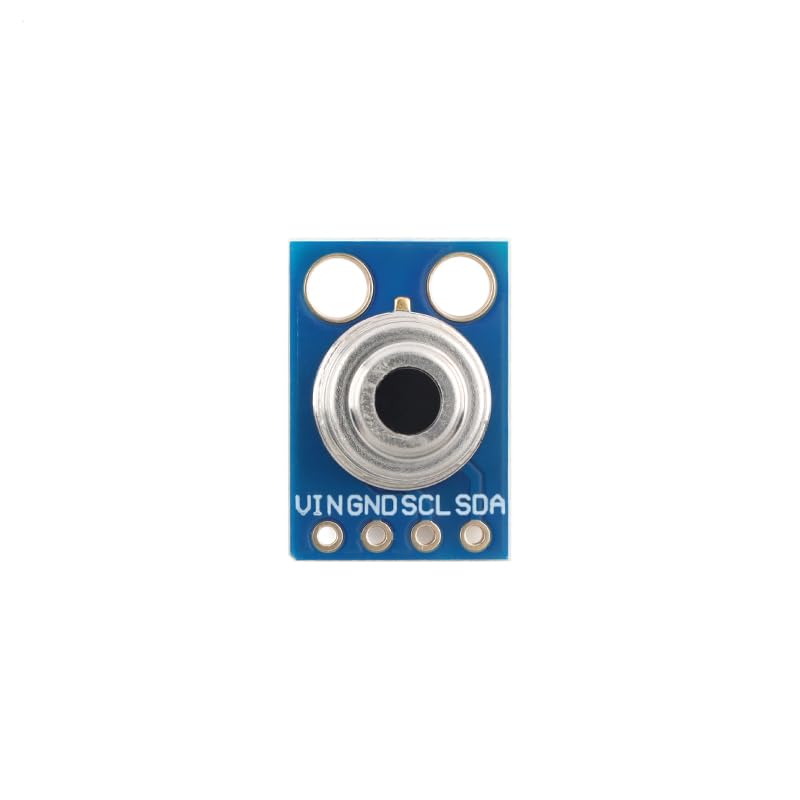

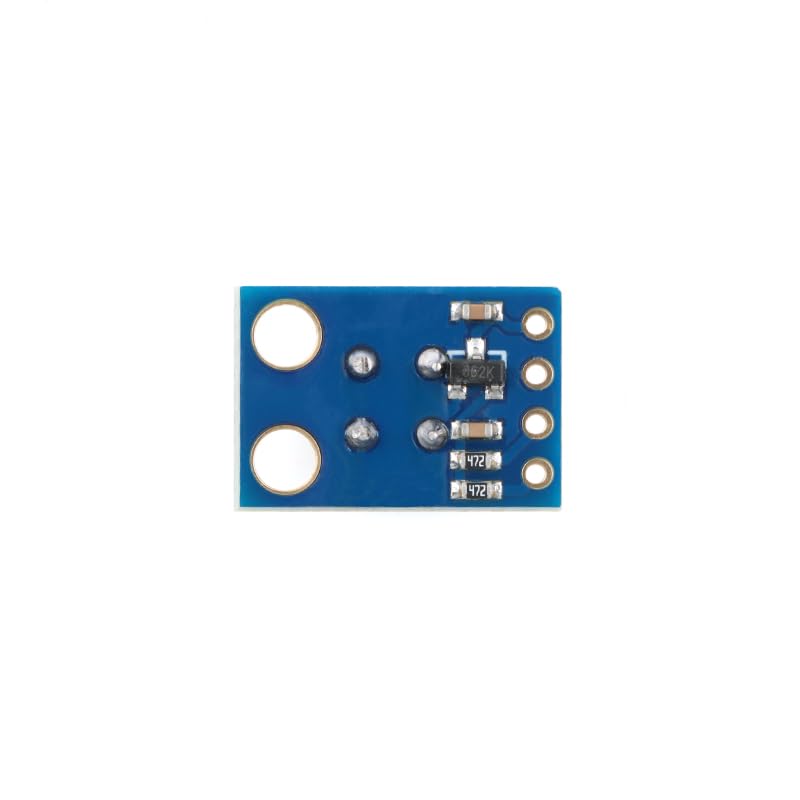

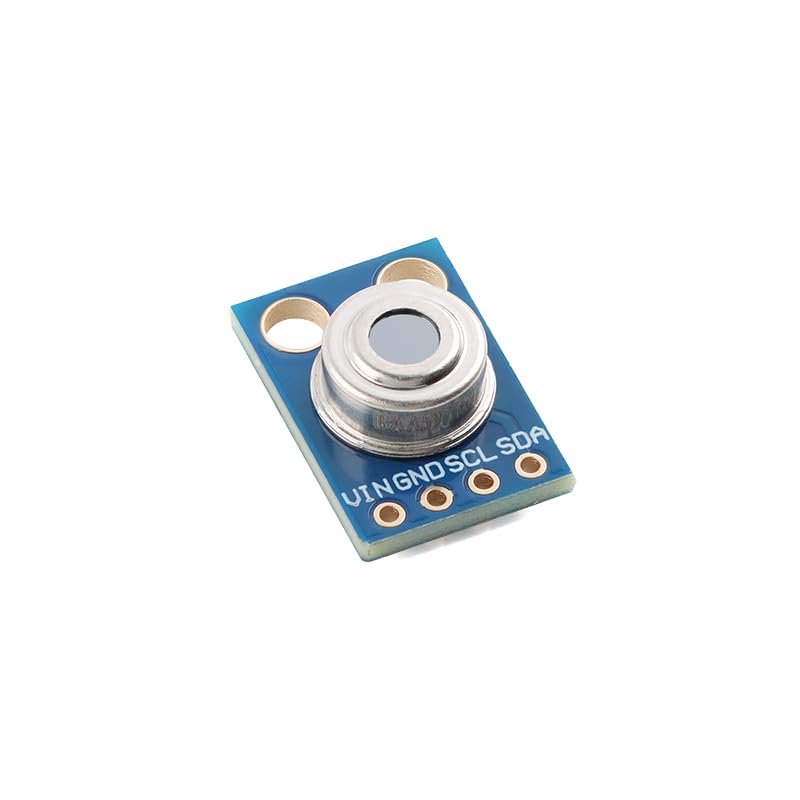

product main pin function
VIN: power input positive pole (3.0V-5.5V DC), external 100nF ceramic capacitor filter is required to prevent voltage fluctuation interference
GND: power ground, common ground with the main control system to reduce noise
SCL: I²C clock line (open drain output), external 4.7kΩ pull-up resistor to VIN, maximum bus length ≤ 30cm
SDA: I²C data line (open drain output), external 4.7kΩ pull-up resistor to VIN, support standard/fast mode (up to 400kHz)
PWM : temperature data PWM output pin (optional mode), duty cycle corresponding to temperature value (to configure register to enable)
ADR: I²C address select pin (floating = 0x5A; VIN = 0x5B) for multi-device bus expansion
