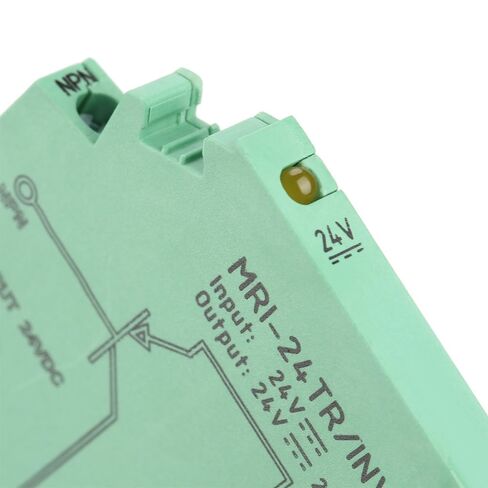

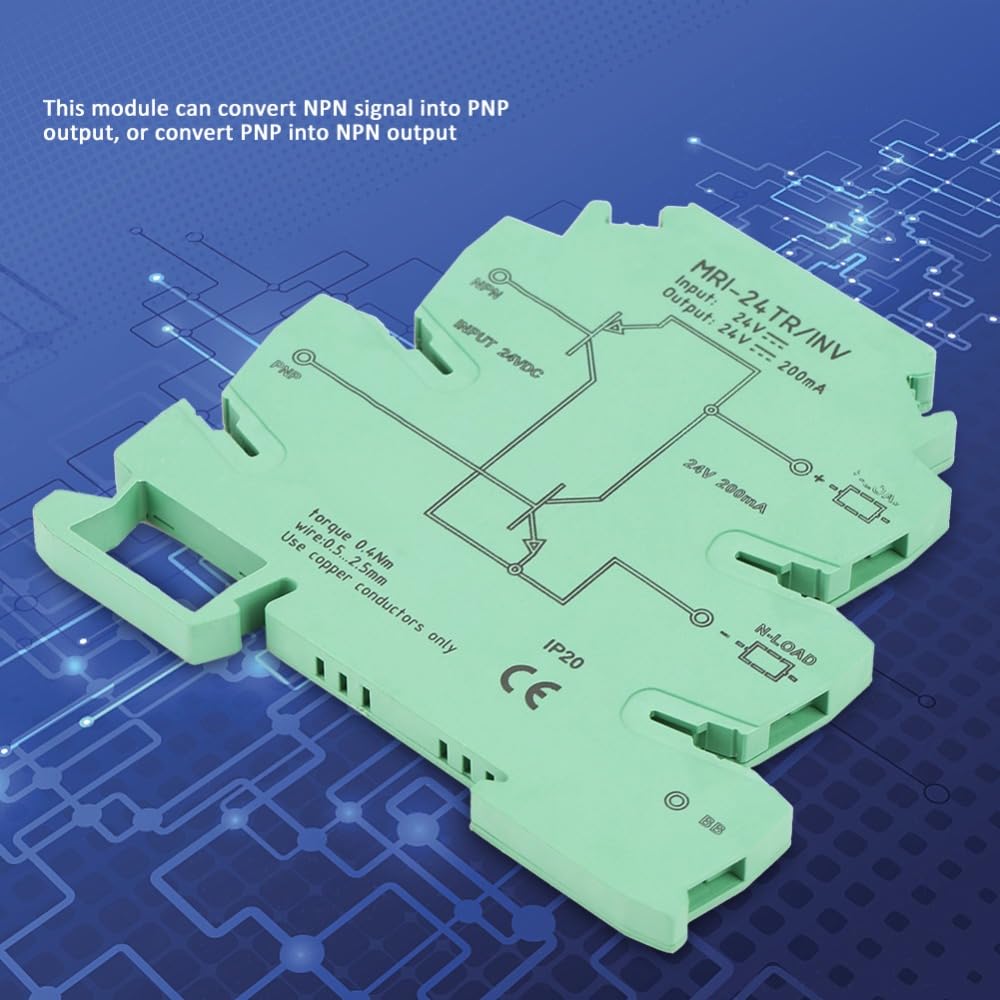

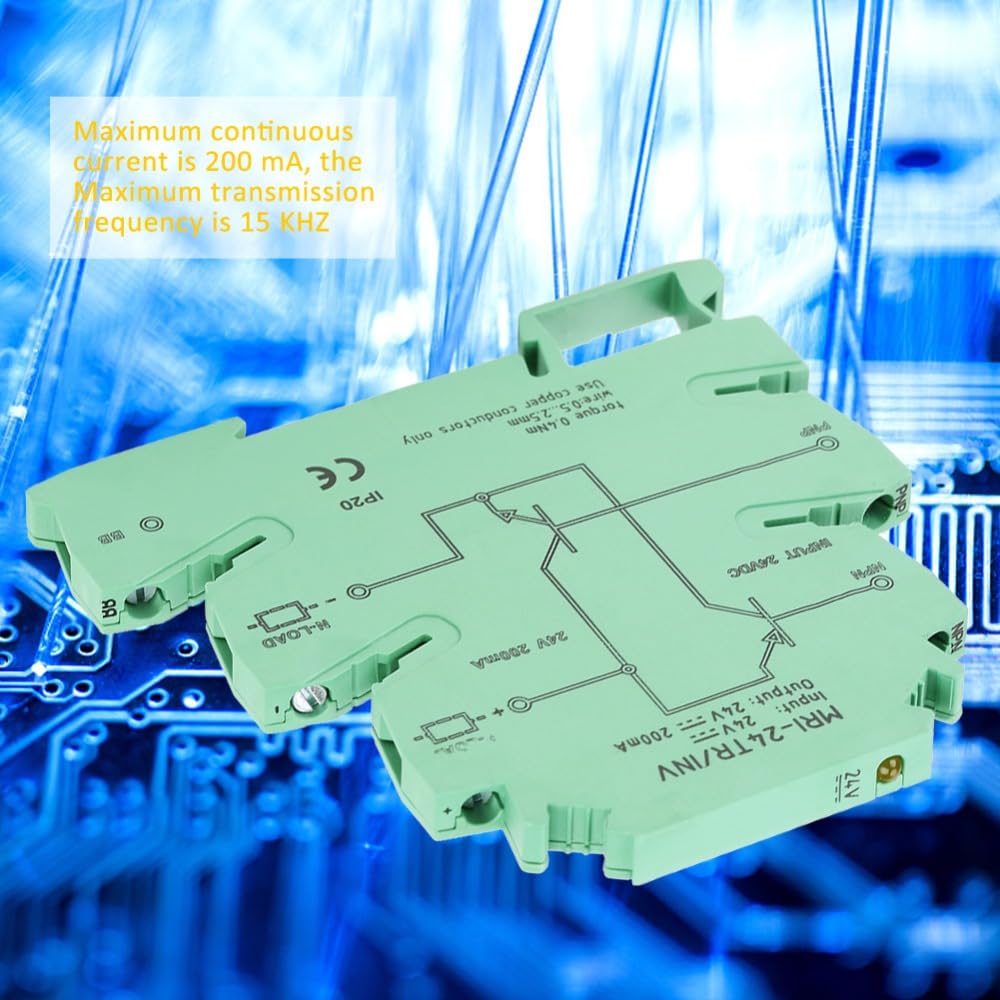

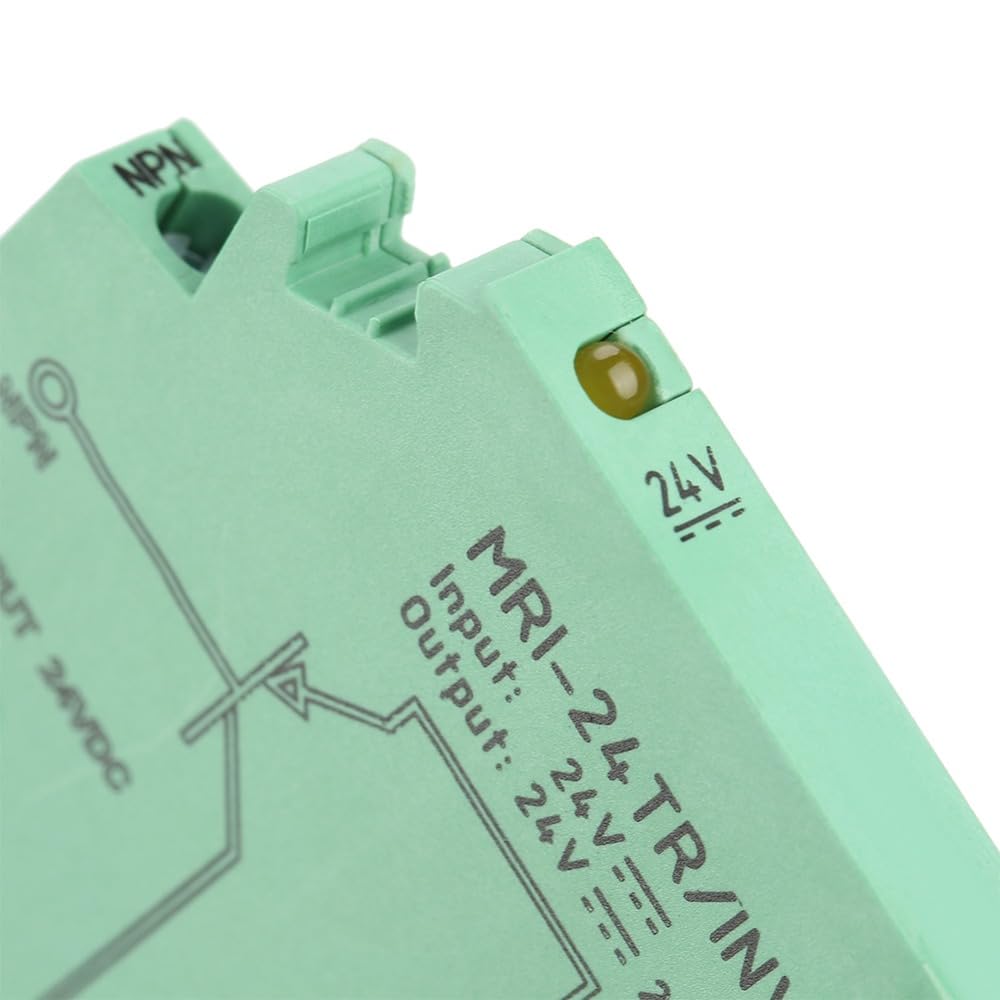

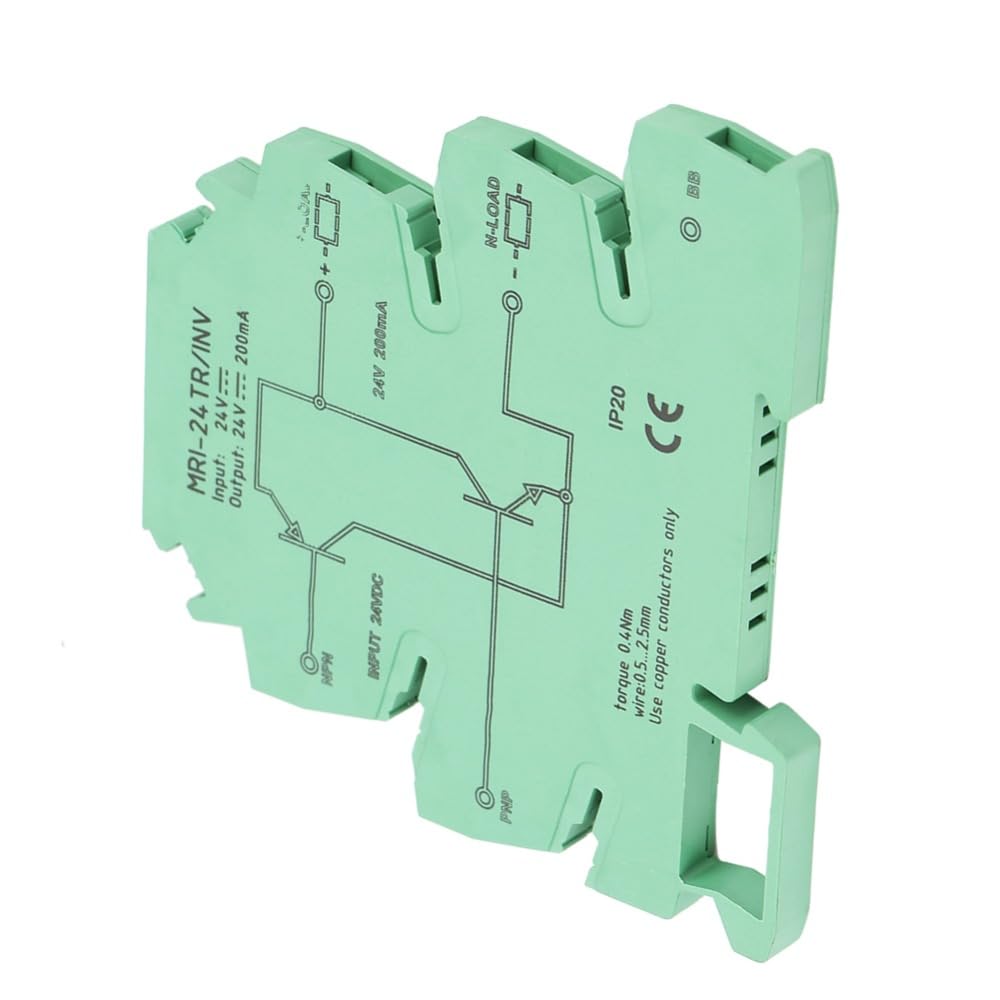

Designed for high-density control panel layouts, this compact module features a 6.2 mm narrow width DIN rail design. The plug-in bridging configuration allows quick installation on standard DIN rails. With maximum continuous current of 200 mA and transmission frequency of 15 kHz, it ensures reliable performance in industrial automation applications
Specification:
Electrical Features:
Maximum power consumption under rated conditions: 4.8 W
Power supply voltage range: 20VDC - 30VDC
Input:
Typical input current at Un: 200 mA
Transmission frequency: 15 kHz
Input (NPN):
Switching threshold "1" signal voltage:
Switching threshold "0" signal voltage: >15V (when U v=24V；>(U v-9V))
Minimum voltage input signal: -2 V
Maximum voltage input signal: 26V (when U v=24V；U v+2V)
Input (PNP):
Switching threshold "1" signal voltage: >19 V
Switching threshold "0" signal voltage:
Minimum voltage input signal: -2 V
Maximum voltage input signal: 26 V (when U v=24V； U v+2V)
Output:
Continuous load current: 200 mA
Leakage current:
Remaining voltage:
Transmission frequency: 15 kHz
Touch type: 1N/O touchs
Rated output voltage: Maximum ±26 V
General Parameters:
Connection method: Screw connection
Wire stripping length: 8 mm
Thread: M3
Solid wire cross-section: 0.2 mm²-4 mm²
Flexible wire cross-section: 0.2 mm²-2.5 mm²
Connectable wire cross-section (AWG): 24 -12

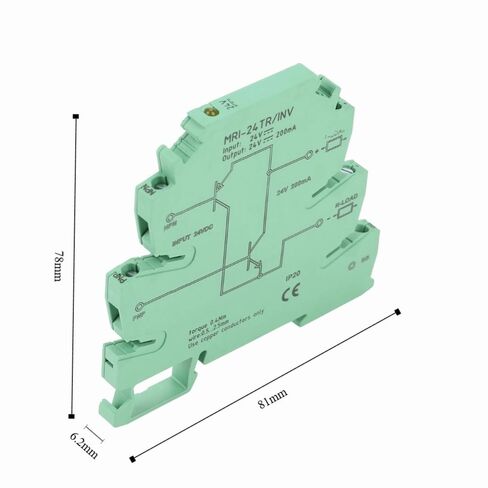

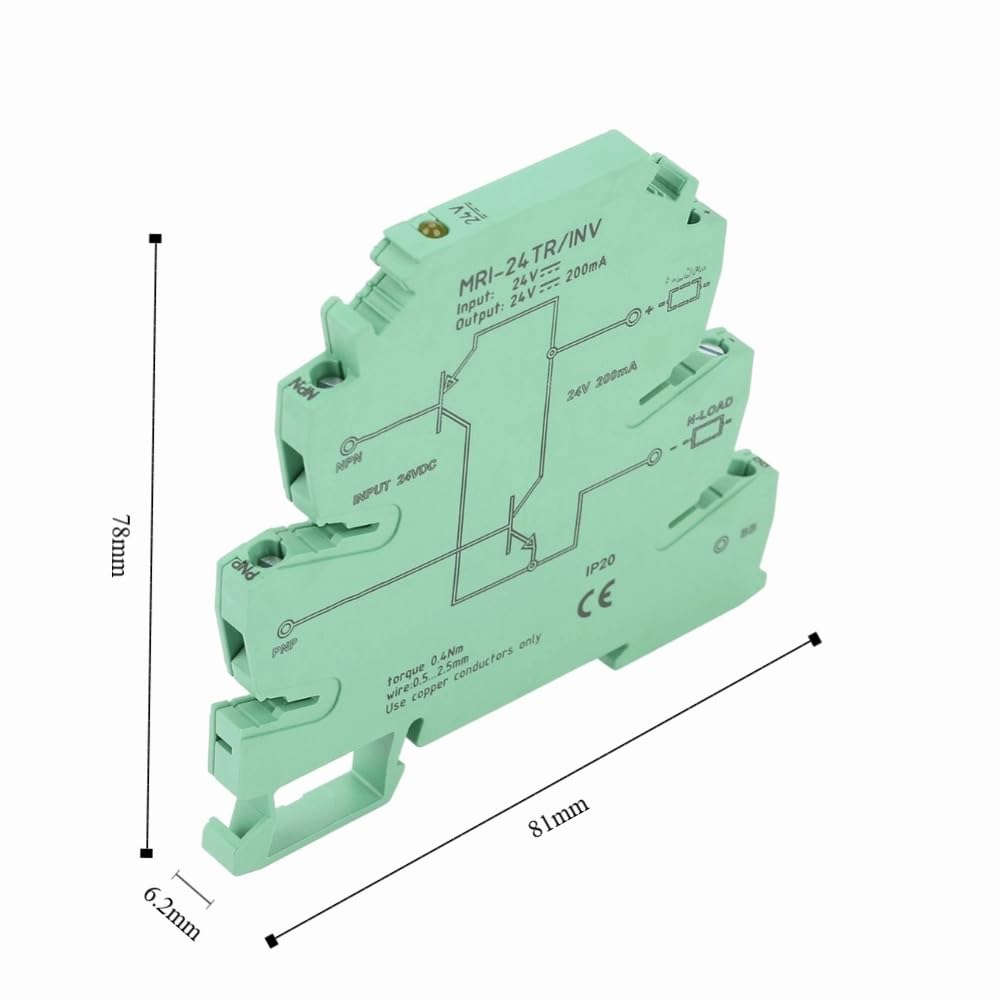

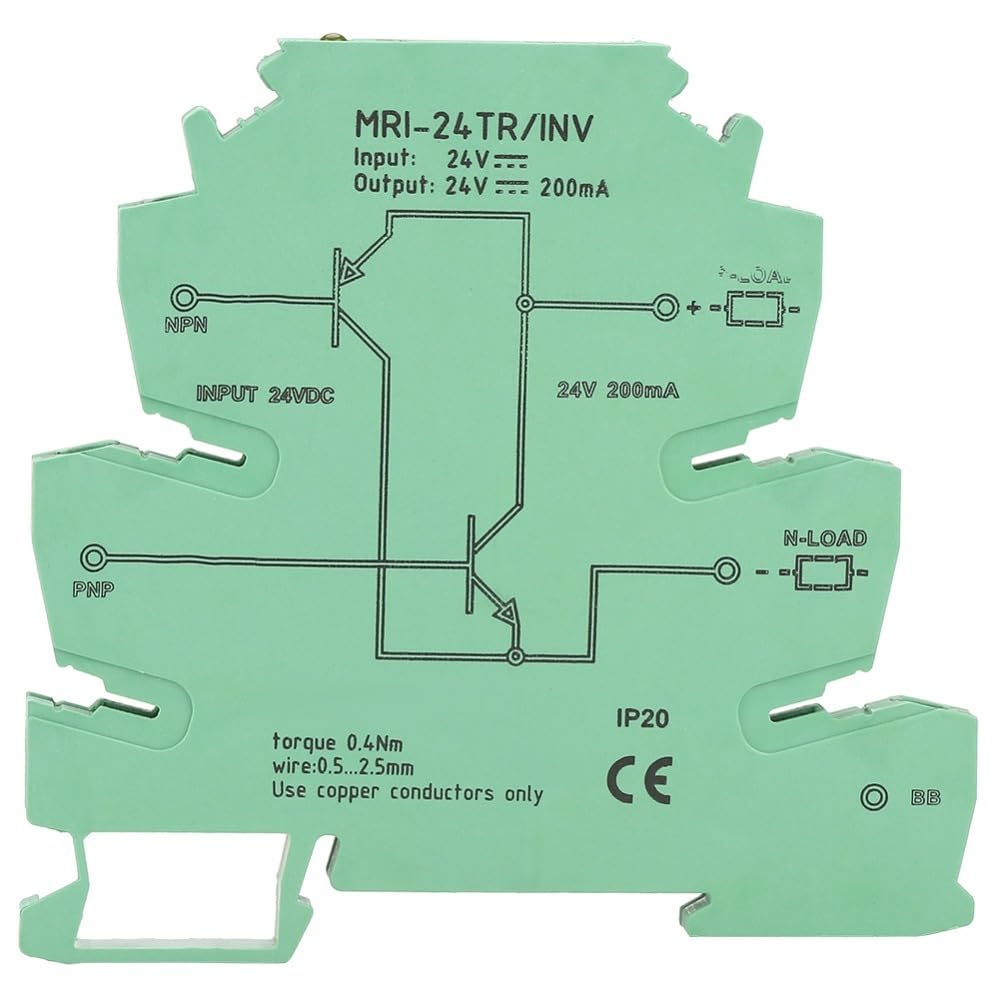

LengthWidthHeight: 78*6.2*81mm/3*0.24*3.19in
Color: Green
Ambient temperature: -20 °C -50 °C
Package List:
1 x NPN PNP signal converter
