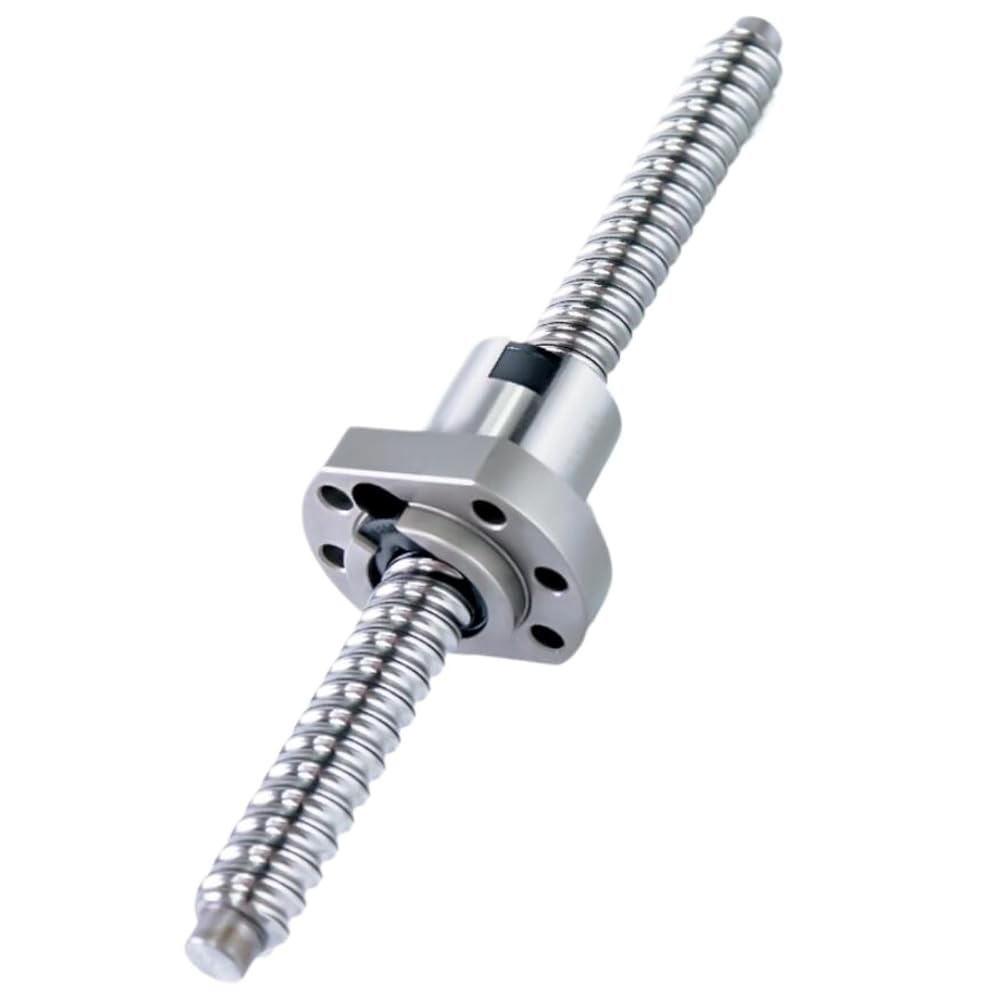

C5 BALL SCREW SFA1610 SET
Ball screws are used in aircraft and missiles to move control surfaces, especially for electric fly by wire, and in automobile power steering to translate rotary motion from an electric motor to axial motion of the steering rack. Because its small friction drag,They are also used in machine tools, robots and precision assembly equipment. High precision ball screws are used in steppers for semiconductor manufacturing.
Model No.: SFA1610 SET
Product Name: Ball Screw SFA1610 SET
Color: silver;
material:metal
Diameter: 16mm;
Optional Length: 250mm, 300mm, 350mm,360mm 400mm, 450mm, 500mm,550mm 600mm, 650mm, 700mm, 800mm,850mm,900mm, 1000mm,1050mm,1200mm,1500mm,1550mm,2000mm; (is the overall length, Including end machining part)
Package Content:
1 x Ballscrew End Machining;
1 x Ballnut ;
1 x BK12 Angular Contact(if need FK12/EK12 please mark);
1 x BF12(if need FF12/EF12 please mark) ;
1x courpling D25L30 8*10(other size please mark) ;
1x Nut housing ;
1x locking nut and 1 x locking spring.
Model Number : SFA1610
Guide Width or Diameter : 16mm
