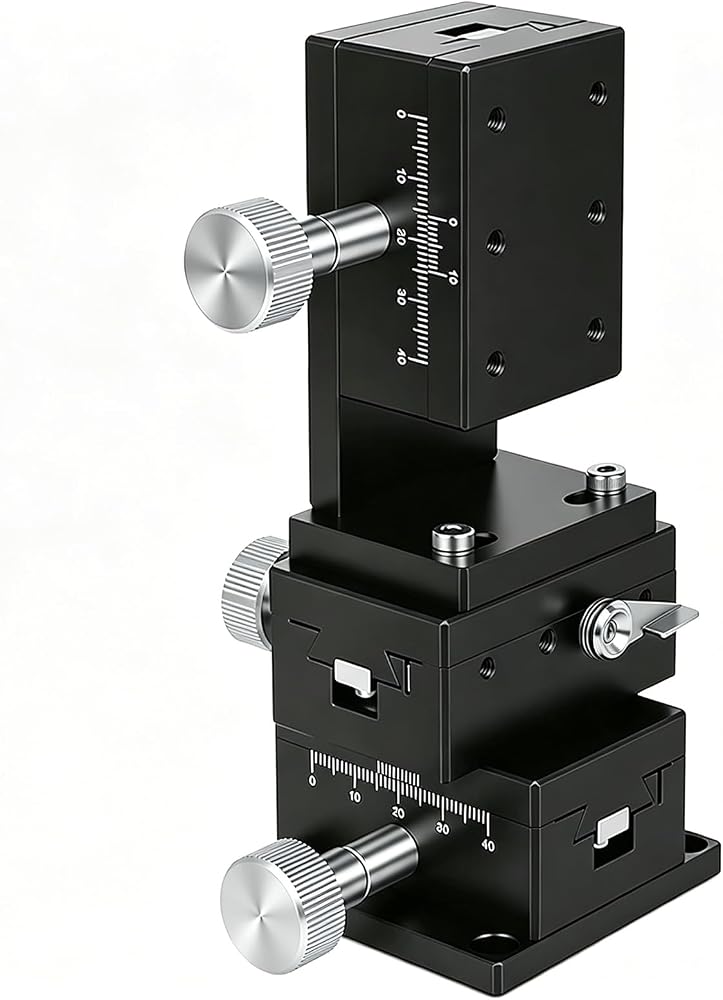

Name: المرحلة الخطية اليدوية لمحور Xyz، طاولة منزلق تحمل الميكرومتر الدقيق، أسطوانة متقاطعة للتشذيب الدقيق، الحد الأدنى للمقياس 0.1 مم، لقياس دقة المختبر البصري 40 * 60 مم
Brand: Vituord
Availability: InStock

مميزات خاصة

【Dovetail Guide】Vituord dovetail linear stage uses a precision dovetail groove guide, providing direct metal-to-metal contact for steady linear motion with minimal wobble – ensuring consistent positioning for optical alignment, sensor adjustment
【Clear 0.1mm Vernier Scale】Each axis features an engraved 0.1mm vernier scale, allowing you to set and repeat positions quickly without guesswork – ideal for applications where quick, reliable positioning is essential
【Sturdy Aluminum Construction】Machined from lightweight yet rigid aluminum alloy, this XY worktable supports up to 5kg horizontal load while maintaining stability
【Travel Ranges】Choose from ±10mm, ±15mm, or ±30mm travel options to match your workspace and application needs, with load capacities up to 49N (5kgf) for versatile use
【Versatile Mounting】Features multiple tapped holes on both top and bottom surfaces for flexible fixture attachment; integrated locking screws on each axis secure the stage after adjustment, preventing position drift during extended use

وصف

Achieve precise manual positioning with the Vituord Linear Stage. Designed for optical bench setups, inspection fixtures, and laboratory applications, this stage features a dovetail guide for smooth, stable linear motion with minimal play

Specifications:
Material: Aluminum alloy
Guide Type: Dovetail groove
Scale: 0.1mm vernier
Accuracy: 0.03mm (40*40/40*60mm), 0.04mm (40*90mm)
Parallelism: 0.03mm (40*40/40*60mm), 0.04mm (40*90mm)
Load Capacity: 29.4N (3kgf) for 40*40mm, 49N (5kgf) for 40*60/40*90mm

Package Includes:
1 x Vituord Dovetail Linear Stage
