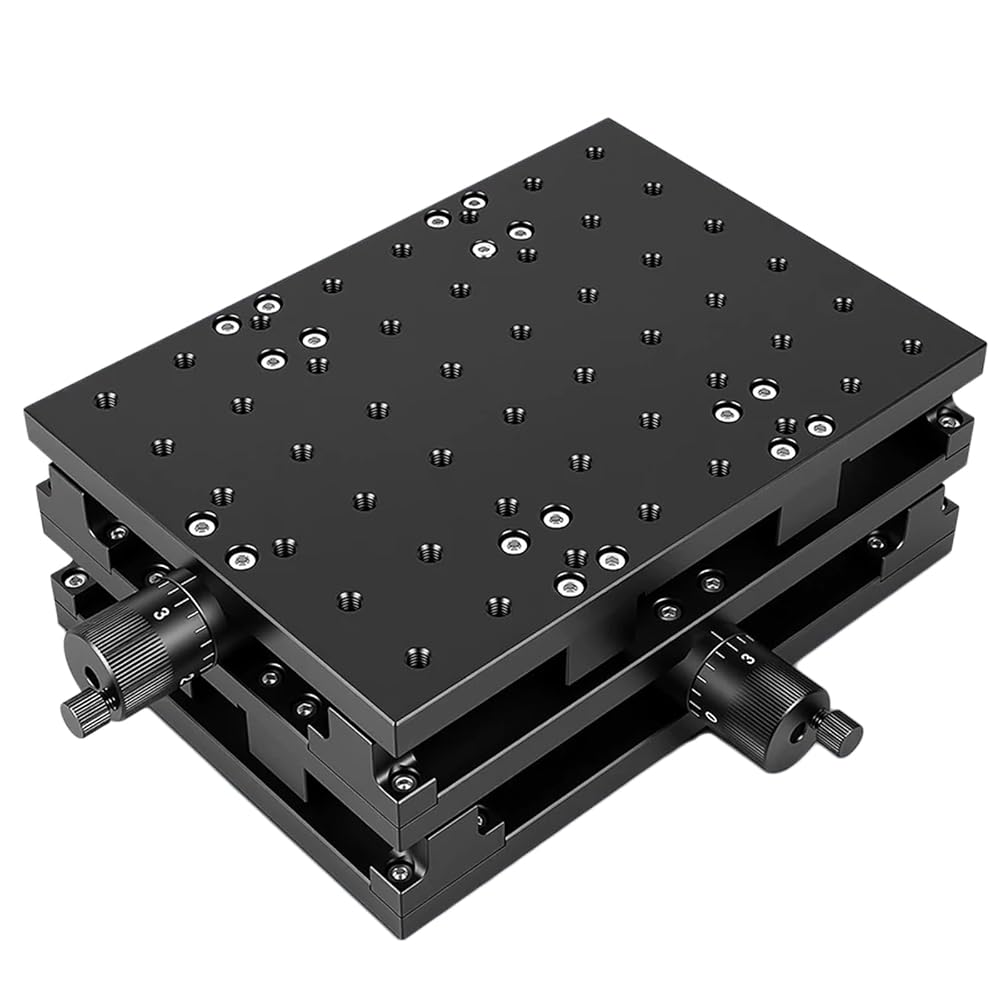

【XY Linear Motion Stage】Provides X axis travel 50–150mm and Y axis travel 80–90mm, designed for precise positioning of workpieces in alignment measurement and laboratory setups.
【Fine Manual Adjustment】Equipped with precision lead screw system and control knobs, supporting smooth micro movement with 0.01mm fine adjustment capability for accurate positioning.
【Heavy Duty Aluminum Build】Made from high strength aluminum alloy for durability and stability, supporting up to 20–30kg load with reduced vibration during operation.
【Secure Locking Mechanism】Built in axis locking screws help fix position after adjustment, preventing unwanted movement and improving repeatability during precise tasks.
【Flexible Mounting Design】Multiple threaded mounting holes on top and bottom surfaces allow easy integration with fixtures for lab industrial and optical system applications.
وصف
Specifications:
Name: Xy Axis Linear Stage
Material: Aluminum Alloy
Table size: 210 × 150 mm, 300 × 220 mm
X-axis travel: 50 mm (±25 mm), 150 mm (±75 mm)
Y-axis travel: 80 mm (±40 mm), 90 mm (±45 mm)
Horizontal load resistance: 20 kg, 30 kg
Minimum scale: 0.075 mm, 0.1 mm
Minimum displacement: 0.01 mm, 0.02 mm
Parallelism (±): 0.05 mm, 0.1 mm
Body weight: 3.8 kg, 7.7 kg
Driving method: screw + knob adjustment
Locking method: locking nut (independent for each axis)
Installation surface: Top/bottom multi-hole design
