مميزات خاصة

High Accuracy: Achieves a reading accuracy of 0.5% with minimal phase error, ensuring reliable measurements for various applications.
Versatile Output Options: Available in multiple models (D1.1, D1.2, D1.3) with output options including 5V AC rms, 5V DC, and 4-20mA to suit different monitoring needs.
Easy Installation: Designed for standard 35mm DIN rail mounting, making it simple to integrate into existing systems without complicated setups.
Wide Bandwidth: Supports a bandwidth range of 10Hz-20kHz (D1.1) and 20-2kHz (D1.2/D1.3), for a variety of measurement applications including power and harmonic monitoring.
Robust Operating Conditions: Operates effectively in temperatures ranging from -20℃ to 70℃, with a protection rating of IP20, making it suitable for industrial environments.

وصف

Parameter Values
Model: D1.1 / D1.2 / D1.3
Installation Method: Standard 35mm DIN rail mounting
Compatible Sensors: Y-FCT, FCT, NRC, Rogowski coils
D1.1 Rated Output: 5V AC rms
D1.2 Rated Output: 5V DC (true-rms)
D1.3 Rated Output: 4-20mA
D1.1 Maximum Output (Overload): 10V AC rms
D1.2 Maximum Output (Overload): 5V DC
D1.3 Maximum Output (Overload): 25mA
Output Ripple Factor: 0.5% (Default 5%)
Instantaneous Response Time: ≤1μs; Default 100ms (Adjustable)
D1.1/D1.2 Power Consumption: 150mW
D1.3 Power Consumption: 200mW
D1.1 Bandwidth 10Hz-20kHz
D1.2/D1.3 Bandwidth 20-2kHz
Rated Input Current 100A, 600A, 1000A, 3000A, 6000A
Reading Accuracy 0.5%, 1% (≥10A)-200% F.S.@25℃
Phase Error ≤0.5°
Linearity ±0.2% (1%-200%)
Minimum Measuring Current 1A (Ripple 100mA)
Zero Drift (OA Output) ≤2mV
Temperature Drift 200ppm/℃
Weight 60g
Dimensions 906118mm
Power Supply 12V or 24V (Default 24V)
Operating Temperature -20℃-70℃
Storage Temperature -30℃-90℃
Relative Humidity Maximum 80%, Non-condensing
Protection Rating IP20
Core Advantages: 0.5% Accuracy, Easy Rail Installation, Wide Bandwidth 30-5kHz, zero drift as low as 2mV. Applications: Measuring devices, laboratory instruments, power monitoring, harmonic monitoring, welding machine control, high current measurement, PLC control systems.

مرحبًا،

بحث

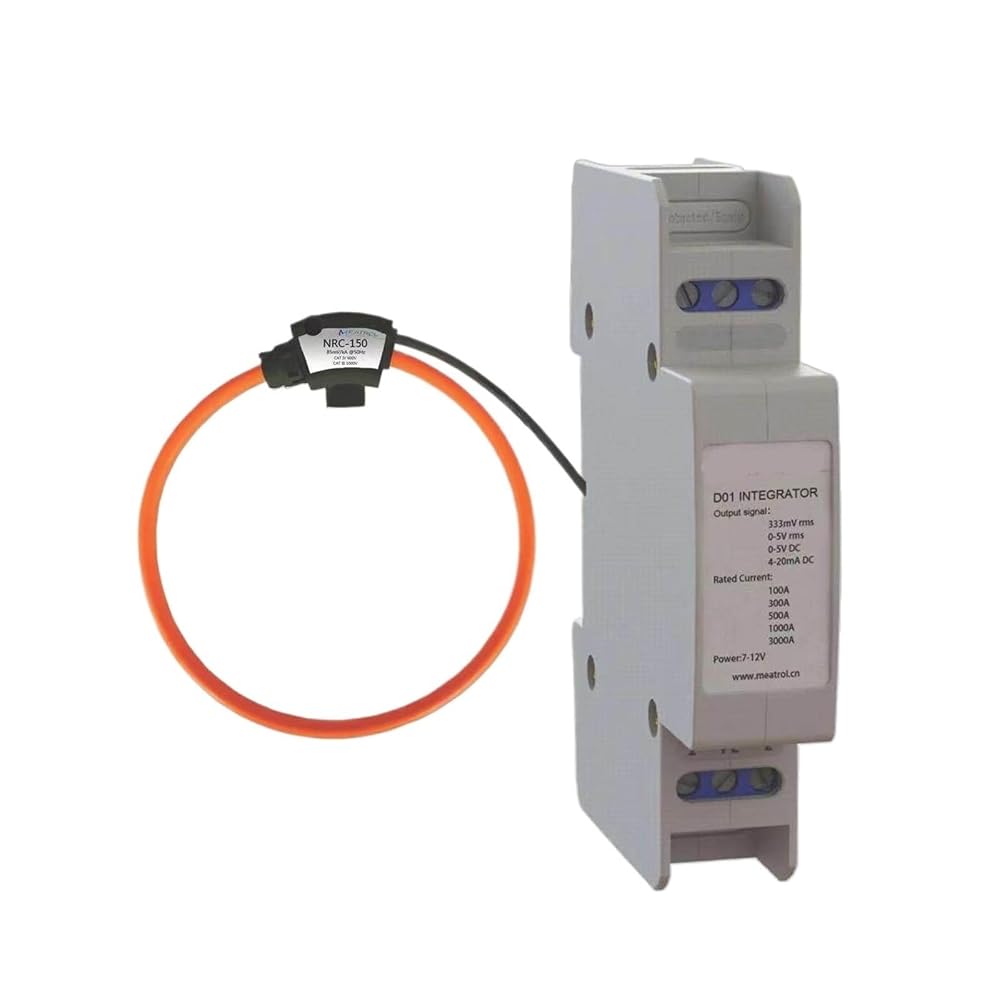

محلل جودة الطاقة، D1 مخصص للدمج الصناعي لمحول التيار الحالي مضخم إشارة ملف روجوفسكي (D1-3(4-20mA))
