محلل جودة الطاقة، جهاز متكامل مخصص لآلة اللحام، التردد المتوسط ​​وملف الطاقة Rogowski، تيار النبض in Kuwait محلل جودة الطاقة، جهاز متكامل مخصص لآلة اللحام، التردد المتوسط ​​وملف الطاقة Rogowski، تيار النبض in Kuwait

محلل جودة الطاقة، جهاز متكامل مخصص لآلة اللحام، التردد المتوسط ​​وملف الطاقة Rogowski، تيار النبض

KWD 162
– 1 +

مميزات خاصة

  • Designed for pulse welding current measurement in medium-frequency and power-frequency welding machines.
  • Outputs customizable 0-10VDC signal, compatible with various Roche coils for versatile applications.
  • Features a measurement bandwidth of 50Hz-10kHz and an accuracy of 2% for precise monitoring.
  • Low zero drift of as little as 10mV ensures reliable performance in critical measurement scenarios.
  • Compact dimensions (90 x 90 x 29 mm) with a mounting base (72 x 17 mm) for easy installation in various setups.

وصف

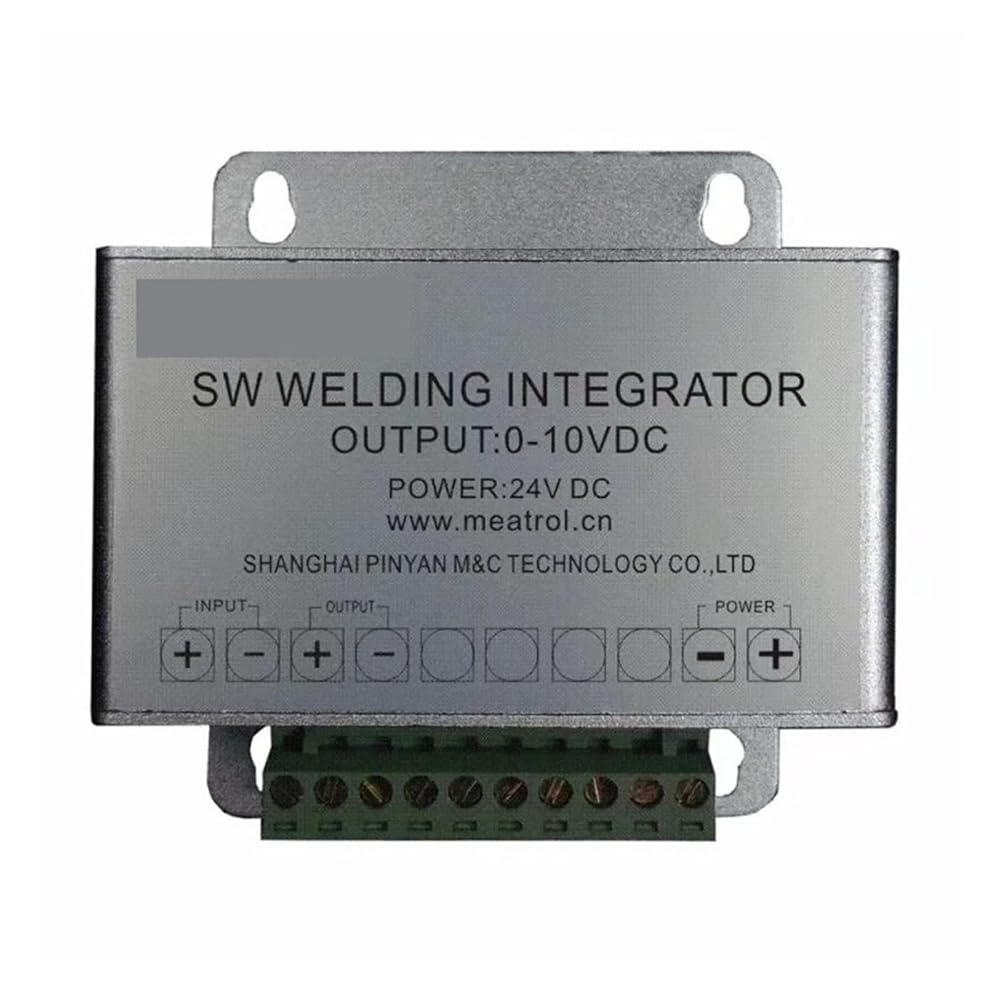

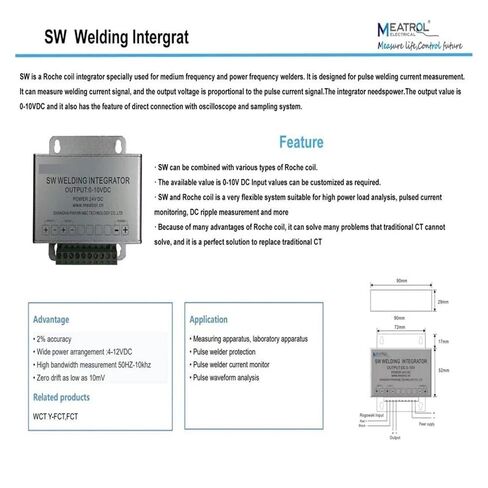

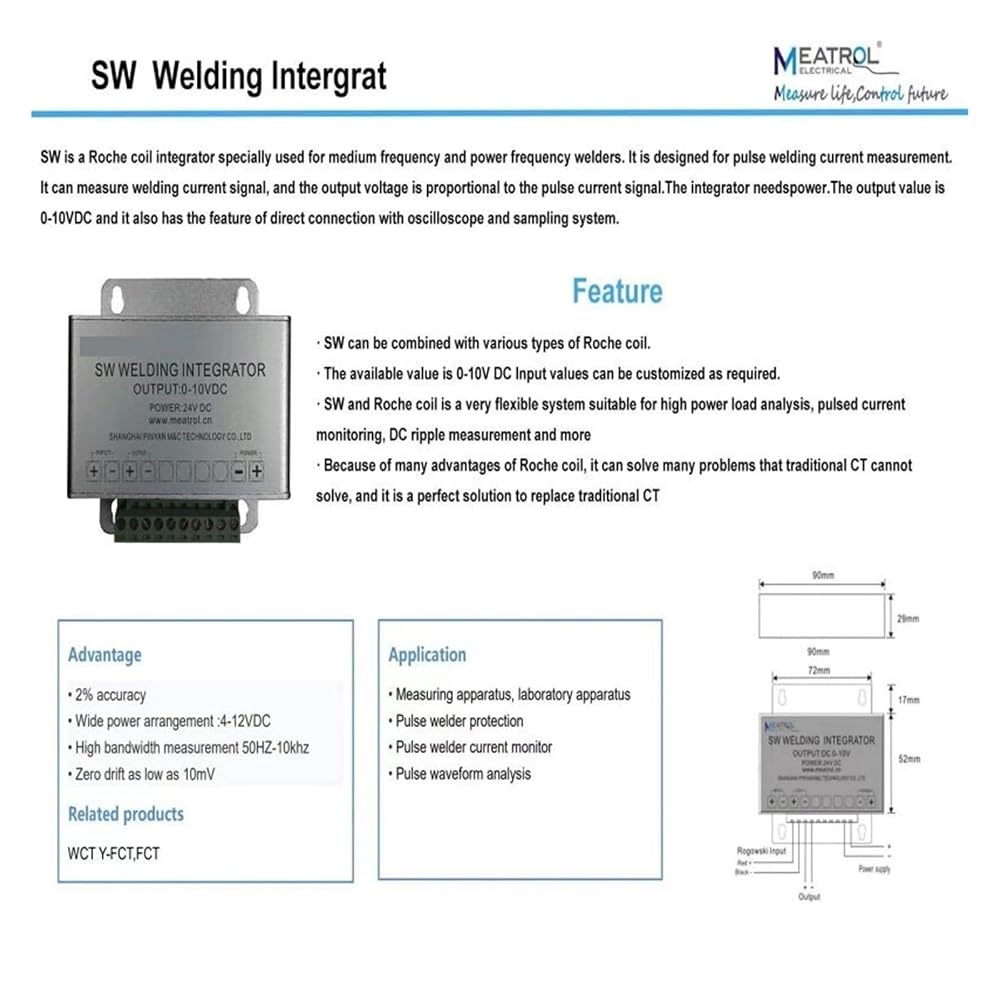

Product Name: SW WELDING INTEGRAT (Roche Coil Integrator for Welding)
Application Scenarios: Pulse welding current measurement for medium-frequency and power-frequency welding machines
Output Signal: 0-10VDC (customizable)
Power Supply Voltage: 4-12VDC, standard 24VDC
Measurement Bandwidth: 50Hz-10kHz
Measurement Accuracy: 2%
Zero Drift: As low as 10mV
Compatible Sensors: Various Roche coils
System Features: Can be directly connected to oscilloscopes and sampling systems
Applicable Measurement Scenarios: High-power load analysis, pulse current monitoring, DC ripple measurement
Product Advantages: Solves scenarios that traditional CTs cannot measure; can replace traditional CTs
Dimensions: 90 x 90 x 29 mm; Mounting Base: 72 x 17 mm
Application Areas: Measuring instruments, laboratory equipment; pulse welding machine protection, current monitoring, pulse waveform analysis
Supporting Products: WCT, Y-FCT, FCT series Roche coils
