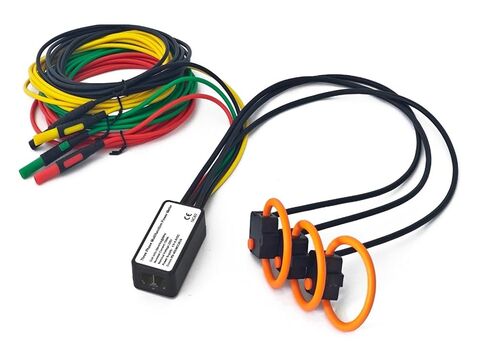

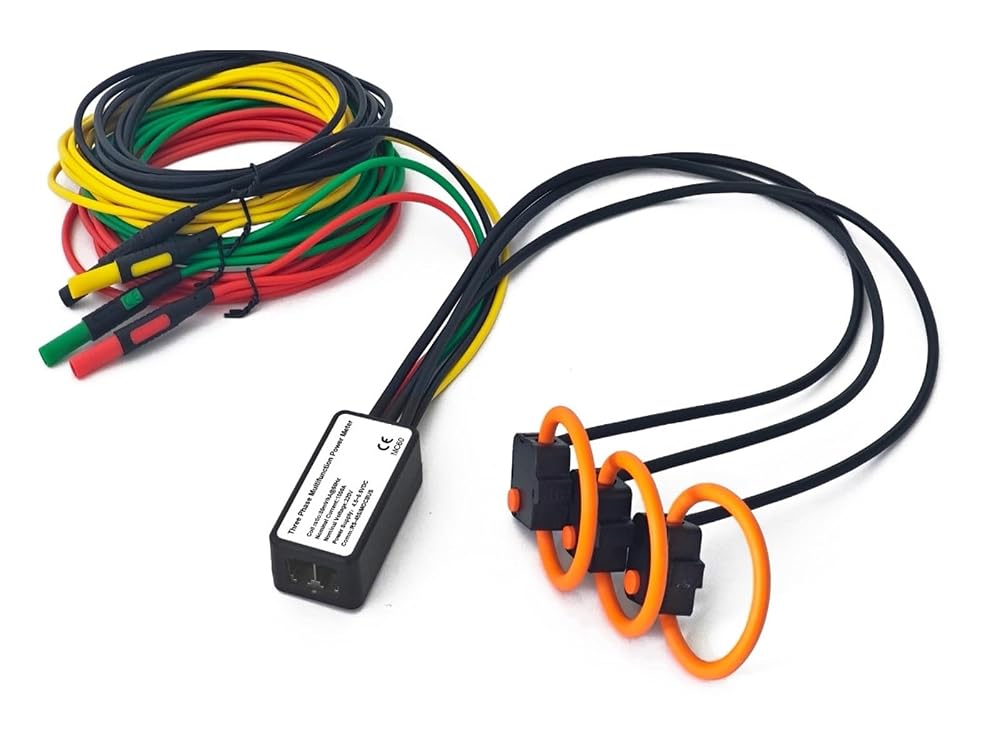

Model: MC60
Type: Multi-channel power monitoring module
Current sensor type: Voltage output current transformer, Rogowski coil
Product features: Integrated transformer and meter design
Core advantages: Wide current range, wire-free measurement
Supported wiring: 3P4W_3CT, 3P3W_3CT, 3P3W_2CT, 1P3W, 1P2W
Application areas: Power analysis, energy consumption monitoring
Display screen: None
Weight: 59g
Dimensions: 7.5 x 3.7 x 2.4 cm
Color: Black
Current channel input voltage: 0-900mVAC peak, 636mV RMS
Rogowski coil: -50mV/kA 50Hz (0-12000A), 60Hz (0-10000A)
Rogowski coil: -85mV/kA 50Hz (0-7000A), 60Hz (0-6000A)
Rogowski coil: -100mV/kA 50Hz (0-6000A), 60Hz (0-5000A)
Voltage type CT measurement range: 0~99999A
Voltage measurement range: 0-600VAC
Maximum voltage measurement value: 720VAC
RS485 communication: Two-wire half-duplex, 2400-38400bps, Modbus-RTU
Power supply: 5VDC
Maximum power consumption: ≤3.5VA
Current measurement accuracy: 0.1%
Voltage measurement accuracy: ±0.2% (60V-600V AC)
Frequency measurement accuracy: ±0.01% (45-65Hz)
Power factor accuracy: ±0.005
Active/apparent power accuracy: IEC62053-22 0.5S class
Reactive power accuracy: IEC62053-21 1S class
Active energy accuracy: IEC62053-22 0.5S class
Reactive energy accuracy IEC62053-21 Class 1S
Operating Temperature: -25℃~+70℃
Storage Temperature: -40℃~+85℃
Operating Humidity: 5-95% RH@50℃ (non-condensing)
Pollution Degree: 2
Overvoltage Category: Class III, suitable for 277/480VAC power distribution systems
Insulation Strength: IEC61010-1
Maximum Applicable Altitude: 3000m
Protection Rating: IP20 (IEC 60629)
Warranty Period: 12 months
EMC Electrostatic Discharge Immunity: Class IV (IEC61000-4-2)
EMC Radiated Immunity: Class III (IEC61000-4-3)
EMC Fast Transient/Surge Immunity: Class IV (IEC61000-4-4/5)
EMC Conducted Immunity: Class III (IEC61000-4-6)
EMC Power Frequency Magnetic Field Immunity 0.5mT (IEC61000-4-8)
EMC Conducted and Radiated Emissions Class B (EN55022)
Complies with standards EN62052-11, EN61010 series, etc.
Instantaneous Value Measurement: Phase voltage/line voltage, current, frequency, power factor, fundamental power factor, active/reactive/apparent power
Energy Measurement: Positive/negative active power, positive/negative reactive power, apparent power, rate energy
Harmonic Measurement: Total harmonics of voltage/current, odd and even harmonics, 1st-50th harmonics, K-factor
Phase Measurement: Phase sequence, voltage/current phase angle, voltage/current phase angle
Unbalance Measurement: Negative sequence voltage/current, zero sequence unbalance
Maximum and Minimum Value Measurement: Maximum and minimum voltage/current/power
Demand Measurement: Total active/reactive/apparent power demand, maximum demand and time
