I. Product Overview

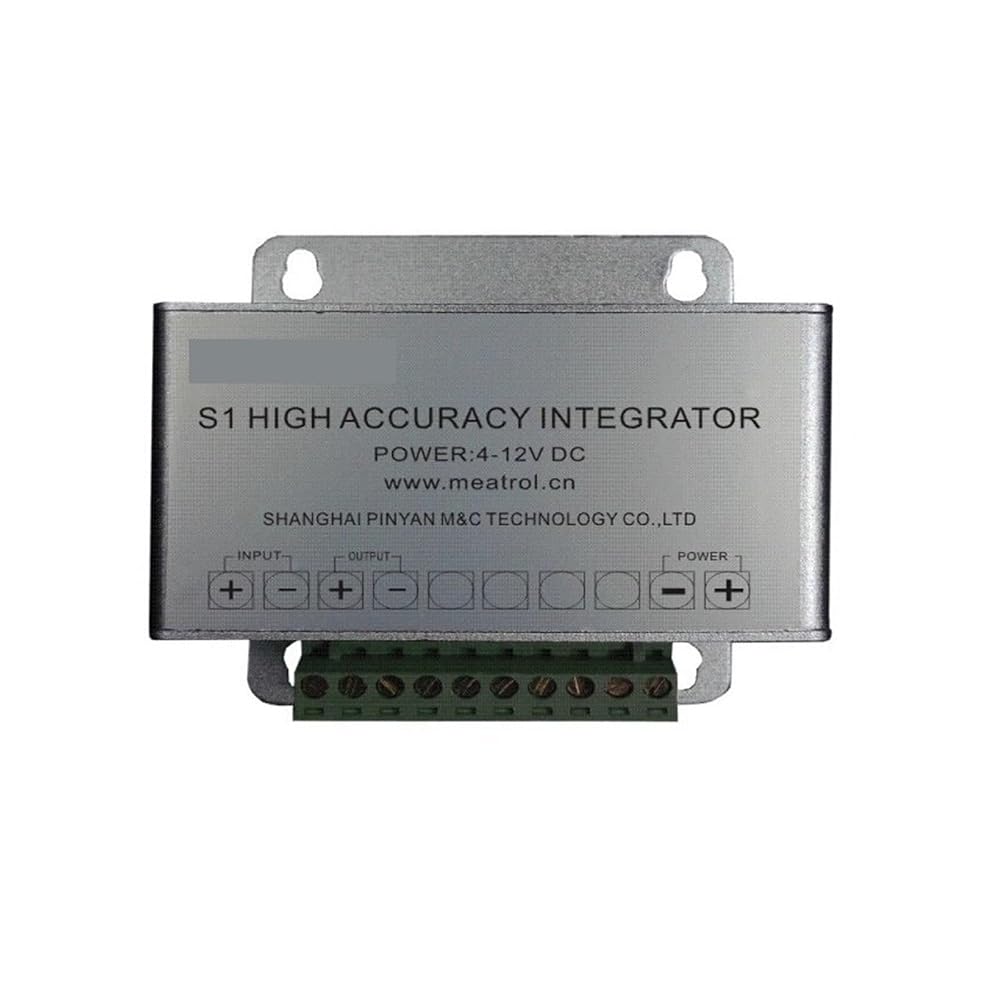

The S1 is a high-precision Rogowski coil integrator with a precision-shielded aluminum alloy housing. It features a built-in low-ripple DC power supply module and is compatible with any type and size of Y-FCT/FCT Rogowski coil. It is a replacement for traditional CTs and is suitable for high-power load analysis, pulsed current monitoring, DC ripple measurement, and other applications.

II. Core Advantages
Reading Accuracy: 0.2%
Wide Power Supply: 4-12VDC or 24VDC
Measurement Bandwidth: 5Hz-20kHz
Zero Drift as low as: 1.5mV

III. Model Detailed Parameters
Table Parameter Item S1.1 S1.2 S1.3
Rated Output 5V AC rms 5V DC (true-rms) 4-20mA
Maximum Output (Overload) 10V AC rms 10V DC 25mA
Output Ripple Factor 0.2% Default 5% —
Response Time ≤1μs Default 100ms (Adjustable) —
Power Consumption 150mW 200mW —
Rated Input 600A/3000A/10000A…100kA 600A/3000A/10000A…100kA 600A/3000A/10000A…100kA
Reading Accuracy: 0.2%, 1%–200% F.S. @ 25℃
Phase Error: ≤0.5°
Linearity: ±0.2% Reading (1%–200% range)
Bandwidth: 5Hz–50kHz (-3dB)
Minimum Measuring Current: 500mA (100mA ripple) 500mA (Ripple 100mA)
0A Output (Zero Drift) ≤1.5mV ≤1.5mV ≤1.5mV

IV. Physical and Environmental Specifications
Table Item Parameter Overall Dimensions 869029mm Weight 155g Power Supply 4-12V DC or 24V DC (4-12V is optimal by default) Temperature Drift 200ppm/℃ Operating Temperature -20℃~70℃ Storage Temperature -30℃~90℃ Relative Humidity Maximum 80%, non-condensing Protection Rating IP20

V. Application Areas Measuring devices, laboratory instruments Power monitoring systems Harmonic and transient monitoring DC ripple measurement Welding machine control High current measurement
