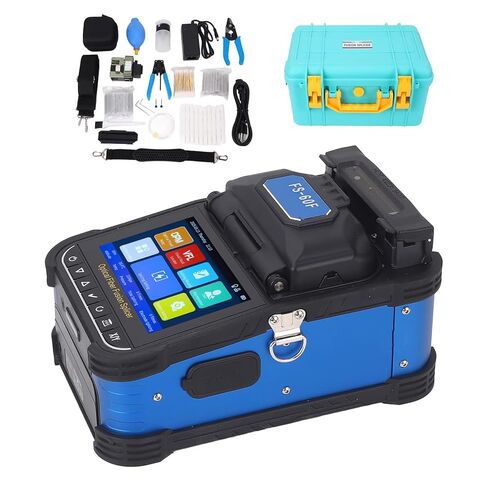

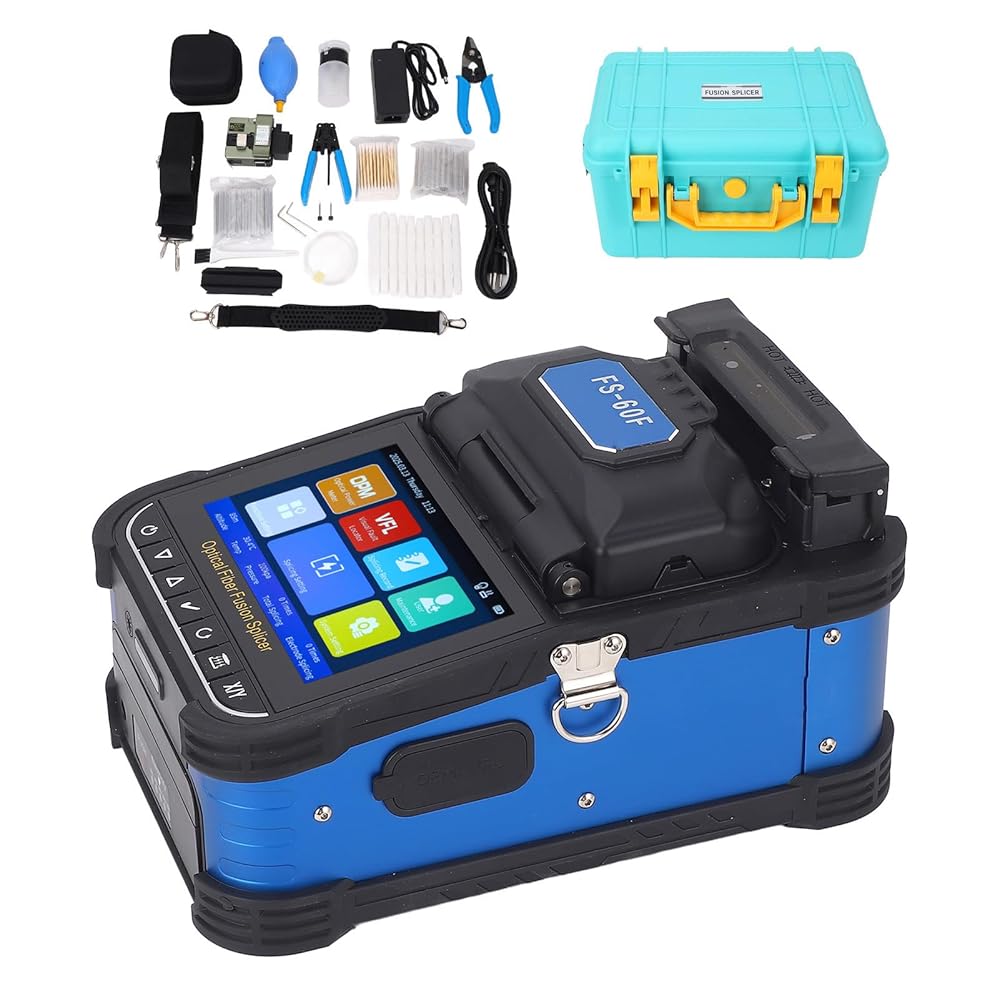

Fiber Splicer Automatic 5in LCD FTTH Fiber Splicing Kit (US Plug AC100-240V)

KWD 252.500
Brand
YDuupxe
SizeUS Plug AC100-240V
– 1 +

Special Features

  • [ULTRA FAST AND EFFICIENT OPERATION] This splicer is equipped with a powerful 6 motor system that delivers an incredibly fast splicing time of just 8 seconds and a heating time of only 18 seconds. It supports fully automatic, semi automatic, and manual modes to suit various skill levels, allowing engineers to save valuable time on the job. With a 7800mAh high capacity battery,
  • [PRECISE CORE ALIGNMENT TECHNOLOGY] Unlike traditional cladding alignment methods, this optical fiber splicer uses advanced core alignment technology with autofocus and six motor control. This provides superior accuracy, significantly reducing splicing losses to as low as 0.02dB for SMF, 0.01dB for MMF, and 0.04dB for /NZDS fibers. It effectively measures connection losses and verifies continuity, helping you evaluate the transmission quality of fiber optic links with confidence.
  • [VERSATILE FIBER COMPATIBILITY] The 3 in 1 fiber bracket is designed to handle a wide range of fiber types including SM (G.652 and G.657), MM (G.651), DS (G.653), and NZDS (G.655). It also supports custom fiber types, making it a flexible solution for various installation and maintenance tasks. The included fiber cleaver delivers precise cuts with a cutting angle of ≤0.6°, ensuring clean, splices every time.
  • [HIGH RESOLUTION TOUCH SCREEN WITH ADVANCED VIEWING] Featuring a 5 inch high resolution capacitive touch screen, this splicer offers a focusing magnification of up to 300X when the X or Y axes are displayed alone, and up to 150X when both axes are shown simultaneously. The intuitive GUI graphical user interface supports both key and touch operation, allowing you to view fiber details clearly and work with ease.
  • [SMART CONNECTIVITY AND MULTILINGUAL SUPPORT] The built in welding heater can be connected to a mobile phone app for convenient data monitoring and management. You can view, download, or output weld records from your phone at any time, with the ability to save records indefinitely. The device supports ten different languages including English, Chinese, French, Russian, Italian, Portuguese, Polish, Spanish, Thai, and Arabic, making it accessible for technicians worldwide.

Description

Specification:
Item Type: Fiber Splicer
Model:
Applicable Fiber: SM (G.652 and G.657), MM (G.651), DS (G.653), NZDS (G.655), and custom fiber types
Fiber Diameter: Cladding diameter 80-150μm, coating diameter 100-1000μm
Splicing Loss: 0.02dB (SMF), 0.01dB (MMF), 0.04dB (/NZDS)
Measured using the ITU-I cutoff method
Alignment Method: Core, cladding
Focusing Method: Six motor automatic focusing
Splicing Modes: Fully automatic, semi automatic, manual

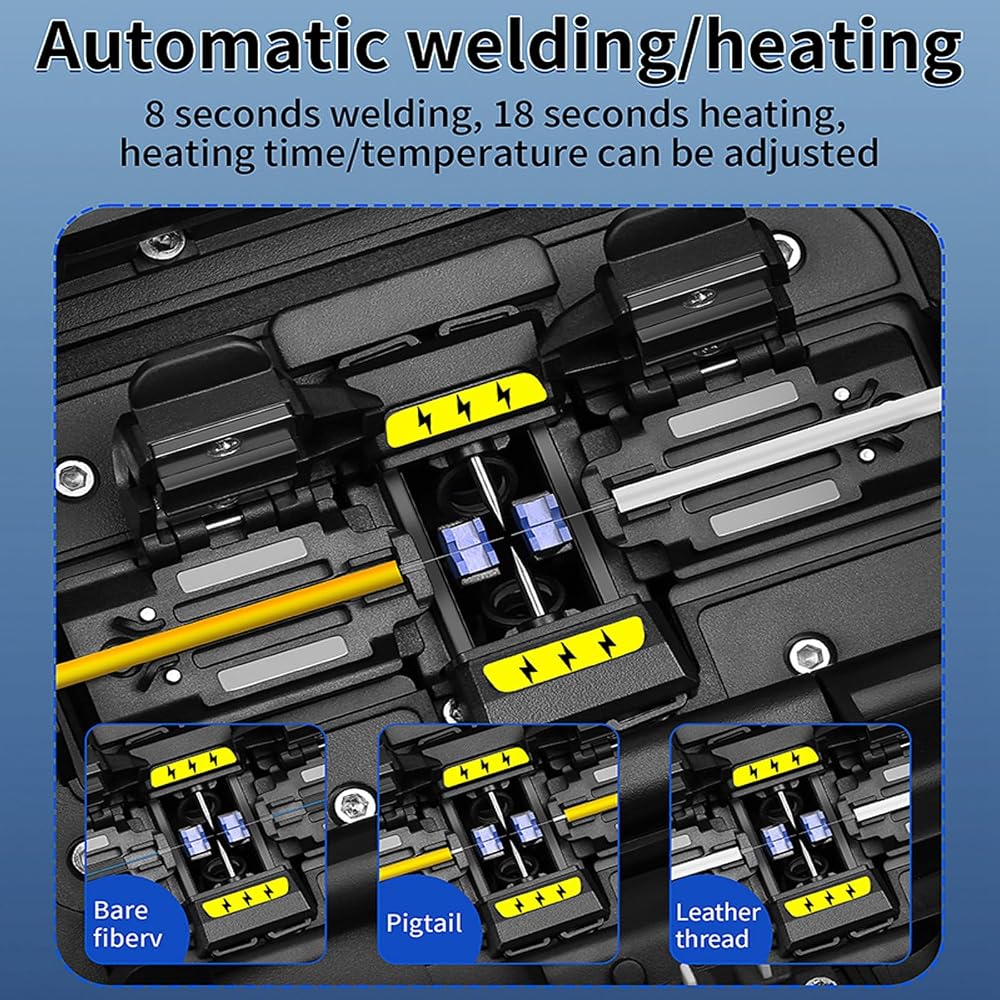

Splice Time: 8s (typical value for SMF)
Tension Test: 1.96N-2.1N

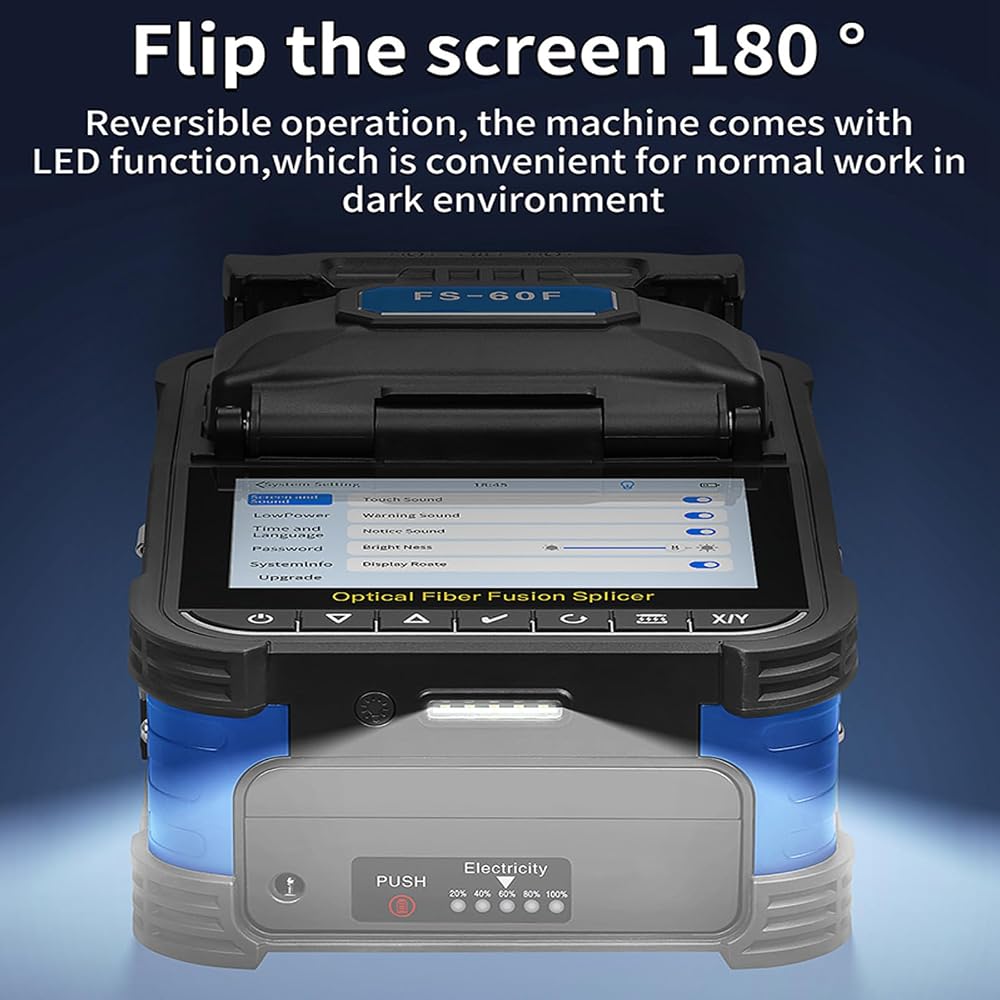

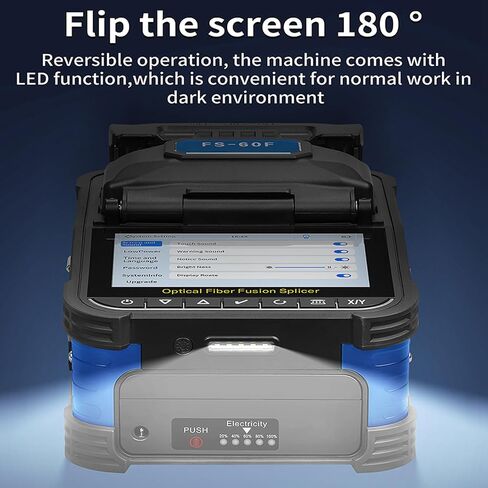

Image Display: 5.0in HD capacitive touchscreen, key or touch double operating, content can be flipped in both directions
Magnification: 300x (X/Y axes)
Splicing Records: 1000 Groups

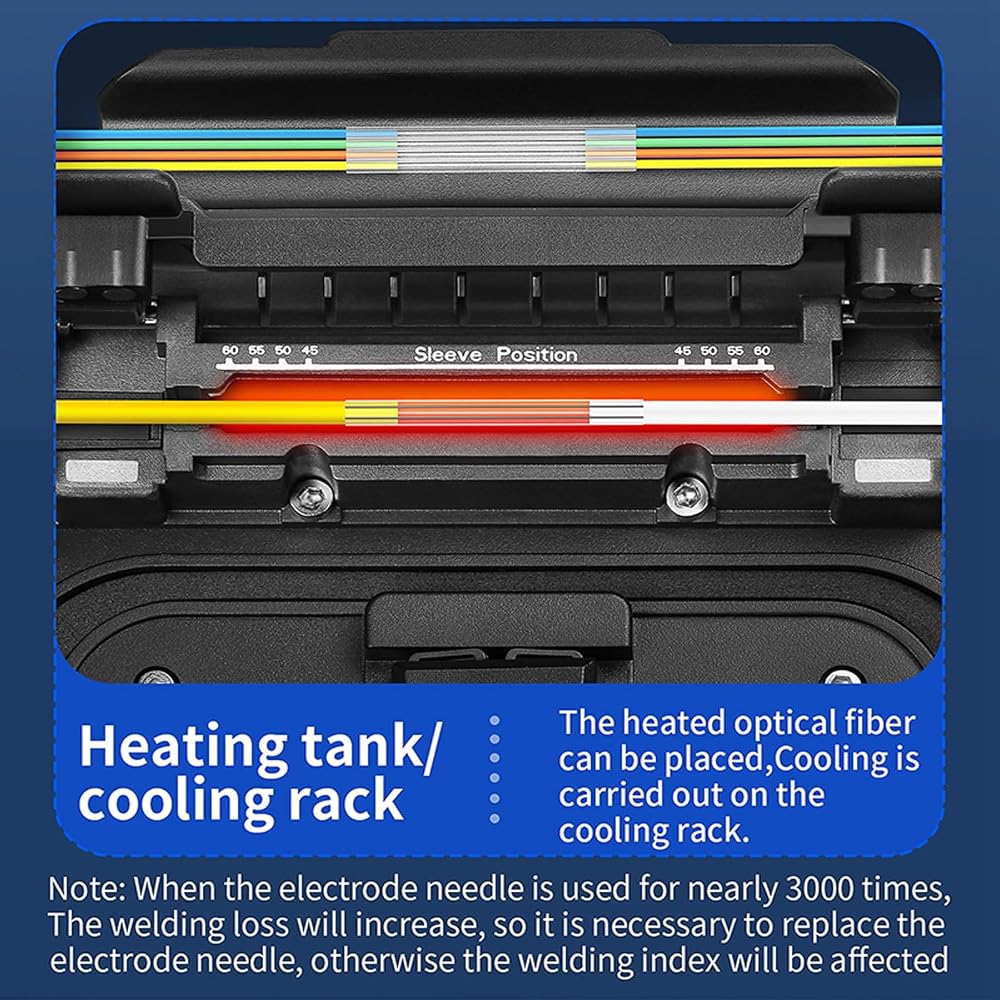

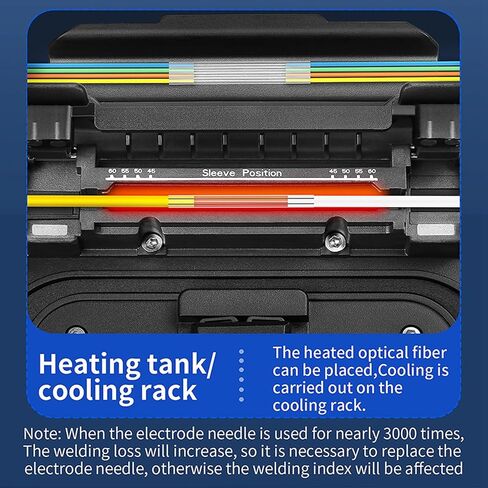

Typical Heating Time: 18s
Heating Modes: Heating time or temperature adjustable, supports automatic or manual heating
Heat Shrink Tube Socket: Approx. 20 ~ 60mm / 0.79 ~ 2.36in

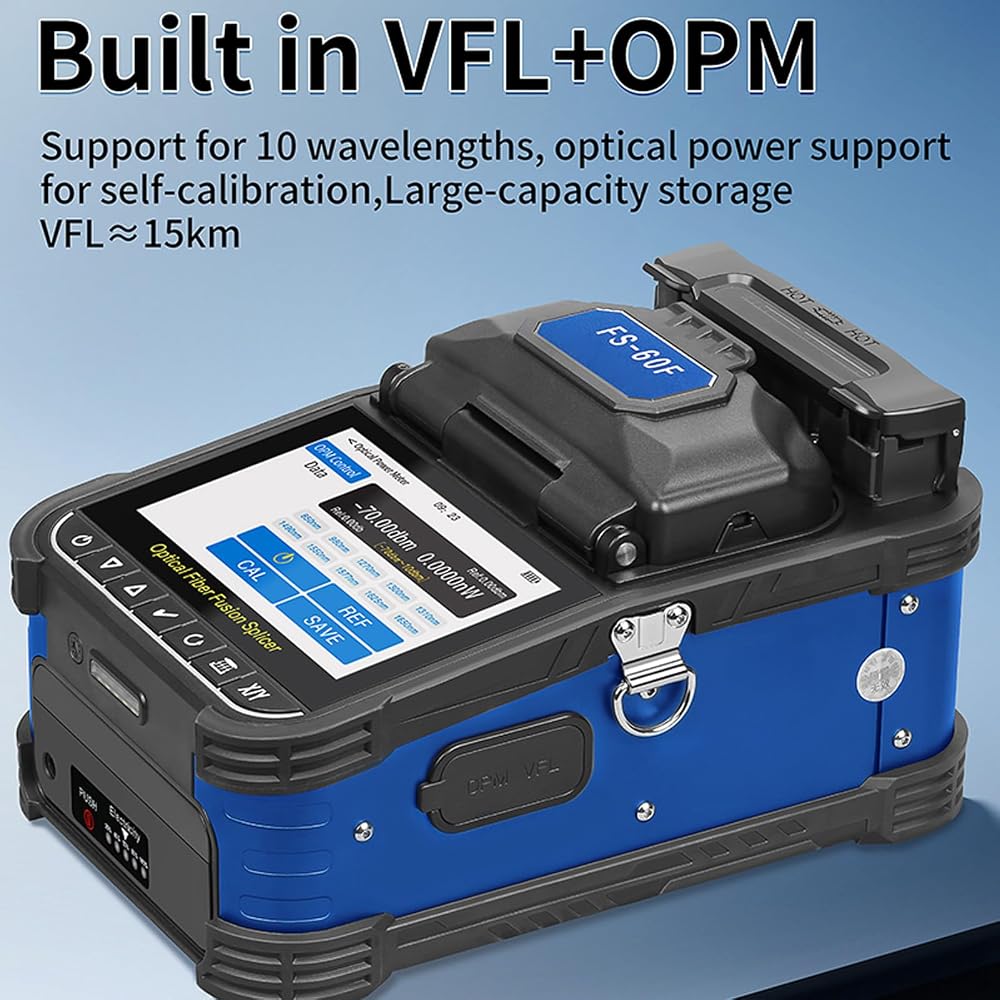

OPM: Range (dBm): -70-+10dBm/wavelength 850-1650mm (10 wavelengths)
VFL: ≥approximately 15km
Operating Interface: GUI graphical user interface
System Upgrade: USB (data export, function upgrade, power output)
Electrode Life: Approximately 3000 times
Illumination: LED

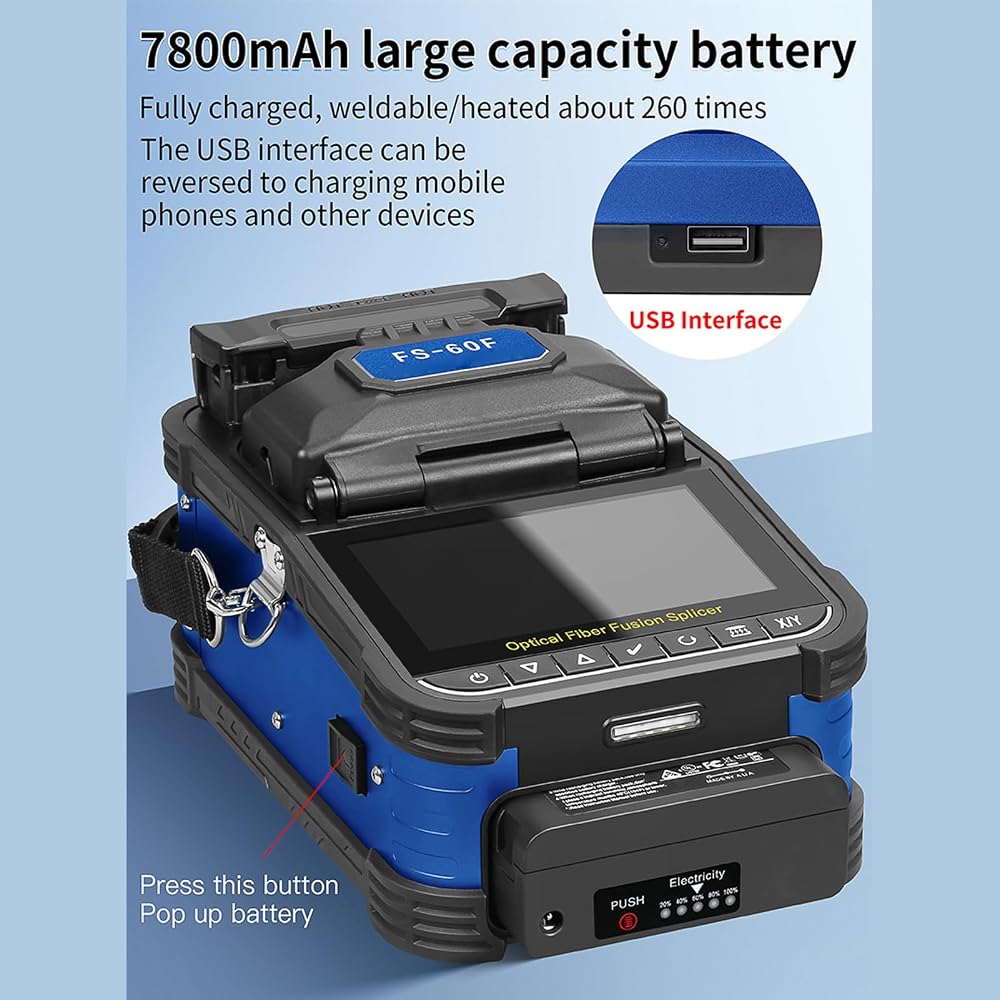

Battery Capacity: 7800mAh (approx. 260 splicing and heating cycles)
Power Supply: Built in 1 x 11.8V li ion battery, charging time approximately 3.5 hours
External Connector: 50/60HZ output
Working Environment: Temperature: -15~+50℃; Humidity: ≤90%RH (non Condensing); Altitude: 0-5000m; Wind Speed: ≤15m/m
Storage Conditions: Temperature: -40-+50℃; Humidity: 0-95%

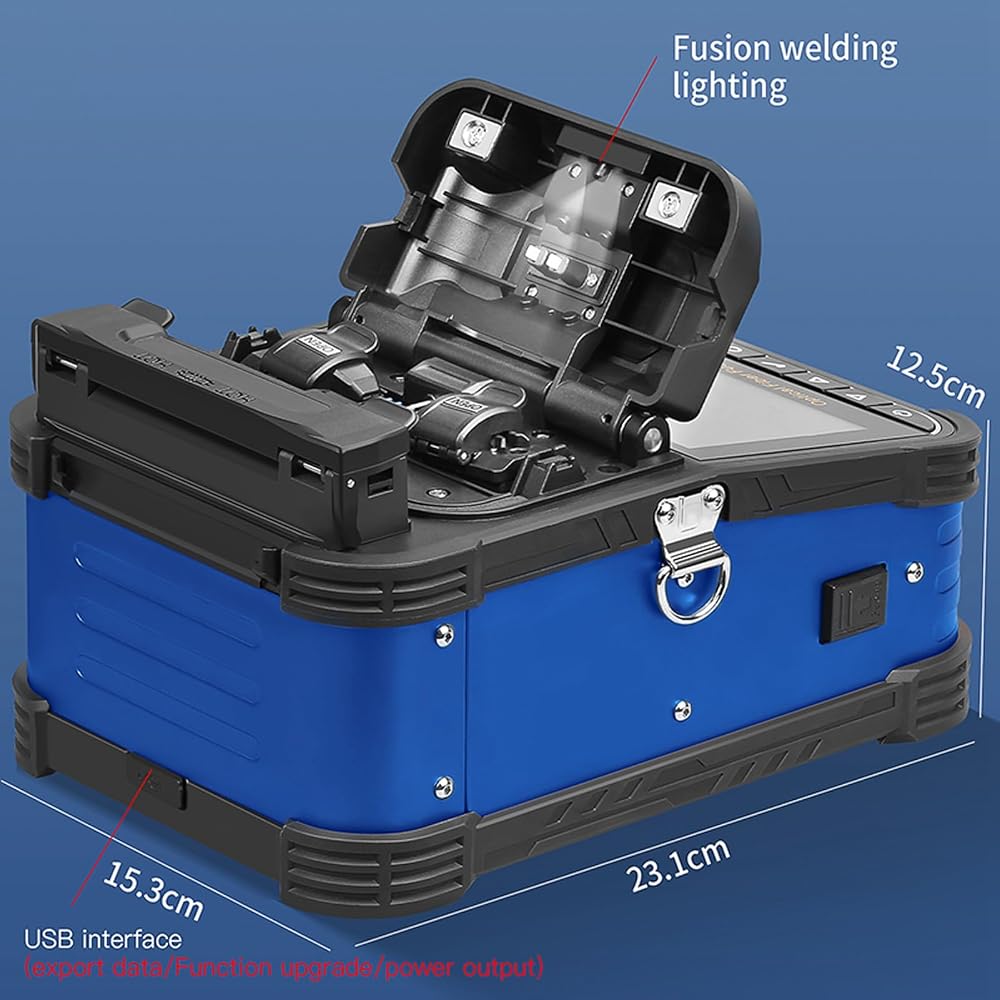

Splicer Size: Length X Width X Height: Approx. 231 x 153 x 125mm / 9.09 x 6.02 x 4.92in
Fiber Cleaver:
Applicable Bare Fiber Diameter: 125μm
Applicable Fiber Count: Single core (dia 0.25 and 0.9mm)~12 core ribbon~2.5mm leather wire
Cutting Length: 9-16mm (dia 0.25)/10-16mm (dia 0.25)
Fiber Cutting Length: Approx. 18mm / 0.71in
Cutting
