مقوم الفرامل 5 قطعة ZLKS1-99-6 99 فولت وحدة المحرك ZLKS-99-6 in Kuwait مقوم الفرامل 5 قطعة ZLKS1-99-6 99 فولت وحدة المحرك ZLKS-99-6 in Kuwait

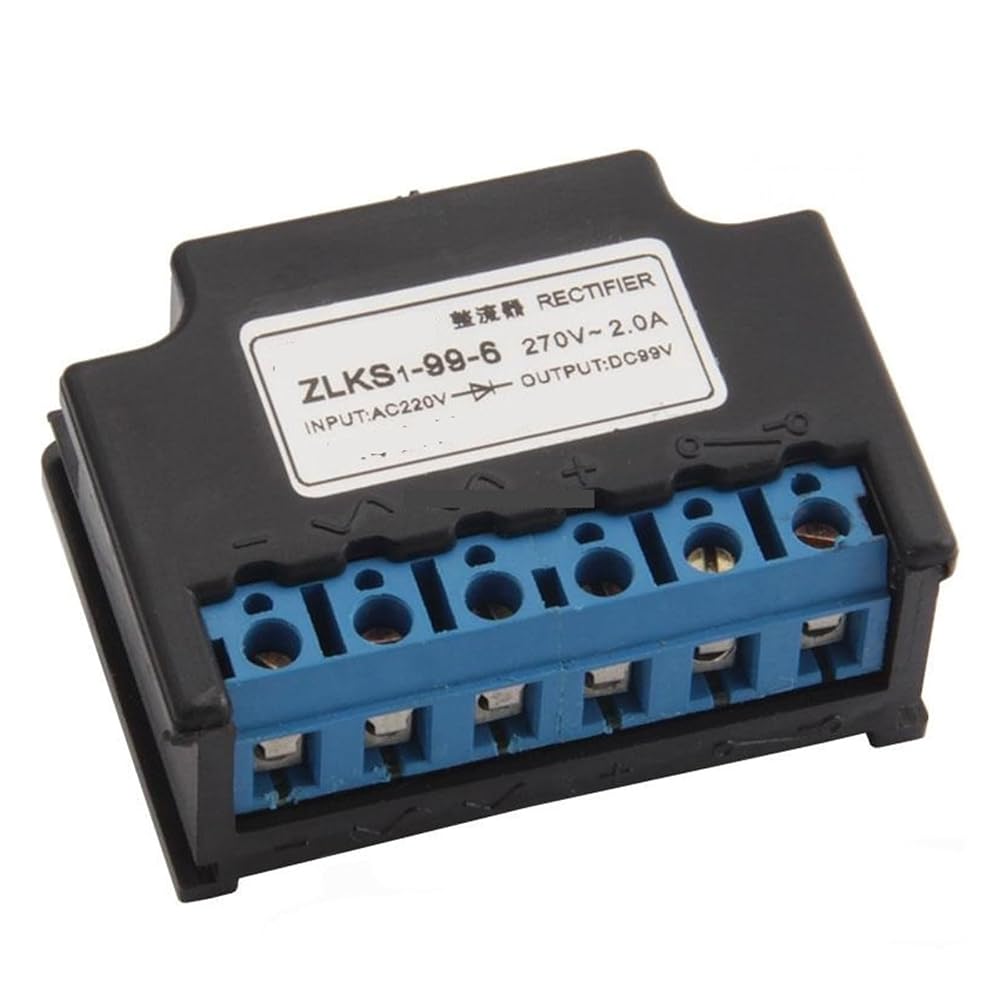

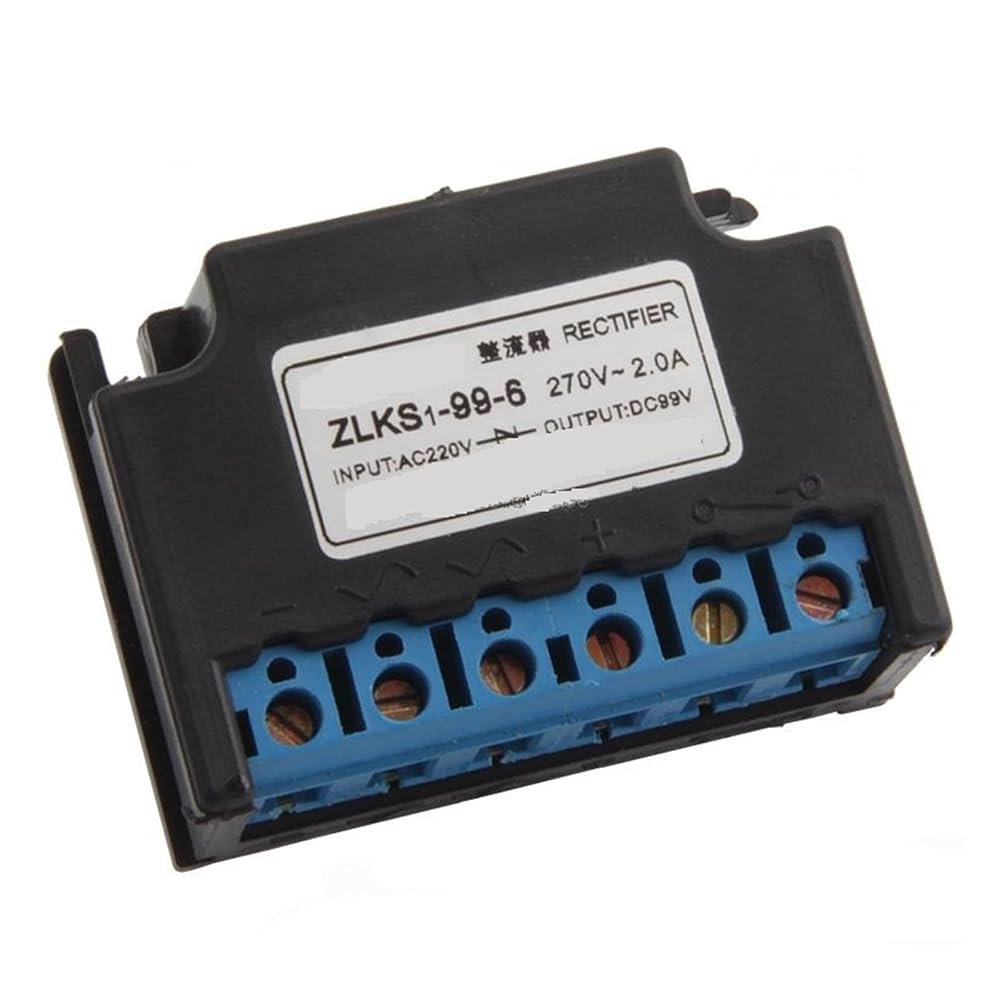

مقوم الفرامل 5 قطعة ZLKS1-99-6 99 فولت وحدة المحرك ZLKS-99-6

KWD 46.500
ماركة
XSWDASFGH
وزن
349 g
– 1 +

مميزات خاصة

  • rectifier
  • Safer in Working: Adopting internal working mode without internal mechanical contact non sparking use and low noise higher work safety.
  • Wide Application: Can be used for motor， power rectifiers heating dimming contactless switch stepping motor start etc.
  • Has Fine Feature: The and panel are electrically insulated and also has excellent welding structure and circulation ability.
  • Quick to Install: Comes with a compact size and a light weight as well the rectifier module can be conveniently installed within minutes.
  • Copper Baseplate: Enhanced copper base plate smooth fast heat dissipation prevent overheating protection and smooth operation.

وصف

rectifier
Model: ZLKS1-99-6
Input voltage: AC 220V
Output voltage: DC 99V
Nominal Voltage magenet
Coil Voltage tolerance
U2(U Out)
AC Voltage supply
U1(U in)
99V
93-118V
220VAC
198V
182-230V
220VAC
170V
162-198V
380VAC
Rectifier type
Full/Half-wave Rectifier
Output Voltage with Full Rectifier
Vdc = Vac/1.1
Output Voltage with Half Rectifier
Vdc = Vac/2.2
Ambient temperature()
-25- +80
(40-60Hz)Uin=Input Voltage(40-60Hz)
Product features
The plastic shell compact design.
- small size.
It can be mounted to the motor terminal box.
It has a protective effect on DC side peak reverse voltage generated by the closed switch.
The maximum environment temperature is 80 DEG C.
