Feature：
* and
*Using compressed air in the tube for Vortex and mixed atomization for droplet .
*Can produce tiny -particle size fog particles under low pressure and low volume conditions.
*Air flow and pressure can be controlled to adjust the spray flow, angle and size particles.
*Good anti-clogging effect because of the high fluid passage through the nozzle.
*It is very effective in atomizing heavy oil, waste oil burners, oil and other applications with high viscosity.
*Widely used in diesel, heavy oil, waste oil, waste oil, animal and vegetable oils,and other -based fuel oil, gas, combustion spray s, spray workshop humidification cooling , mechanical cleaning .
*Usually the working pressure is 3bar, and the waste fluid is 10L/H for the 1.00mm version. 19L/H for the 2.0mm version, and 28L/H for the 3.0mm version. 28L/H for the 3.0mm version. capacity tolerance is ±10%. The siphon height is 30cm, and the jet angle is 45 degrees.
*Please note that the above data is based on water as a reference. If other liquids are used, the calculation can be done in proportion to the density.

Details：
*Material:Brass+aluminium
*Hole diameter: 0.5mm,0.8mm,1.0mm, 1.2mm ,1.5mm,2.0mm
*Outer diameter: 18mm
*Overall length: 78mm
*Nozzle size: 9/16"
*Air inlet: 1/4", please insert Φ8mm or 6mm hose.
*Oil inlet: 1/8", please insert Φ8mm or 6mm hose.
*Color:Silver + gold

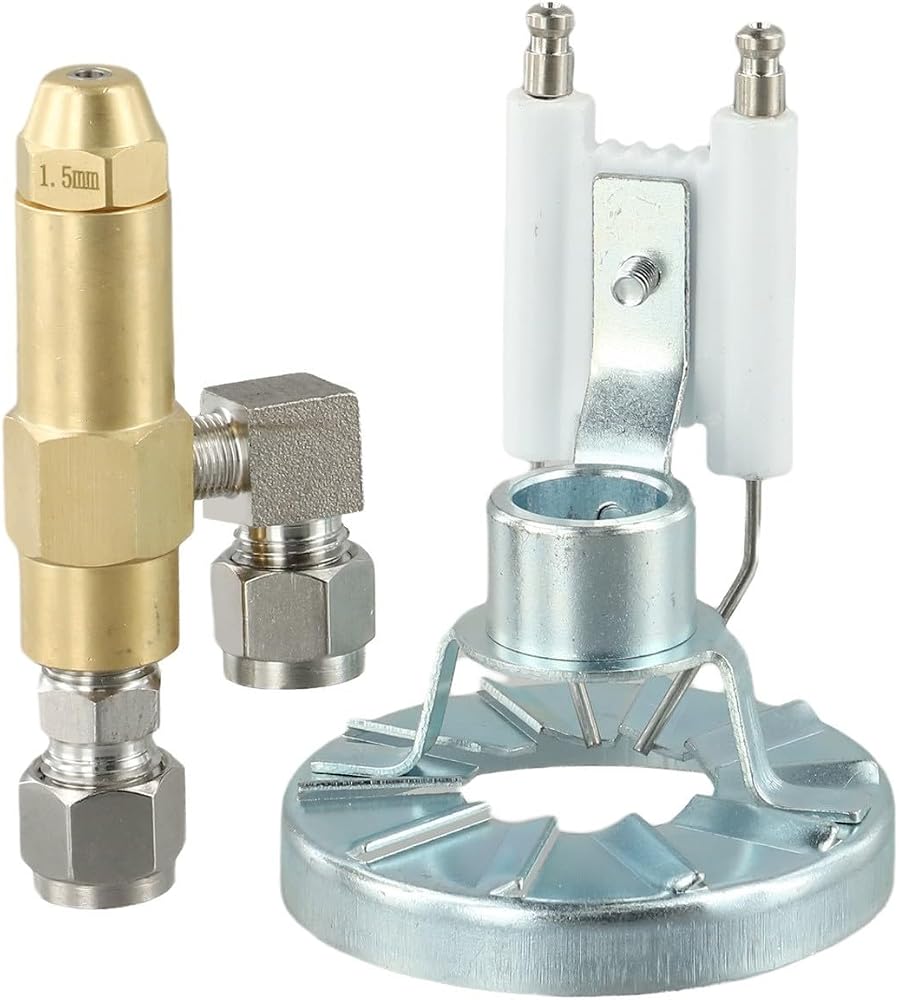

A set of particle burner for Ignition including:
Stainless steel Siphon Nozzle: 1 Piece
(0.5mm,0.8mm,1.0mm, 1.2mm ,1.5mm,2.0mm.)
Burner Flame Rings: 1Piece
for Ignition Needle: 1Piece

Package Contents:
1Set nozzle
