مميزات خاصة

【Wide IC Compatibility】This IC tester digital meter supports a broad range of 74 series plus 40 and 45 series , helping users check common logic gate and integrated circuit types in one device.
【Simple Button Operation】MODE selects 74 series or 40 series type, UP and DOWN switch integrated , and TEST starts checking, making the chip tester easier to use during repair and verification work.

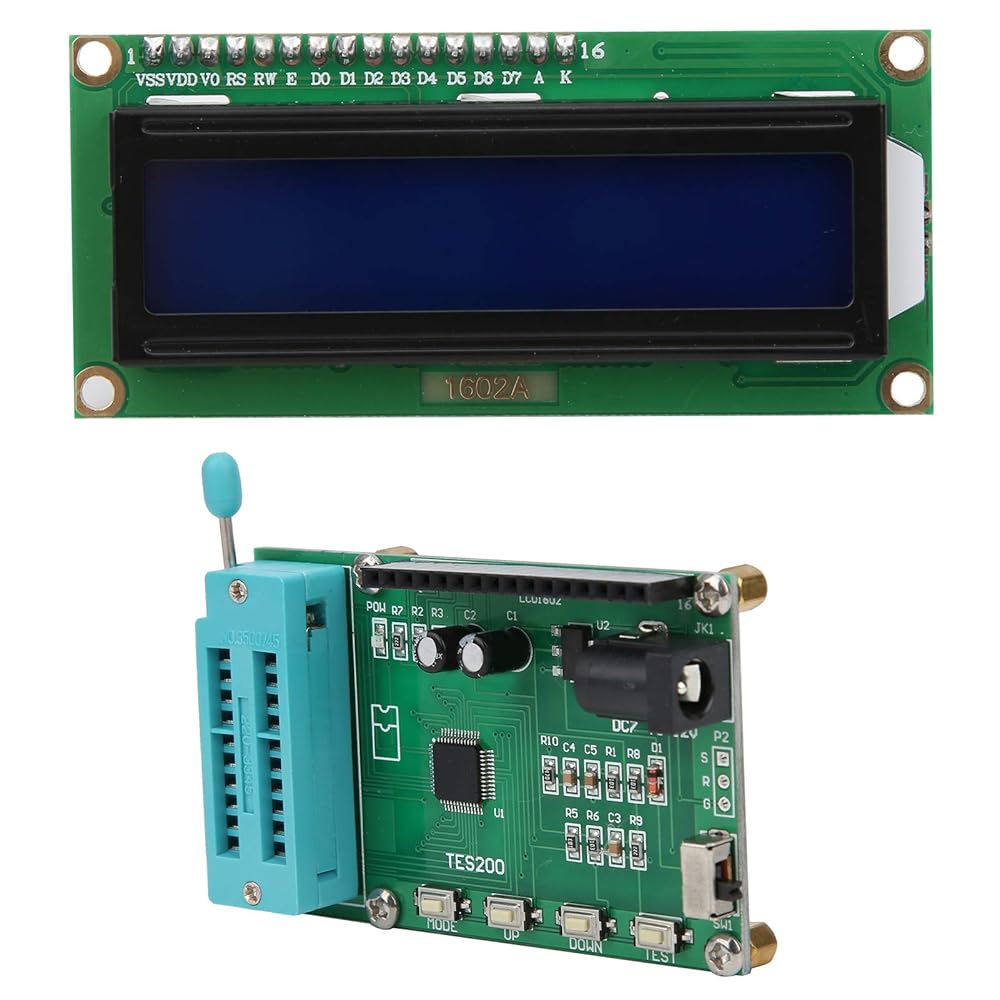

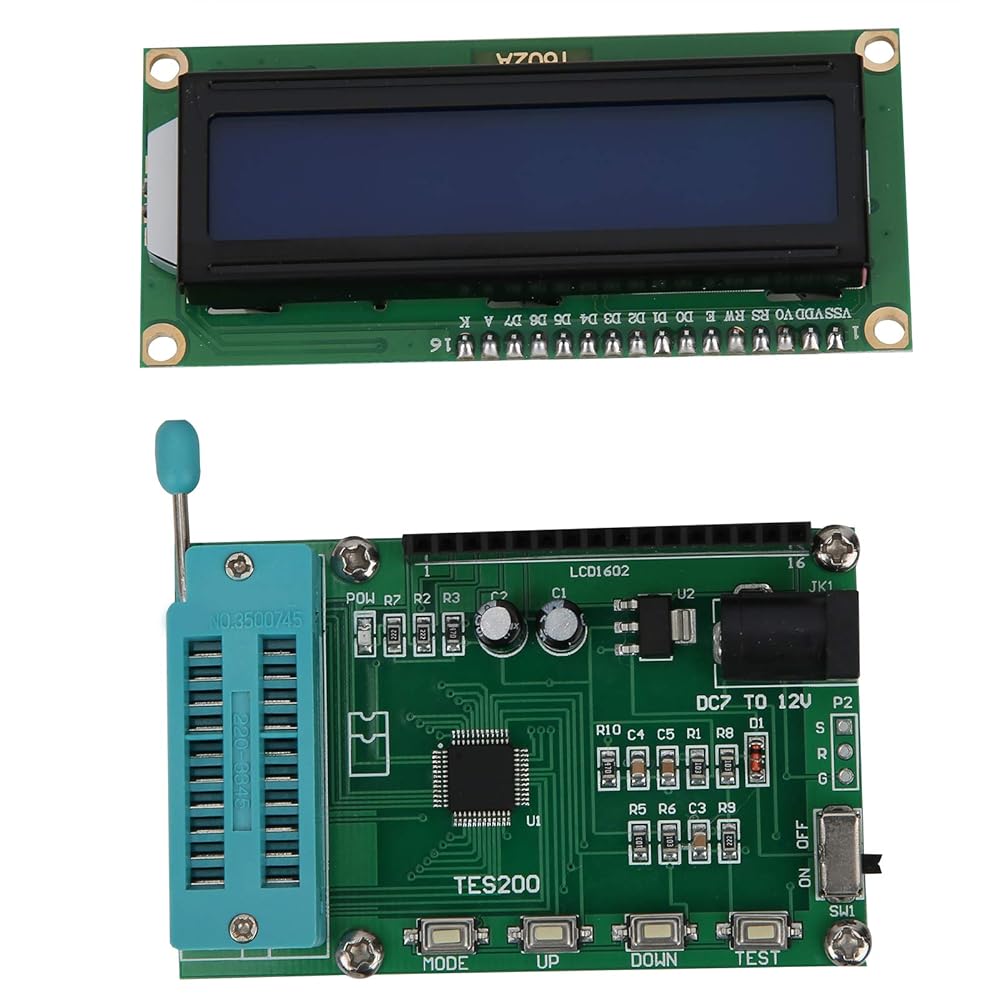

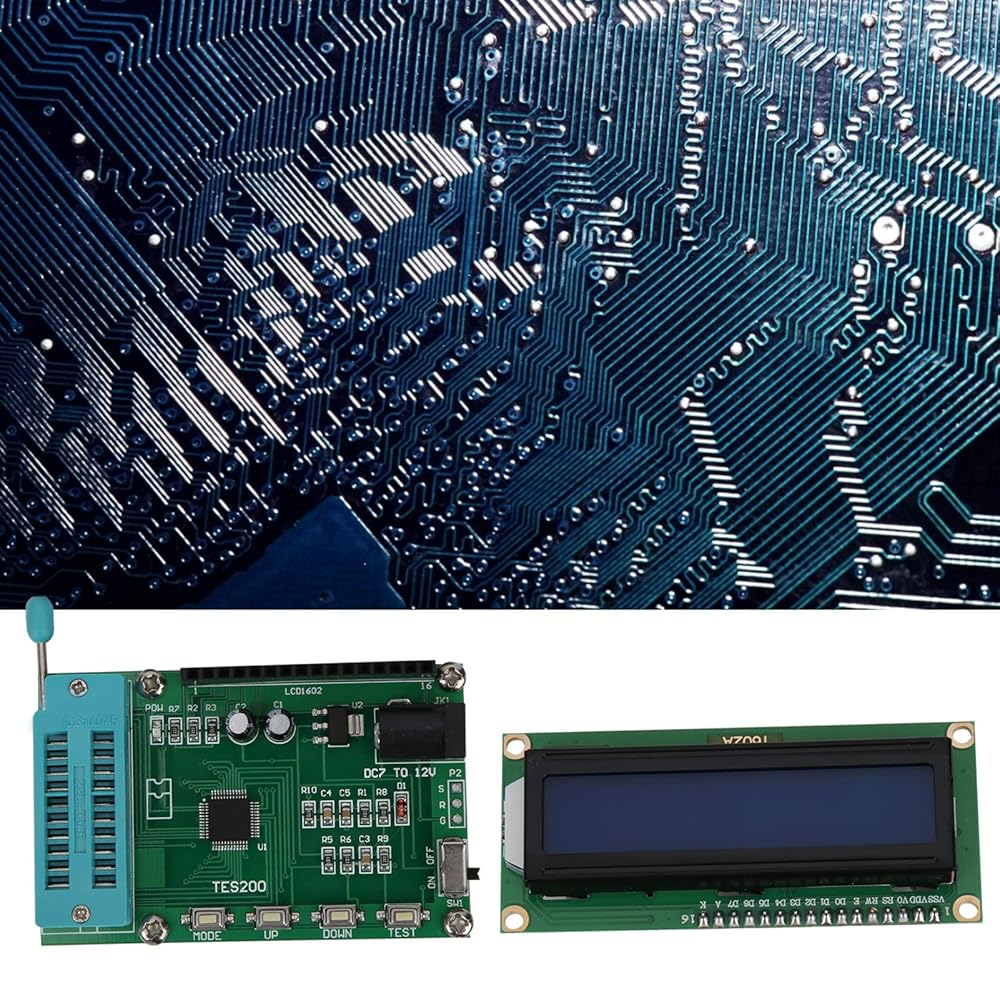

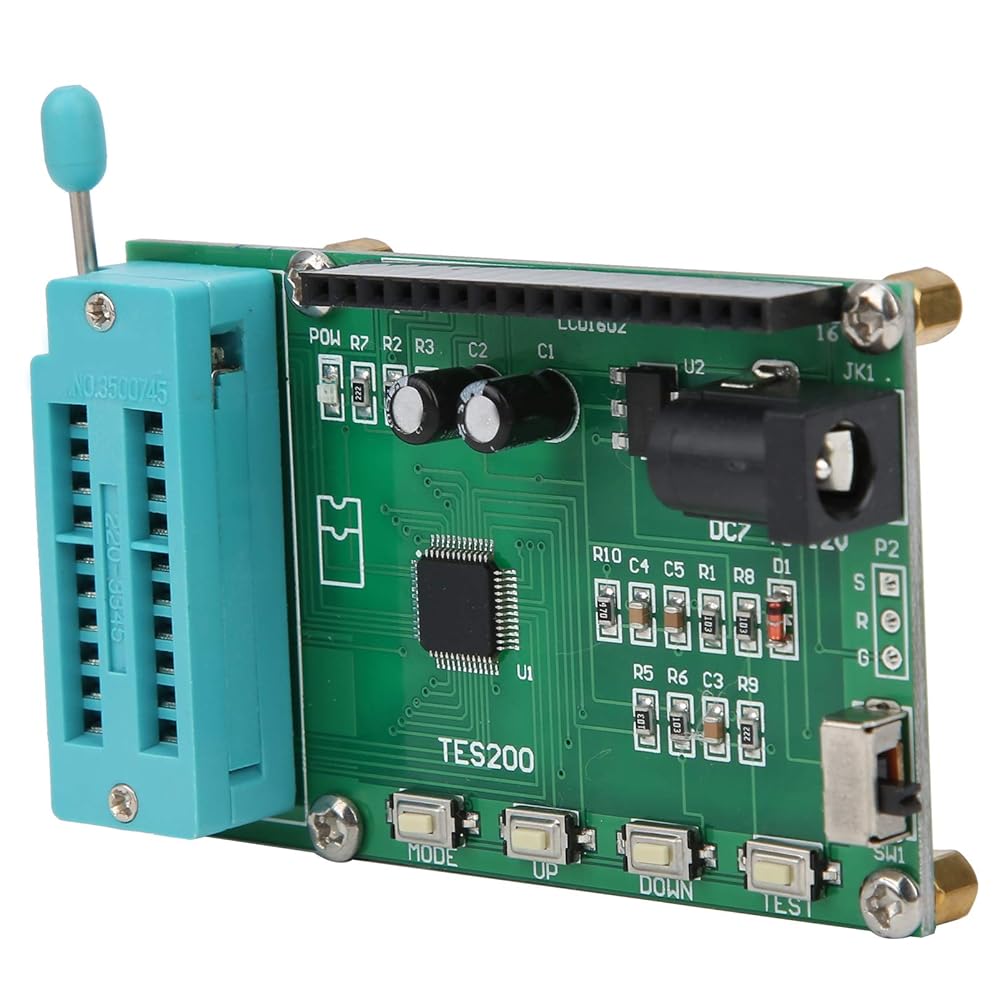

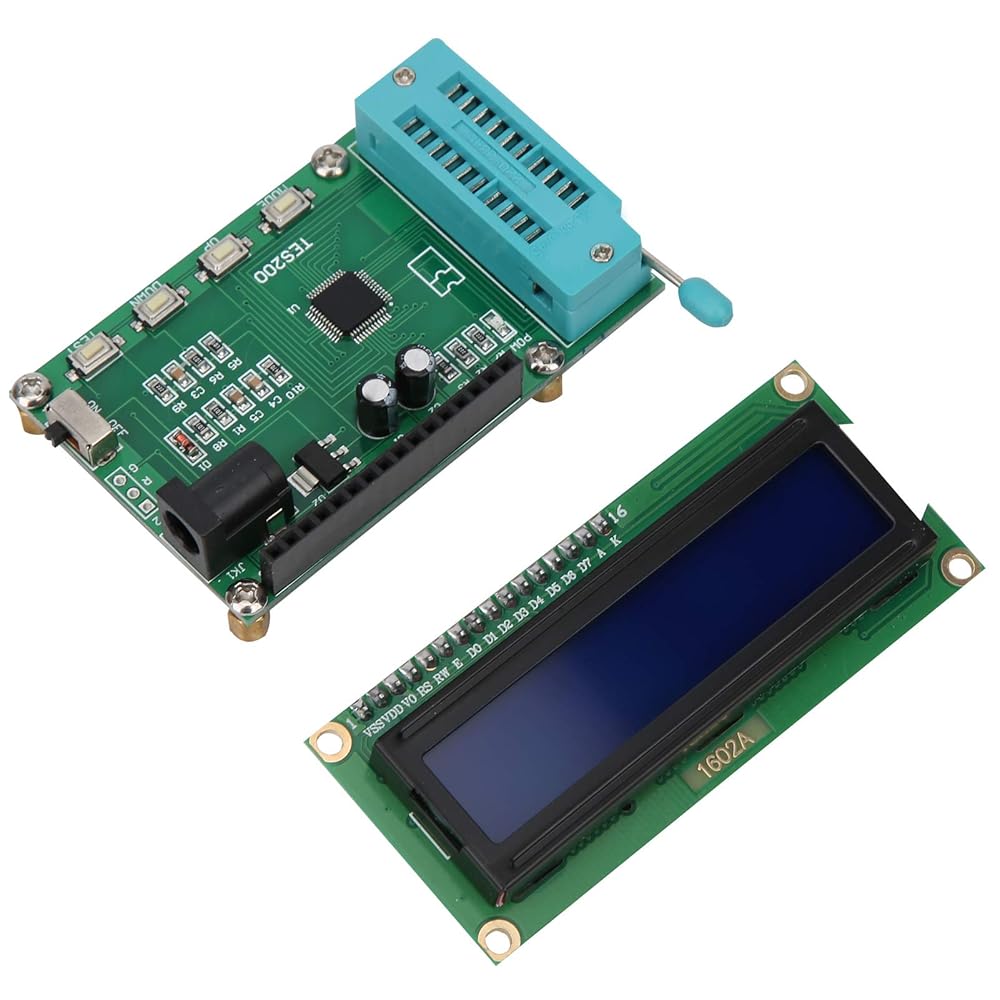

【PCB Construction】Made of PCB material and designed as an electronic component test module, this tester fits bench use for electronics hobbyists, maintenance staff, and technicians handling DIP IC checks.
【DC 7 to 12V Input】Operates with DC 7 to 12V. Working and storage temperature range is minus 104 degrees Fahrenheit to 149 degrees Fahrenheit, suitable for routine indoor testing environments.
【For Repair and Learning】Useful for circuit diagnosis, IC screening, replacement checks, and electronics practice. A practical tool for workshops, schools, labs, and users working with logic IC components.

وصف

Specification:
Item Type: IC Tester
Material: PCB
Working Voltage: DC7-12 V
Working Current: Working Temperature: -104℉～149℉
Storage Temperature: -104℉～149℉

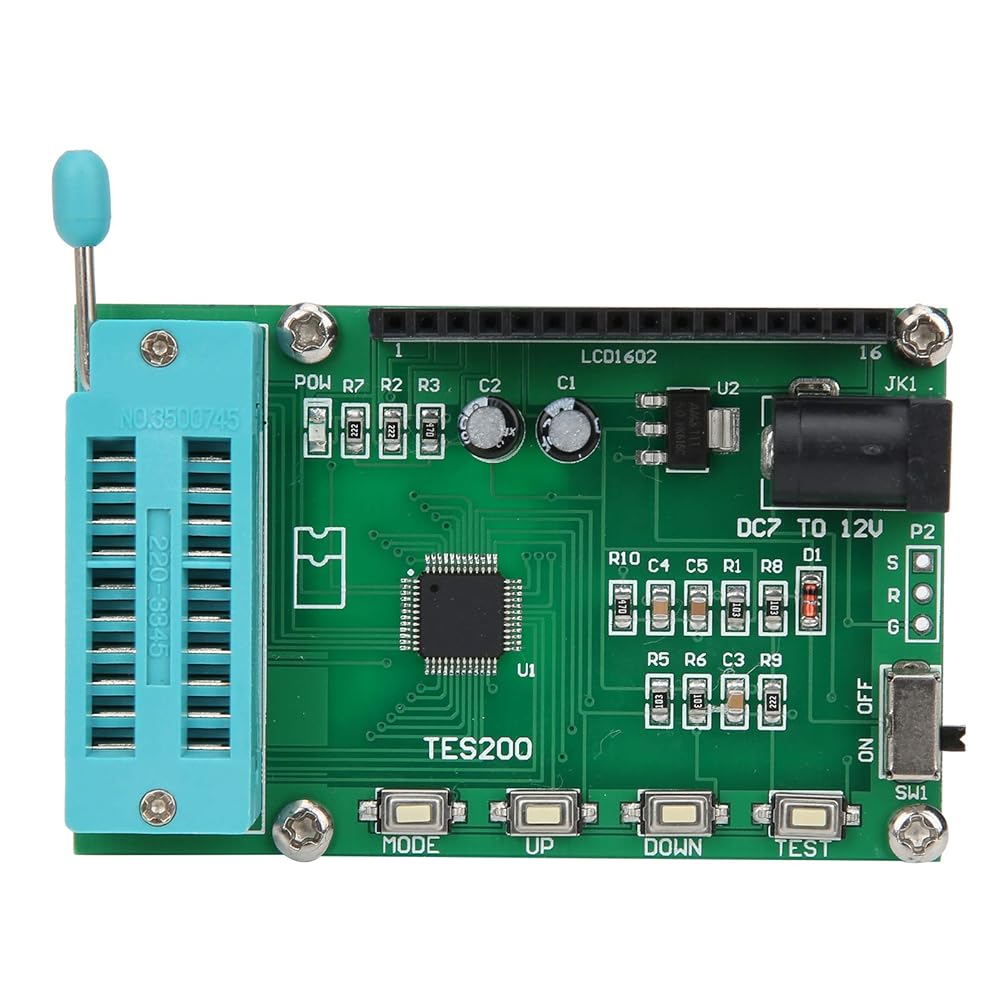

Key Description:
MODE: Select the integration type (74 series or 40 series)
UP: Select the last integrated model
DOWN: Select the integrated model
TEST: : Test the selected integrated model
74 Series:
7400 ,7401 ,7402 ,7403 ,7404 ,7405 ,7406 ,7407 ,7408 ,7409
7410,7411,7412,7413,7414,7415,7416,7417,7418,7419
7420 ,7421 ,7422 ,7424 ,7425 ,7426 ,7427 ,7428 ,7430 ,7432
7433 ,7434 ,7435 ,7436 ,7437 ,7438 ,7439 ,7440 ,7442 ,7443
7444 ,7445 ,7446 ,7447 ,7448 ,7454 ,7464 ,7470 ,7472 ,7473
7474,7475,7476,7477,7478,7480,7482,7483,7485,7486
7487 ,7489 ,7494 ,7495 ,7496 ,74101 ,74102 ,74103 ,74107 ,74108
74109 ,74112 ,74113 ,74125 ,74126 ,74128 ,74130 ,74132 ,74133 ,74134
74135 ,74136 ,74137 ,74138 ,74139 ,74140 ,74145 ,74147 ,74148 ,74151
74152 ,74153 ,74155 ,74156 ,74157 ,74158 ,74160 ,74161 ,74163 ,74164
74165 ,74166 ,74171 ,74173 ,74174 ,74175 ,74176 ,74177 ,74180 ,74182
74190 ,74191 ,74192 ,74193 ,74194 ,74195 ,74197 ,74242 ,74243 ,74247
74248 ,74249 ,74251 ,74253 ,74256 ,74257 ,74258 ,74259 ,74260 ,74266
74279 ,74280 ,74283 ,74290 ,74293 ,74295 ,74298 ,74350 ,74352 ,74353
74365 ,74366 ,74367 ,74368 ,74375 ,74378 ,74379 ,74390 ,74393 ,74395
74425 ,74426 ,74445 ,74447 ,74490 ,74595 ,74670
40 And 45 Series:
CD4000, CD4001, CD4002, CD4006, CD4007, CD4008, CD4009, CD4010, CD4011, CD4012,
CD4013, CD4014, CD4015, CD4016, CD4017, CD4018, CD4019, CD4020, CD4021, CD4022,
CD4023, CD4024, CD4025, CD4026, CD4027, CD4028, CD4029, CD4030, CD4033, CD4035,
CD4040, CD4042, CD4043, CD4044, CD4048, CD4049, CD4050, CD4051, CD4052, CD4053,
CD4060, CD4066, CD4068, CD4069, CD4070, CD4071, CD4072, CD4073, CD4075, CD4076,
CD4077, CD4078, CD4081, CD4082, CD4085, CD4093, CD4094, CD4099, CD4502, CD4503,
CD4504, CD4510, CD4511, CD4512, CD4516, CD4518, CD4520, CD4522, CD4526, CD4529,
CD4532, CD4539, CD4543, CD4555, CD4556, CD4584, CD40106, CD40110, CD40161, CD40162, CD40174, CD40175, CD40192, CD40193.

Package List:
1 x Tester

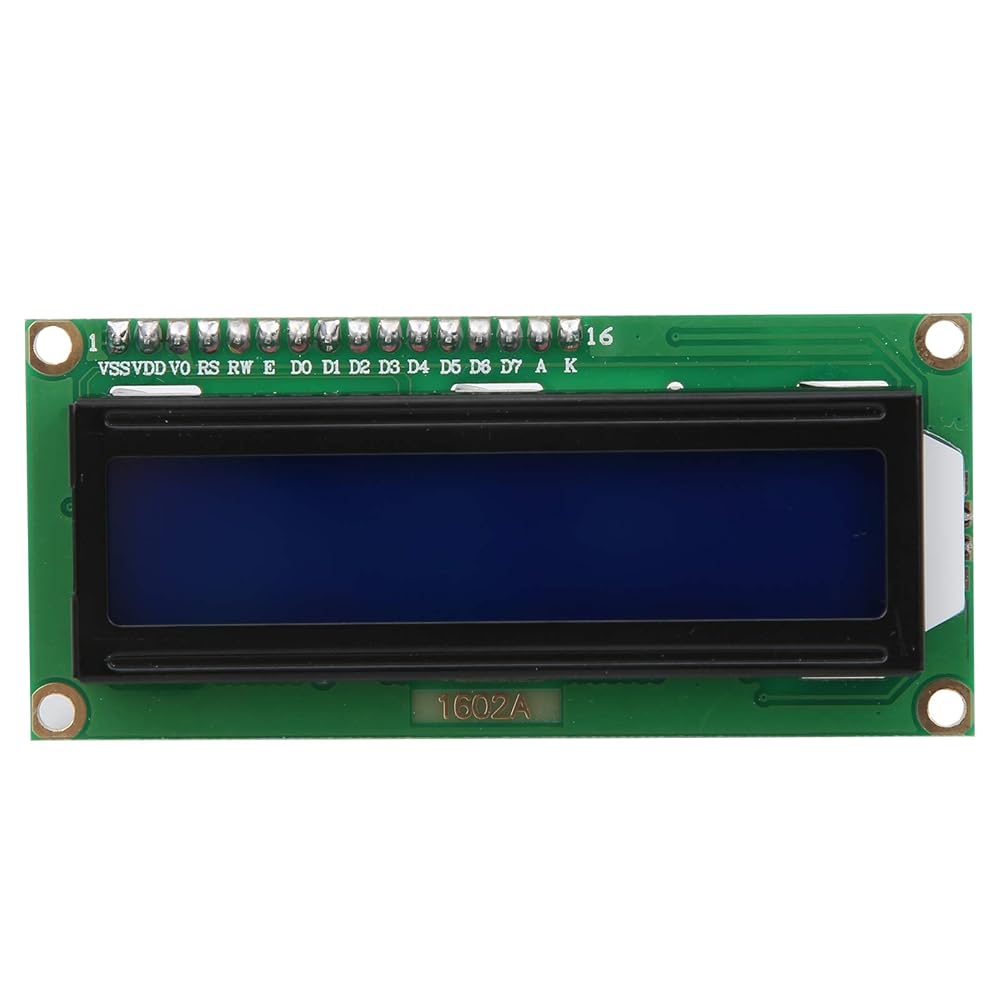

1 x LED Display

مرحبًا،

بحث

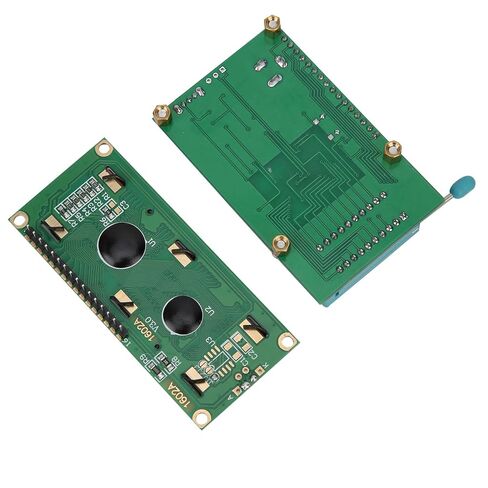

جهاز اختبار ViaGasaFamido IC الرقمي، جهاز اختبار البوابة المنطقية PCB DC 7 إلى 12 فولت لاختبار 74 40 45 سلسلة IC، اختيار الوضع، دعم متعدد النماذج، لفنيي إصلاح الإلكترونيات
