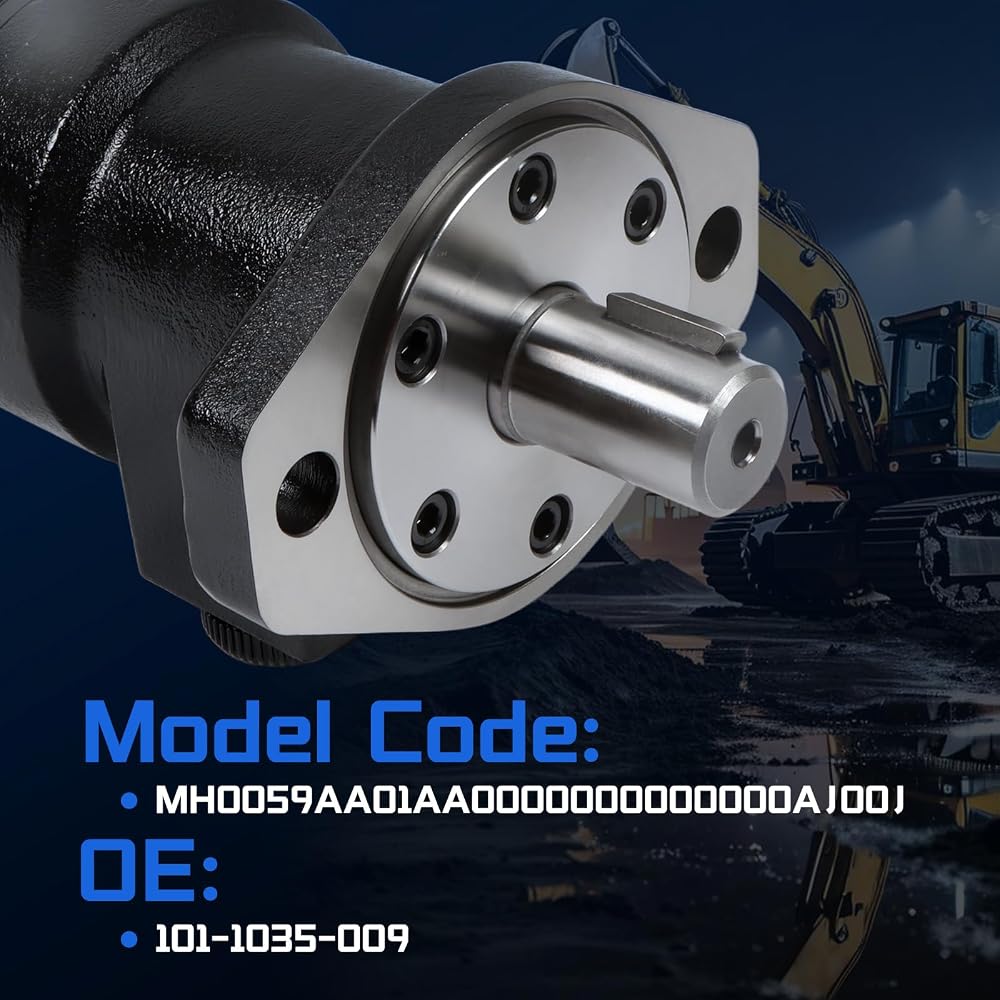

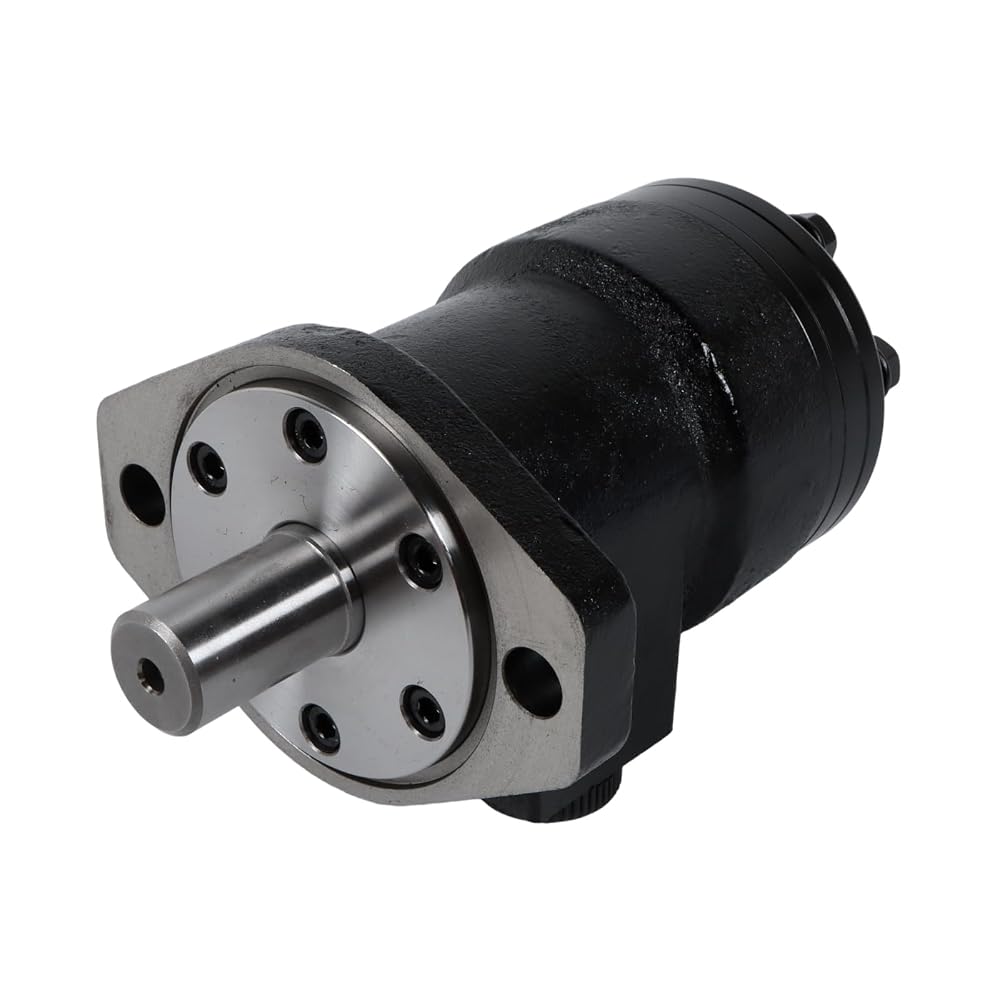

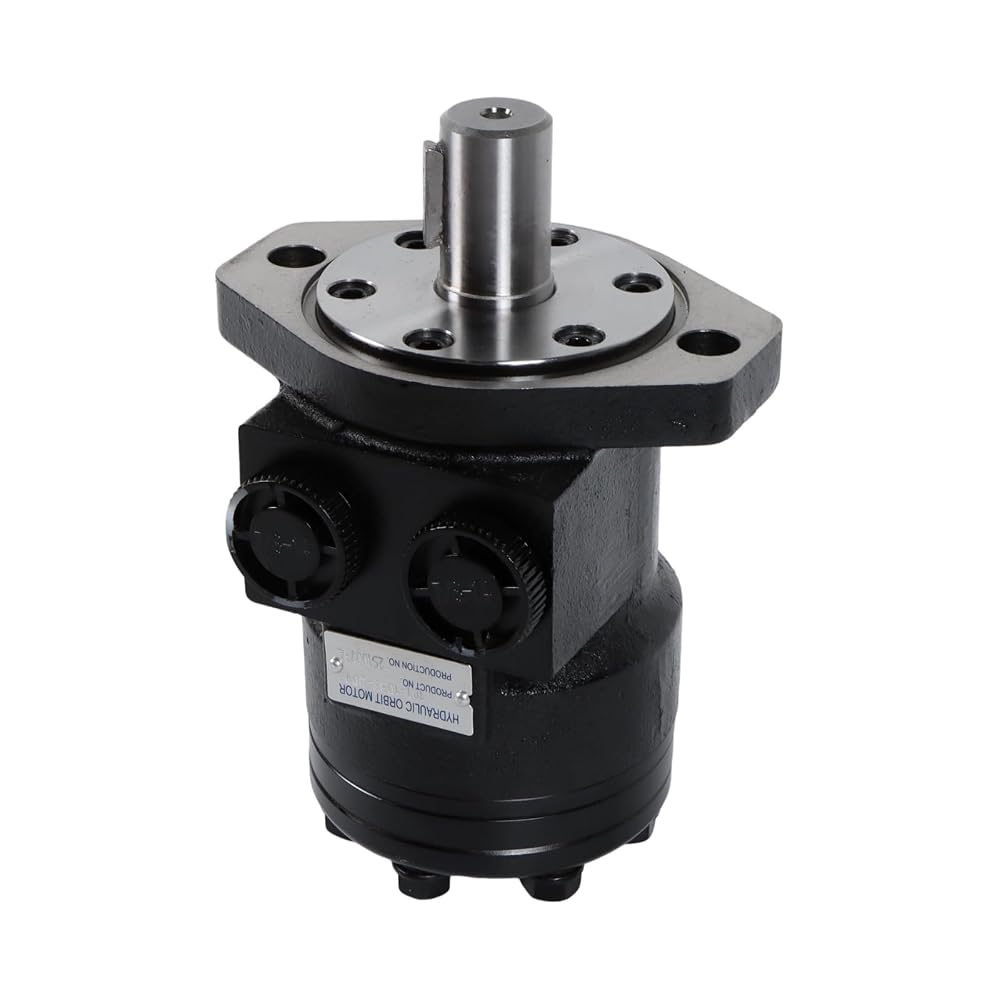

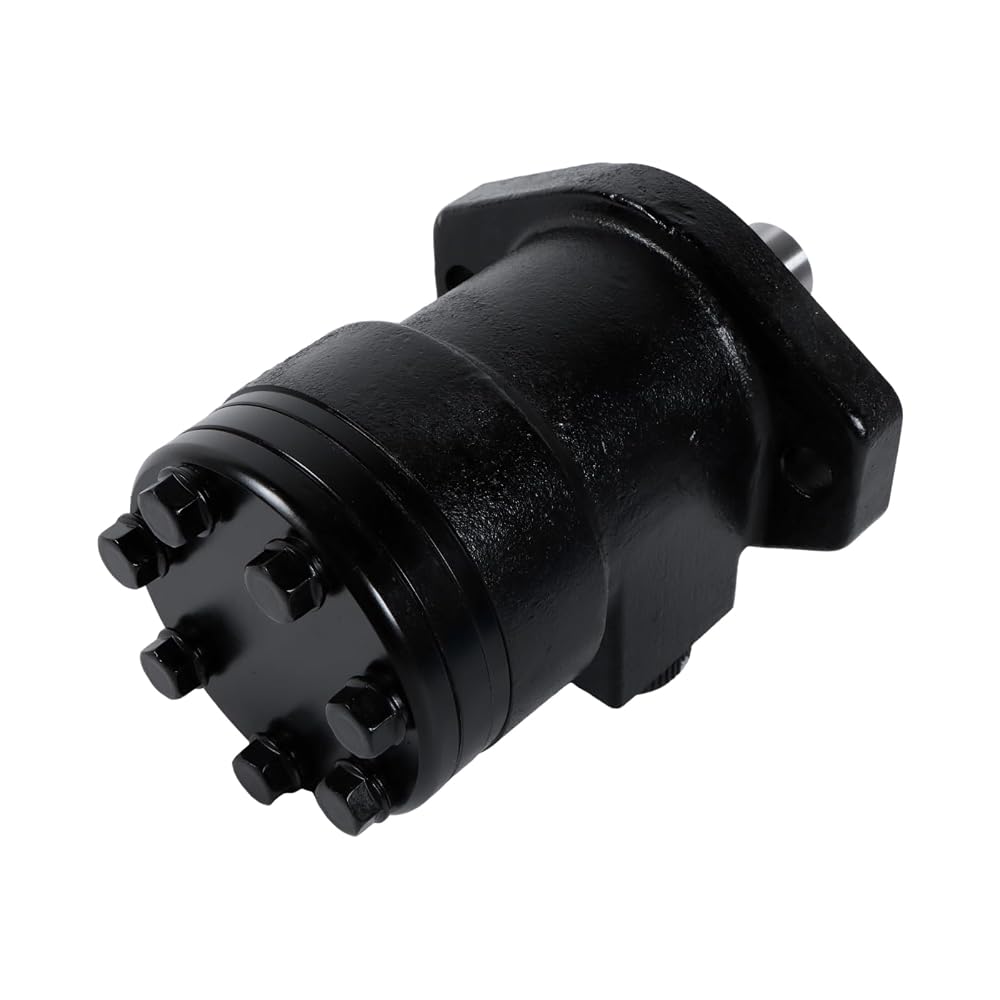

101-1035-009 Hydraulic Motor Replacement for Eaton Char-Lynn H Series, 5.9 cu in/rev Displacement 585 RPM 1800 PSI 15 GPM Low Speed High Torque Gerotor Motor

KWD 66.500
Brand
SINOCMP
– 1 +

Special Features

  • [📦] Ready-to-Install – Complete Assembly: Box contains one hydraulic motor 101-1035-009 (H Series specification). 𝐈𝐦𝐩𝐨𝐫𝐭𝐚𝐧𝐭: 𝐕𝐞𝐫𝐢𝐟𝐲 𝟑.𝟐𝟓 𝐢𝐧𝐜𝐡 𝐩𝐢𝐥𝐨𝐭 𝐝𝐢𝐚𝐦𝐞𝐭𝐞𝐫, 𝟐-𝐛𝐨𝐥𝐭 𝐩𝐚𝐭𝐭𝐞𝐫𝐧 (𝟒.𝟏𝟖𝟕 𝐢𝐧𝐜𝐡 𝐛𝐨𝐥𝐭 𝐜𝐢𝐫𝐜𝐥𝐞, 𝟕/𝟏𝟔-𝟏𝟒 𝐦𝐨𝐮𝐧𝐭𝐢𝐧𝐠 𝐛𝐨𝐥𝐭𝐬), 𝐚𝐧𝐝 𝟏 𝐢𝐧𝐜𝐡 𝐤𝐞𝐲𝐞𝐝 𝐬𝐡𝐚𝐟𝐭 𝐛𝐞𝐟𝐨𝐫𝐞 𝐨𝐫𝐝𝐞𝐫𝐢𝐧𝐠. 𝐕𝐞𝐫𝐢𝐟𝐲 𝐭𝐡𝐚𝐭 𝐭𝐡𝐞 𝐦𝐨𝐭𝐨𝐫 𝐦𝐚𝐭𝐜𝐡𝐞𝐬 𝐲𝐨𝐮𝐫 𝐞𝐪𝐮𝐢𝐩𝐦𝐞𝐧𝐭'𝐬 𝐦𝐨𝐮𝐧𝐭𝐢𝐧𝐠 𝐩𝐚𝐭𝐭𝐞𝐫𝐧, 𝐬𝐡𝐚𝐟𝐭 𝐬𝐢𝐳𝐞, 𝐚𝐧𝐝 𝐩𝐨𝐫𝐭 𝐜𝐨𝐧𝐟𝐢𝐠𝐮𝐫𝐚𝐭𝐢𝐨𝐧. Flush hydraulic lines prior to installation. Replacement seal kit 60540-000 (Buna-N).

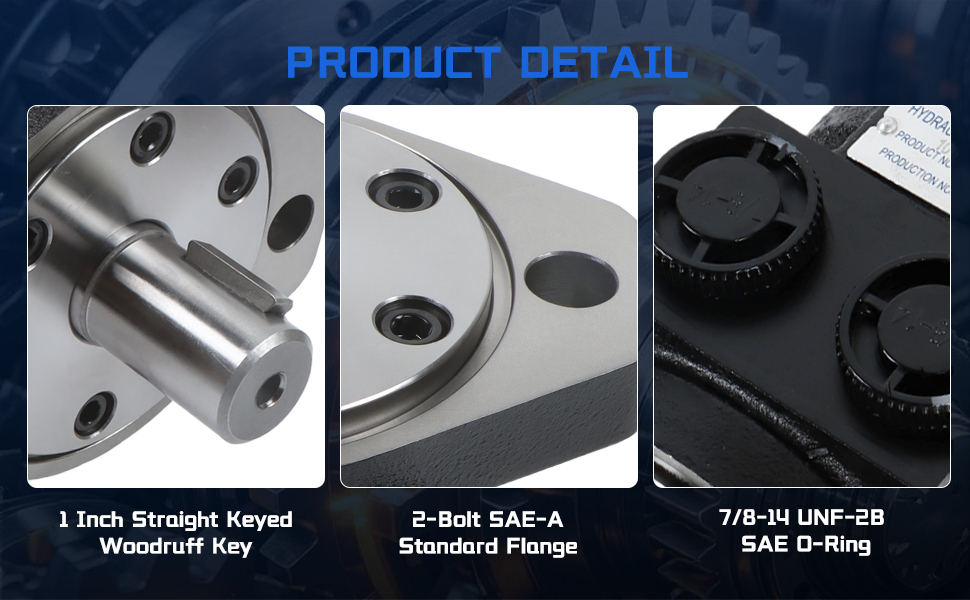

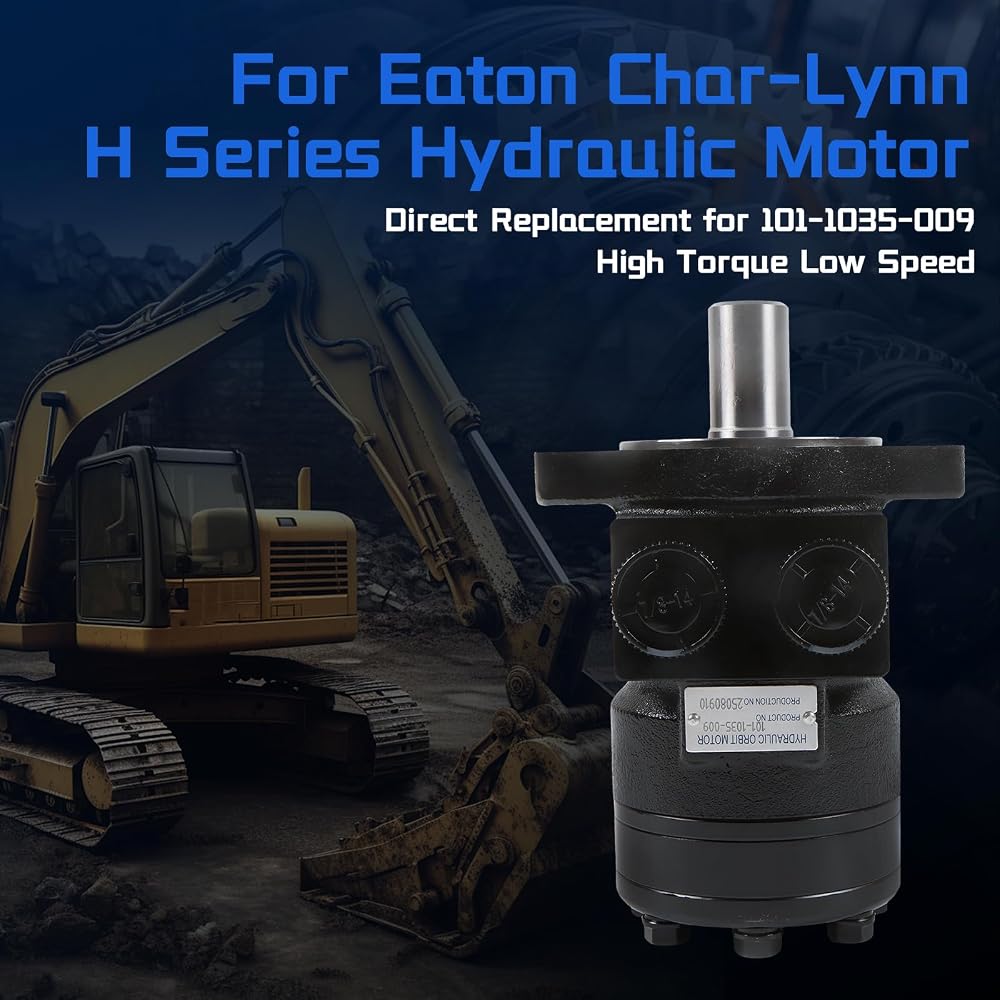

  • [🔧] Direct Swap – 5.9 cu/in Displacement: This hydraulic motor 101-1035-009 replaces for Eaton Char-Lynn H Series models with 5.9 cu in/rev (96 cc/rev) displacement . The 2-bolt SAE-A flange mount with 3.248 inch pilot diameter and 4.187 inch bolt circle lets this 101-1035-009 hydraulic motor bolt directly onto car wash brushes, agricultural harvesters, and food processing equipment without modifications.

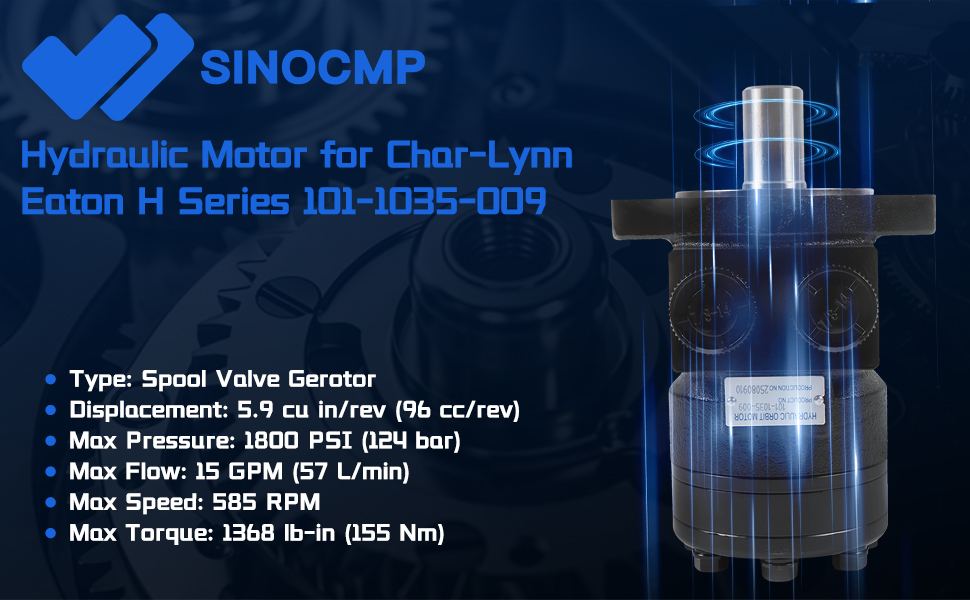

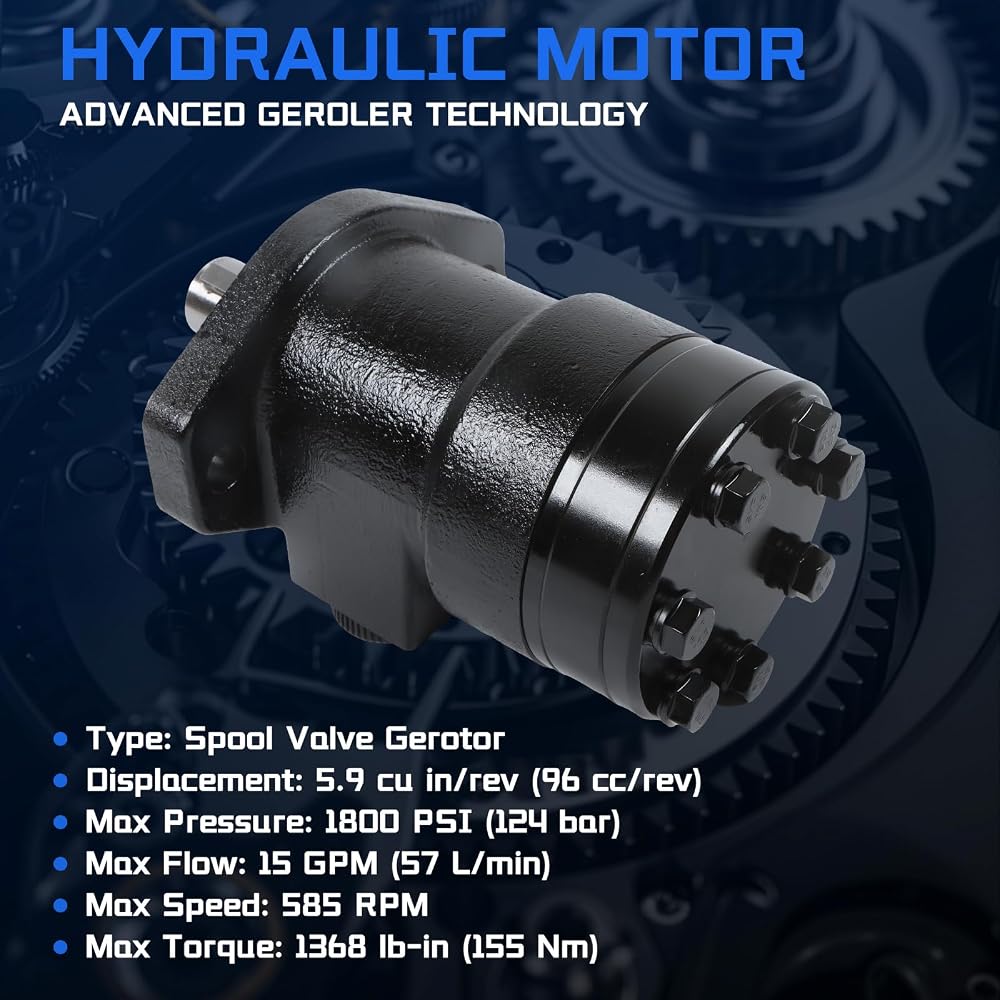

  • [⚙️] High Torque – 1368 lb-in at 585 RPM: H series hydraulic motor delivers 1368 lb-in (155 Nm) continuous torque at 585 RPM, with max continuous pressure 1800 PSI and intermittent pressure up to 2400 PSI . Max continuous flow 15 GPM, intermittent 18 GPM . The Gerotor spool valve design with three moving parts (gerotor-star, drive, shaft) helps this 101-1035-009 replacement hydraulic motor maintain consistent LSHT (low-speed high-torque) performance.
  • [🛢️] SAE O-Ring Ports – 7/8-14 UNF Side Ports: For Eaton Char-Lynn style hydraulic motor features 7/8-14 UNF-2B SAE O-ring side ports for reliable leak-free connections, accepting fittings for SAE J1926 . The O-ring design on this 101-1035-009 hydraulic motor creates seals without thread sealant, saving installation time. No case drain required.

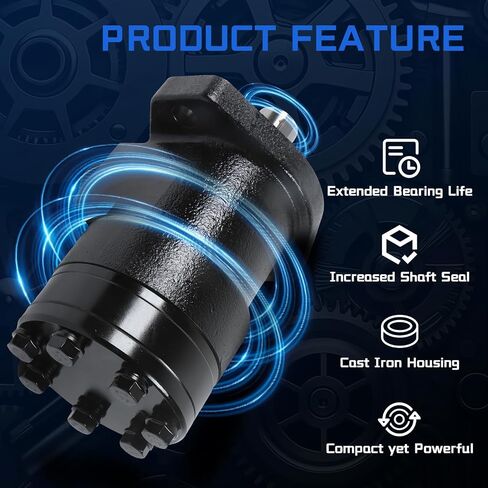

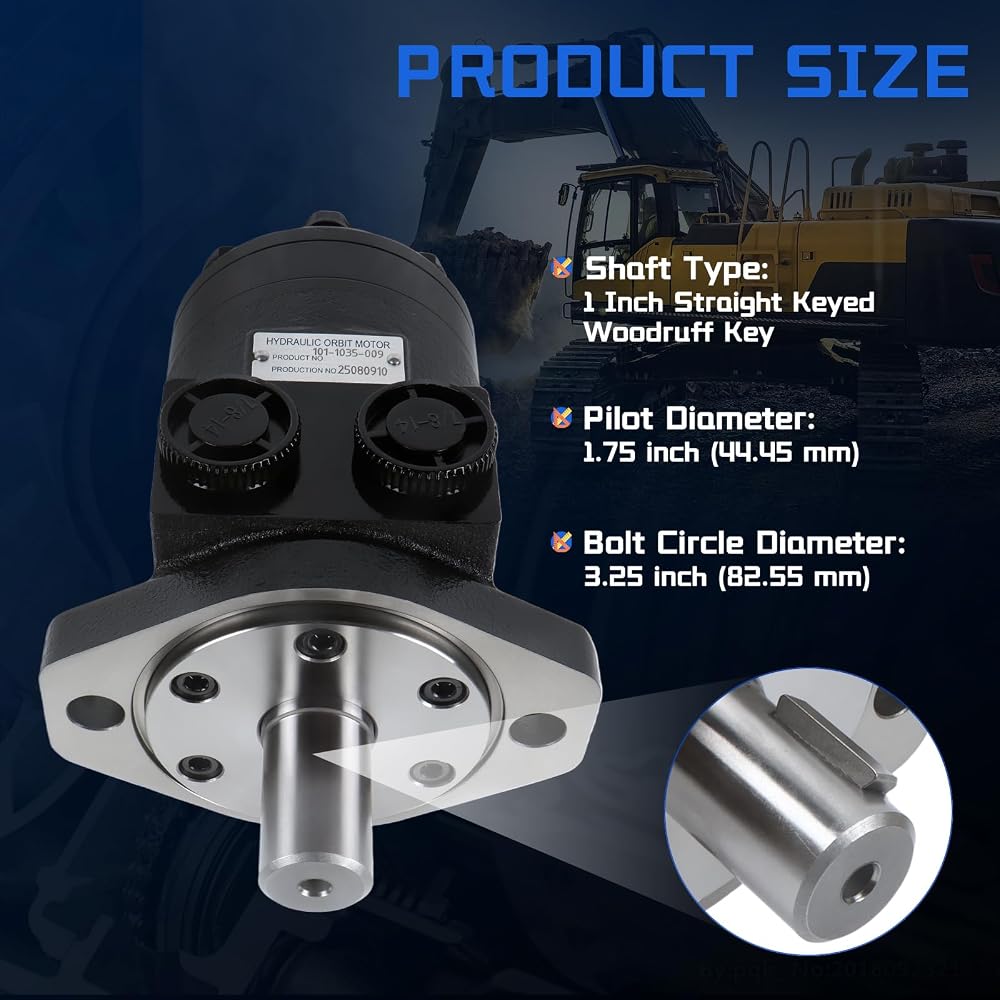

  • [🏗️] Keyed Shaft – 1 Inch with Woodruff Key: 101-1035-009 replacement hydraulic motor comes with 1 inch straight keyed shaft, 1/4 inch Woodruff keyway, and 1/4-20 UNC-2B threaded end hole . Cast iron housing with primer low gloss black finish withstands harsh environments . Max operating temperature 180°F, minimum -30°F. Weight 12.25-13 lbs.
