feature:
1. Input high-speed pulses C235 and C251 and the functions are compatible with the FX1N series. Y0 and Y1 can send 10K pulses.
2. The power circuit has undergone multiple anti-interference designs and is not afraid of various harsh electromagnetic interference working environments.
3. It can be flexibly used in various industrial automatic control occasions such as metallurgy chemical industry printing central air conditioning and environmental protection equipment.
4. It can also be used as a single process control device for industrial control equipment such as production machinery industrial assembly lines and various machine tools in industry.
5. Working voltage DC10-28V output frequency 10 (kHz) 12 input points and 8 output points.
Specification:
Product Type: Programmable Controller PLC
material: plastic

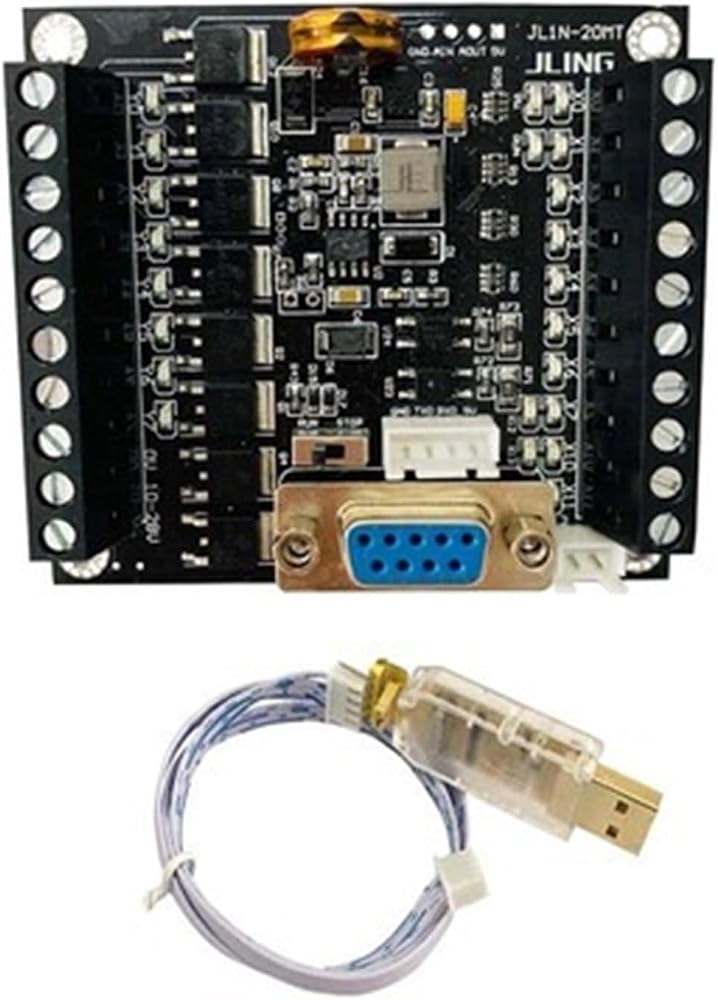

Model: FX1N-20MT (JL1N-20MT)
Power supply: DC10-28V
Output type: transistor output
Output frequency: 10 (kHz)
Output current: 300mA
Input points: 12 points
Output points: 8 points
Analog input and output: 1AD+1DA
Memory capacity: 2000 steps
Supports stepper motors: Yes
Support text screen: yes
Support touch screen: Yes
Programming software: GX Developer/GX Works2

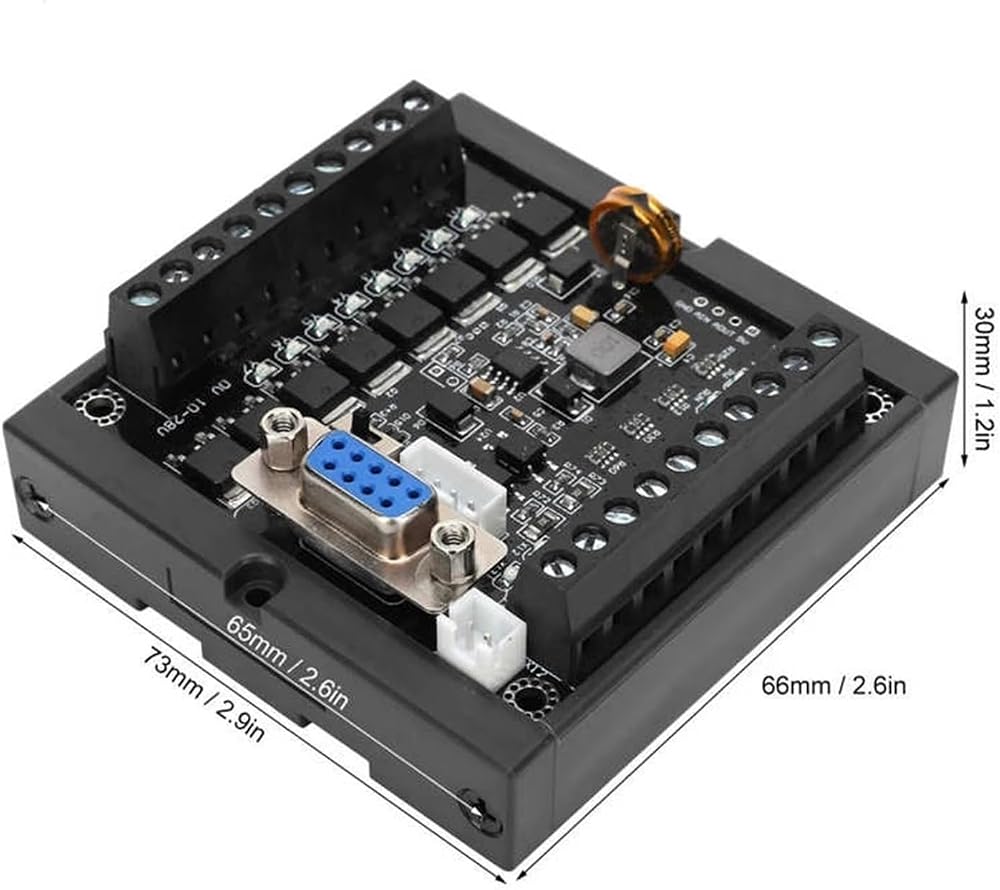

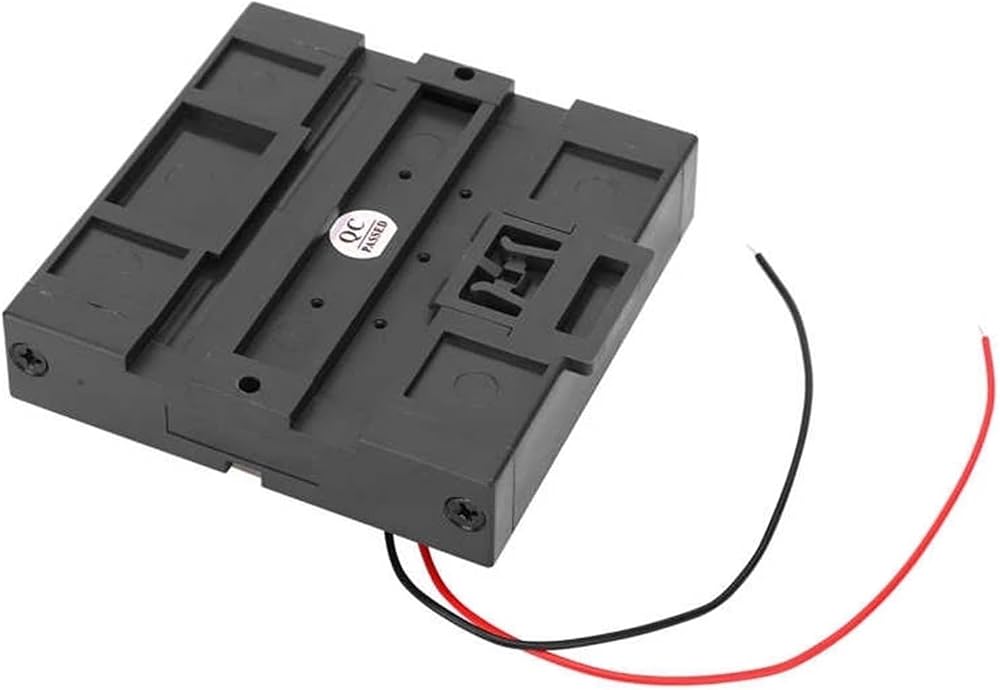

Installation method: 4 M3 screws (board only)/rail installation (with base)
Some customers have reported slow download speeds. Our default download program length is 8000 steps. In fact most clients write programs of no more than 2 000 steps. Therefore settings can be made in the programming software to increase the download speed by 4 times.
The setting method is as follows: After clicking the + sign in front of the parameter in the program data list the PLC parameters will appear then double-click the PLC parameter and the parameter setting interface will appear. Set the memory capacity in the parameter setting interface ranging from 8000 to 2000.
