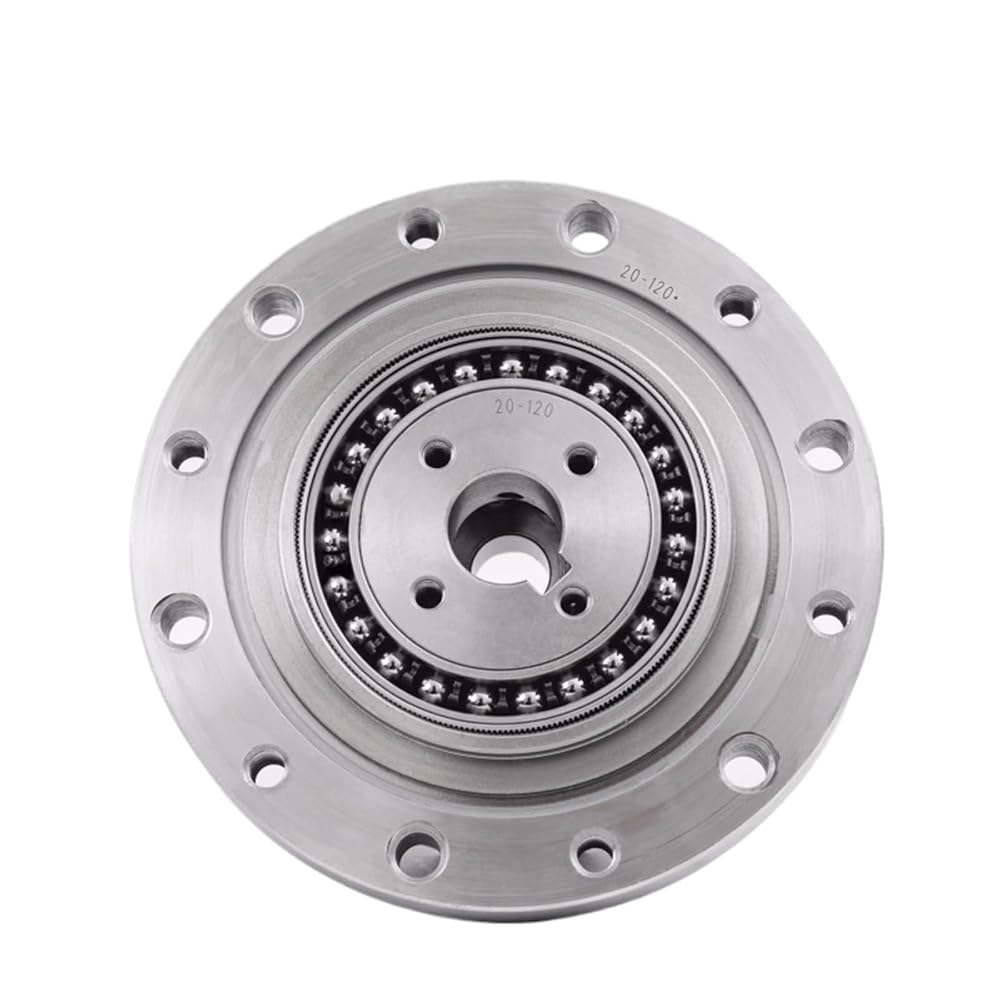

CSF-32-30/50/80/100-II Harmonic Drive Series Integrated Reducer High-Precision Joint Horizontal Installation(Reduction Ratio 30) in Kuwait

CSF-32-30/50/80/100-II Harmonic Drive Series Integrated Reducer High-Precision Joint Horizontal Installation(Reduction Ratio 30)

KWD 457
Brand
WRBSUJTMM
Category
Shafting
Weight
349 g
ColorCSF-32-II
SizeReduction ratio 30
– 1 +

Special Features

  • Rotary Shafts
  • Gearboxes Gearheads & Speed Reducers
  • CSF-32-30/50/80/100-II Harmonic Drive Series Integrated Reducer High-precision Joint Harmonic Reducer Horizontal Installation

Description

Rotary Shafts
Gearboxes Gearheads & Speed Reducers
Note Different product models have different appearance size and weight parameters
CSF-32-II
Harmonic reducer (integrated type)
Diameter: 138mm
Thickness: 60mm
Weight: 3.406-3.045kg
Reduction ratio: 50 80 100 120
Rated Tq when inputting 2000r/min: 76N.m 118N.m 137N.m 137N.m
Allowable peak Tq when starting and stopping: 216N.m 304N.m 353N.m 353N.m
Allowable maximum average load Tq: 75N.m 167N.m 216N.m 216N.m
Instantaneous maximum allowable Tq: 200N.m 568N.m 647N.m 686N.m
Allowable maximum input speed: 4500r/min
Allowable average input speed: 3500r/min
Backlash (arcsec): 20 10 10 10
