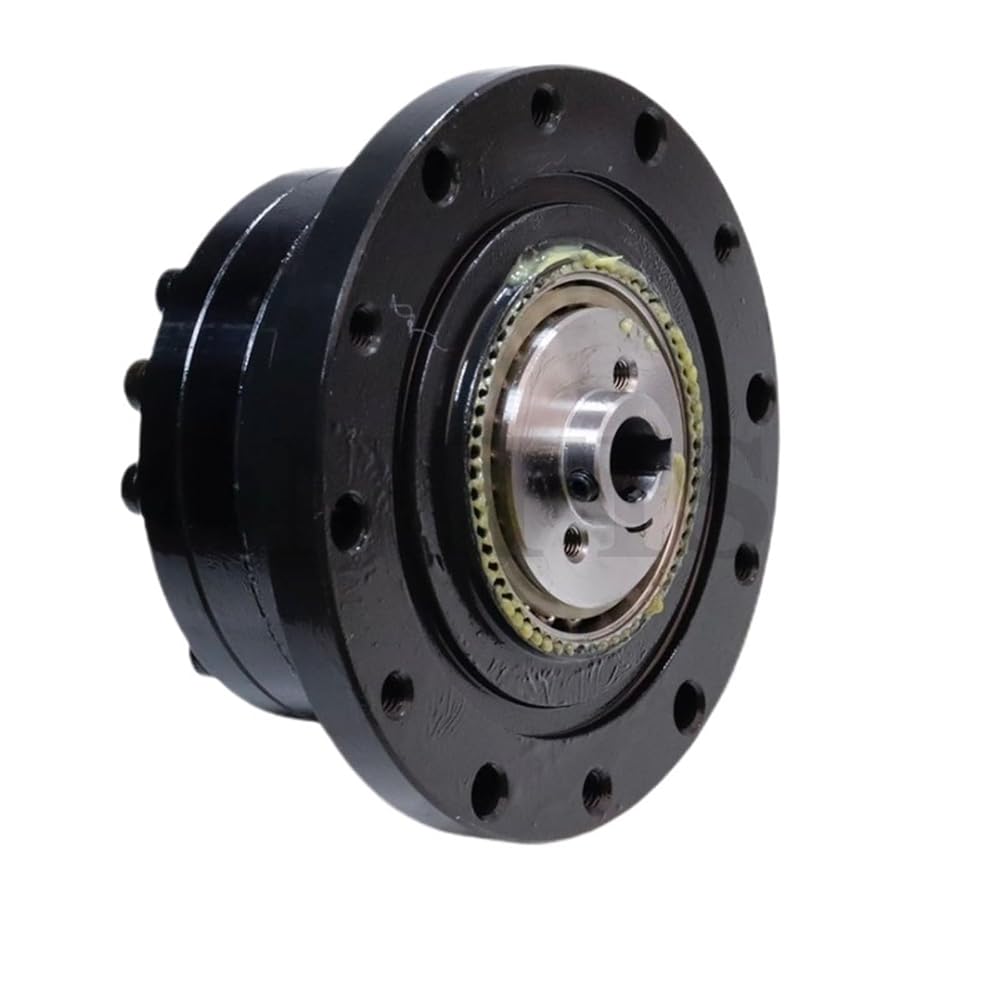

XZS4550
Reduction ratio 50
Rated Tq when inputting 2000r/min: 229 Nm(23 kgfm)
Allowable peak Tq when starting and stopping: 650 Nm(66 kgfm)
Allowable maximum value of average load Tq: 345 Nm(35 kgfm)
Momentary allowable maximum Tq: 1235 Nm(126 kgfm)
Allowable maximum input speed: 3800 r/min
Allowable average input speed: 3000 r/min
Backlash: 10 Aresec
XZS45-80
Reduction ratio: 80
Rated Tq when inputting 2000r/min: 407 Nm(41 kgfm)
Allowable peak Tq when starting and stopping: 918 Nm(94 kgfm)
Allowable maximum value of average load Tq: 507 Nm(52 kgfm)
Momentary allowable maximum Tq: 1651 Nm(168 kgfm)
Allowable maximum input speed: 3800 r/min
Allowable average input speed: 3000 r/min
Backlash: 10 Aresec
XZS45-100
Reduction ratio: 100
Rated Tq when inputting 2000r/min: 459 Nm(47 kgfm)
Allowable peak Tq when starting and stopping: 982 Nm(100 kgfm)
Allowable maximum value of average load Tq: 650 Nm(66 kgfm)
Momentary allowable maximum Tq: 2041 Nm(208 kgfm)
Allowable maximum input speed: 3800 r/min
Allowable average input speed: 3000 r/min
Backlash: 10 Aresec
XZS45-160
Reduction ratio: 160
Rated Tq when inputting 2000r/min: 523 Nm(53 kgfm)
Allowable peak Tq when starting and stopping: 1147 Nm(117 kgfm)
Allowable maximum value of average load Tq: 819 Nm(84 kgfm)
Momentary allowable maximum Tq: 2483 Nm(253 kgfm)
Allowable maximum input speed: 3800 r/min
Allowable average input speed: 3000 r/min
Backlash: 10 Aresec
the product does not include lubricant.
