مميزات خاصة

Rated Voltage : DC 12V 5W.
Pressure Range：0 to 4.0bar.
Working medium: Water or non-corrosive liquid and Gas Air.
Flow:300-1300ml/min.
Inner diameter of the interface：Φ6.5 mm.

وصف

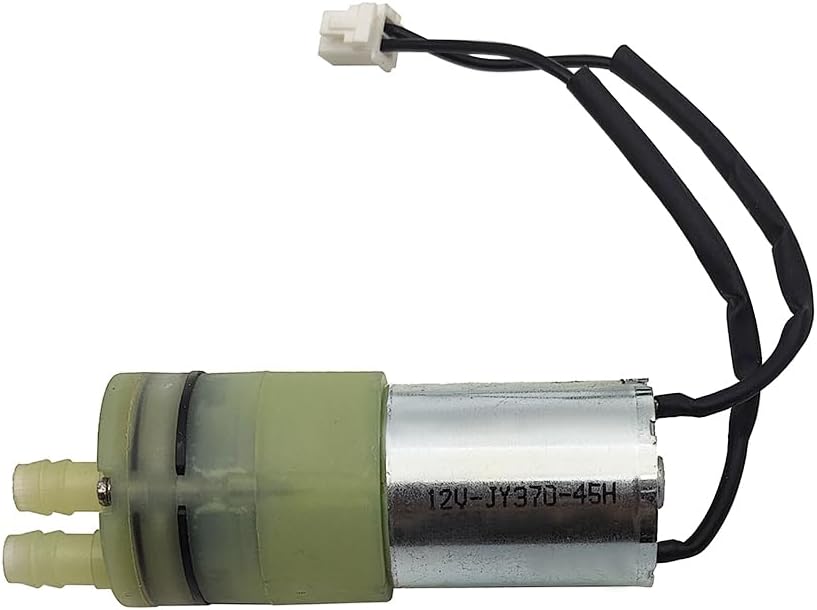

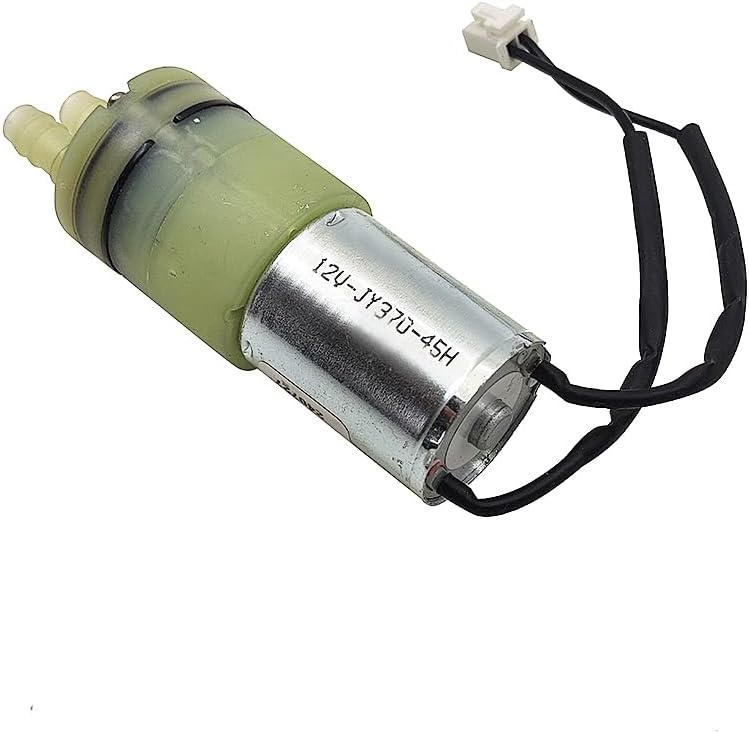

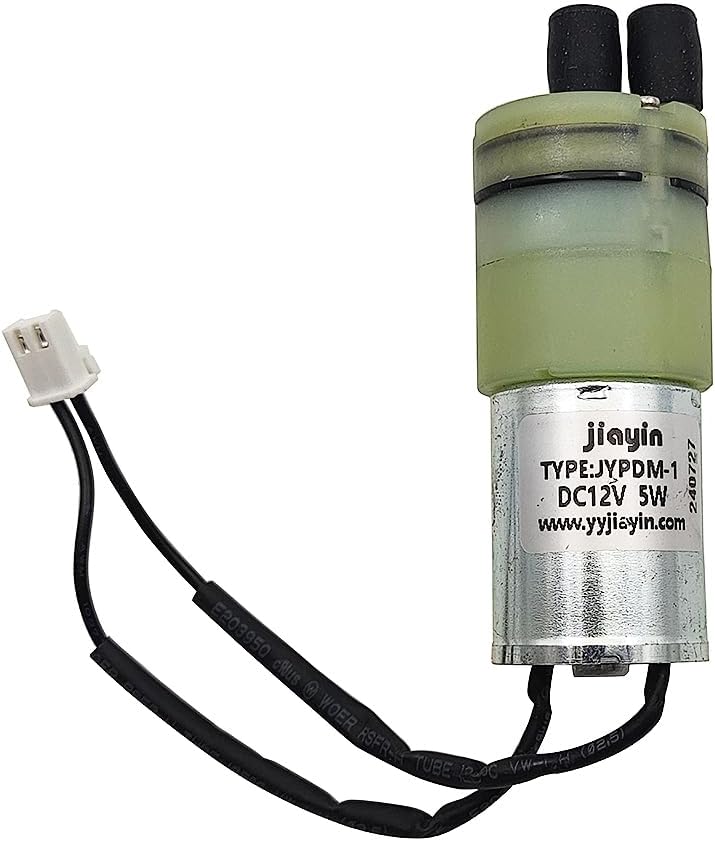

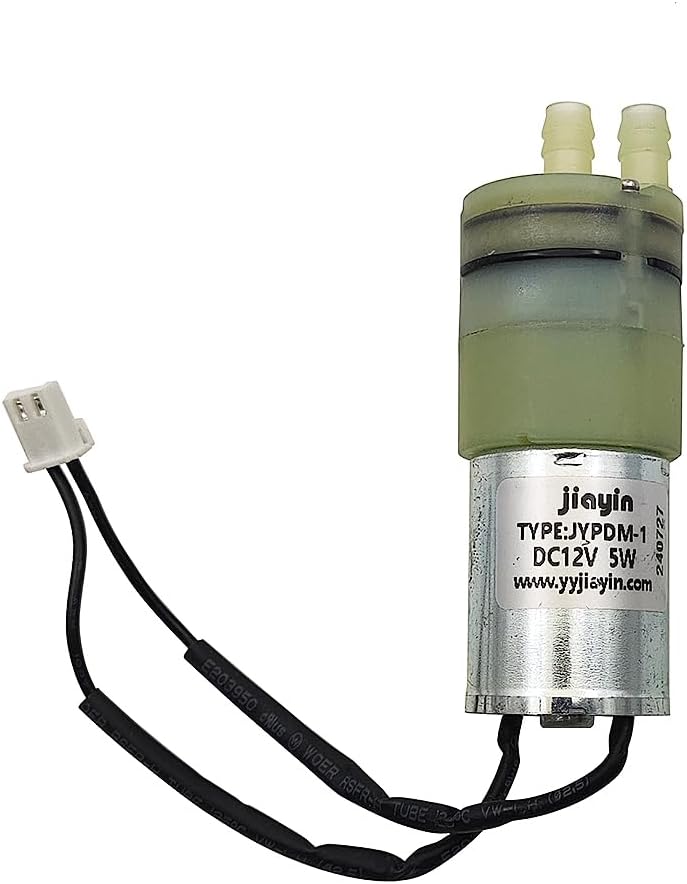

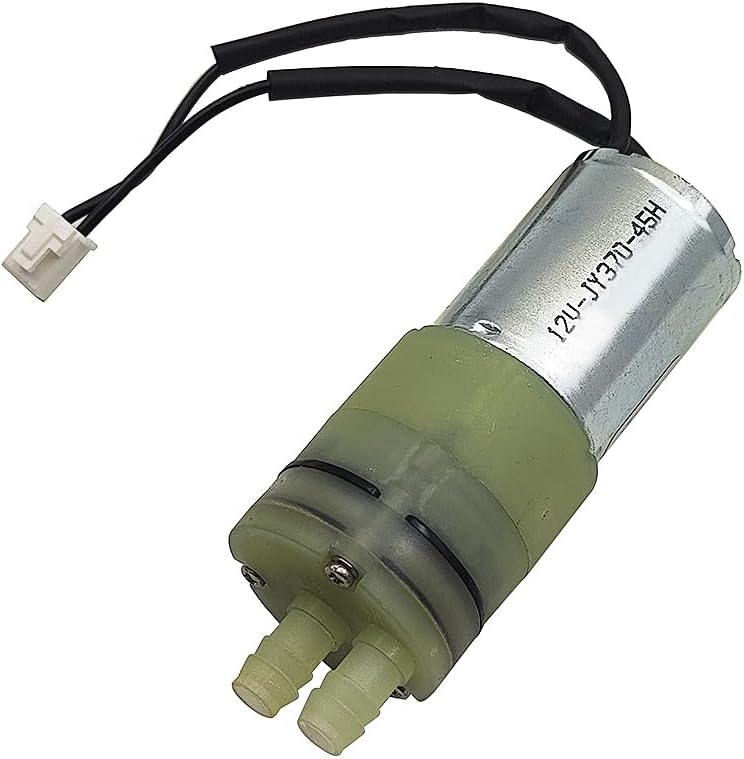

The 370 pump is equipped with wiring terminals . It can self suction, and the higher the voltage, the greater the pumping flow rate, but the relative sound is also louder. The 12V flow rate is approximately 300-1300 ml per minute. It suitable for 5 * 7mm silicone tube.

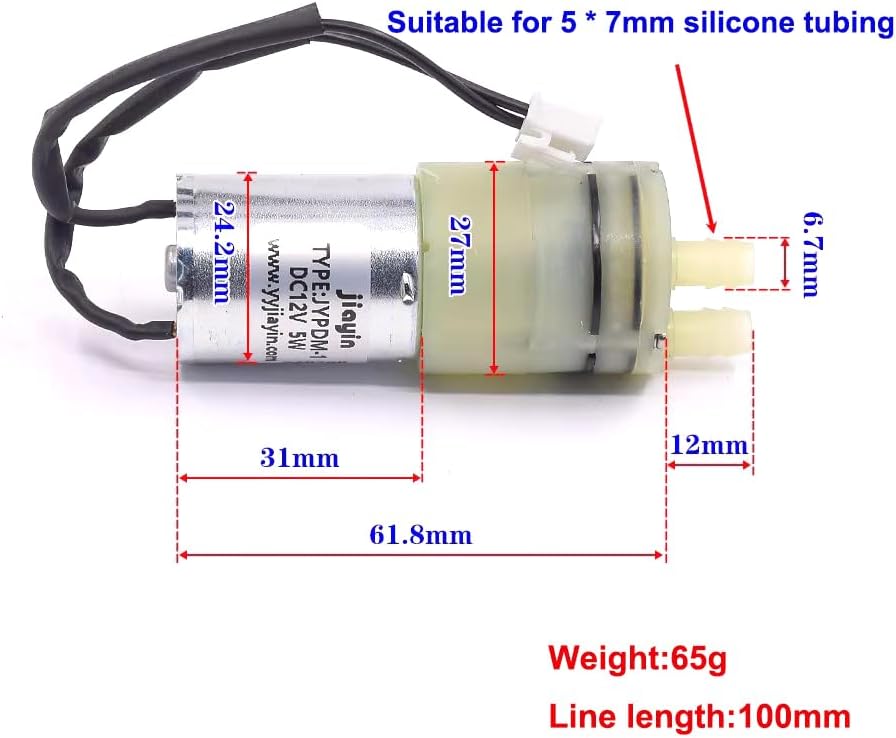

Motor outer diameter: 24.2 mm.
Pump head outer diameter: 27.0 mm .
Outer diameter of outlet: 6.7 mm Inlet outer diameter: 6.7 mm.
Weight: 65 grams .
Lifespan：over 500hours.
Applicable Medium Temperature：0 to 100 ℃ .
Applicable Ambient Temperature：0 to 50 ℃ .
Applicable voltage: DC6V-18V
Voltage: DC6V， Current: 0.16 A
Voltage: DC12V ，Current: 0.26 A (rated voltage)
Voltage: DC18V ，Current: 0.35 A
