مميزات خاصة

Sinters Materials at Up to 1200°C with 50mm Diameter Tube: Rated temperature 1100°C. Furnace tube size 50 x 300mm. Heating rate ≤10°C/min, recommended 5°C/min. Resistance wire heating element

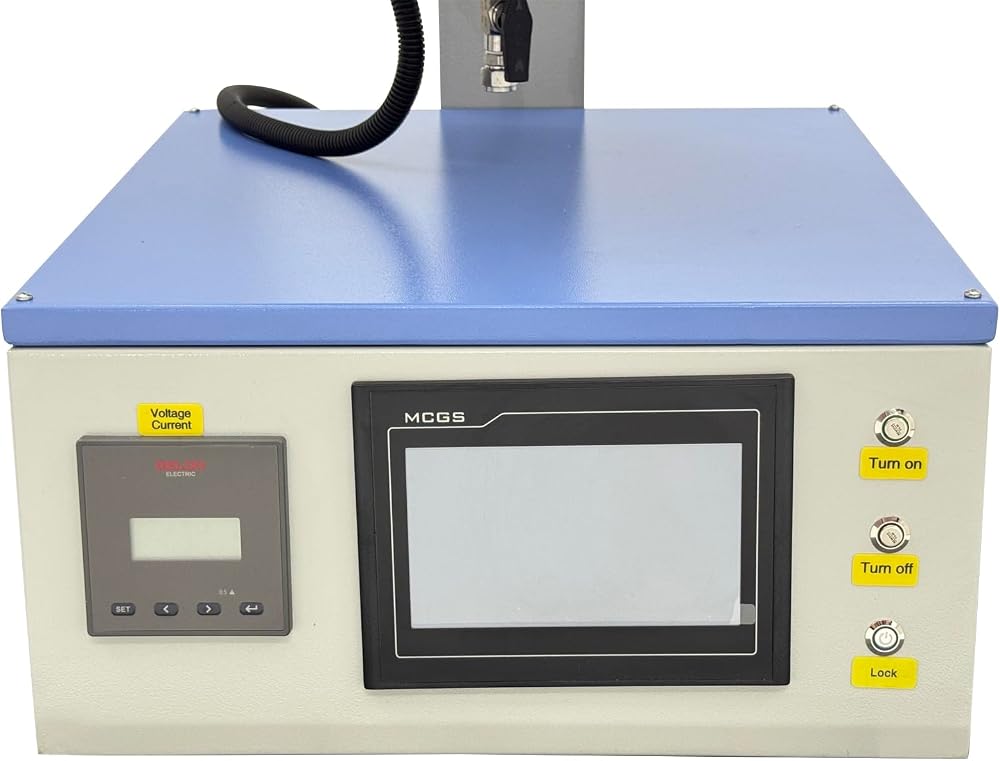

Features 30-Segment Programmable Control with AI Algorithm: No overshoot control. Slope rise and fall control with jump, run, pause, and stop commands. Alarm functions for upper limit and input open detection

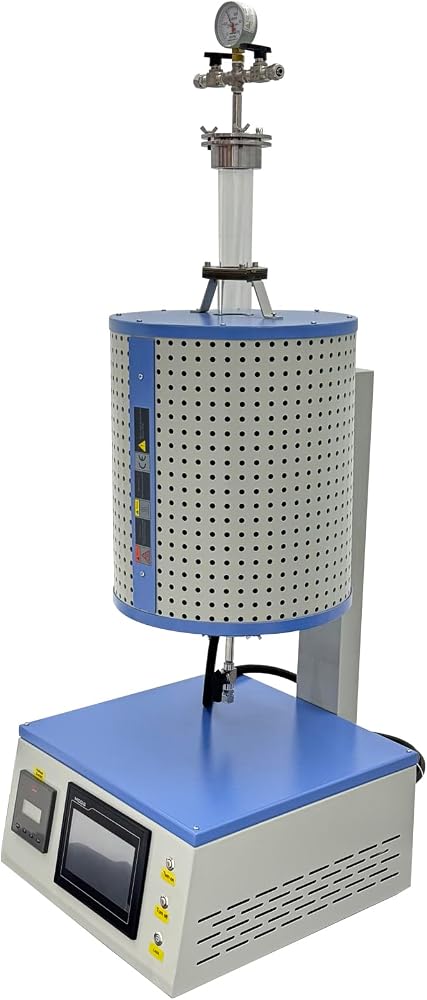

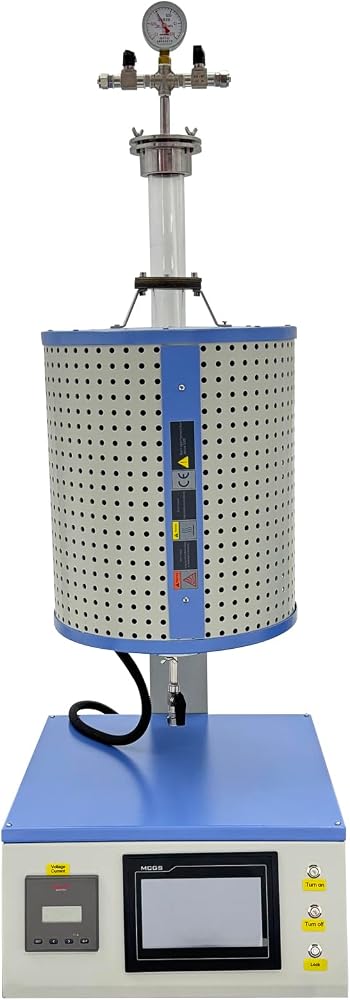

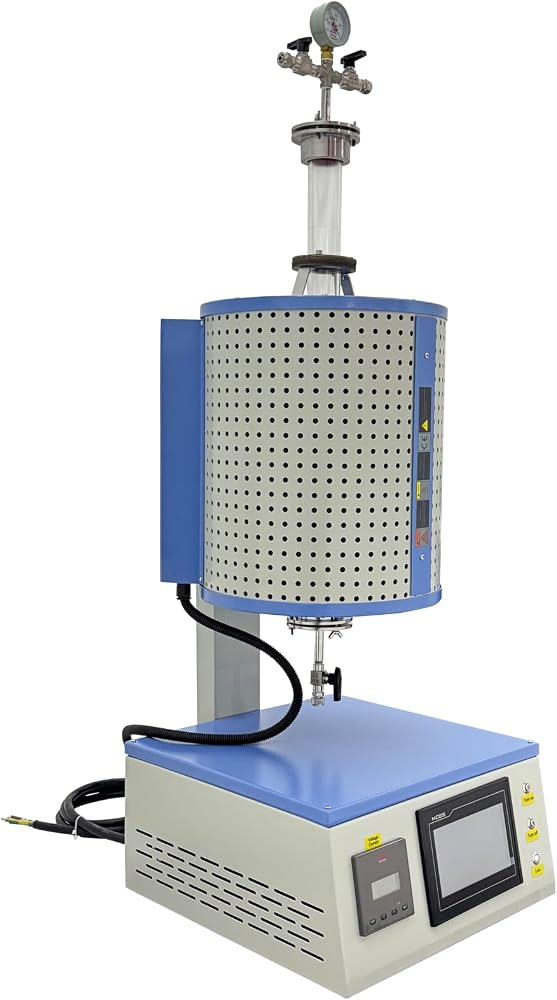

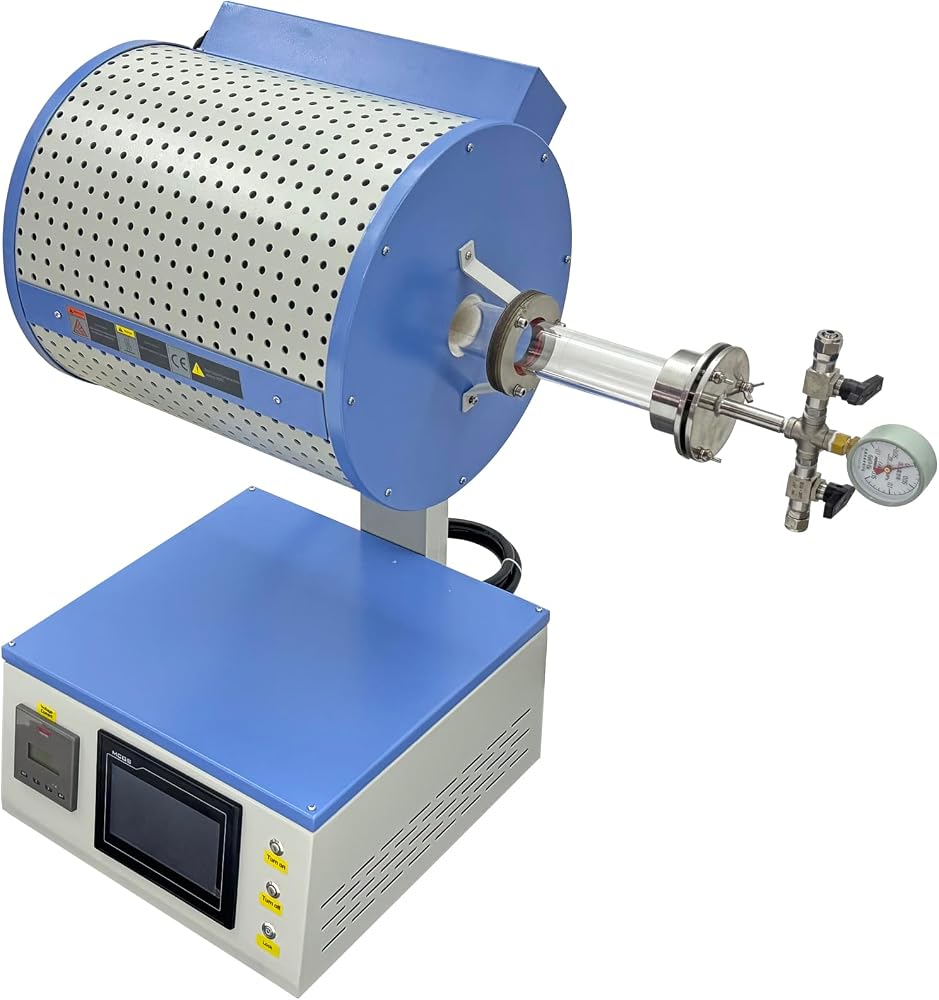

Provides Multi-Station Processing with Rotary Tube Design: Continuous tumbling of samples during heating. Simultaneous processing of multiple samples. Suitable for ceramics and powder metallurgy applications
Built with Thickened Steel Plates and Ceramic Fiber Chamber: Efficient heat dissipation and high rigidity construction. Quick heating with low energy consumption. Sealing flange effectively fixes the furnace tube for vacuum treatment

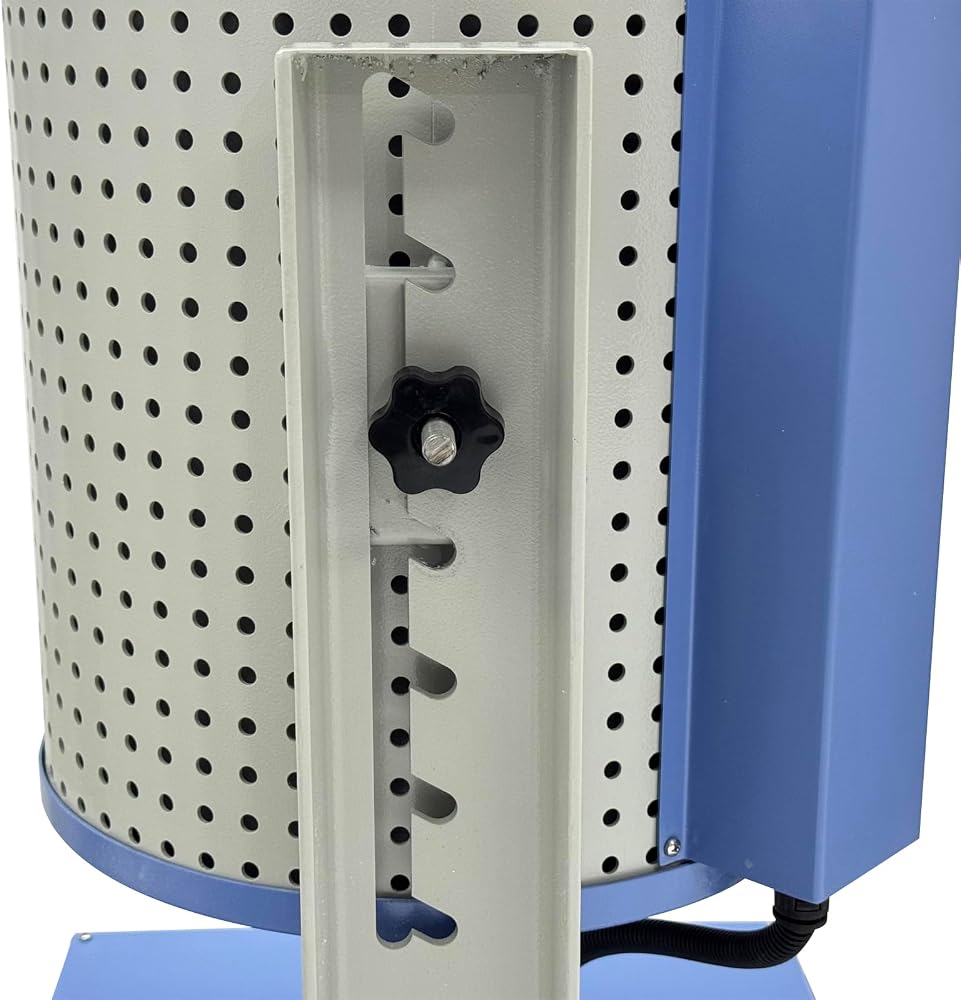

Includes Vacuum System with -0.1MPa Capability: Vacuum pressure gauge for precise monitoring. Height adjuster for furnace body positioning. Measurement accuracy 0.2 level. Machine size 19.7 x 17.7 x 51.2 inches. Net weight 148.8 lbs (67.5 kg). Requires professional wiring with 32A air switch

وصف

Product Parameters
Model: 12NT
Voltage: 110V 60Hz Single-phase
Power: 3KW
Maximum temperature: 1200˚C
Rated temperature:1100˚C
Heating element: Resistance wire
Thermocouple: K
Furnace tube size: Φ50*300mm (2-11.8 inches)
Heating rate ≤10˚C/min
Recommended heating rate: 5˚C/min
Temperature control accuracy:±1˚C
Vacuum level: -0.1MPa

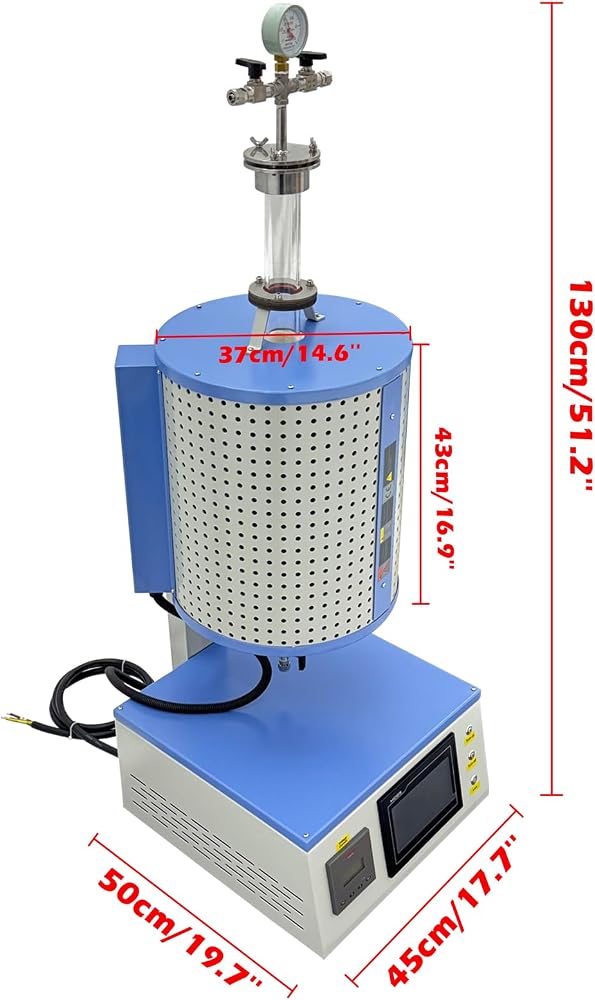

Machine size: 50*45*130cm (19.7*17.7*51.2 inches)
Net weight: 67.5kg (148.8LBs)
Item Included: 1 x Omnidirectional Single Zone Multi-Station Tube Furnace 110V
