Features

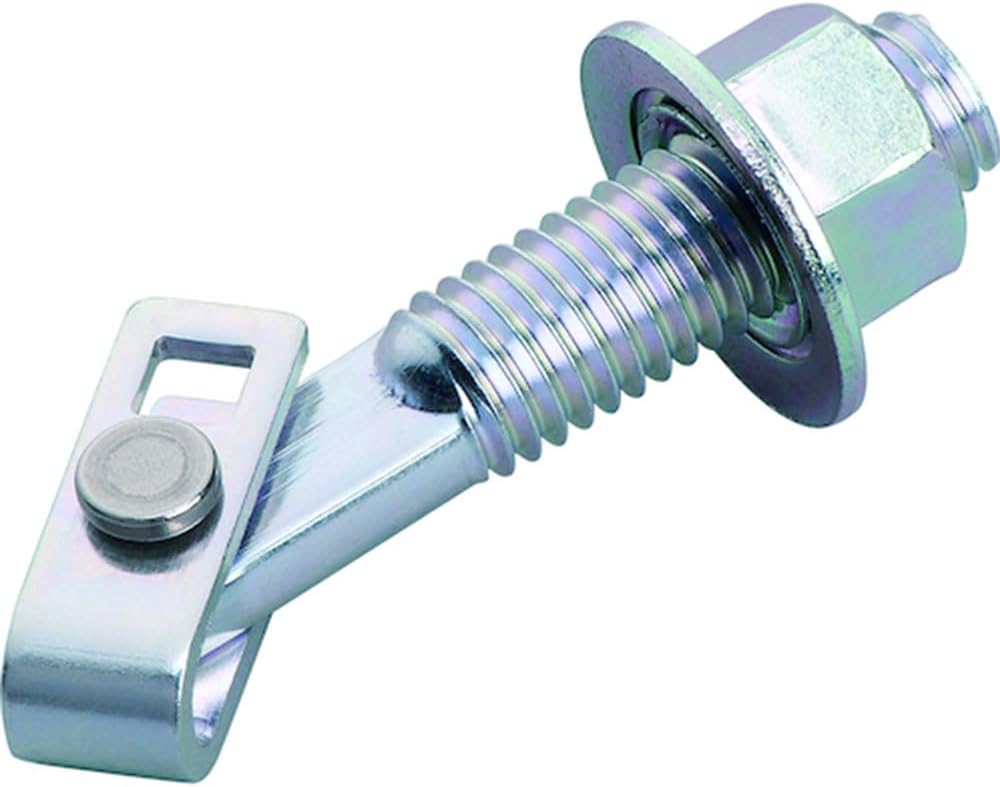

The plate part is double structure (= 2 pieces) to provide strong holding power to the object of scissors.
The roll plate is shorter than the regular IT hanger type, and can be installed easily inside the extruded cement board.
The roll plate portion is shortened for extruded cement boards, so it can be installed without any hassle.
Recommended by the ECP Association.

Application
For Extruded Cement Boards
For attaching handrails, distribution boards, etc.
For hollow walls.
Installation railings, mounting brackets, mounting power distribution boards, mounting on hollow walls such as bulletin boards, etc.

Specifications
Thread Nominal: M8
Total Length: 2.8 inches (72 mm)
Thread Length: 2.0 inches (50 mm)
Hole Diameter: 0.5 inches (12.0 mm)
Drill diameter: 0.5 inches (12.0 mm)
Plate Length: 1.2 inches (30 mm)
Maximum tensile load (kN): 4.22
Test base material: Extruded cement board
Necessary hollow part: 1.2 inches (30 mm)
Scissor thickness: 0.7 - 1.8 inches (17 - 45 mm)
Neck Length: 2.4 inches (62 mm)
Boxed.

Set Contents/Accessories:
50 x Amela Hangers, 1 x Amela Drill (AMD-12.0 x 120)
Nuts with seats.

Material/Finish
Stainless steel (body: SUSXM7, SUS304 series, Plate: SUS304 series)

Note

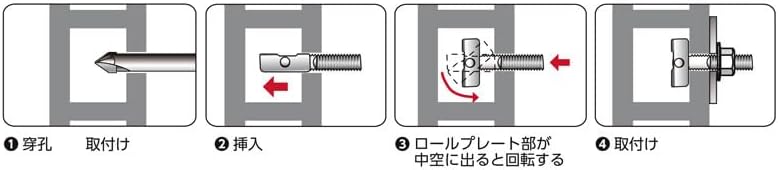

For installation, a hollow portion of the plate length or more is required. Please check the dimensions of the hollow part before using.

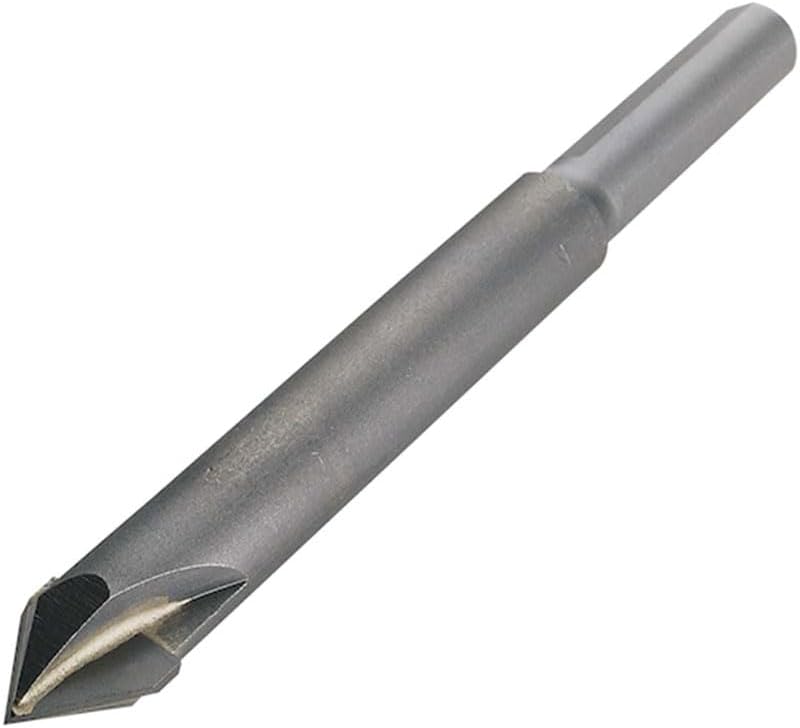

Please use an amella drill with a special drill that will not damage the extruded cement board.
