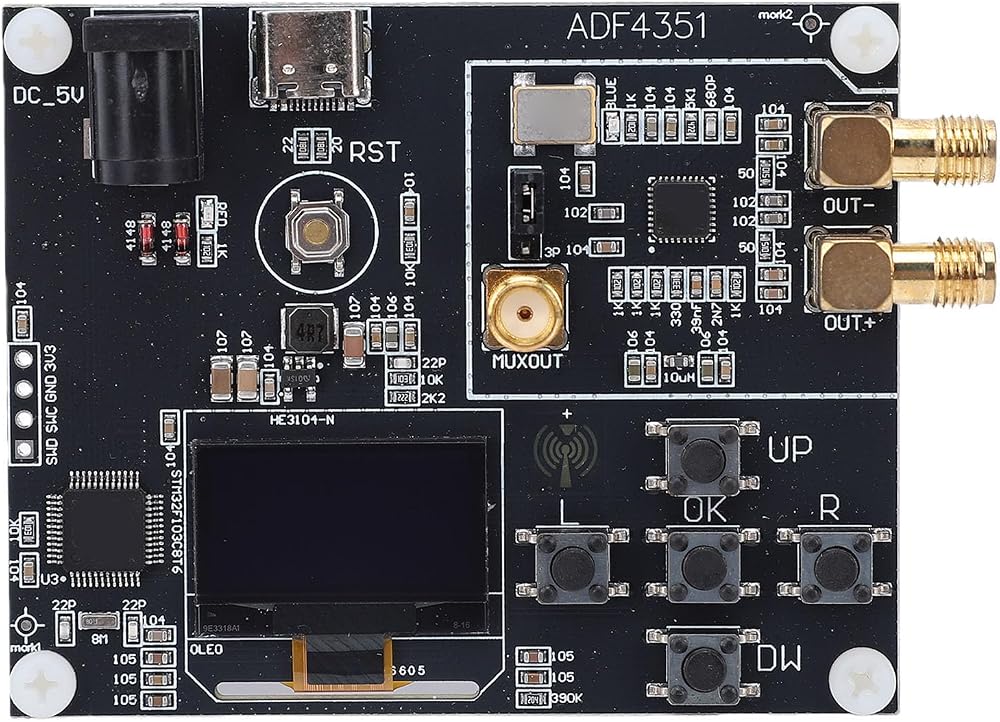

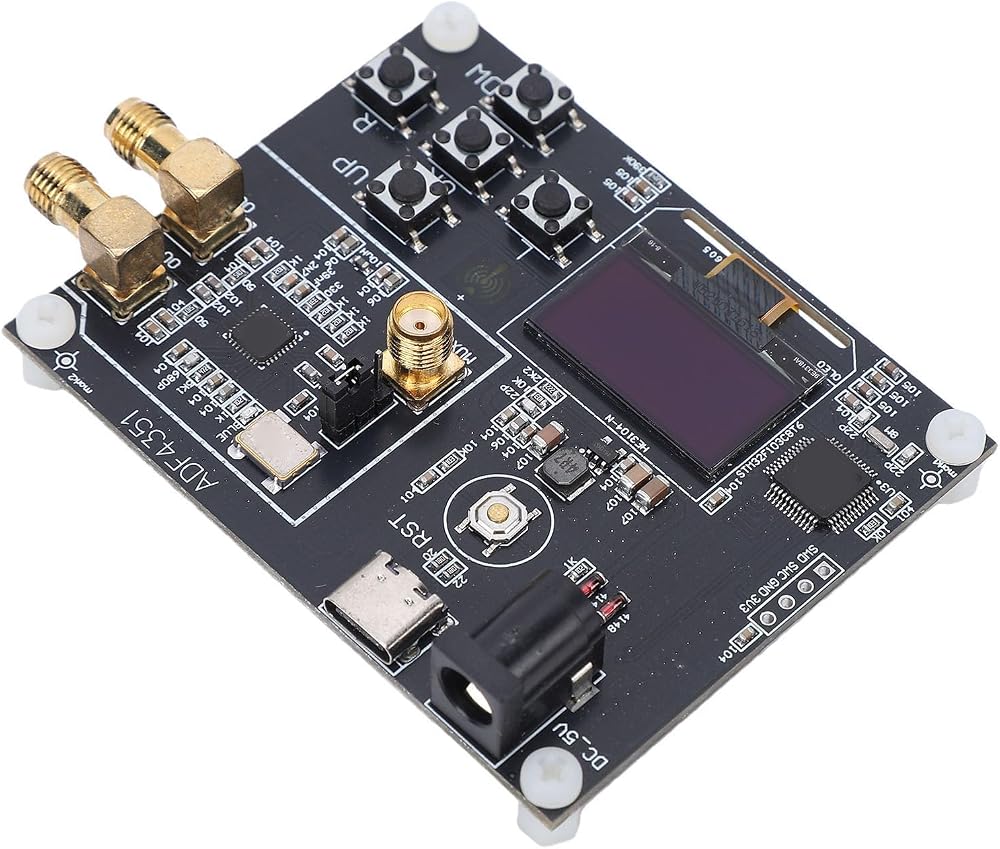

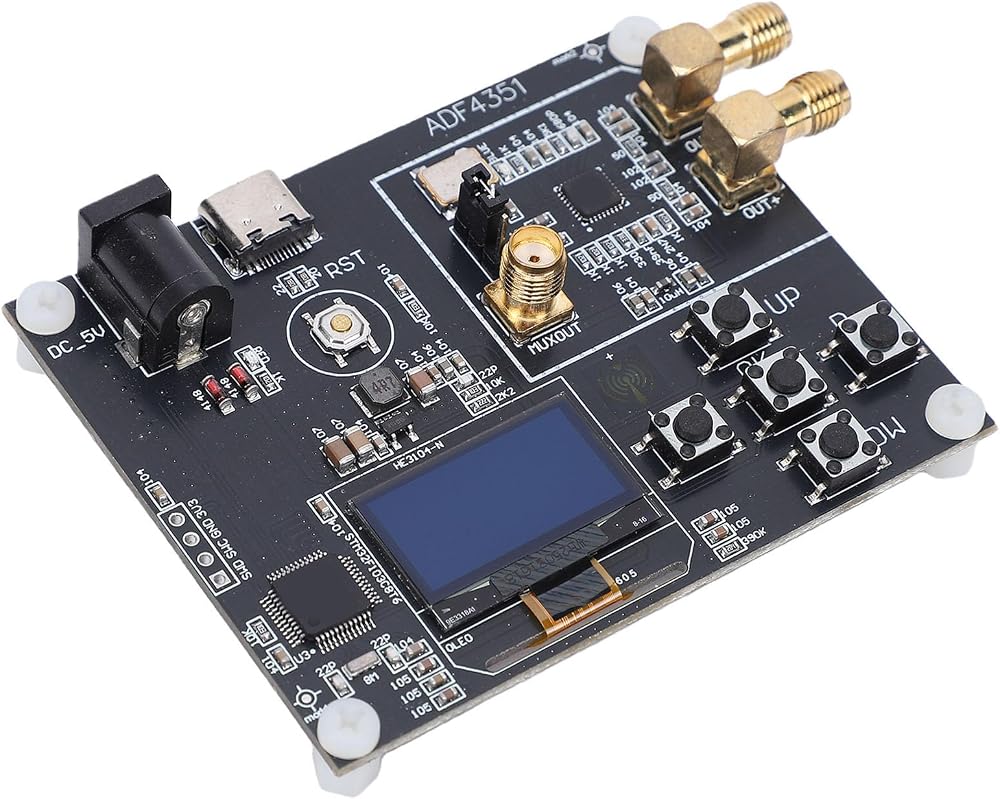

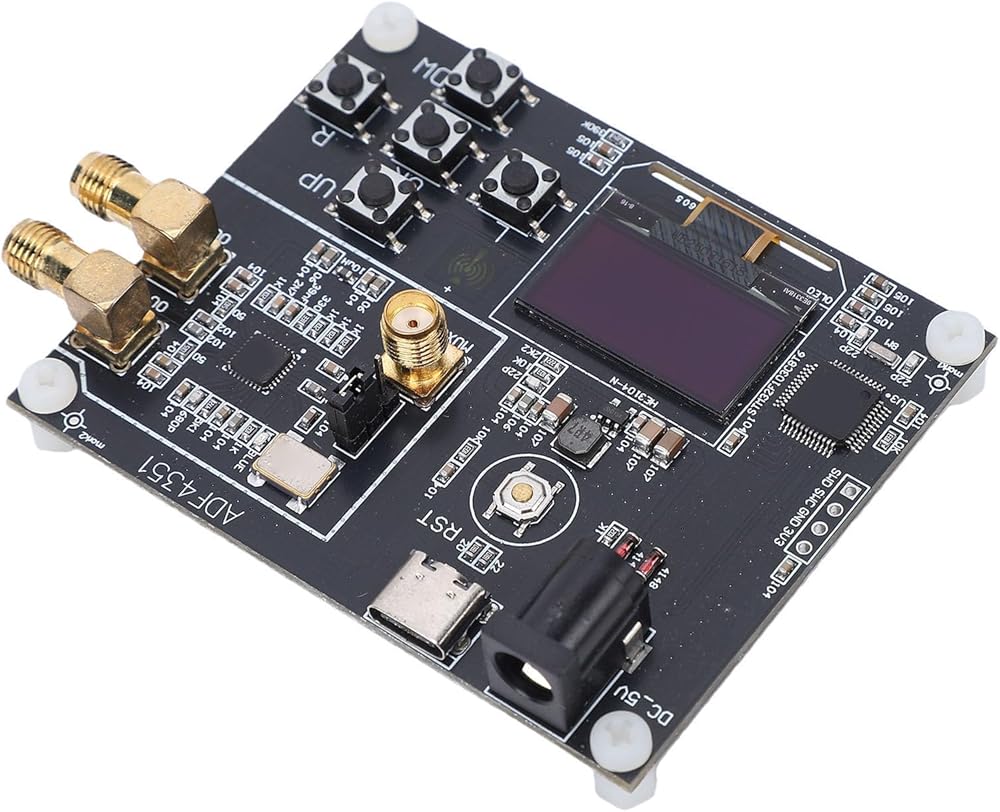

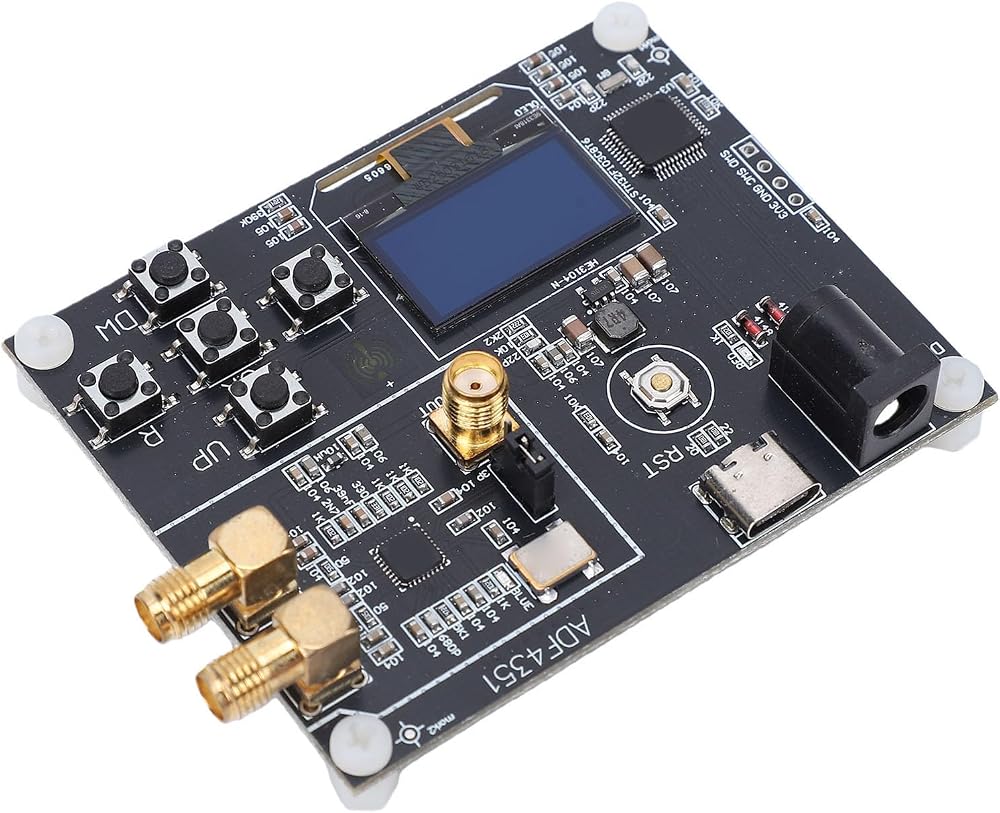

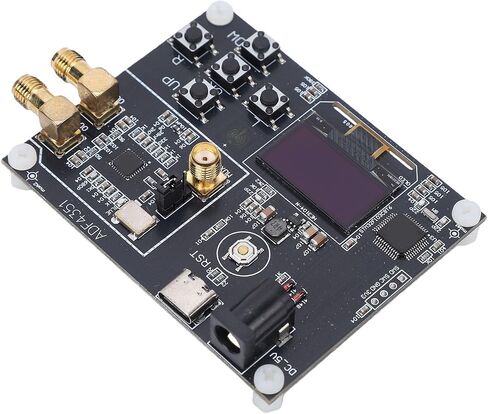

Bewinner ADF4351 RF Frequency Synthesizer Module 35MHz-4.4GHz | Wideband Signal Source with SMA Output 50 Ohm 7dBm for RF Testing

KWD 21.500
Brand
Bewinner
– 1 +

Special Features

  • Frequency Generation: This ADF4351-based phase locked module delivers high frequency stability (>25PPM) and low phase noise, ensuring dependable performance for precise RF applications like signal analysis and communication testing across a wide 35MHz-4.4GHz range.
  • Versatile Operating Modes: Offering fixed frequency, sweep, and hop frequency functions, this synthesizer allows adjustable output power (0dB, -3dB, -6dB, -9dB) to suit diverse RF development, testing, and lab experiments, with a 0.1MHz frequency control step.
  • Wideband RF Coverage: With a broad 35MHz to 4.4GHz output frequency range and 100MHz reference frequency, this module supports multiple applications including spectrum analysis, signal generation, and RF research, providing practical utility .

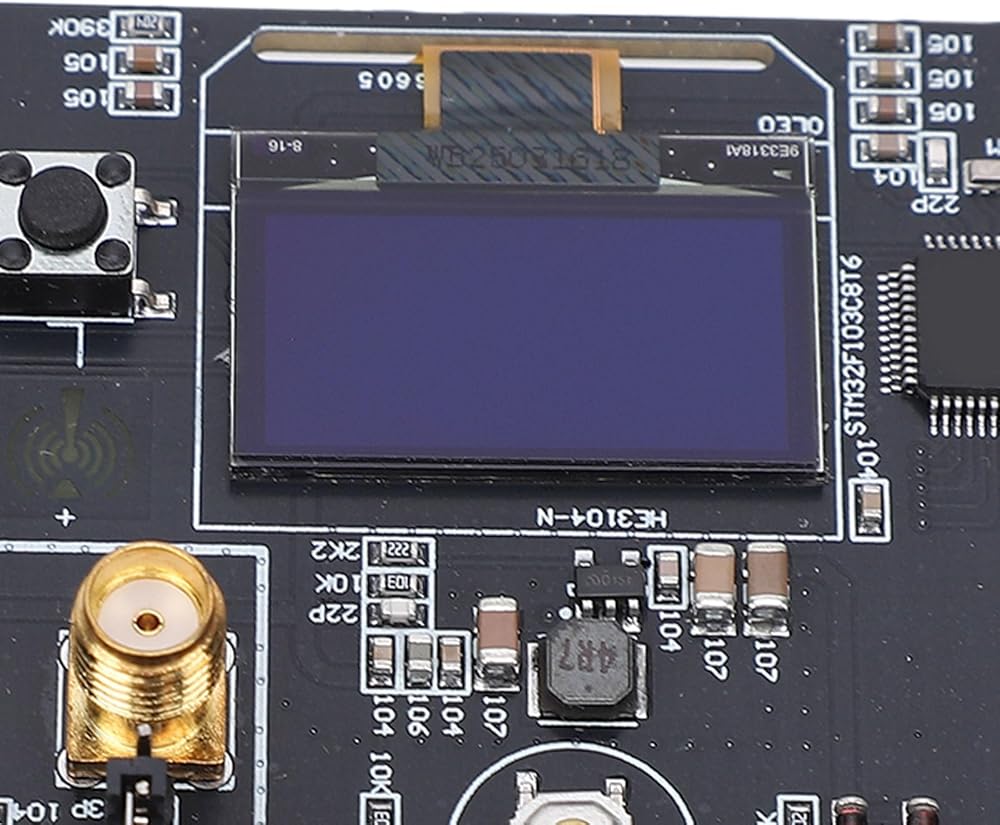

  • User-Friendly Interface: Features an intuitive organic LED display and physical buttons for easy operation, along with USB host communication for real-time adjustments without complex setups, enhancing workflow efficiency for developers and test engineers.
  • Reliable Signal Output: Equipped with a 50Ω SMA female connector and producing 7dBm maximum output power (sine or square wave), this module ensures stable signal transfer through 2 differential output channels, making it ideal for professional RF systems.

Description

Frequency Source: Fit for ADF4351 chip, this frequency synthesizer module delivers high frequency stability and low phase noise, ensuring dependable performance for precise applications
Multiple Functions: Offering versatile modes including fixed, sweep, and hop frequency, this module allows adjustable output power to cater to diverse RF testing and development needs
Wideband Coverage: With a broad frequency coverage from 35MHz to 4.4GHz, this module is practical for various applications like communication testing and signal analysis
User Friendly: Features intuitive organic LED display and physical buttons, support USB host communicating, simplifying operations and real time adjustments without complex setups
Signal Source: Equipped with SMA female connector and 50Ω impedance output, this module ensures dependable and stable signal transfer suitable for professional RF systems
Specification:
Item Type: Phase Locked Module
Product Material: PCB
Module Type: Wideband Phase Locked Frequency Source
Module Function: Fixed Frequency, Sweep Frequency, Power Adjustment
Module Current: 220mA (Maximum)
Module Reference Frequency: 100MHz
Reference Frequency Signal Amplitude: 700mVpp (Minimum)
Frequency Stability: >25PPM
Phase Noise: Varies by frequency point
Module Output Frequency Range: 35MHz-4.4GHz
Module Output Power: 7dBm (Maximum)
Frequency Control Step: 0.1MHz
Sweep Frequency Step: 0.1MHz-.9MHz
Sweep Time Step: 1mS-9999mS
Output Power Adjustment: 0dB, -3dB, -6dB, -9dB
Module Output Interface: SMA
Module Output Signal: Sine Wave or Square Wave
Module Output Channels: 2 (Differential Channels)
Module Output Impedance: 50Ω
Package List:

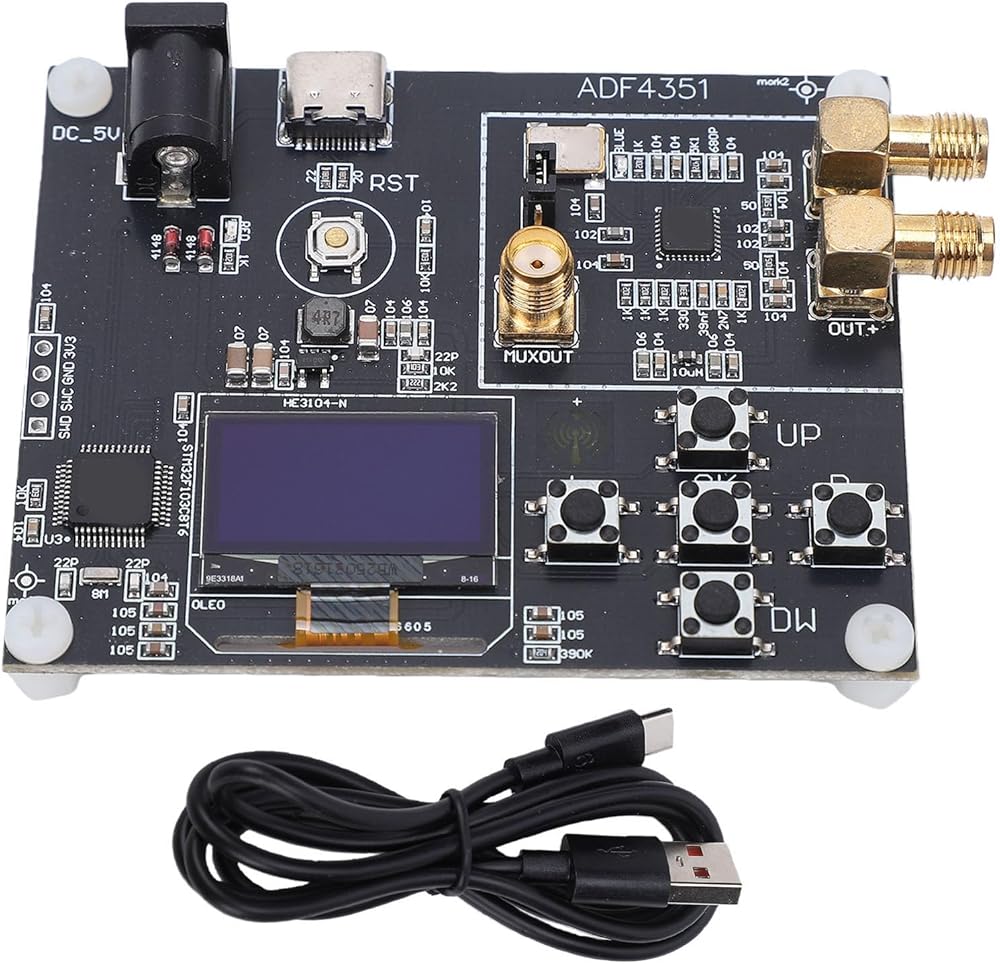

1 x Module
1 x Supply Cable
