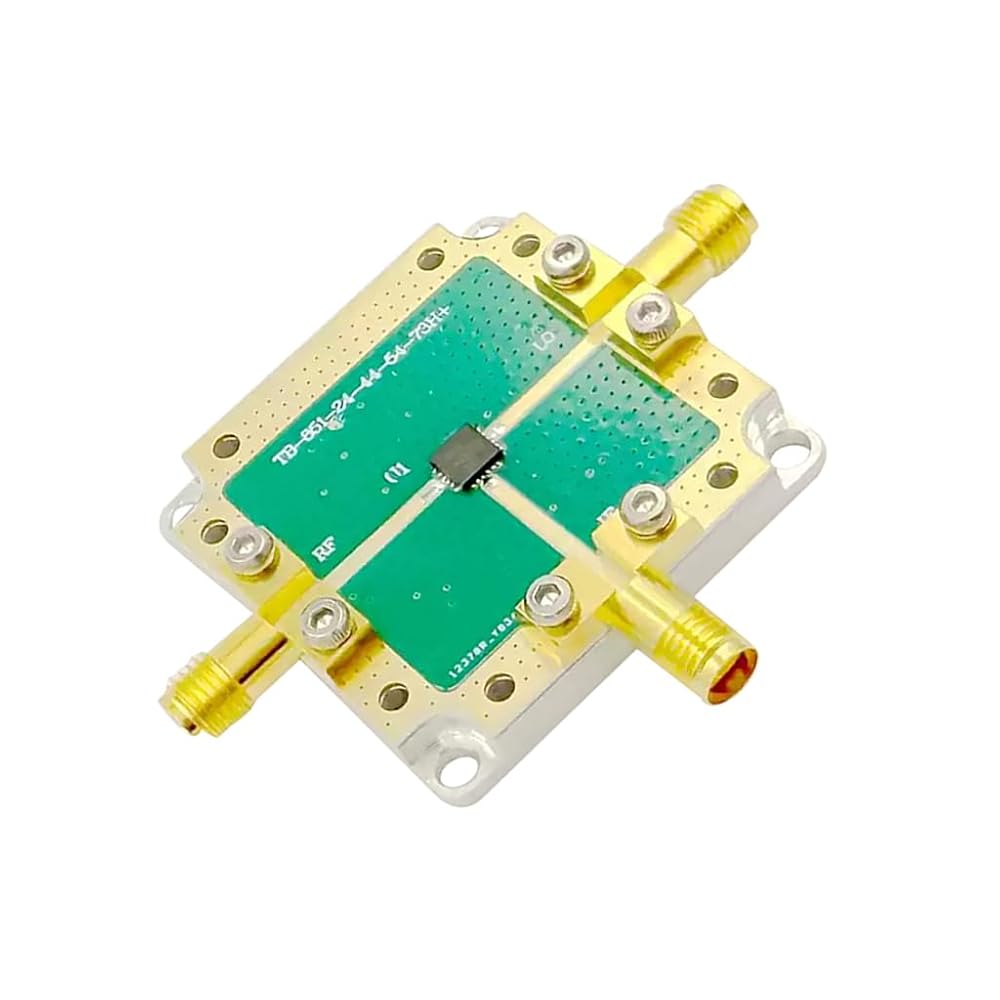

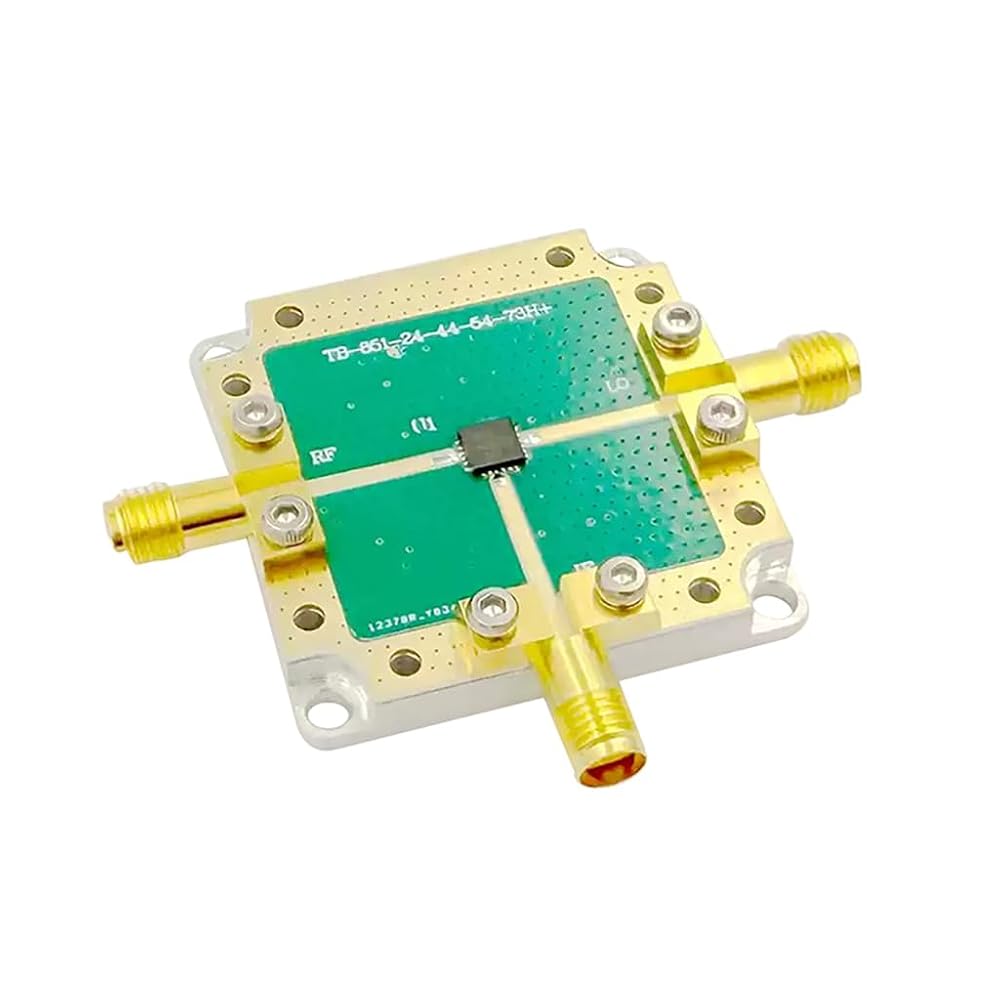

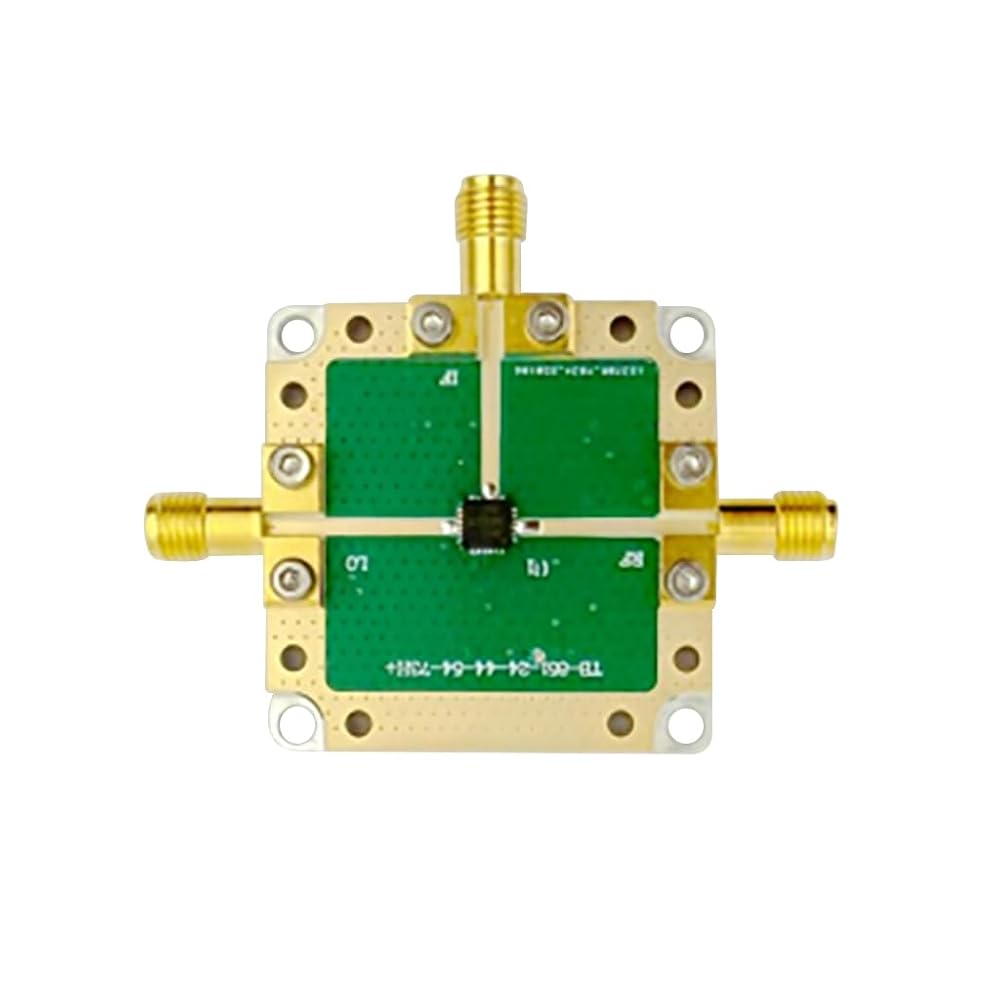

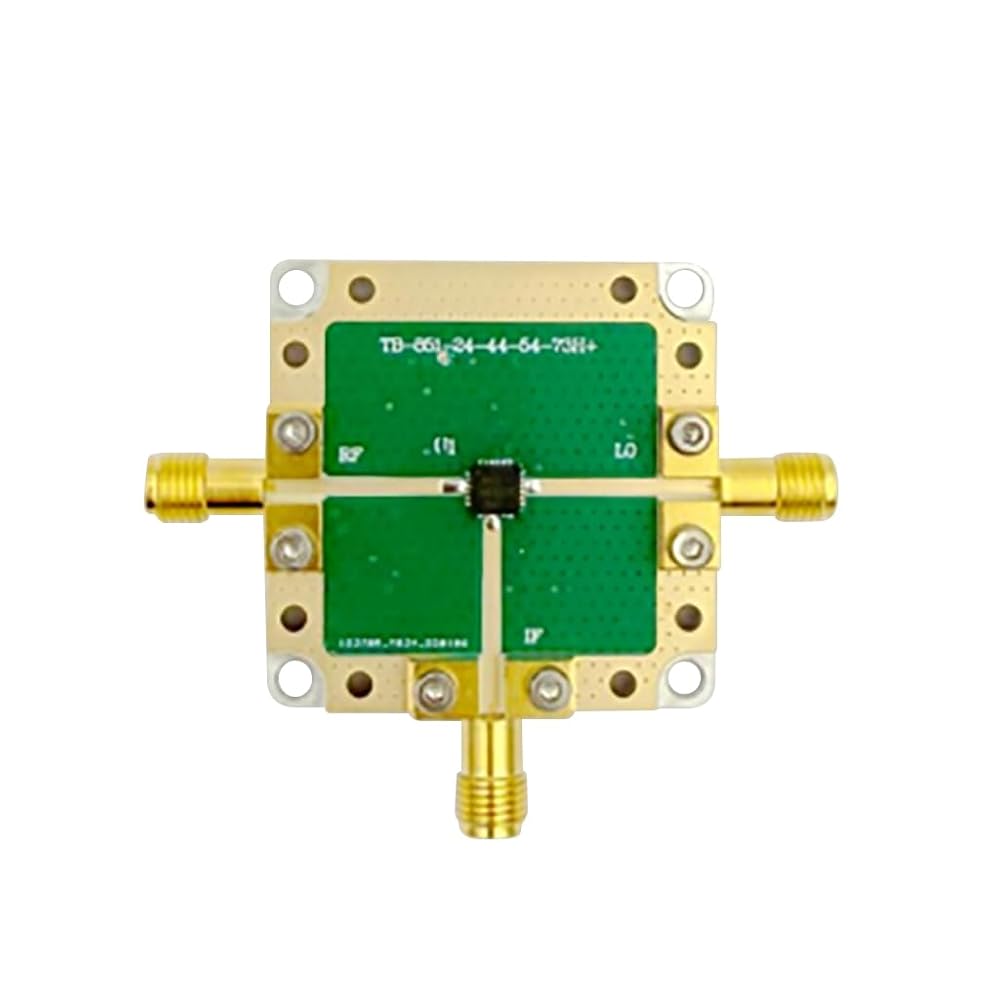

JMT 5GHz–22GHz Broadband Passive Mixer Module MDB-24H+ Double-Balanced Up/Down Mixing RF Converter with 3.5mm SMA Female Connector

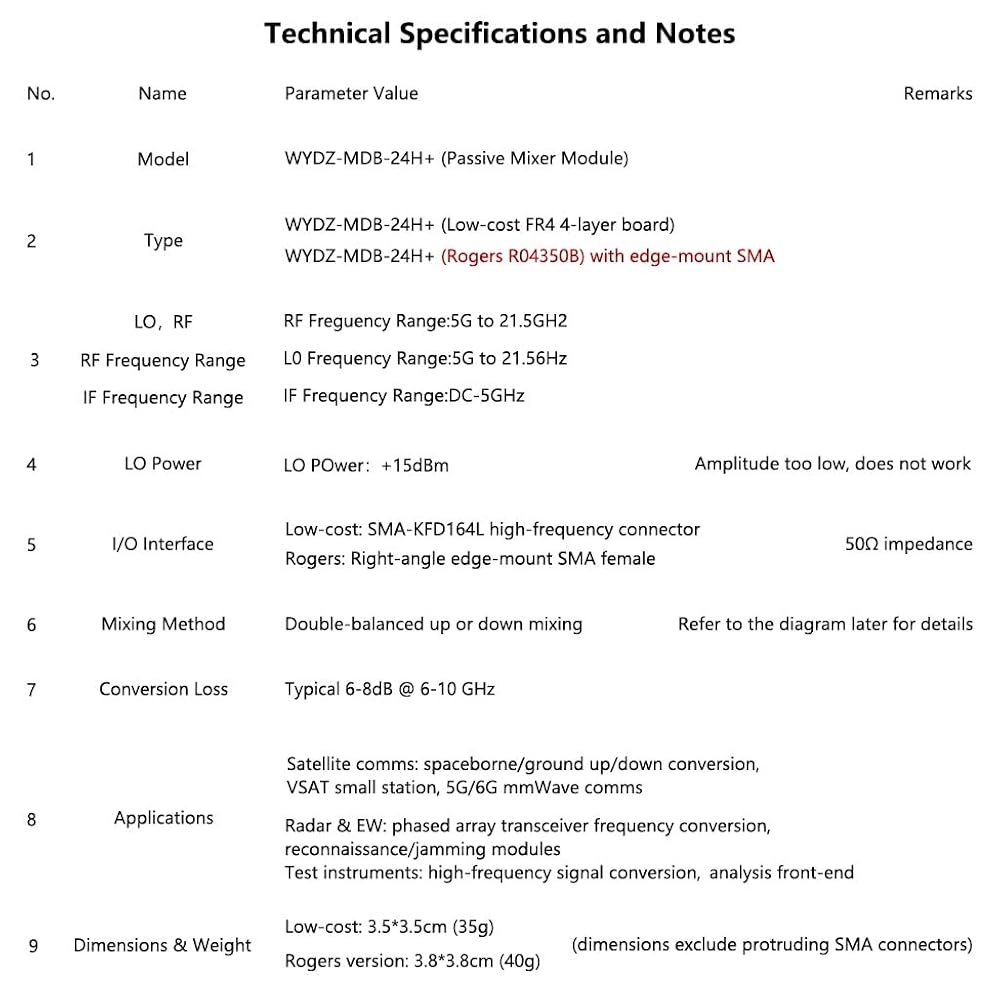

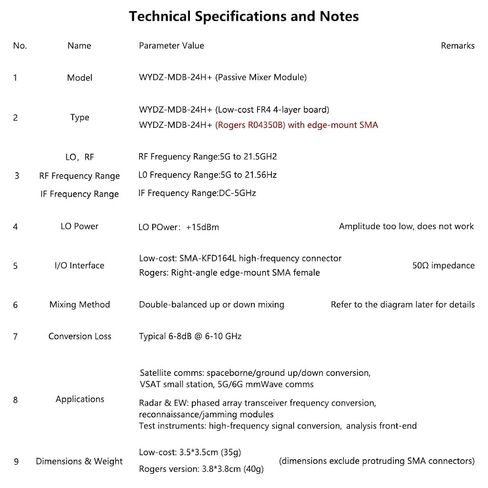

Product Detail:
Model: WYDZ-MDB-24H+ (Passive Mixer Module)

Option Type:
Option 1: WYDZ-MDB-24H+ (Low-Cost FR4 4-Layer Board)
Option 2: WYDZ-MDB-24H+ (New RO4350B) with Splint SMA

Frequency Range:
RF Frequency Range: 5G to 21.5GHz
LO Frequency Range: 5G to 21.5GHz
IF Frequency Range: DC – 5GHz
LO Power: +15dBm( Does not work if amplitude is too low )

I/O Interface：
50Ω Impedance
Low-Cost Version: SMA-KFD164L High-Frequency Interface.
New Version: Offset Clamp SMA Female Connector.

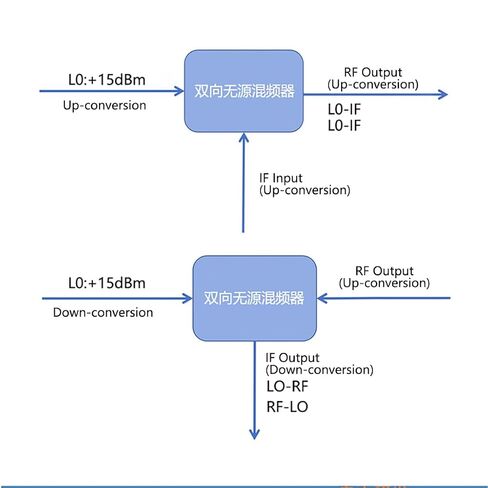

Mixing Method: Double-Balanced Down-Mixing.

Conversion Loss: Typical 6 – 8 dB @ 6 – 10 GHz

Size & Weight:
Size excludes protruding SMA connectors
Low-Cost Version: 3.5×3.5cm (35g)
New Version: 3.8×3.8cm (40g)

Application Scenarios
Satellite-compatible Communication: On-board / Ground Up/Down Conversion, Small Stations compatible with VSAT , 5G / 6G Millimeter-Wave Communication.
Ra dar: Transmit/Receive Conversion
Test Instruments: High-Frequency Signal Conversion, Analyzer Front-End
