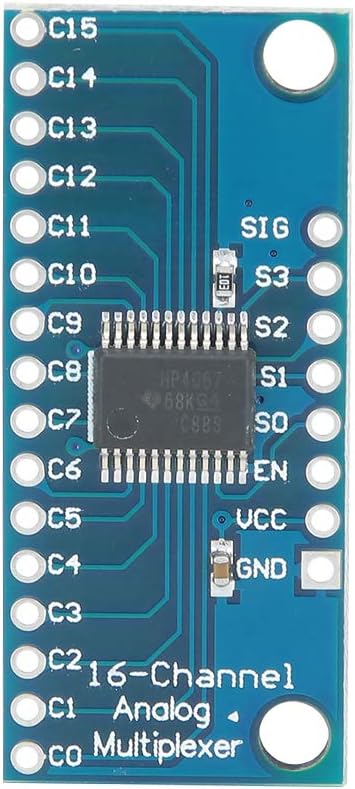

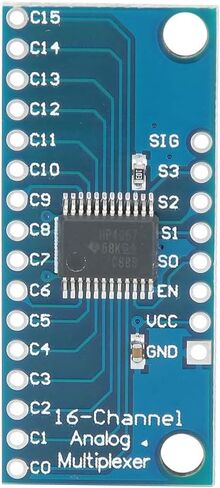

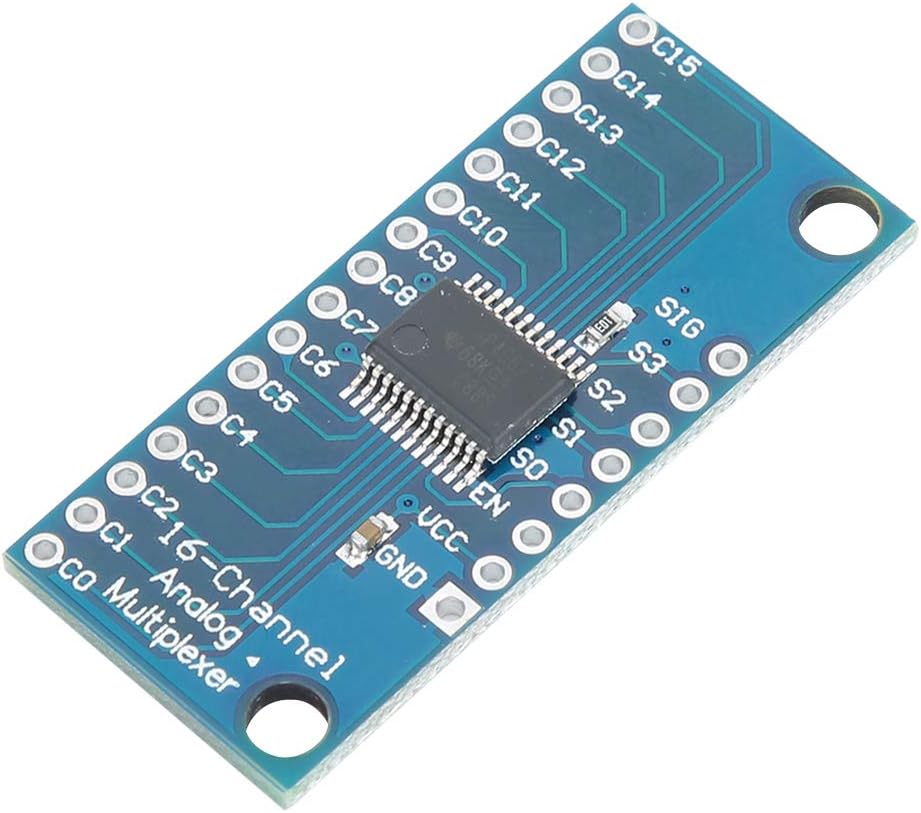

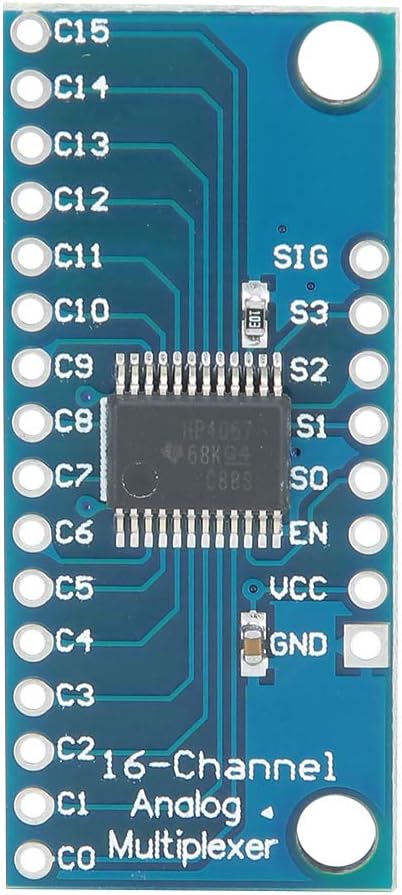

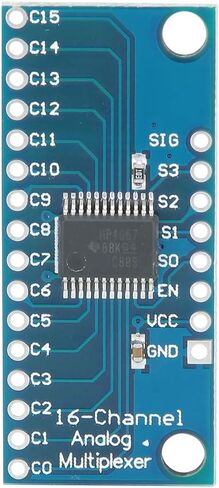

[VERSATILE 16 CHANNEL SIGNAL ROUTING] This CD74HC4067 analog digital multiplexer demultiplexer gives you 16 channels from a single digital pin, converting any microcontroller into a powerful multitasking device. It handles both analog and digital signals up to VCC voltage, making it perfect for expanding sensor inputs, controlling LEDs, or selecting audio sources. The bidirectional switch ensures signals freely in either direction for maximum circuit design flexibility.
[EASY CONTROL WITH BINARY ADDRESSING] You can instantly select any of the 16 channels by sending a simple 4 bit binary address through the S0 to S3 pins. This reduces wiring complexity and frees up GPIO pins on your or . Just connect four digital outputs from your board to these address pins and you can navigate between all 16 input output channels with basic code, making complex projects much simpler to manage.
[HIGH SPEED CMOS TECHNOLOGY FOR RELIABLE PERFORMANCE] Built with high speed CMOS technology the CD74HC4067 delivers fast switching and low power consumption essential for time sensitive applications. The internal switch features extremely low on resistance and minimal off leakage current ensuring signal integrity even when transmitting sensitive analog readings. This chip excels in data acquisition systems and automated test equipment where accuracy and speed matter most.
[CROSSTALK PROTECTION AND SAFE SWITCHING] To guarantee clean signal transmission this multiplexer includes a unique feature that lets you disable the internal switches completely by driving the enable pin high. This creates a total disconnect between all channels eliminating crosstalk interference. The recommended procedure is to turn off the switch before changing channels then turn it back on ensuring no cross between your analog or digital signals during operation.
[TTL LEVEL SERIAL DATA DISTRIBUTION] Beyond simple analog switching this module is ideal for distributing serial TTL data to multiple
