Designed for Narrow Bottle Openings – Precision Needle Filling

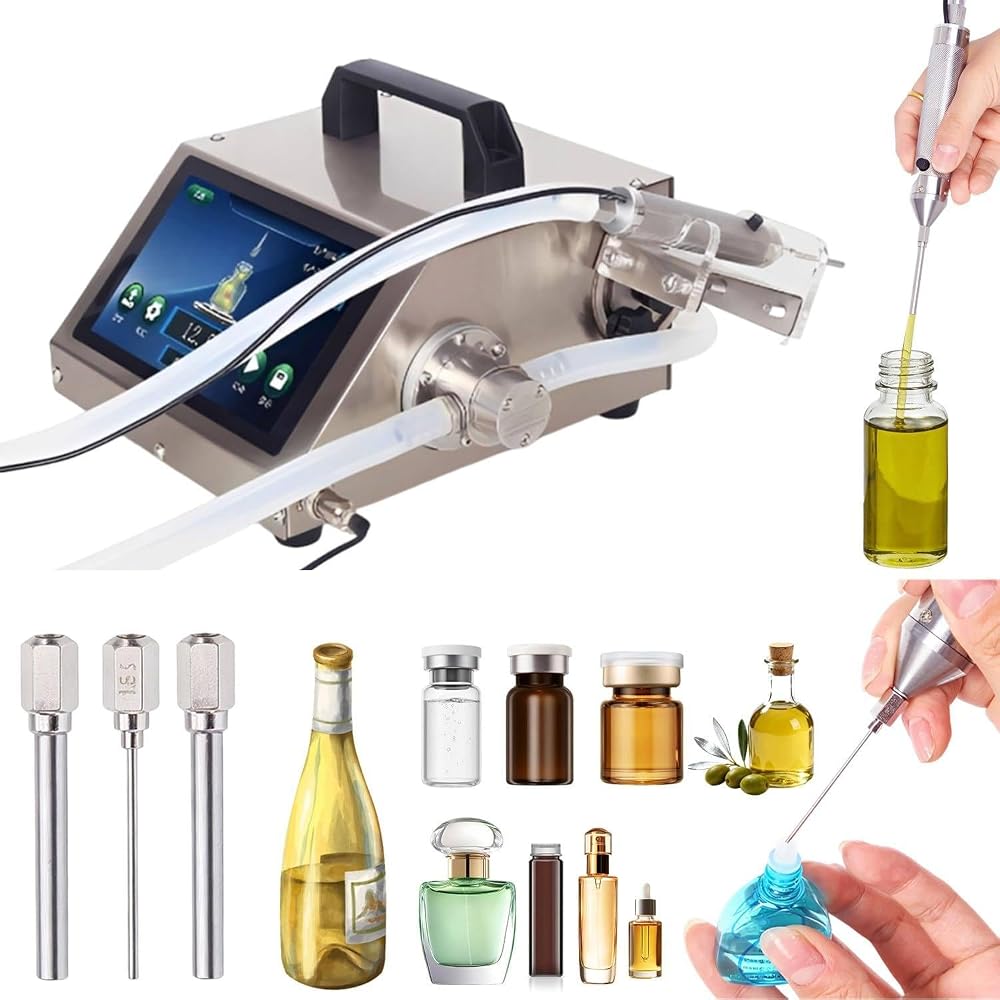

This small bottle liquid filling machine is designed for precise and efficient dispensing of low-viscosity liquids into small containers.handles inner diameters ≥1.5 mm (0.059 in) – no height limit. Get perfect fills every time, from 1ml to 100ml.

✨3 smart filling modes improve efficiency for different workflows:
✔ Manual Mode – Press once to fill the preset amount, then press again for the next bottle.
✔ Auto Interval Mode – Continuous filling with adjustable delay time (0–20 sec).
✔ Jog Mode – Fill only while holding the trigger for precise control.

✨3 models are available for different liquid types:
➤ HD1360 – 50W Peristaltic Pump
1–30 ml filling range | 140 ml/min max flow
Ideal for non-corrosive, low-viscosity liquids such as eye drops, perfume samples, and oral liquids.
➤ HD1370 – 100W Peristaltic Pump
1–100 ml filling range | 600 ml/min max flow
Suitable for non-corrosive liquids up to cooking oil thickness, including beverages, edible oils, and cosmetic liquids.
➤ HD1380 – 150W Magnetic Pump
1–100 ml filling range | 500 ml/min max flow
Features a 316 stainless steel magnetic pump for mildly corrosive liquids such as alcohol, aromatherapy oils, and essential oils.

✨Common Specifications
Voltage: AC 110V / 220V
Bottle Neck Requirement: ≥ 2 mm inner diameter
Included Nozzles: 1.5 mm / 2.4 mm / 4.0 mm
Inlet Hose: 1.5 m | Outlet Hose: 1 m

✨Package Includes
1 × Automatic Liquid Filling Machine
3 × Filling Nozzles

✨Important Notes
Not suitable for honey, lotion, thick cream, detergent, or liquids thicker than cooking oil.
Bottles and liquids are not included.
Suitable only for low-viscosity, non-particulate liquids.
