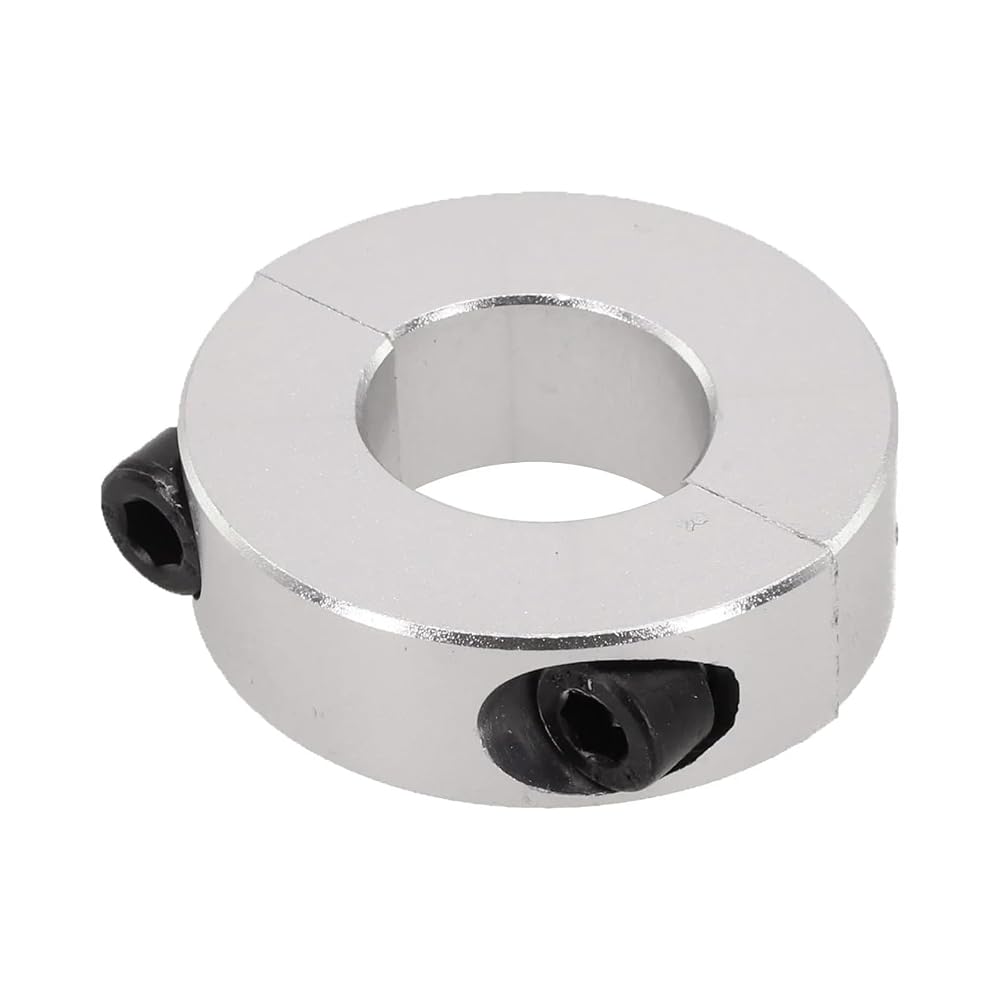

Stable Mechanical Performance:These shaft collars maintain stable locking and positioning effects during continuous mechanical operation. They effectively reduce mechanical vibration and sliding, ensuring smooth and safe equipment operation
- Material: Aluminum Alloy
- Size (inner diameter): 12mm, 20mm, 25mm, 30mm, 35mm, 38mm (optional)
- Quantity: 1 piece
- Color: Silver
Specification:
-ID 12mm + 0.10mm to + 0.02mm OD 28mm Width 11mm, Din 912 Cap Screws, Black Oxide Oiled, 12mm Two-Piece Clamping Ring
-ID 20mm + 0.10mm to + 0.02mm OD 40mm Width 15mm, M6 Din 912 Cap Screws, 304 Grade A2 Stainless Steel, 20mm Two-Piece Clamping Ring
-ID 25mm + 0.15mm to + 0.02mm OD 45mm Width 15mm, M6 Din 912 Cap Screws, 304 Grade A2 Stainless Steel, 25mm Two-Piece Clamping Ring
-ID 30mm + 0.15mm to + 0.02mm OD 54mm Width 15mm, M6 Din 912 Cap Screws, 304 Grade A2 Stainless Steel, 30mm Two-Piece Clamping Ring
-ID 35mm + 0.15mm to + 0.02mm OD 57mm Width 15mm, M6 Din 912 Cap Screws, Black Oxide Oiled, 35mm Two-Piece Clamping Ring
-ID 38mm + 0.15mm to + 0.02mm OD 60mm Width 15mm, M6 Din 912 Cap Screws, Black Oxide Oiled, 85mm Two-Piece Clamping Ring
Package Included:
4* clamp ring (optional)
Notes:
1. Due to various factors such as display brightness and light brightness, the actual color of the product may be slightly different from the website picture.
2. Please allow a slight deviation between the data and the manual measurement.
