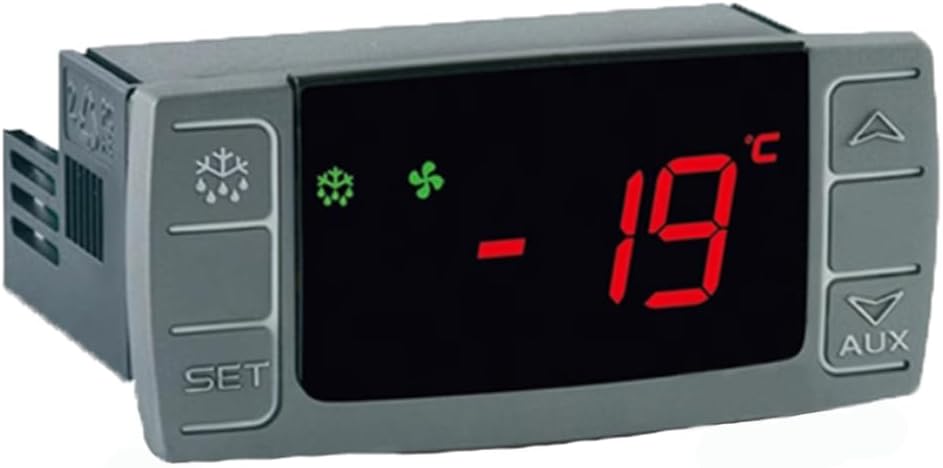

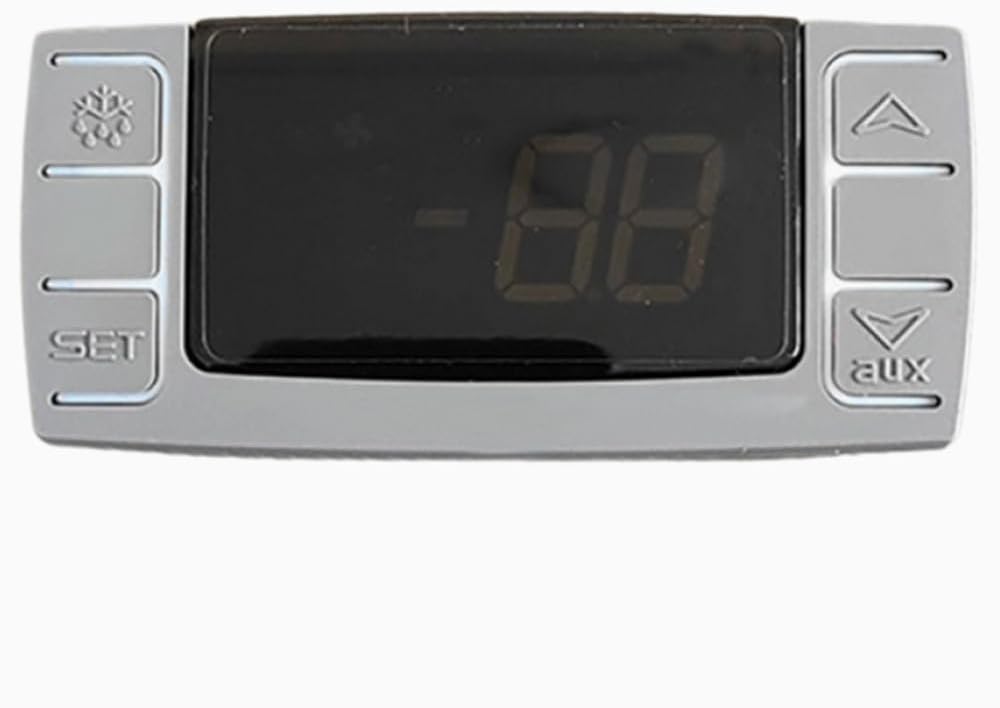

The XR01CX-5N8C0,format 32 x 74 x50mm,is a single stage temperature controller suitable for applications in the field of refrigeration or heating. It provides a relay output to drive the compressor. It is also provided with 1 NTC probe input and one digital input. The instrument is fully configurable through special parameters that can be easily programmed through the keyboard.

Specification
Type: XR01CX-5N8C0
Mounting Measurements:71mm x 29mm
Built-in Depth:56mm
Supply:230V
Voltage Type: AC
Probe Type: NTC(Probe included)
Number of Relay Outputs: 1

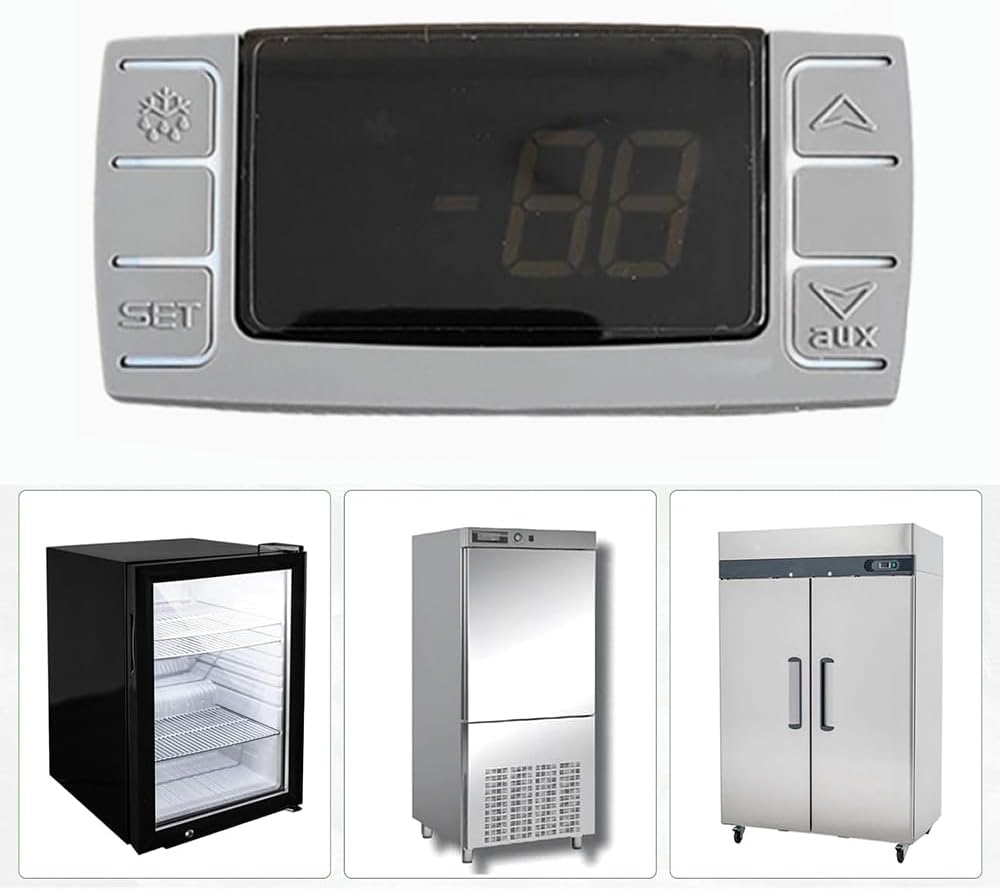

COOLING APPLICATIONS
The regulation is performed according to the temperature measured by the thermostat probe with a differential
from the set point,if the temperature increases and reaches set point plus differential the compressor is started and
then turned off when the temperature reaches the set point value again.

HEATING APPLICATIONS
The Hy value is automatically subtracted to the SET POINT. If the temperature decreases and reaches set point minus differential the output is started and then turned off when the temperature reaches set point value again.

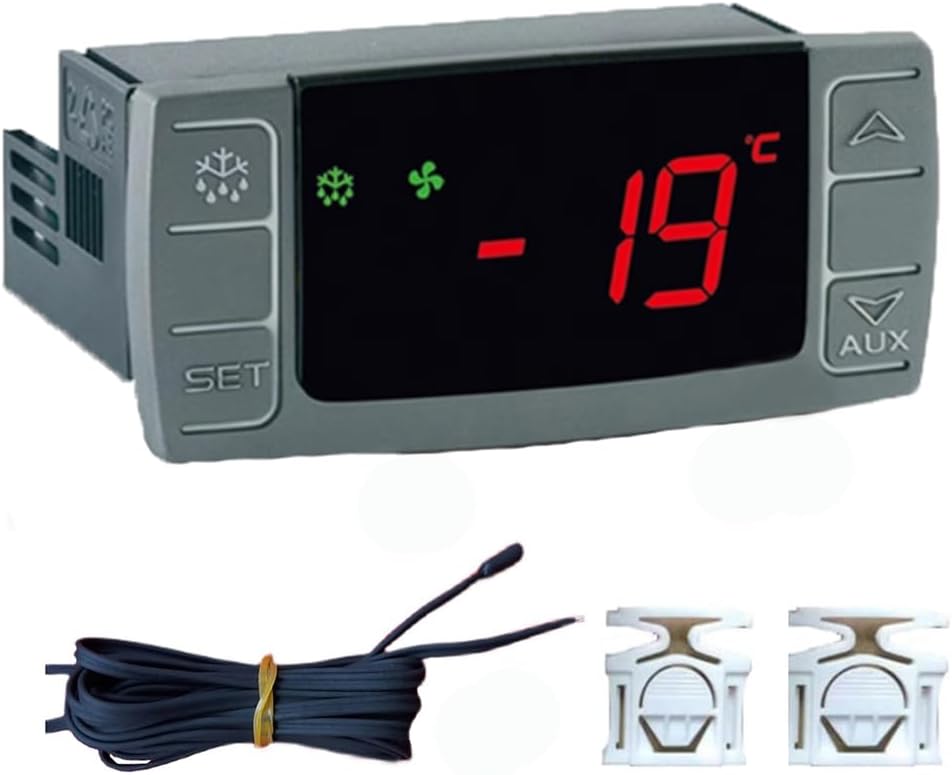

Package Include
1 X Digital Thermostat Controller
2 X Clips
1 X Black Temperature Probe
