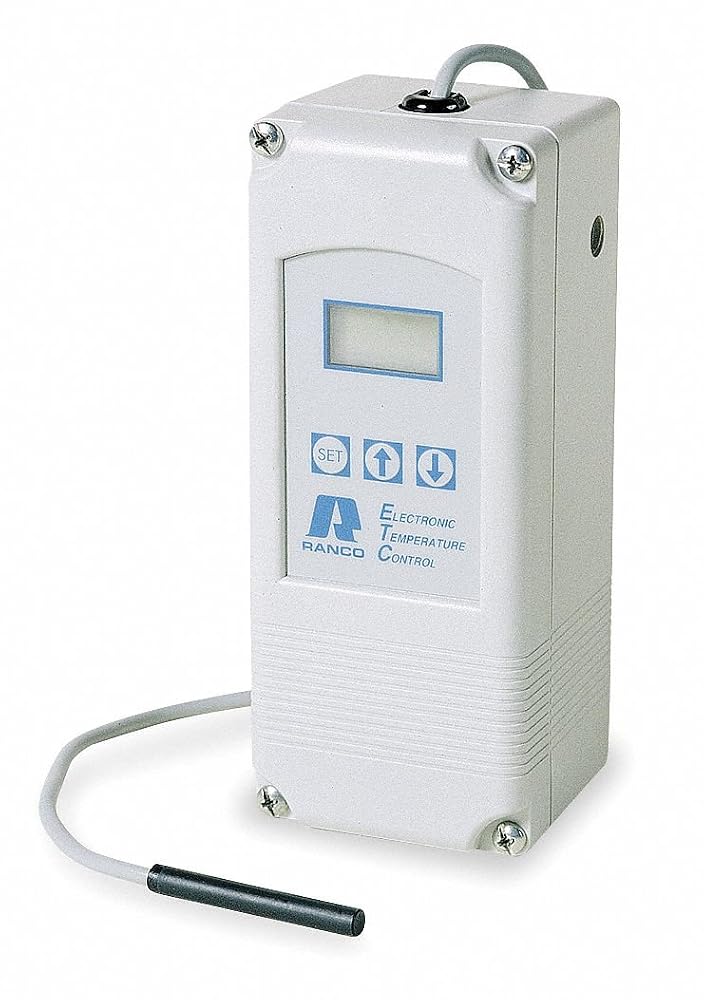

Line voltage thermostat features a liquid crystal display to provide you with a constant readout of the sensed temperature, and refrigeration display error codes to alert you to any problems. Includes keypad lockout, settings memory, and time delay on power up. UL Listed and CSA Certified.

Item: Electronic Temperature Control
Switch Type: SPDT
Switch Action: Open/Close on Rise
Voltage Range: 24VAC
Control Range: -30 Degrees to 220 Degrees F
Differential: 1 Degrees to 30 Degrees F
Number of Relay Inputs: 1
Number of Relay Outputs: 1
Full Load Amps @ 120VAC: 16A (NO), 5.8A (NC)
Full Load Amps @ 240VAC: 8A (NO), 2.9A (NC)
Sensor Type: Thermistor
Sensing Bulb Dia.: 1/4"
Sensing Bulb Length: 2"
Enclosure Type: NEMA 1
Height: 6-1/2"
Width: 2-3/4"
Depth: 2-1/2"
Color: Gray
Display Type: LCD
For Use With: Heating, Cooling, Refrigeration
