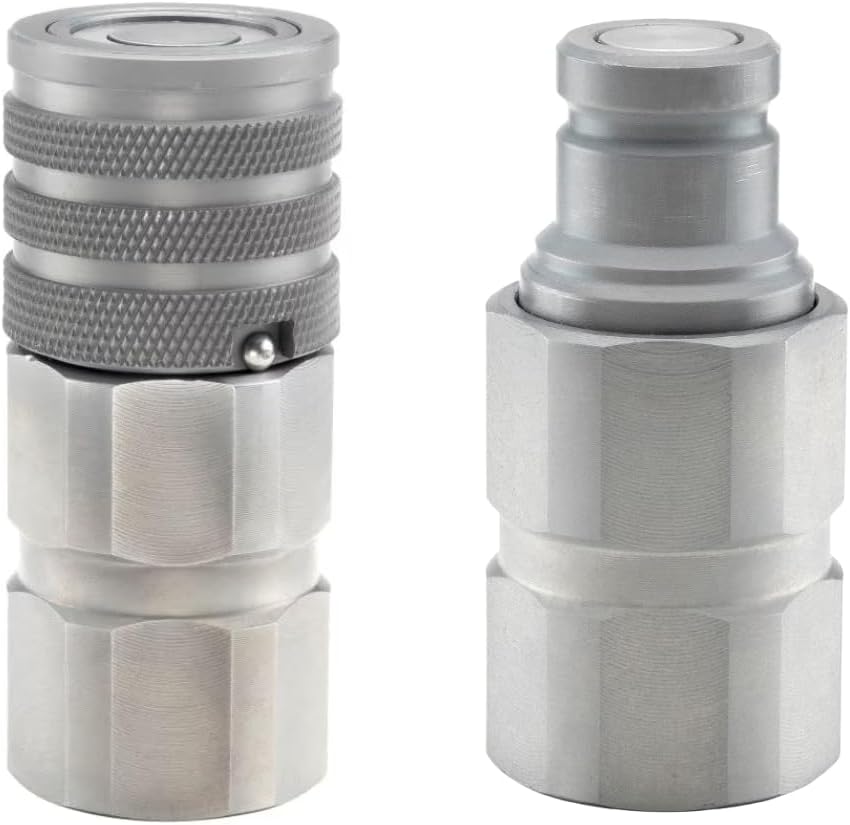

GENUINE PARKER HYDRAULICS: Includes one (1) FEM-501-10FO Coupler and one (1) FEM-502-10FO Nipple. The industry standard for "Non-Spill" connections, minimizing fluid loss and air inclusion during disconnection.
CRITICAL THREAD SPECS: Body Size: 1/2" (ISO 16028) | Port Thread: 7/8-14 UNF Female (Known as -10 SAE or -10 ORB). *Note: This is an O-Ring Boss port; it DOES NOT fit standard NPT pipe threads.*
SKID STEER COMPATIBLE: Universal ISO 16028 interchange allows connection to and compatible with Bobcat, Kubota, Case, CAT, and John Deere loaders equipped with 1/2" flat face manifolds using -10 ORB ports.
HIGH PRESSURE PERFORMANCE: Rated for 5,000 PSI continuous pressure and 12 GPM flow. Features a locking sleeve to prevent accidental disconnection when dragging hoses through brush or debris.
VERIFIED CROSS REFERENCE: Compatible with Stucchi FIRG, Faster 2FFI, and Aeroquip FD89 series couplers with -10 ORB threads. Zinc-Nickel plating provides superior corrosion resistance compared to standard zinc.
وصف
The Leak-Free Standard for Hydraulic Manifolds.Upgrade your hydraulic connections with this genuine Parker FEM Series Flat Face Coupler Set. Unlike standard NPT couplers that rely on thread deformation to seal, this set features -10 SAE (O-Ring Boss) ports, designed to seal against a machined face for a leak-proof, vibration-resistant connection.
Technical Specifications:
Body Size: 1/2" (ISO 16028 Standard)
Thread Size: 7/8"-14 UNF Female
Thread Type: SAE -10 ORB (O-Ring Boss)
Pressure Rating: 5,000 PSI (345 Bar)
Flow Rate: 12 GPM
Why Choose Parker FEM?
The FEM series is the workhorse of the Parker quick disconnect line. Its "push-to-connect" design allows for one-handed operation, while the flush-face valves prevent dirt from entering your hydraulic system—a critical feature for protecting the expensive hydrostatic pumps on modern Skid Steers and Excavators.
Compatibility Note:
This set fits machines using the ISO 16028 profile. Please verify your port size is -10 ORB (7/8-14). This will NOT fit standard 1/2" NPT pipe threads found on older equipment.
