Voltmeter
99T1 ammeter, voltmeter, frequency meter, factor meter, power meter
External dimensions and parameters
Model number
Type
Range
Related product
99T1-A
Ammeter
30/5A, 50/5A, 75/5A, 100/5A, 150/5A, 200/5A, 250/5A, 300/5A, 400/5A, 500/5A, 600/5A, 800/5A, 1K/5A, 1.5K/5A, 2K/5A, 3K/5A
Order

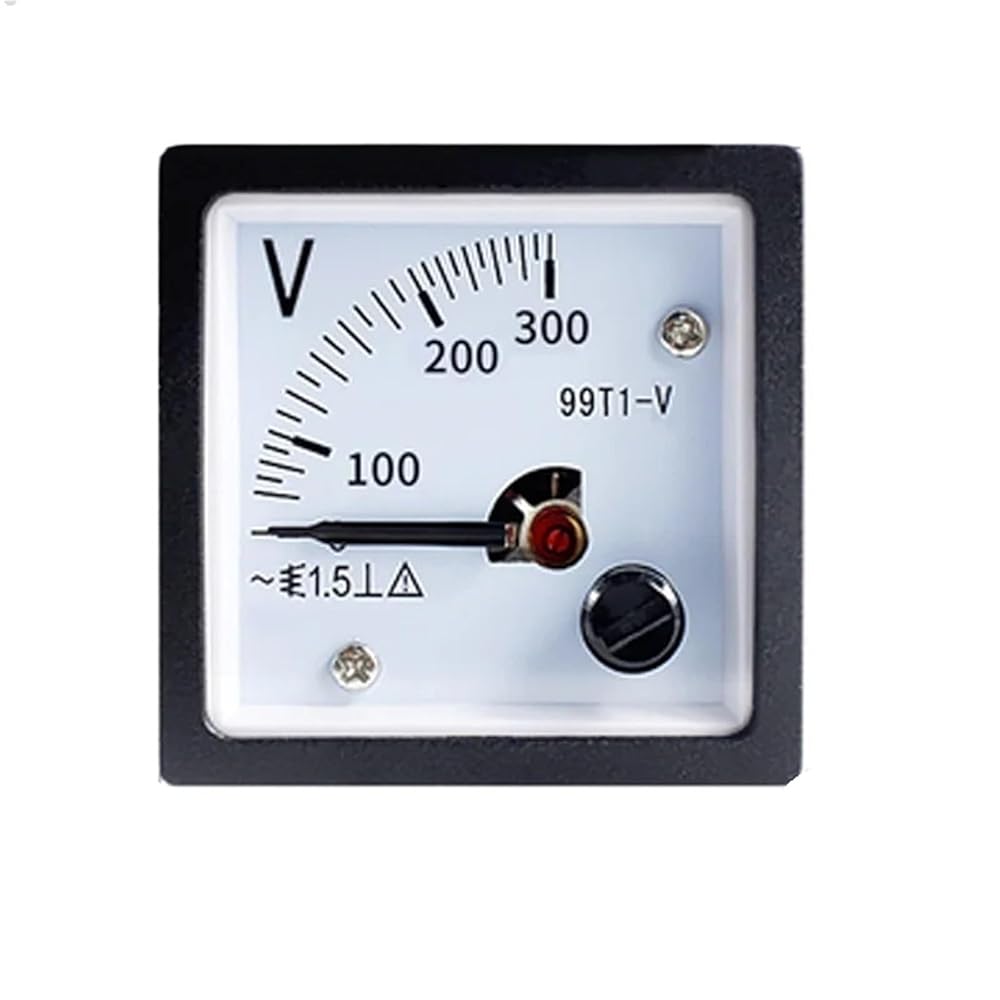

99T1-V
Voltmeter
250, 300, 450, 500V
Visiting...
99T1-HZ
Frequency meter
45-65Hz 380V, 45-65Hz 220V
Order
99T1-V pointer ammeter and voltmeter model number legend
99T1-V
Parent Model Number
Measured range
250: 250V
300: 300V
450: 450V
500: 500V
99T1-V pointer ammeter and voltmeter related products
No
Model Number
Measured Range
Related Product
1
99T1-V250(300, 450, 500)
250V; 300V; 450V; 500V
Visiting...
General
Model number
99T1
Accuracy level
1.5 level and 2.5 level
External dimensions
48x48 mm
Perforation dimensions
4510x4510mm
Matched current
99t1-A:BH-0.66-30
Resistance to mechanical forces
Can withstand 30m/s2wind; Impact frequency 80-120 times/min, 2h transport bumping
Dielectric strength
2KV 50Hz for 1min
Voltage affection
The measured tolerance don't exceed base tolerance when the measured value changed 15%
Work position
Vertical
Operating temperature
-20 to 40 °C (-4 to 104 °F)
Operating humidity
80% RH max, non-condensing
==========
Hign-concerned Chemical : NONE
Dimensions : 48X48MM
Operating Temperature : -20~50Centigrade
Supply Voltage : AC
Accuracy Class : 2.5
Model Number : 99T1
Display Type : Analog and Digital
DIY Supplies : ELECTRICAL
