Radio Frequency Filters

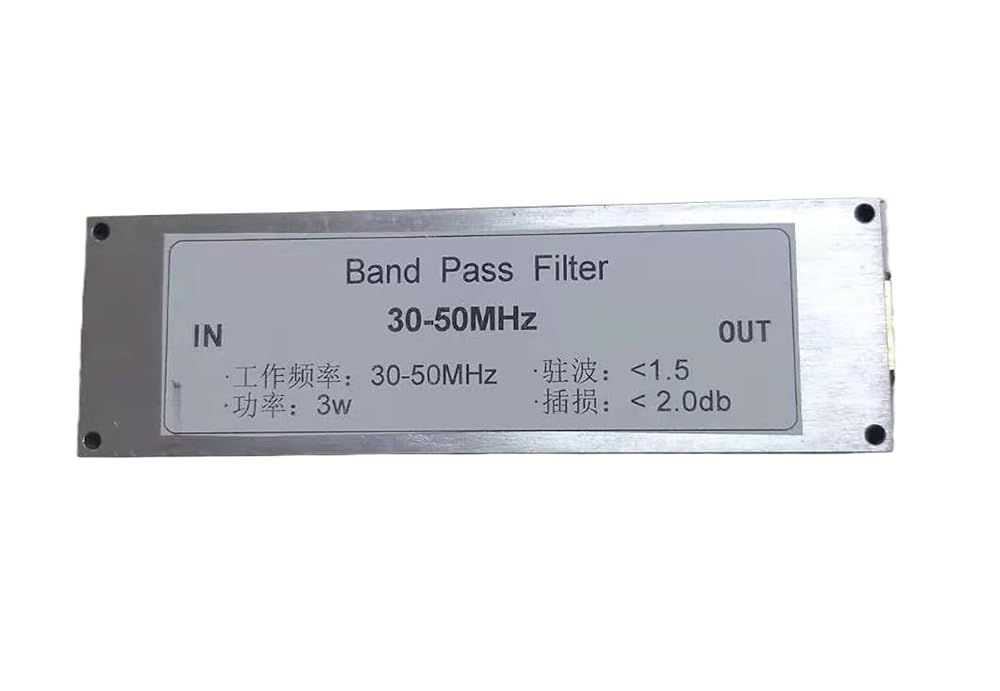

30-50MHz Band Pass Filter (BPF): BPF-30-50
1. For detailed technical parameters, please refer to the following information (30-1000MHz filters can also )
2. Input impedance: 50-75 ohms; output impedance: 50-75 ohms.
3. The passable bandwidth is 30-50MHz
4. Insertion loss: less than 2.0db
5. TX is connected to the radio, and ANT is connected to the antenna.
6. Power: 3w (any mode)
7. Standing wave: less than 1.5

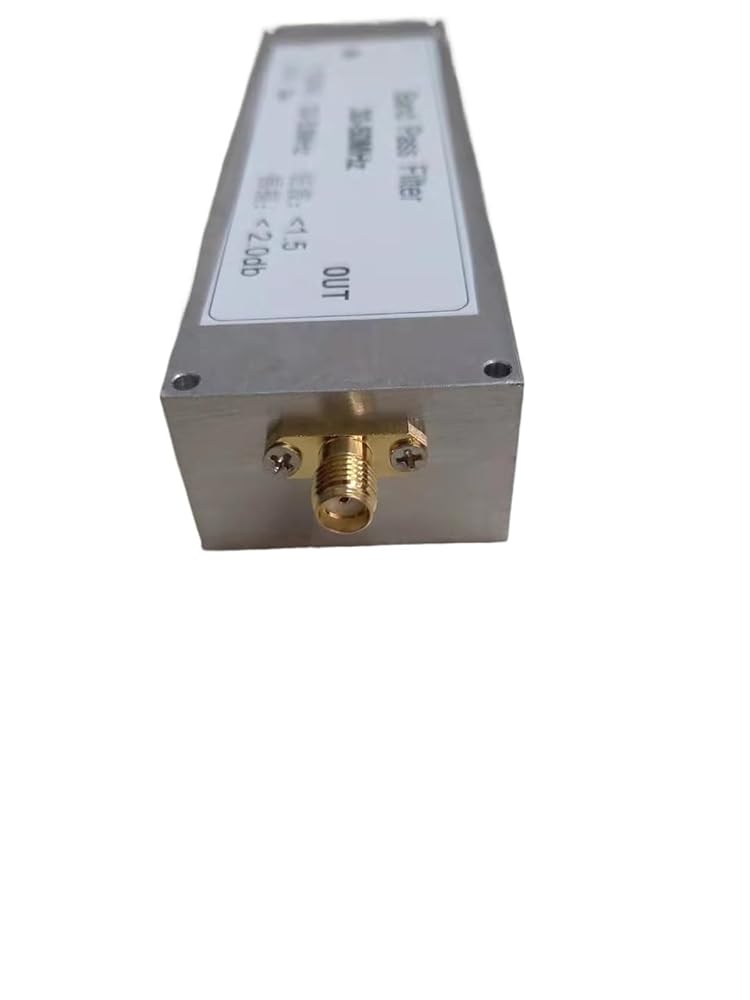

8. Interface: SMA-F (female) (can also SAM male)

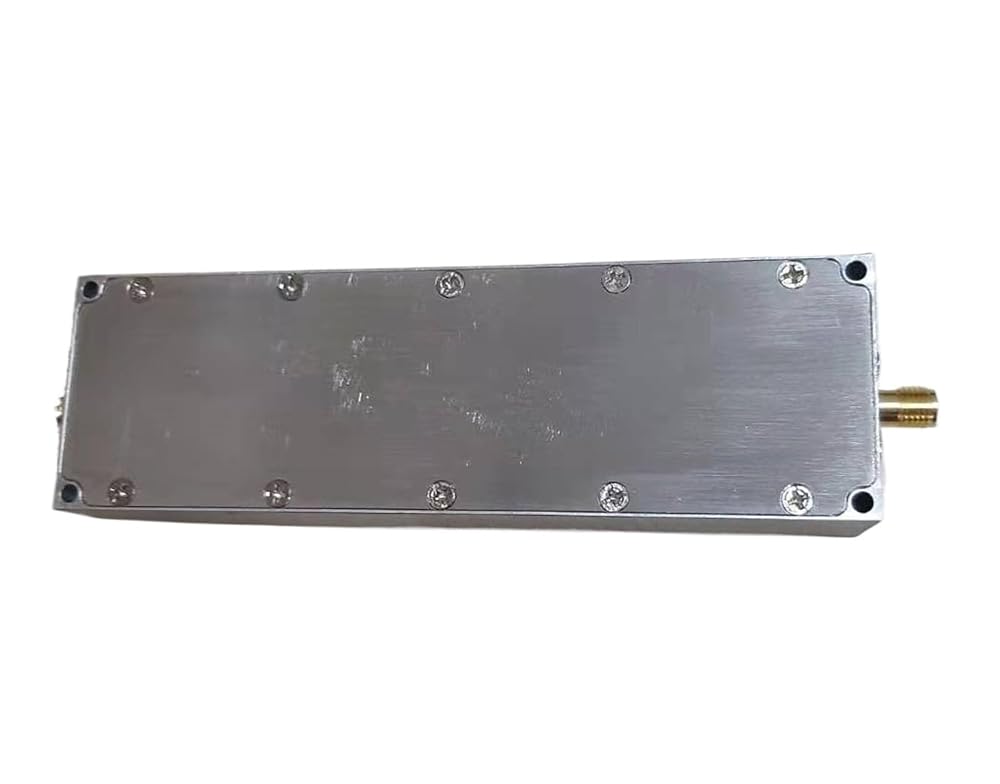

9. Outer size: 130*34*14mm (hole installation size: 105*29.5mm)
