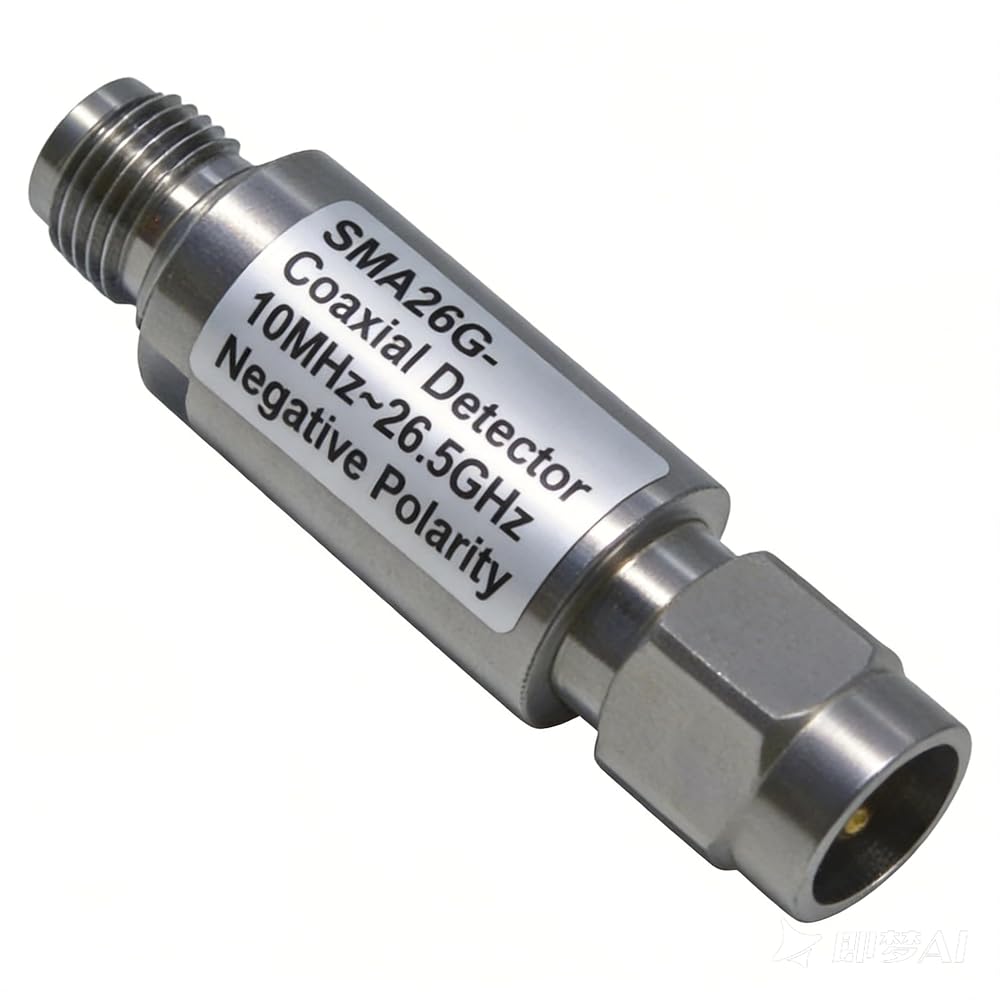

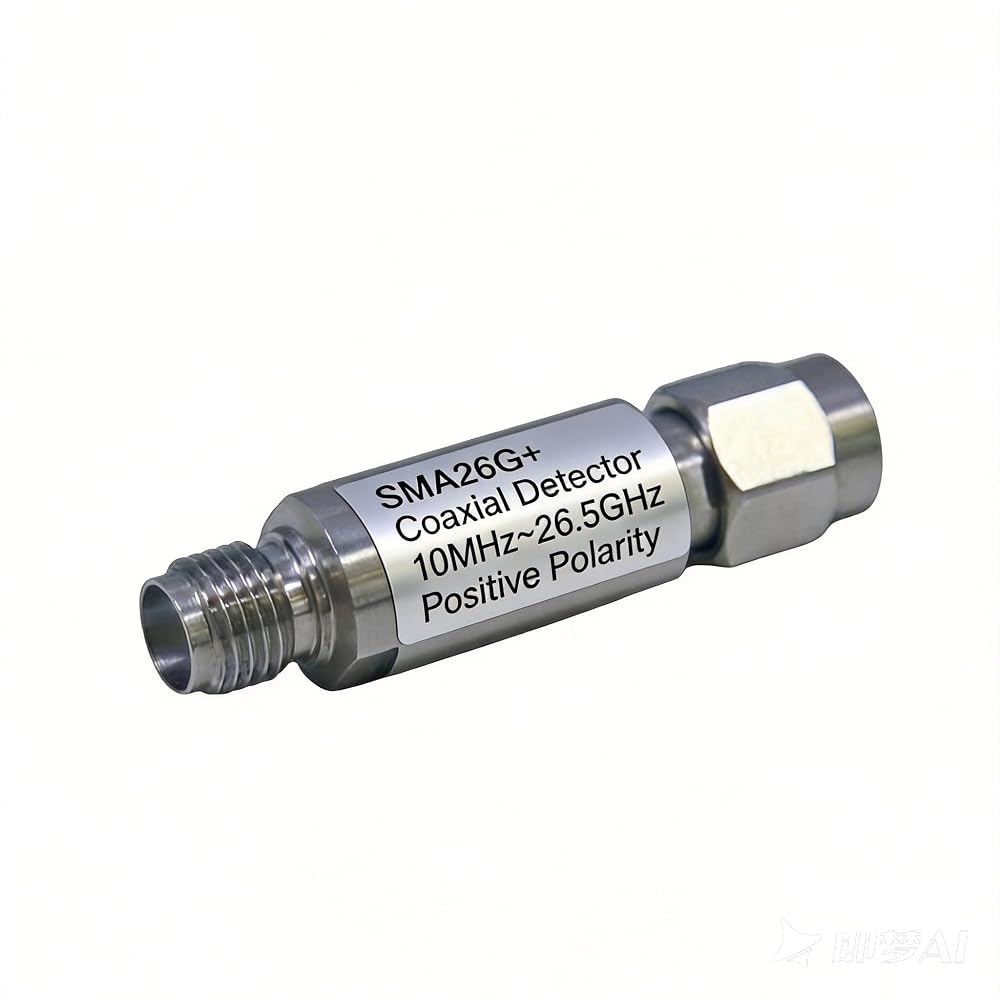

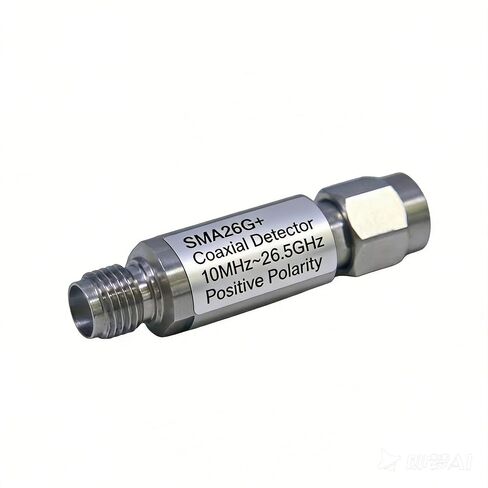

Zero Bias Detector with SMA Male to SMA Female and Positive or Negative Video Out Operating from 10 MHz to 26.5 GHz

KWD 106.500
Brand
Generic
Weight
7 g
– 1 +

Special Features

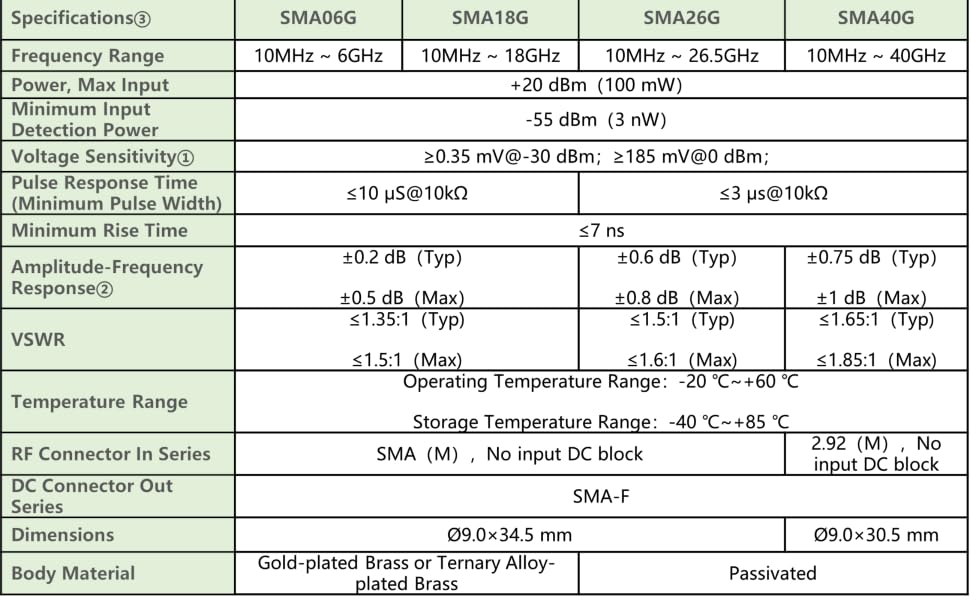

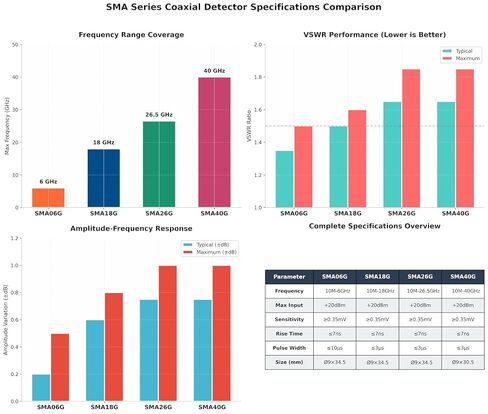

  • Frequency Range SMA26G+：10 MHz – 26.5 GHz Coaxial Detector with Positive Output Polarity; SMA26G- ：10 MHz – 26.5 GHz Coaxial Detector with Negative Output Polarity
  • Power, Max Input: +20 dBm（100 mW）
  • Minimum Input Detection Power: -55 dBm（3 nW）

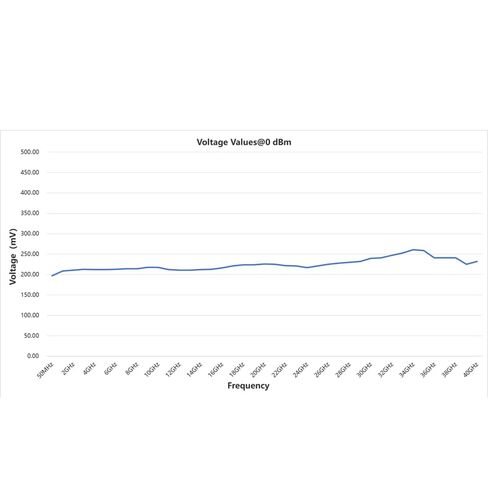

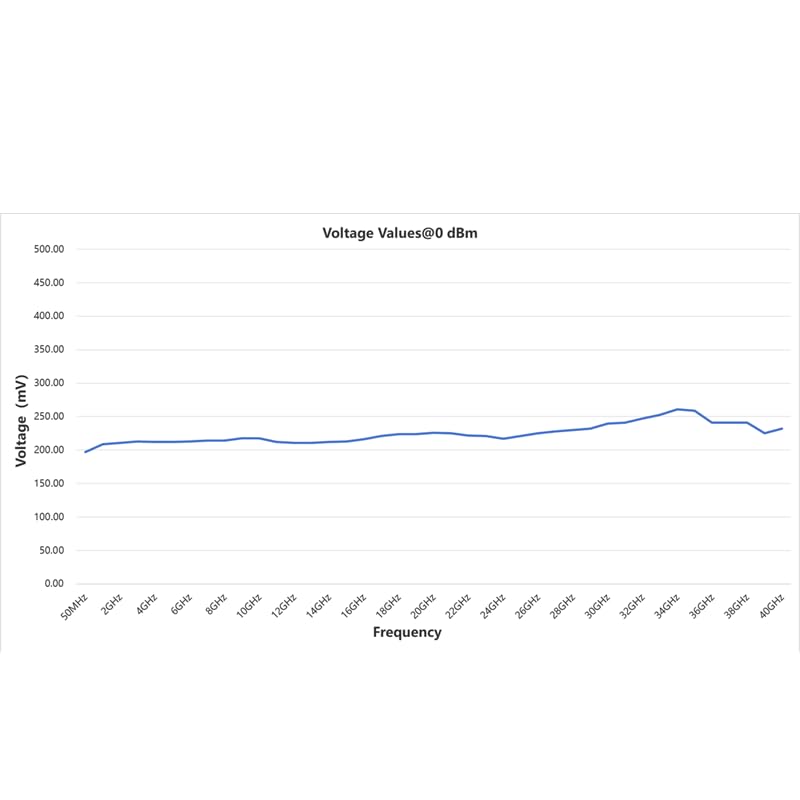

  • Voltage Sensitivity: ≥0.35 mV@-30 dBm；≥185 mV@0 dBm；
  • Pulse Response Time (Minimum Pulse Width): ≤3 μs@10kΩ
  • Minimum Rise Time: ≤7 ns
  • Amplitude-Frequency Response: ±0.6 dB（Typ）; ±0.8 dB（Max）

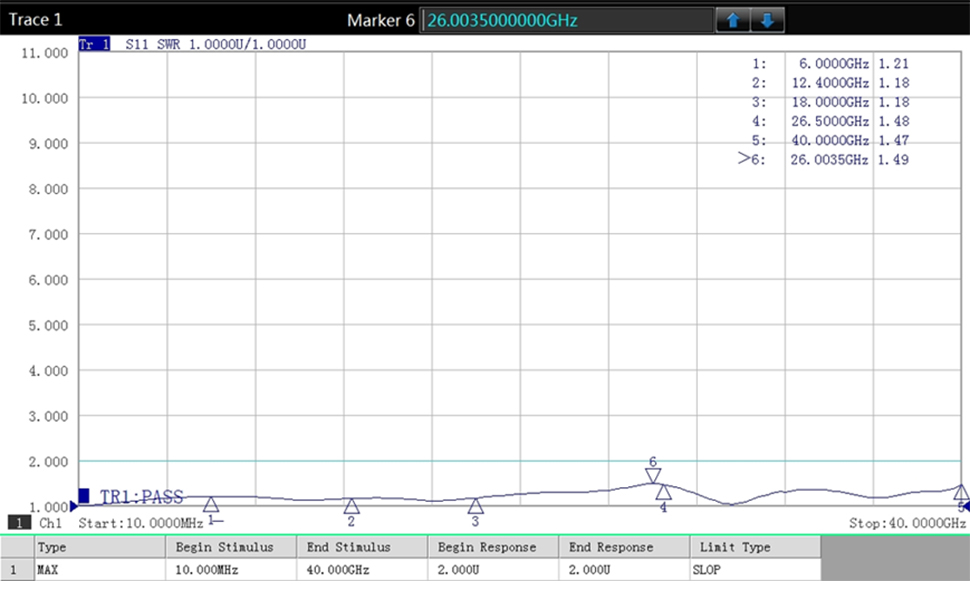

  • VSWR: ≤1.5:1（Typ) ; ≤1.6:1（Max)
  • RF Connector In Series: SMA（M），No input DC block

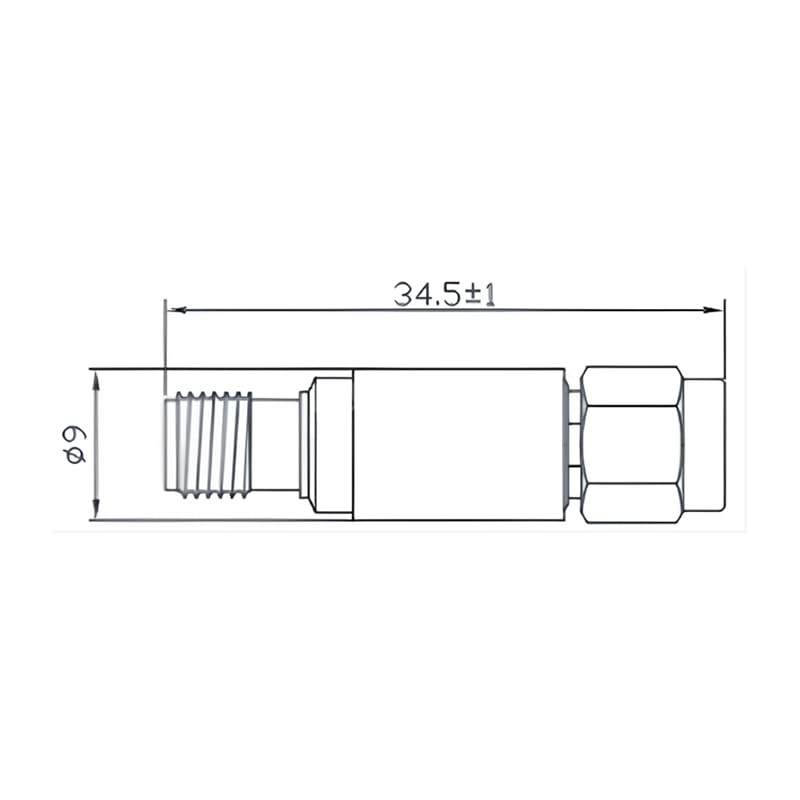

  • Dimensions :Ø9.0×34.5 mm
