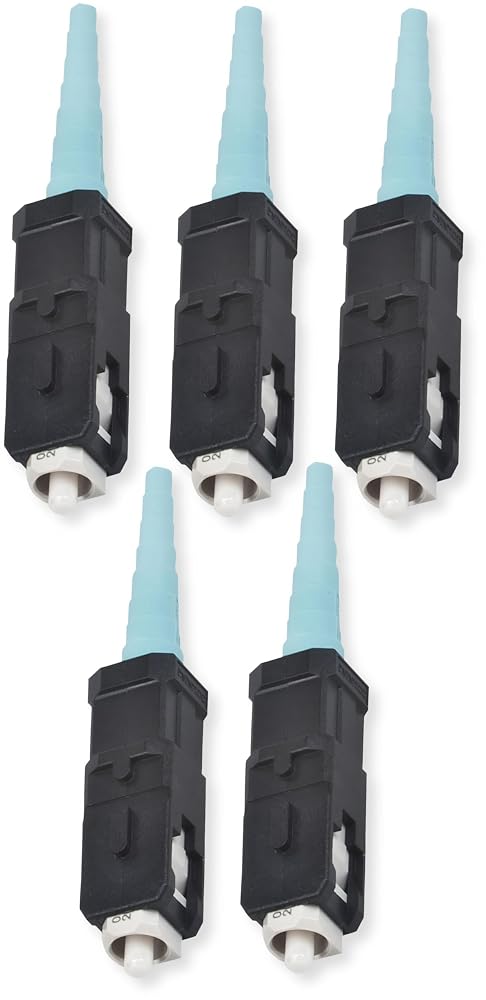

95-050-41-X Pack of 5 UniCam SC Connectors, 50 Micron Multimode, OM3/OM4 Compatible, Field-installable, No-Epoxy No-Polish, High Performance Fiber Optic Connector, Aqua Boot, Black Housing
The 95-050-41-X UniCam SC Connector is a high-performance, field-installable fiber optic connector designed for 50 µm multimode fibers compatible with OM3 and OM4 standards. This connector is perfect for fiber-to-the-workstation and high-speed data applications requiring consistent, high-quality optical connections.
Pack of 5 field-installable SC connectors
Compatible with 50 µm multimode OM3/OM4 fiber
No epoxy, no polish installation process
Typical insertion loss of 0.1 dB
Maximum insertion loss of 0.5 dB
Ceramic ferrule for precise alignment
Composite black housing with aqua boot
Operating temperature range -40C to 75C
Includes shroud, crimp band, 900 µm and 3.0 mm boots
Pulling force rating of 125 lbs
Tensile strength of 4.9 N on 900 µm cable
Fiber Category: 50 µm MM (OM3/OM4)
Technology: No-Epoxy/No-Polish
Temperature Range, Operation: -40C to 75C (-40F to 167F)
Connector Type: SC
Housing Color: Black
Boot Color: Aqua
Ferrule Material: Ceramic
Nominal Fiber Outer Diameter: 125 µm
Tensile Strength Jacketed Cable: 50 N (11.24 lbf)
Tensile Strength 900 µm Cable: 4.9 N (1.1 lb) change Less than or equal to 0.2 dB, FOTP-6
Insertion Loss, Max.: 0.5 dB
Reflectance: Less than or equal to -26 dB
Package Contents: Connector, shroud, crimp band, boot (900 µm), boot (3.0 mm) per pack
