Specification

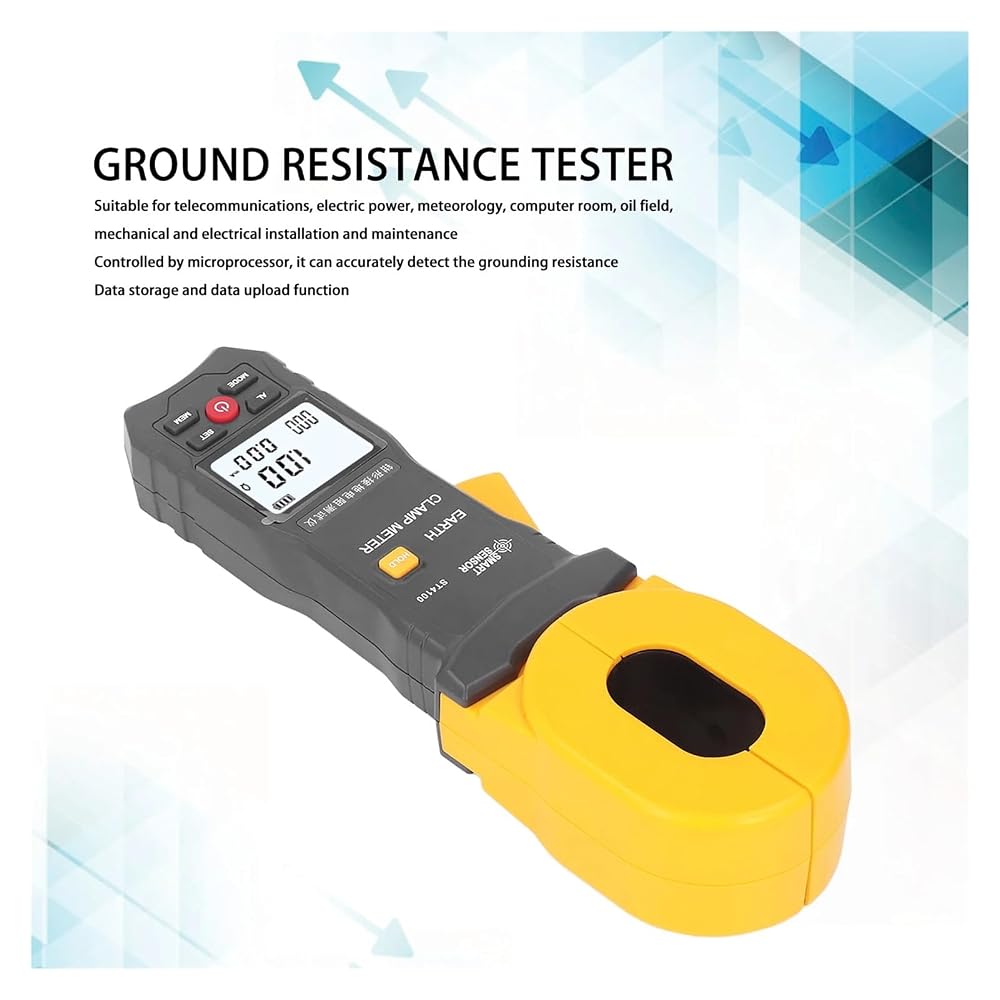

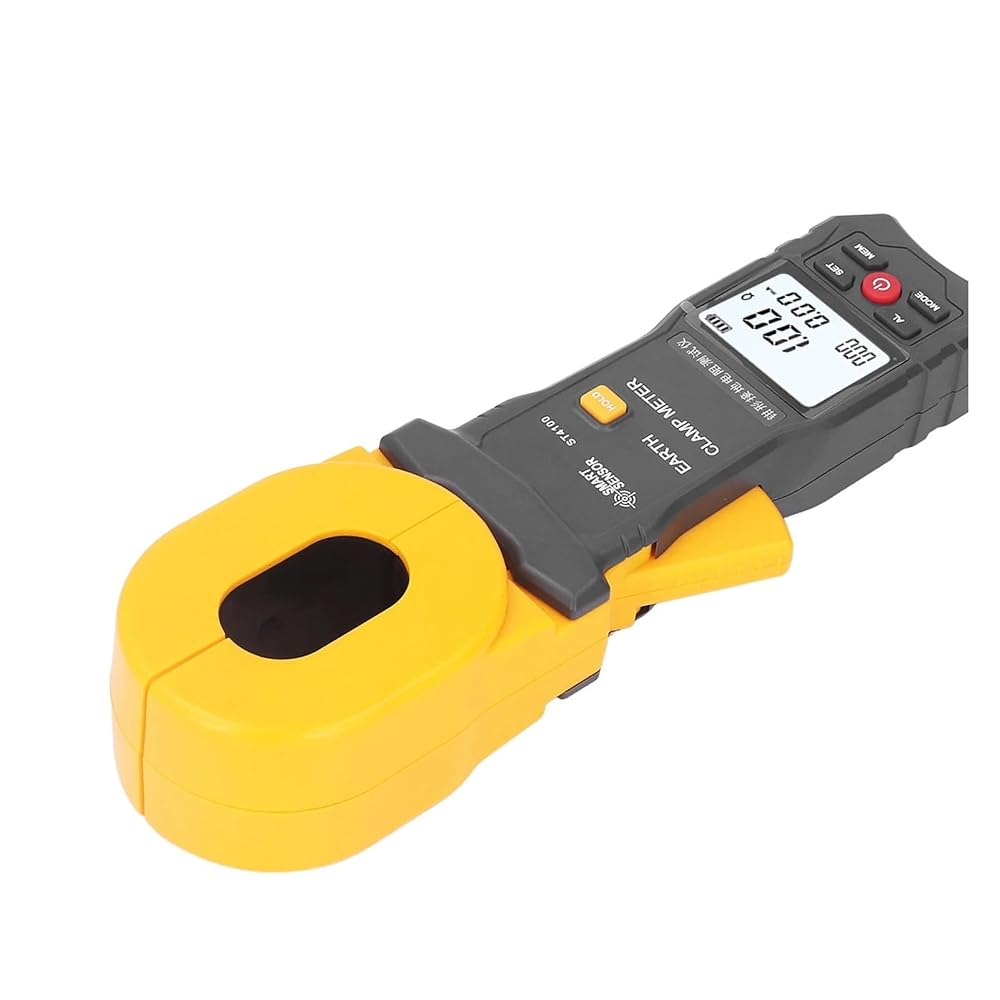

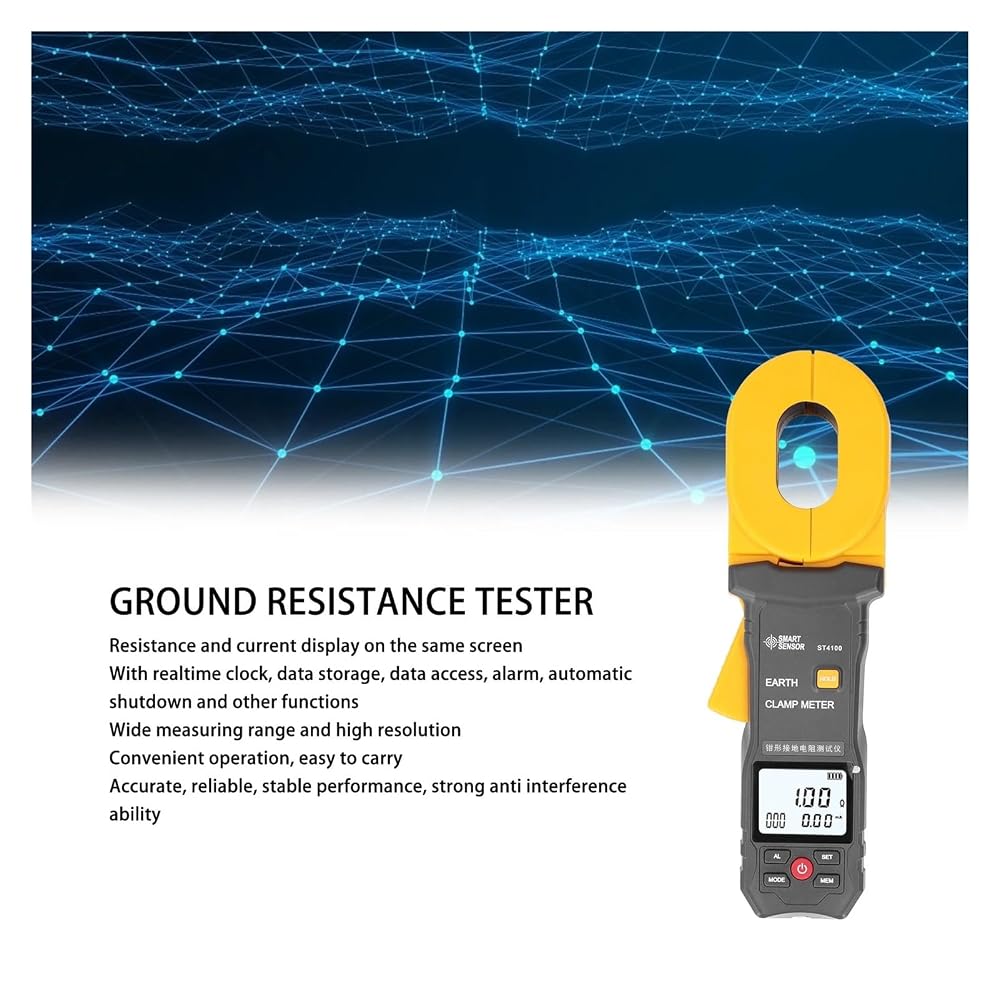

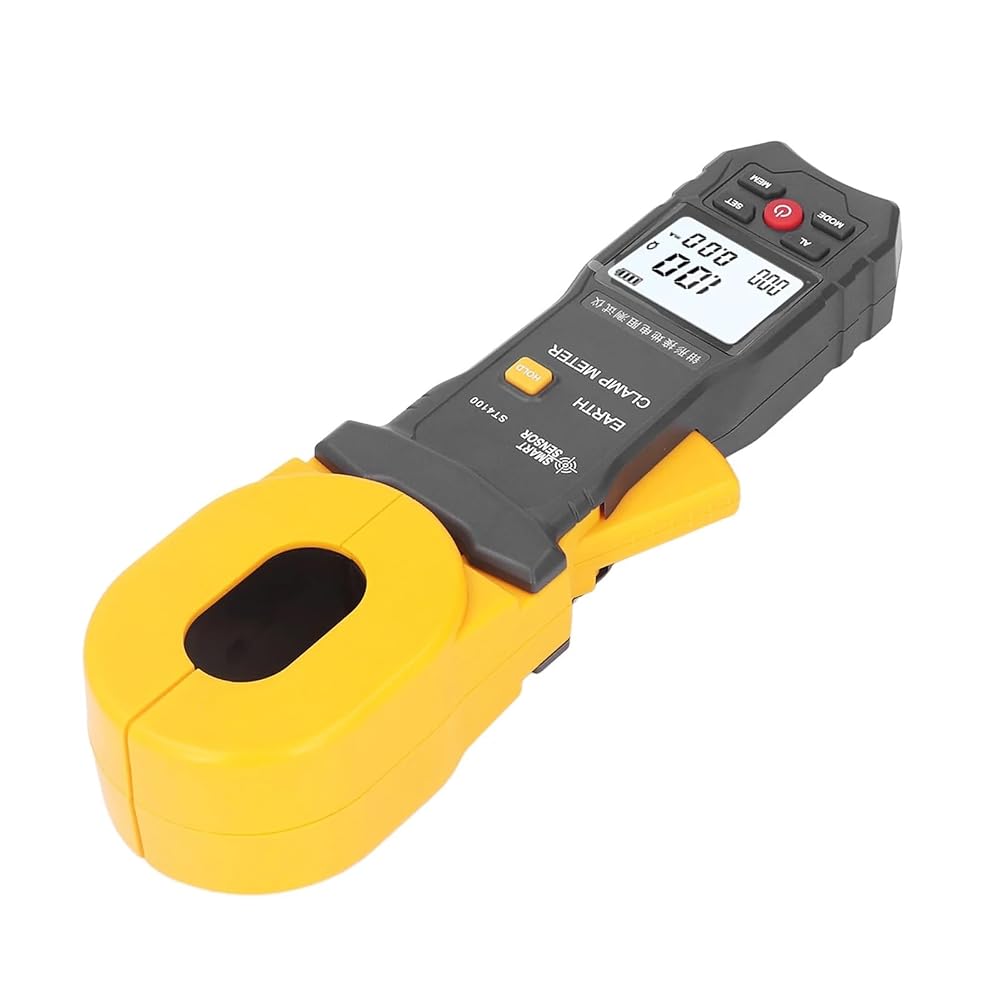

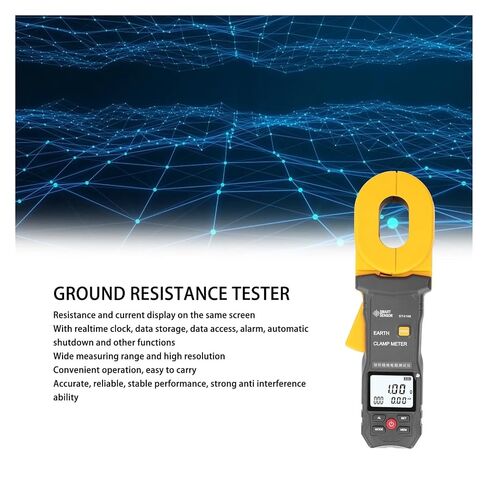

Item Type: Clamp Ground Resistance Meter
Model: ST4100
Battery: 1.5V AA Batteries x 4 (Shipped Without Batteries)
Material: ABS
Basic Parameters:
Function: Grounding Resistance Test, Circuit Resistance Test
Ambient Temperature And Humidity: 23±5 , 75% Rh Below
Measurement Mode: Mutual Inductance Mode
Resistance Resolution: 0.001
Current Resolution: 0.01mA
Clamp Jaw Size: 55 x 32mm / 2.2 x 1.3in
Clock Function: With
And A Synchronous Display: And A With The Screen Display
Display Mode: 4 Digit LCD Display, Black Screen Design
LCD Size: Approx. 46 x 36mm / 1.8 x 1.4in
Measurement Time: 1 Time/Second
Data Storage: 500 Groups, "MEM" Storage Indication, Flashing "MEM" Sign Indicates That The Storage Is Full.
Data Access: "MR" Sign Indication When Accessing Data
Overflow Display: "OL" Sign Indicates When The Overflow Is Over The Range
Interference Test: Automatic Identification Of Interference , "NOISE" Sign Indication When Interference Current Is Large
Alarm Function: Alarm Prompt When The Measured Value Exceeds The Alarm Setting Value
Battery : Realtime Display Of Battery Power
Automatic Shutdown: Can Be Set To 5, 10, 15, 20 Minutes, OFF Several Ways, OFF Means Cancel Automatic Shutdown, The Default Is 5 Minutes.
How to Use
1. Press the power button to turn on off the instrument. The meter will automatically calibrate when it is turned on, and it will display OL when it is finished, and it will automatically enter the resistance measurement mode. If it is not properly self calibrated, the meter will display the Er sign, which indicates that there is a power on error, and the common reasons for power on error are that the jaws are not closed well, or the wires are clamped into the jaws when it is turned on.
2. Automatically shut down after reaching the set shutdown time, the meter will flash for 30 seconds before the automatic shutdown, and then press the power button to delay the switch on time.
