Introduction:
True 4-wire AC sine measurement, to effectively avoids the impact of test lines and contact resistance. Two functions interface, the old battery sorting function, low power consumption and a variety of power-saving options. Test range up to 200 ohms with a minimum resolution of 0.01 milliohms and less than 5 milliohms. Press HOLD to enable the ZR function to measure internal resistance as low as 0.30-0. 50 milliohms.

Features:
Has a three-level battery rating detection. By setting the voltage resistance rating, the battery can be grouped.
Built-in charging management circuit. And can be set to 200mA and 400mA two charging current.
Energy saving function. Can be set 5 - 60min shutdown delay. No operation and input, the ultra-delayed automatic shutdown. Can be set to 5-30min delay into low power mode.

Specifications:
Material: plastics
Voltage measuring range: 0-45V
Internal resistancemeasuring range: 0-200
Battery: 3.7V, 2000mAh

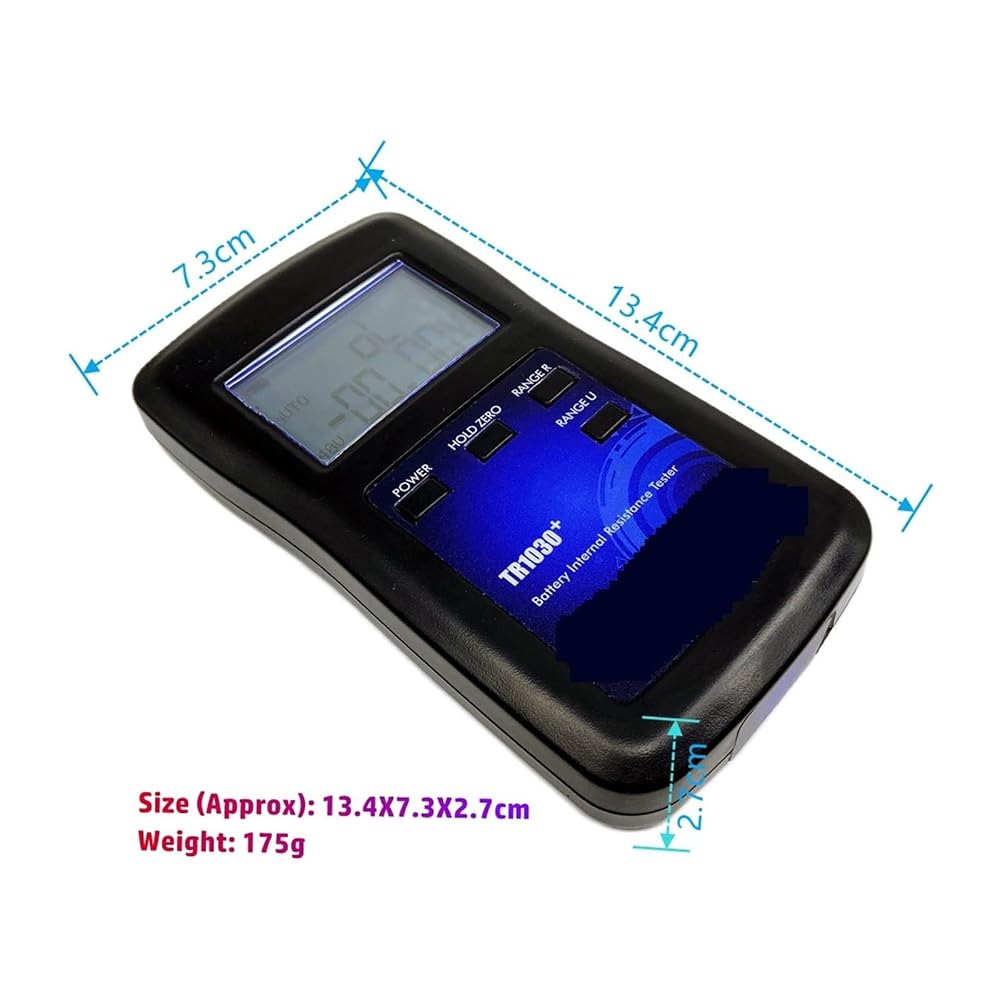

Package size: 120 * 60 * 40mm / 4.7 * 2.4 * 1.6in
Package weight: 300g / 10.6ounce
Parameters:
Internal resistance measurement:
[+Precision format: + (minimum effective digit percentage accuracy])
Minimum range resolution accuracy
20mQ 0.01mQ 0.7%+ 7(when ZR function is enabled)
200m0 0.1m0 0.5%+5
20 1mQ 0.5%+5
200 10mQ 0.5%+5
2000 0.10 0.6%+5
In the gear 5%-95% range, within this range (less than 5% gear range, or greater than 95%gear range range), the error may be greater than the accuracy mentioned above.
Voltage measurement:
2V 0.001V 0.8%+5
20V 0.01V 0.8%+5
28V 0.1V 0.8%+5
