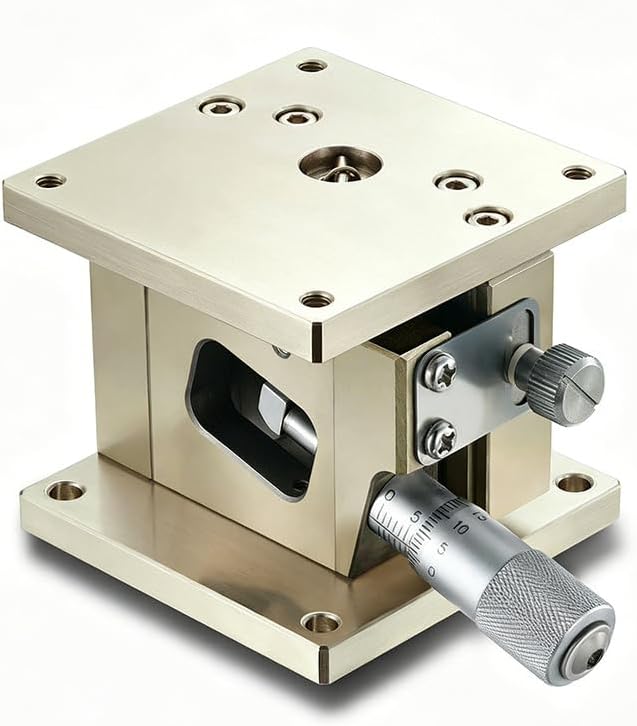

Precision Z-axis Linear Stage, Stainless Steel Cross Roller Displacement Table, Manual Horizontal Slide Table for Laboratory & Industrial Use
Specification:
Slide Surface: 40X40mm, 60X60mm
Movement Range: ±3.0mm, ±5.0mm
Load Capacity: 29.4N, 49.0N
Parallelism: 80um
Weight: 0.3kg, 0.7kg
Feature:
1. Made entirely of stainless steel, corrosion-resistant and rust-proof, suitable for humid, dusty, and various working environments.
2. Cross-roller structure for smooth operation. Equipped with a cross-roller guide rail design, ensuring high contact precision and low frictional resistance.
3. Smooth, seamless movement with smooth transmission, effectively reducing sliding clearance and providing excellent positioning stability.
4. Controllable stroke and sensitive fine-tuning, meeting the needs of precision testing and fine-tuning alignment.
5. Compact and robust structure with strong load-bearing capacity. The integrated compact structure provides high rigidity, uniform stress distribution, resistance to deformation, and minimal wobbling.
Package included:
1 x Z-axis Displacement Table
