Brand Name: BKM
Quantity: 1pc
Number of rolling columns: single column
Standard parts: Yes
Origin: Chinese mainland
Material: Bearing steel
Color classification:
608-2RS full bead plated black 8x22x7mm,
608-2RS-E full bead plated black 8x22x7x10mm,
688-2RS full bead plated black 8x16x5mm,
698-2RS full bead plated black 8x19x6mm,
698-2RS-E full bead plated black 8x19x6x7.5mm.
699-2RS full bead plated black 9x20x6mm,
6000-2RS full bead plated black 10x26x8mm,
6001-2RS full bead plated black 12x28x8mm,
6800-2RS full bead plated black 10x19x5mm,
6801-2RS full bead plated black 12x21x5mm,
6801-2RS-E full bead plated black 12x21x5x6.5mm.
6802-2RS full bead black 15x24x5mm,
6802-2RS-E full bead plated black 15x24x5x7mm,
6803-2RS full bead plated black 17x26x5mm,
6804-2RS full bead plated black 20x32x7mm,
6808-2RS full bead plated black 40x52x7mm,
6809-2RS full bead plated black 45x58x7mm,
6900-2RS full bead plated black 10x22x6mm,
F6900-FO-2RS full bead black 10x22x24x6x8mm,
6901-2RS full bead plated black 12x24x6mm,
6902-2RS full bead plated black 15x28x7mm,
6902-2RS-E black plated full beads 15x28x7x10mm,
6903-2RS full bead plated black 17x30x7mm,
17287-LLU full bead plated black 17x28x7mm,
FB27537-LLU full bead plated black 27.5x37x6.5mm.
DR11197-2RS full bead plated black 11x19x7mm,
DR17289-2RS full bead plated black 17x28x9mm,
3801H8-2RS full bead plated black 12x21x8mm,
3802-2RS full bead black 15x24x7mm,
3803-2RS full bead plated black 17x26x10mm,
3001-2RS Full Bead Plated Black 12x28x12mm

Prefix code analysis: F = Flange edge outer ring FB = MAX = full ball type DR = double row ball
Suffix code analysis: MAX = full bead type BO = black plating process E = inner ring unilateral protrusion LLU = medium contact seal type, slightly heavier than 2RS seal rotation damping

Bearing size sequence: inner bore/inner diameter x outer diameter x thickness
608-2RS-MAX-BO - 8x22x7mm
608-2RS-MAX-BO-E - 8x22x7x10mm inner ring unilateral protrusion 3.00mm
688-2RS-MAX-BO - 8x16x5mm
698-2RS-MAX-BO - 8x19x6mm
698-2RS-MAX-BO-E - 8x19x6x7.5mm inner ring unilateral protrusion 1.50mm
699-2RS-MAX-BO - 9x20x6mm
6000-2RS-MAX-BO - 10x26x8mm
6001-2RS-MAX-BO - 12x28x8mm
6800-2RS-MAX-BO - 10x19x5mm
6801-2RS-MAX-BO - 12x21x5mm
6801-2RS-MAX-BO-E - 12x21x5x6.5mm inner ring unilateral protrusion 1.50mm
6802-2RS-MAX-BO - 15x24x5mm
6802-2RS-MAX-BO-E - 15x24x5x7mm inner ring unilateral protrusion 2.00mm
6803-2RS-MAX-BO - 17x26x5mm
6804-2RS-MAX-BO - 20x32x7mm
6808-2RS-MAX-BO - 40x52x7mm/XHP-222
6809-2RS-MAX-BO - 45x58x7mm/XHP-222
6900-2RS-MAX-BO - 10x22x6mm
F6900-FO-2RS-MAX-BO - 10x22x24x6x8 Flange Outer Ring | Inner Ring Countersunk Structure/XHP-222
6901-2RS-MAX-BO - 12x24x6mm
6902-2RS-MAX-BO - 15x28x7mm
6902-2RS-MAX-BO-E - 15x28x7x10mm inner ring unilateral protrusion 3.00mm
6903-2RS-MAX-BO - 17x30x7mm
17287-LLU-MAX-BO - 17x28x7mm

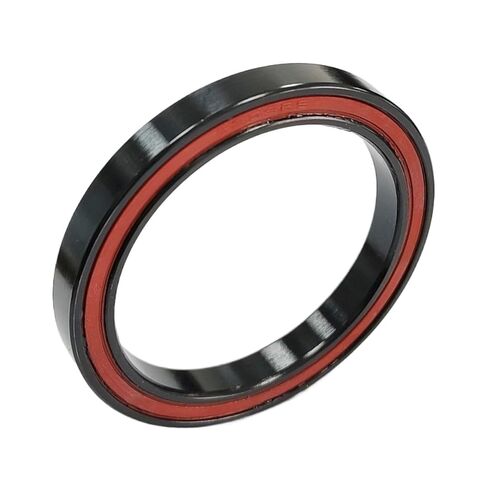

FB27537-LLU-MAX-BO - 27.5x37x6.5mm
DR11197-2RS-MAX-BO - 11x19x7mm double row ball structure
DR17289-2RS-MAX-BO - 17x28x9mm double row ball construction
3801H8-2RS-MAX-BO - 12x21x8mm double row ball structure
3802-2RS-MAX-BO - 15x24x7mm double row ball structure
3803-2RS-MAX-BO - 17x26x10mm double row ball construction
3001-2RS-MAX-BO - 12x28x12mm double row ball structure
