[High Measurement]Dynamic torsion sensor provides ±20000N.m torque measurement with 0.1% non-linearity for accurate real-time performance.
[Real-Time Data]Features RS485 communication for instant torque and speed data output, allowing effective monitoring during industrial operations.
[Versatile Compatibility]Ideal for varying applications, from motor speed testing to power measurement, accommodating speeds up to 15000rpm.
[Robust Design]Operates within -10 to +122°F with a response time of 2.6ms, ensuring reliable performance under diverse conditions.
[Comprehensive Outputs]Offers multiple output formats including ±5VDC and 4-20mA, catering to diverse industrial equipment needs.

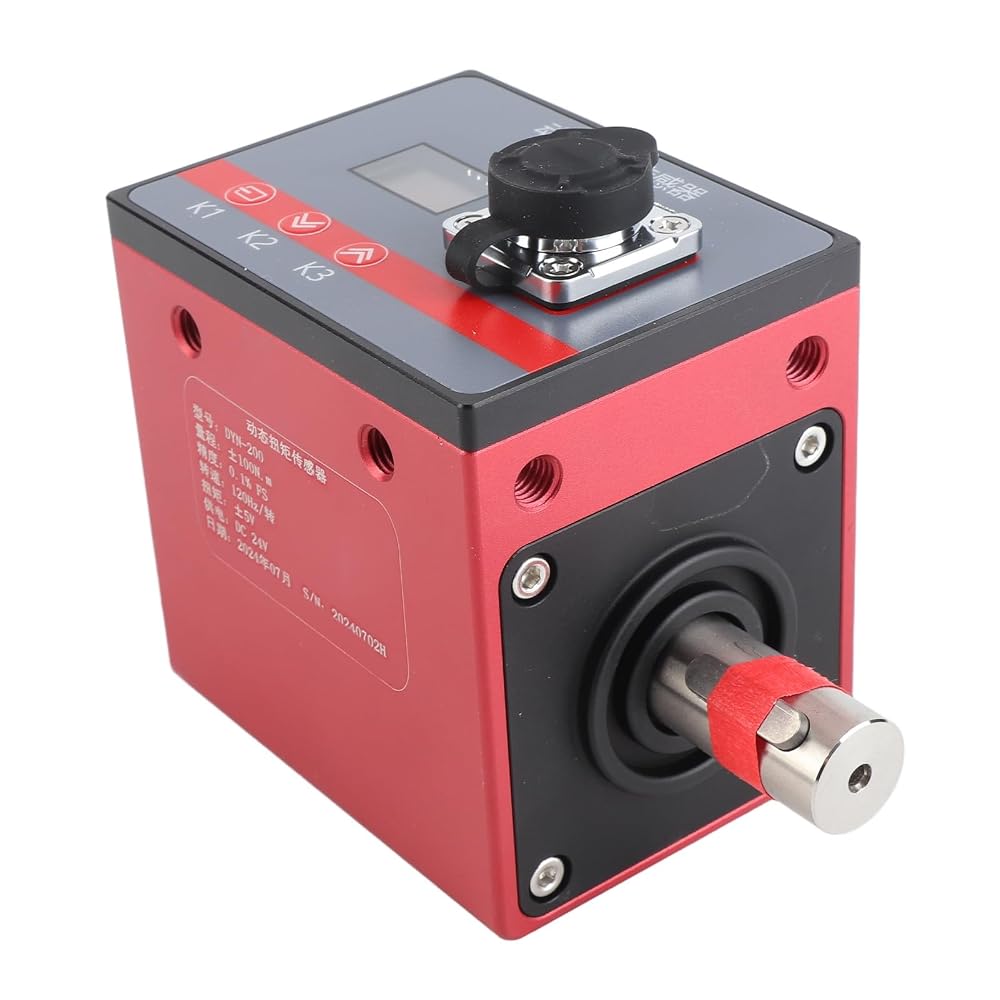

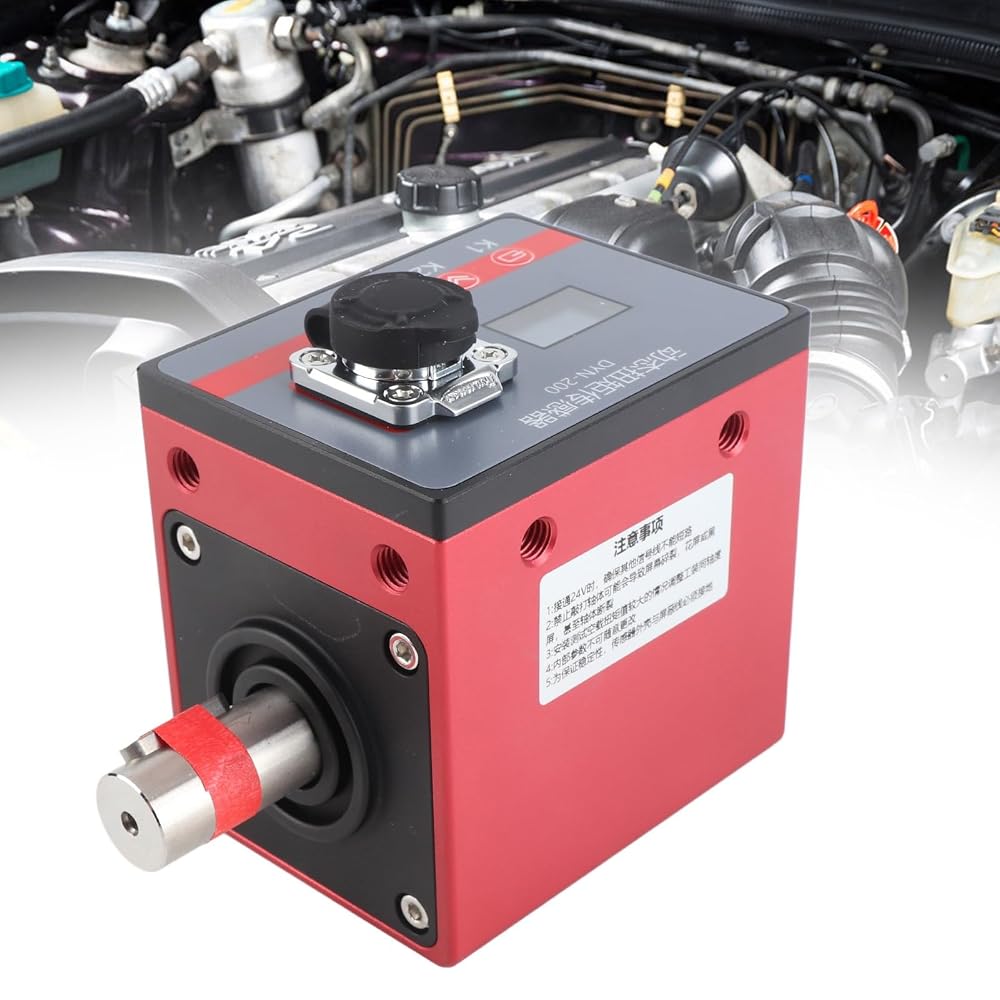

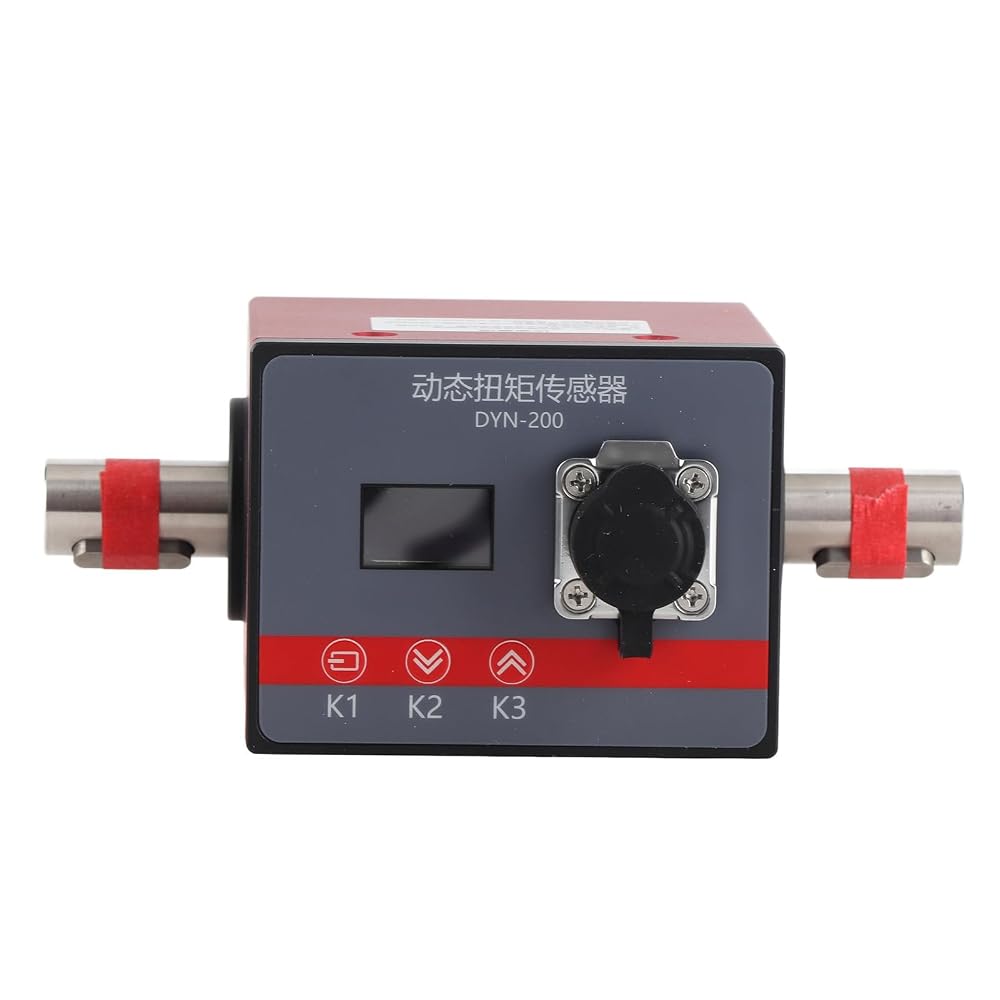

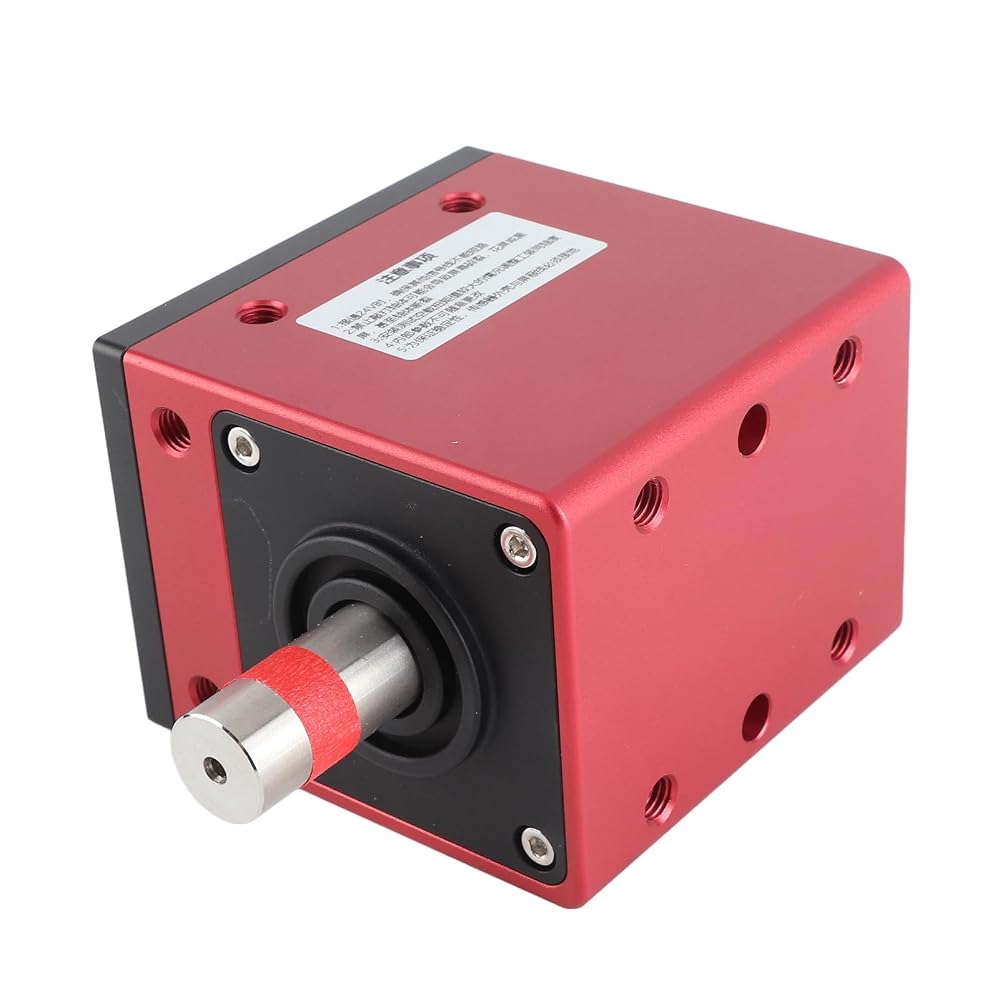

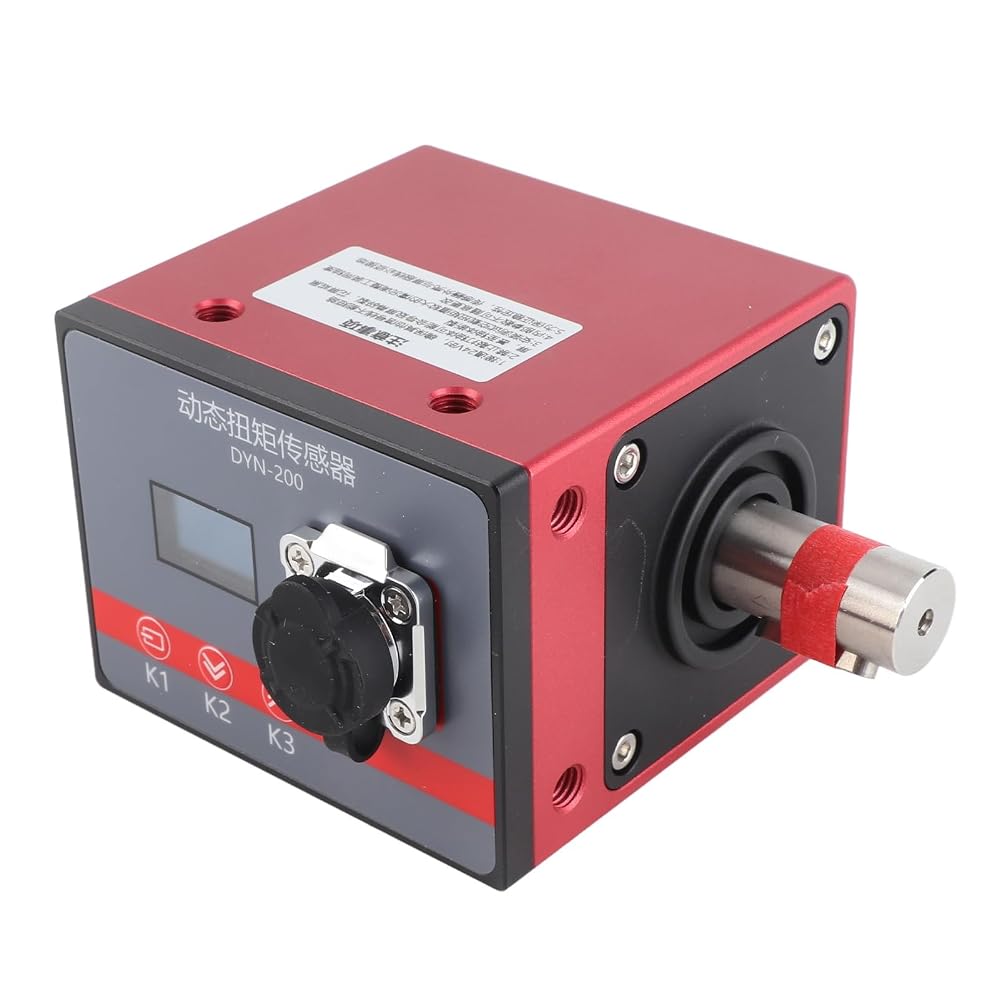

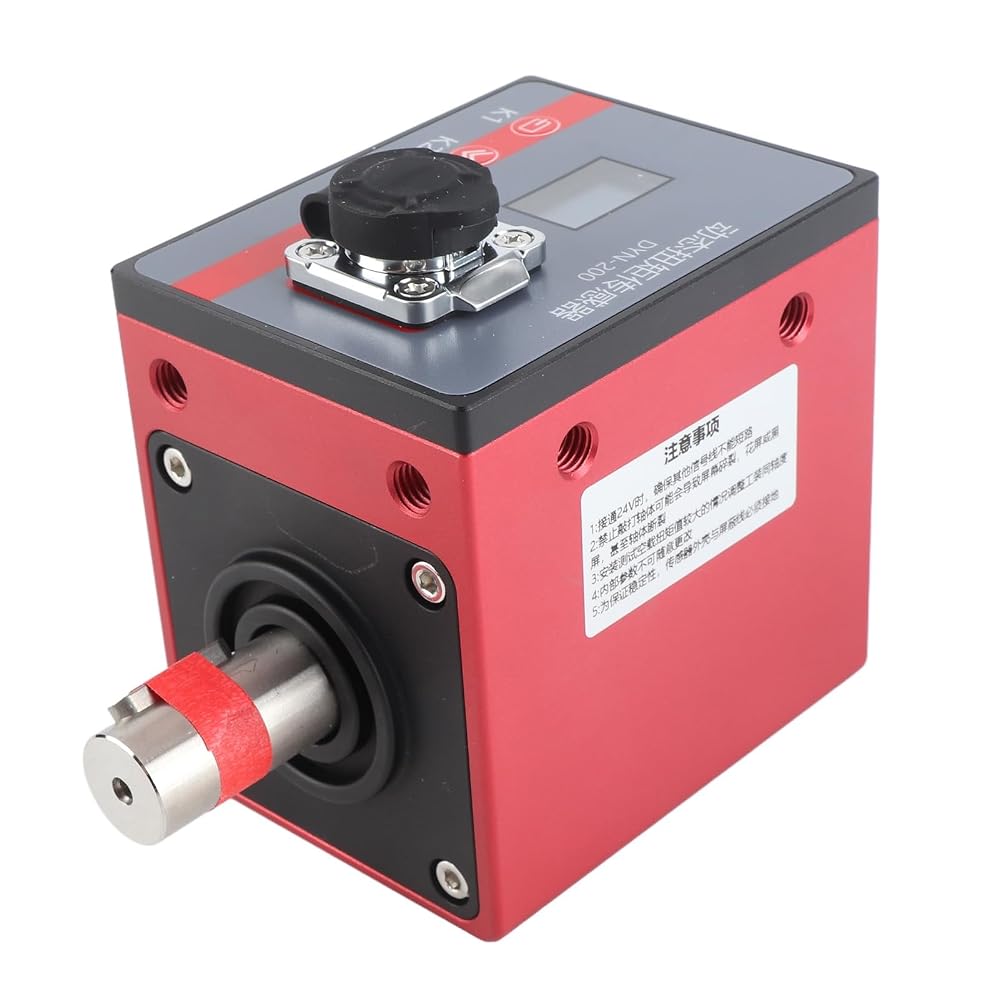

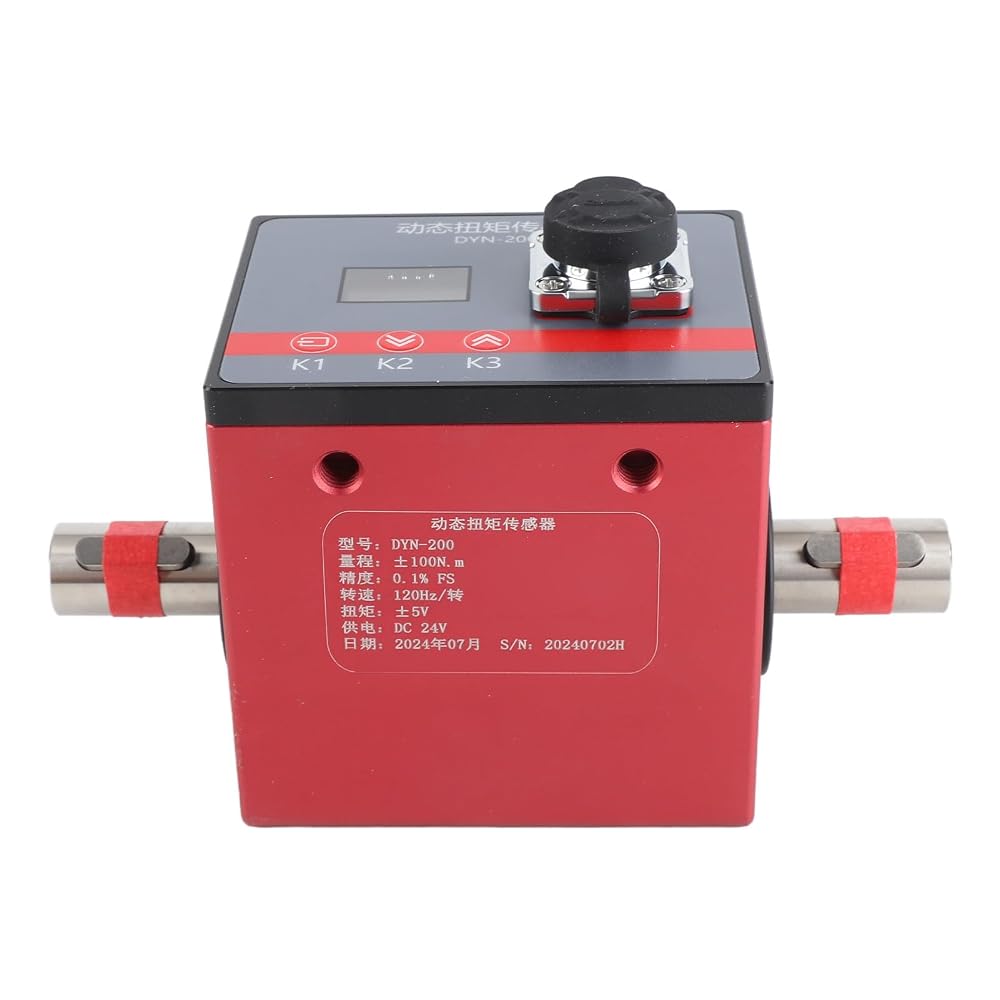

Item Type: Dynamic Torsion Sensor
Rated Capacity: ± 20000N.m
Power Input: DC24V
Current Consumption: Below 200mA
Torsion Output: ± 5VDC; 0-10V; 4-20mA
Speed Output: 60 pulses / revolution
Response Performance: 1kHz
Load Resistance: 2kΩ or more
Signal Delay: 2.6ms (50% response)
Allow Overload: 150% FS
Operating Temperature Range: -10 ~ + 50 ℃
Non-linearity: 0.1% FS
Repeatability: 0.03% FS
Lag: 0.03%
Temperature Effect Of Zero Point: 0.01% FS / C
Temperature Effect Of Output: 0.01% FS / C
Rated Speed: 8000rpm
The Fastest Rotation Speed: 15000rpm
Maximum Twisted Angle: 2.60 × 10rad (0.149 °)
Moment Of Inertia: 0.38kgcm
Vibration Natural Frequency (rotor Part): 19.4kHz
Torsion Constant: 3.85 × 10Nm / rad

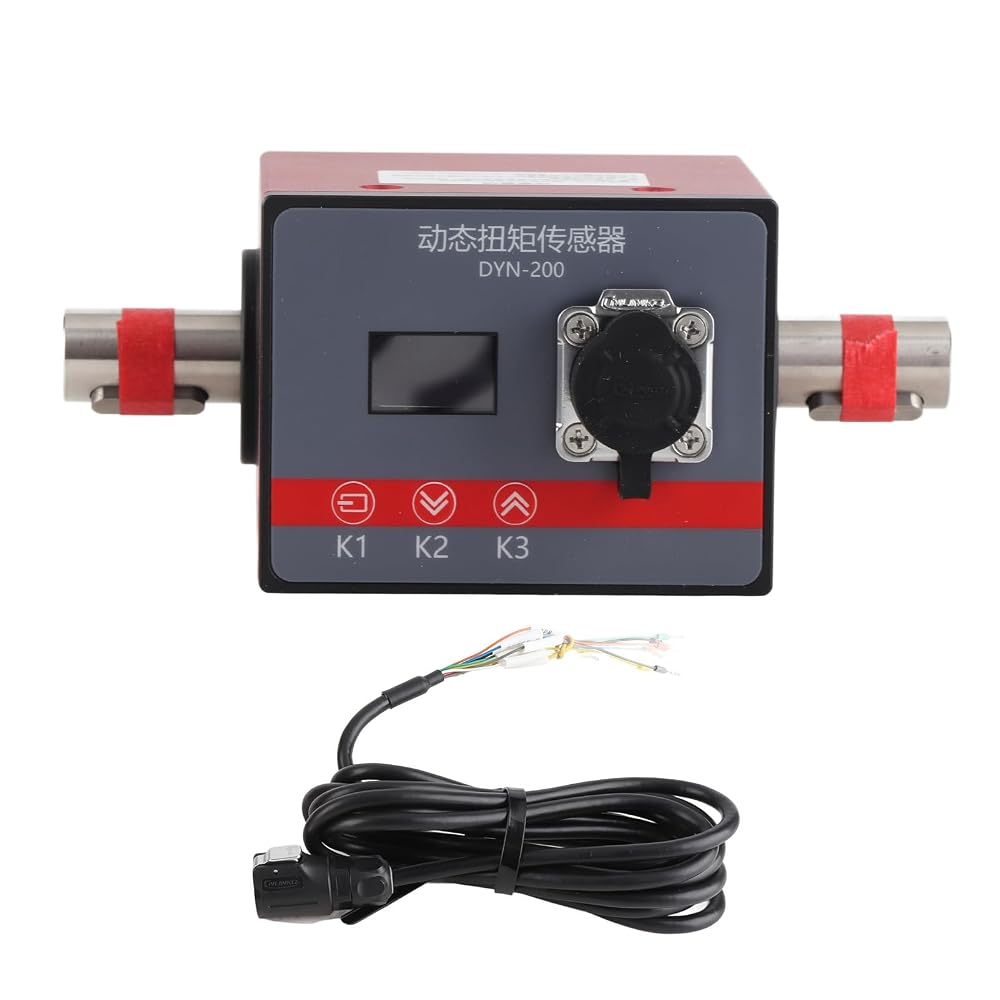

?1 x Sensor?
?1 x Line?
