Features:
1. Resistance test: Use button(F) to select resistance measurement mode. When overloaded, the LCD screen will display the‘OL' symbol
2. LED component test: Convenient to detect built-in diodes, you can also test the good products on the board, light and convenient
3. Automatic shutdown button life: automatically shut down after 20 minutes of power on, more power saving!
4. Capacitance test: Select capacitance measurement mode, touch both sides of the circuit board capacitor
5. Data hold button: When the function button is pressed, the instrument refreshes the test data and holds the current test data. Press this button to return to normal test status
6. for SMD chip test: It can identify components such as resistors/capacitors/diodes, and the test accuracy is accurate. It is a good helper for electronic factories and electronic repairs

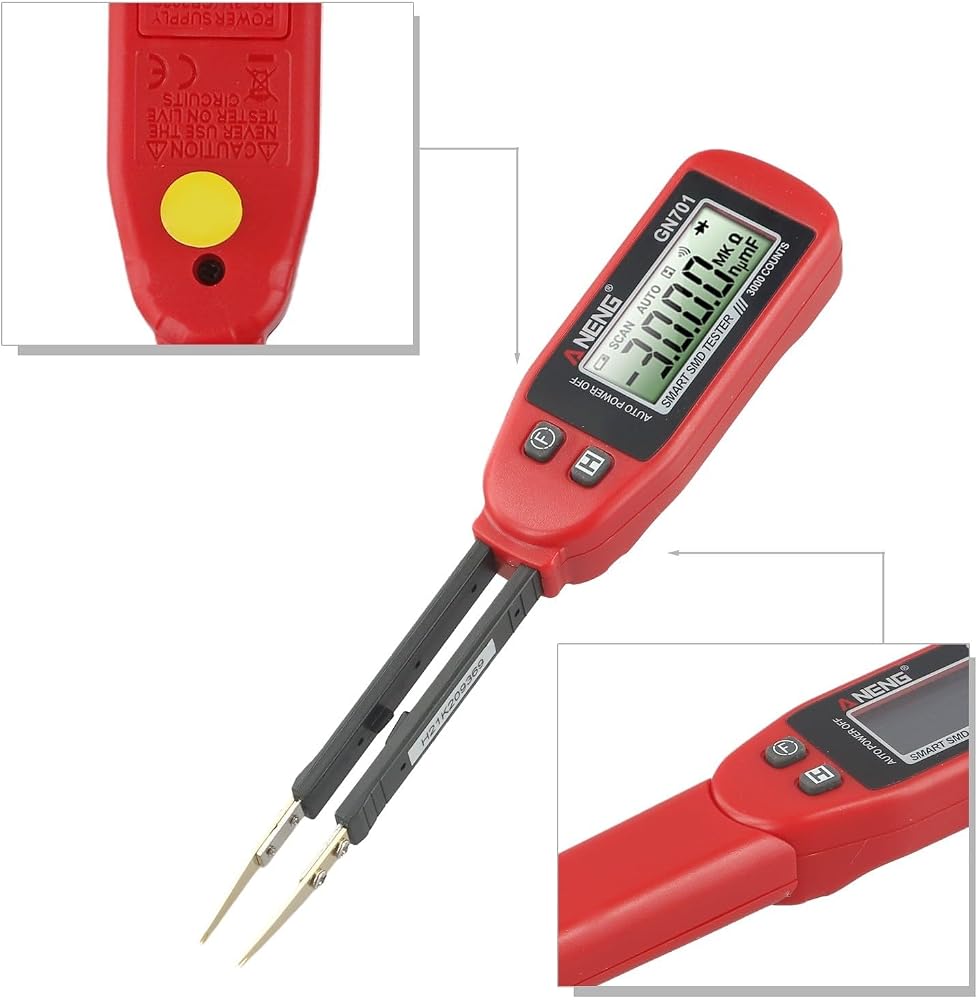

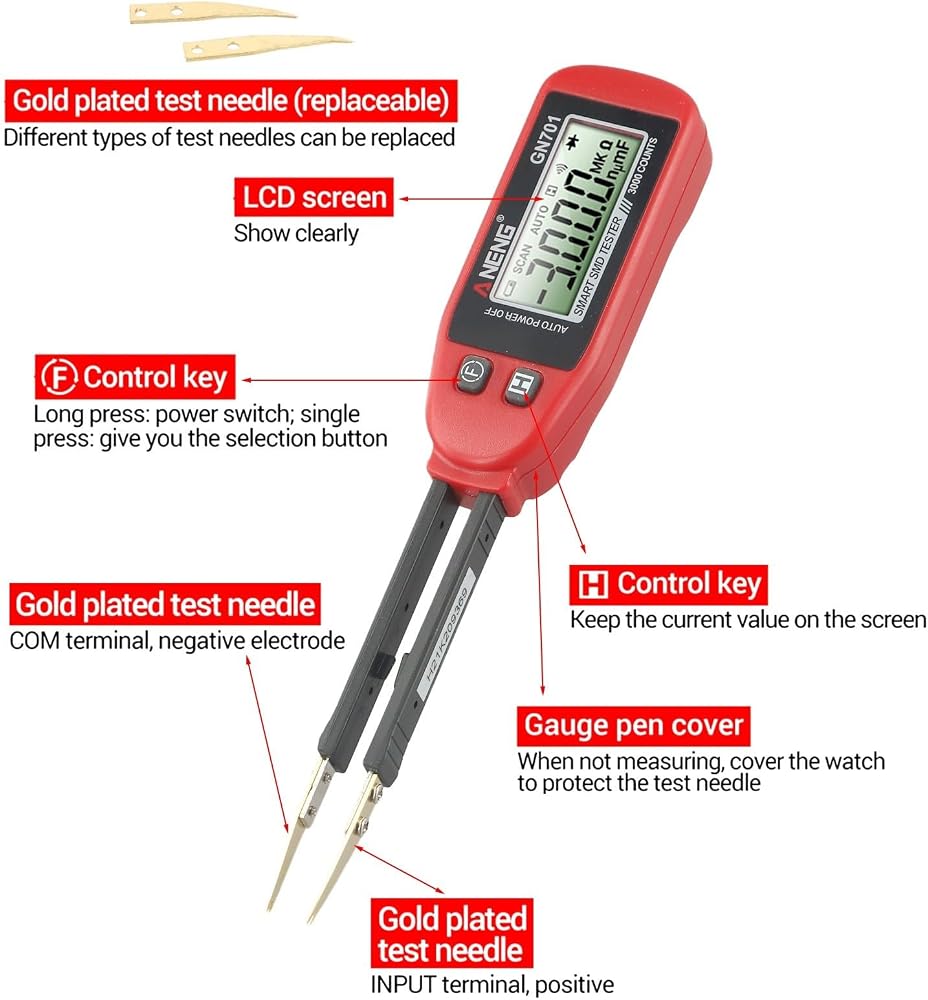

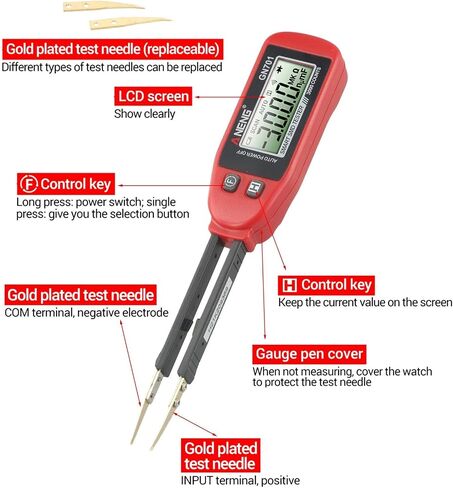

7. Portable test chip component device, specially designed gold-plated tweezers, smooth clips for accurate testing, and quick component identification

Specification:

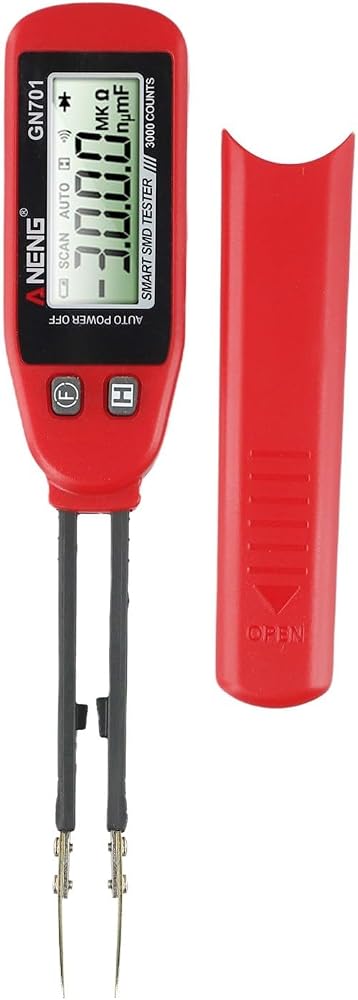

Product model: GN701

Material:plastic

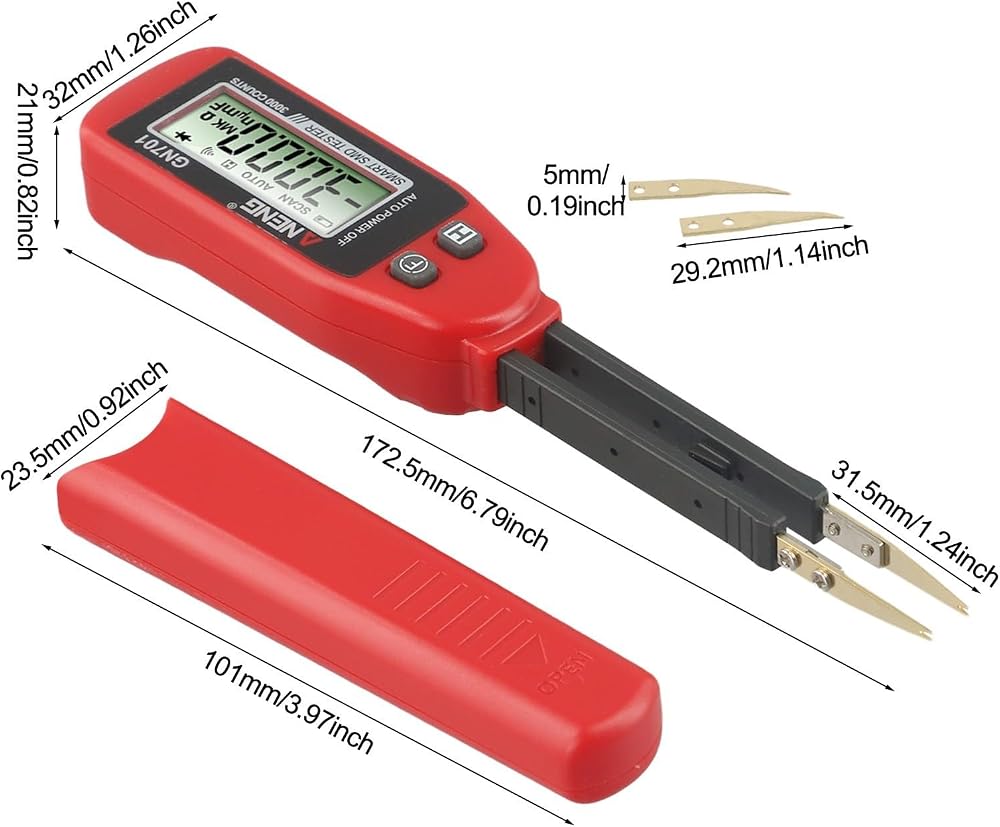

Size:17.2*3.3cm
Maximum display number: 3000 counts
Screen: LCD for crystal display
Resistance: 0Ω-30MΩ, resolution 0.1Ω-10kΩ, accuracy±(1.2% reading+ 3 words)
Capacitance: OnF-30mF, resolution 1pF-10μ F. Accuracy±(3.0% reading+ 3 words)
Diode:√
Buzzer:√
Data retention:√
Automatic shutdown:√
Low alarm:√
Working temperature and humidity: 0-40℃(32-104℉)&
Storage temperature and humidity:-10~50℃(14~122℉)&
Safety level: 2014/30/EU CATII

Package Content:

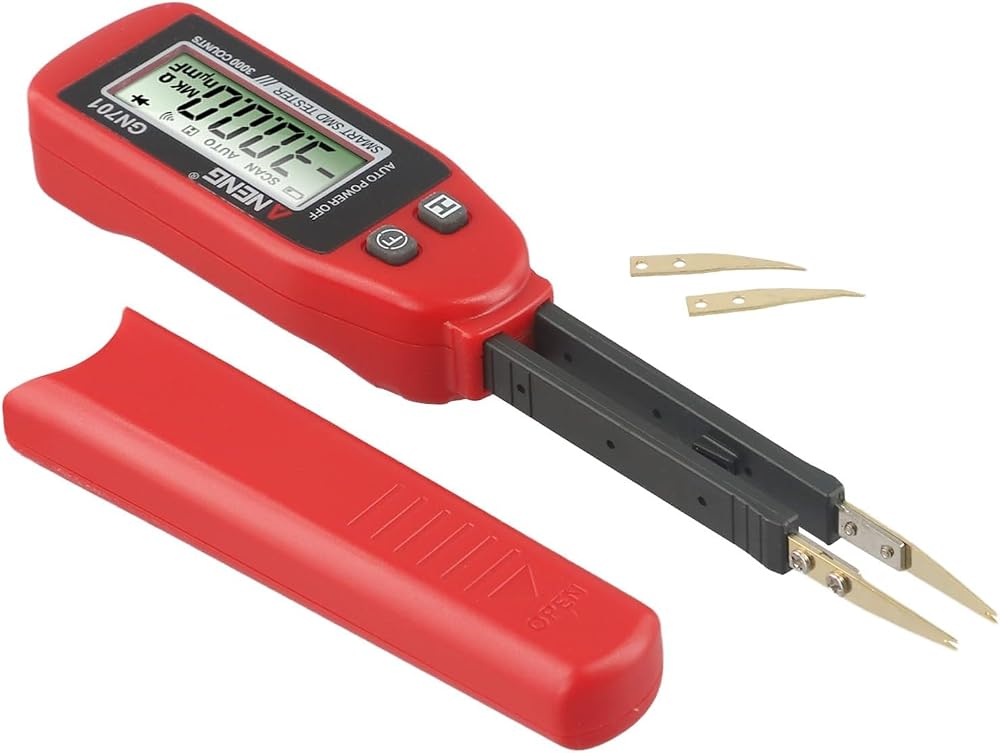

List Paper packaging box
for SMD tester* 1
Gold-plated test pins* 2
Pen cap* 1
Instruction manual* 1
