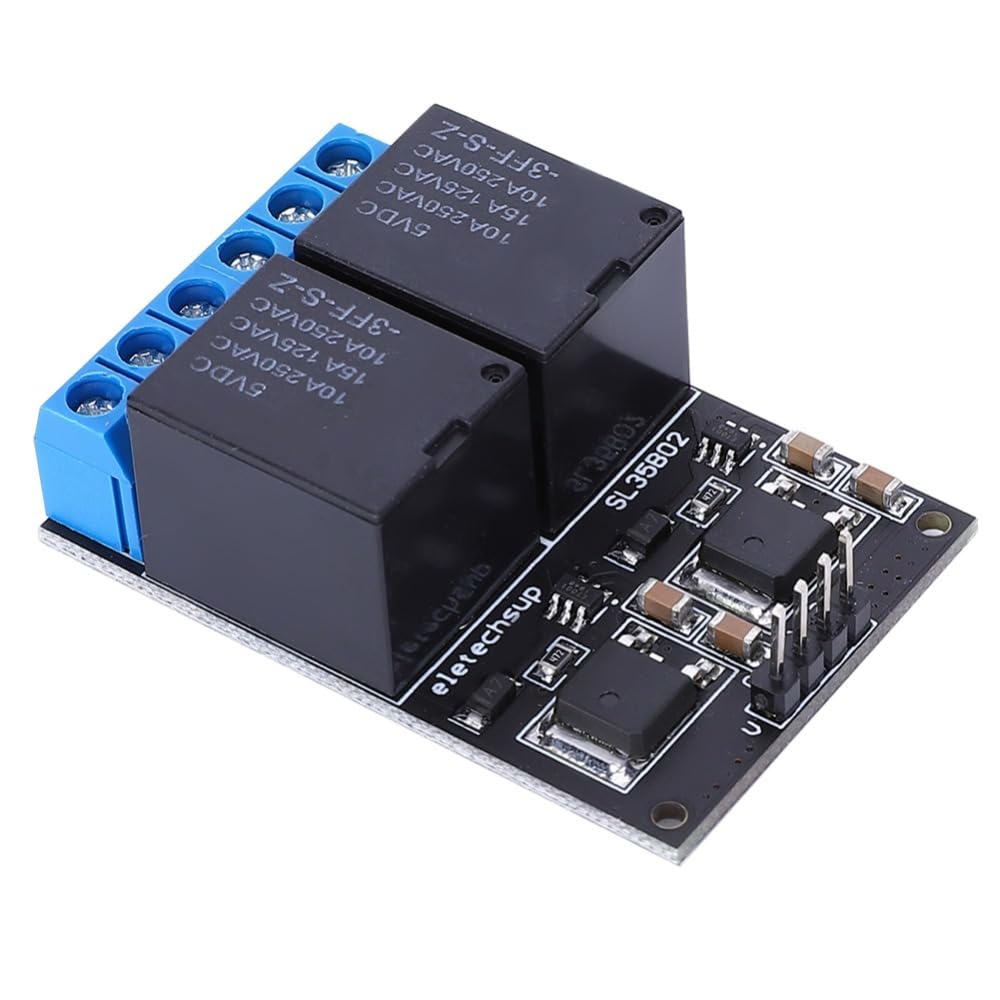

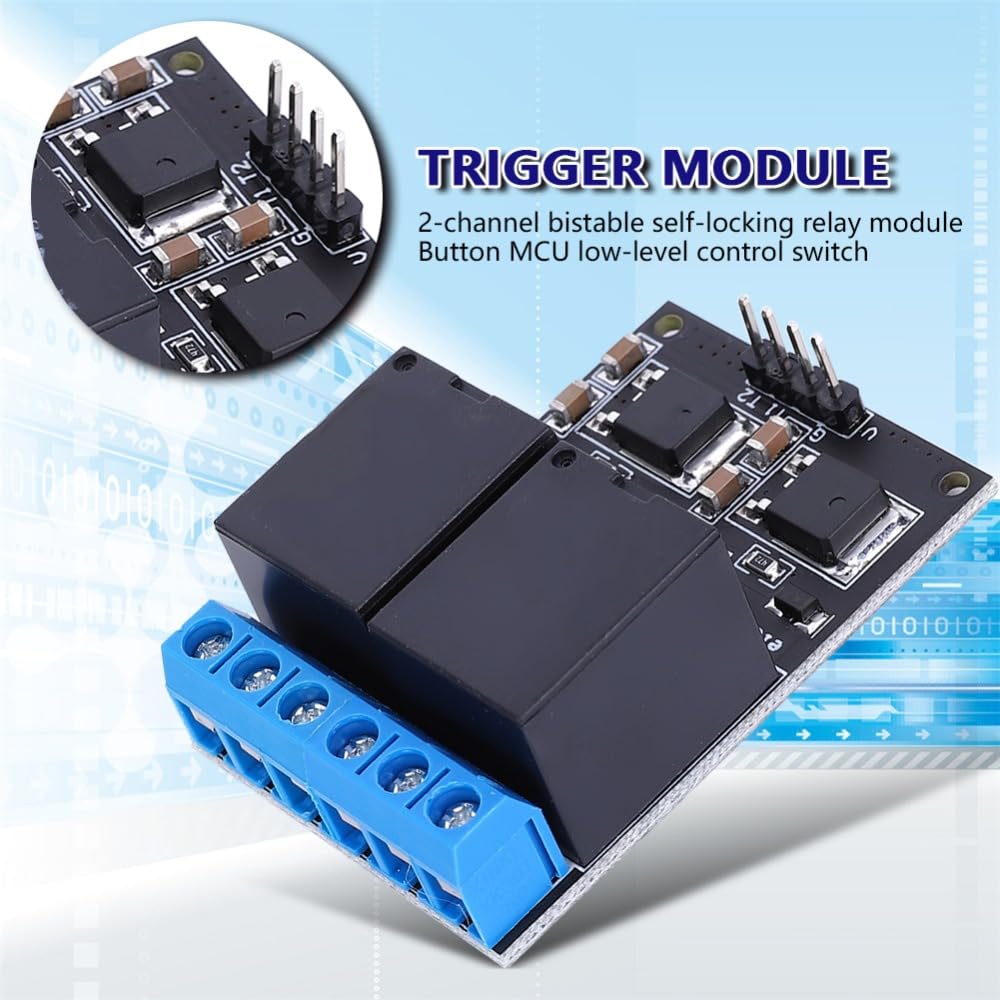

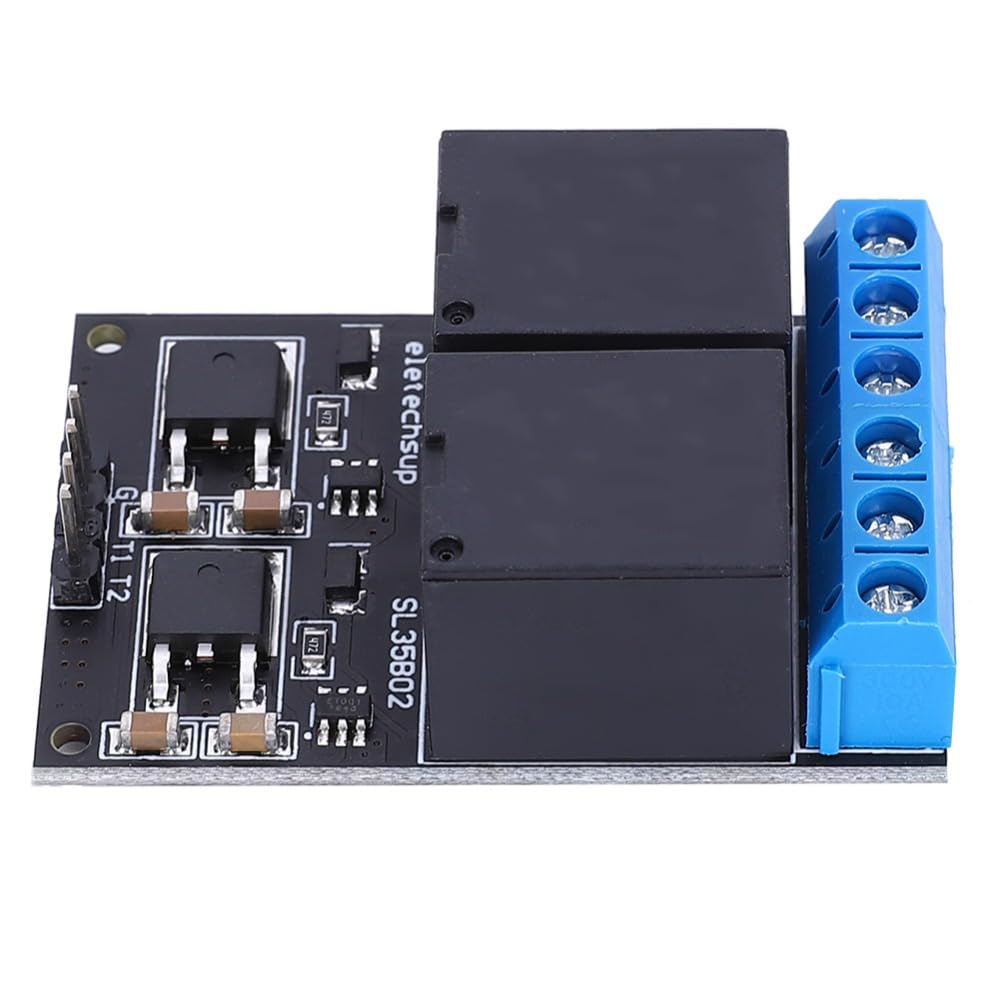

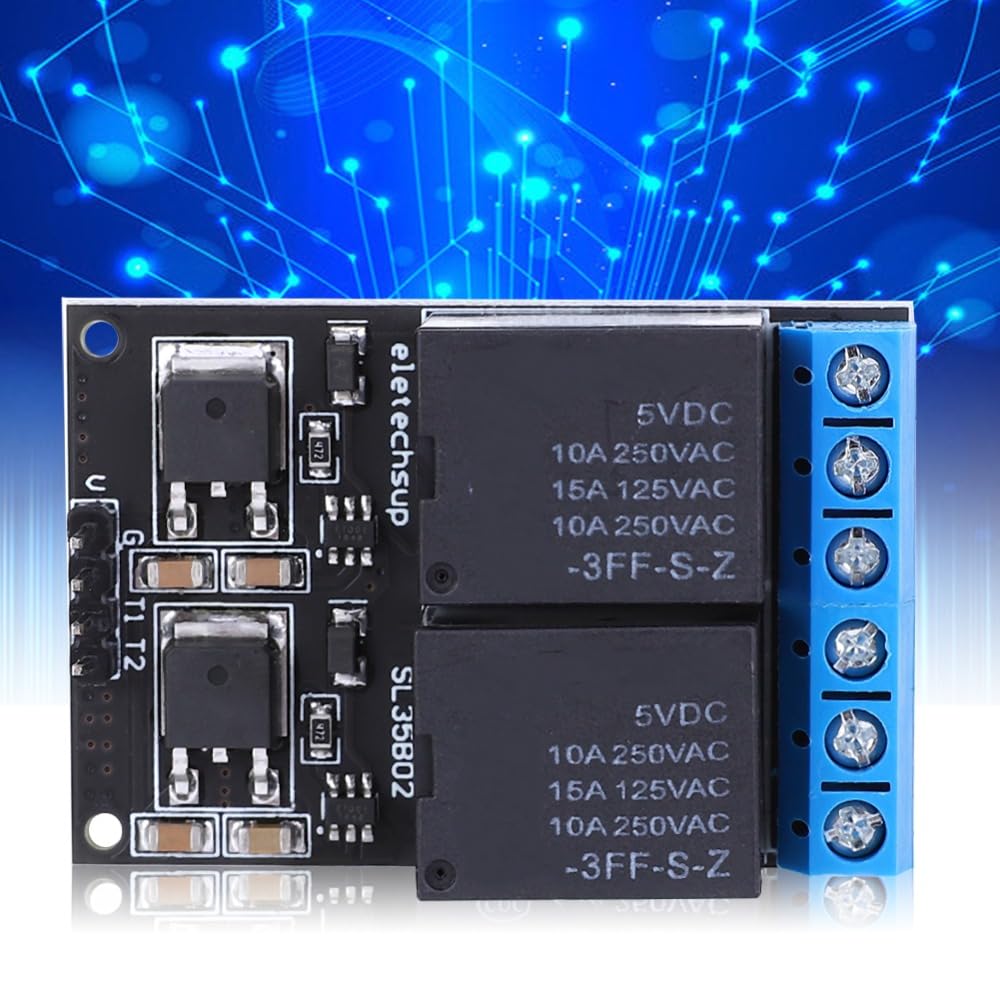

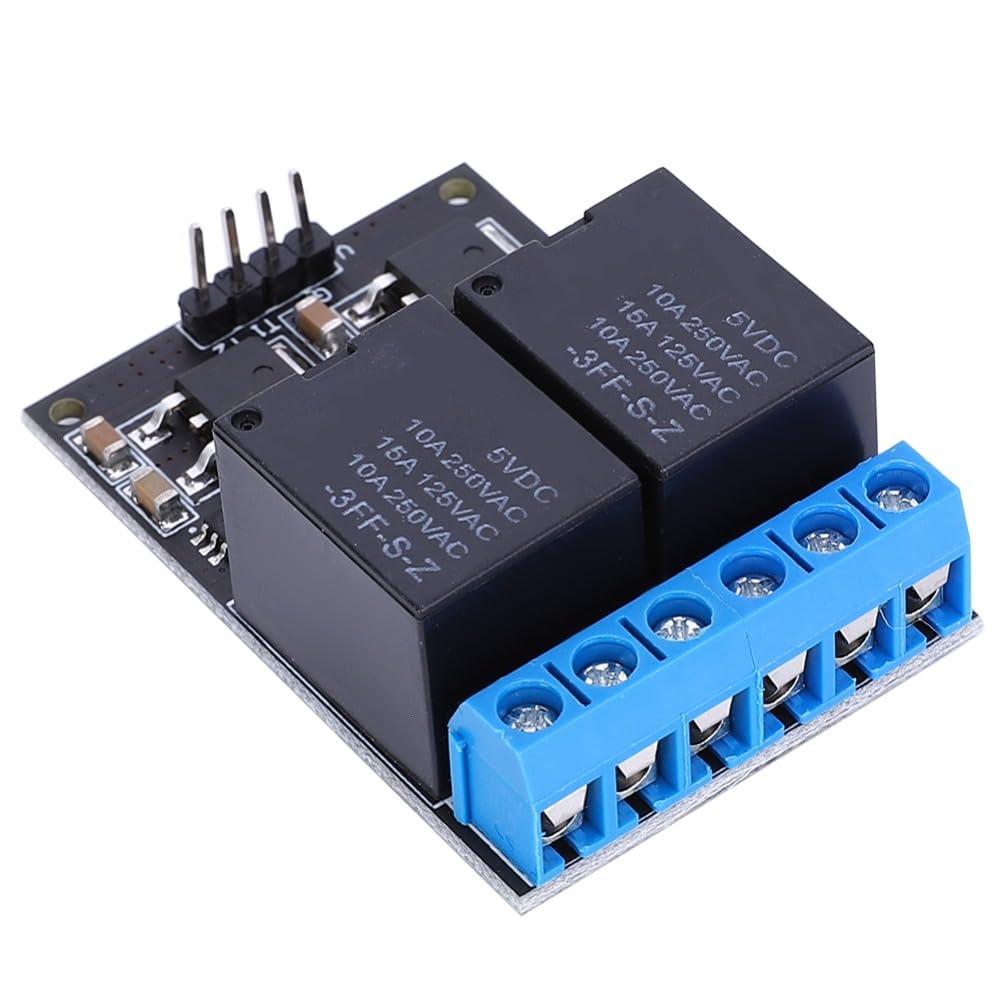

2 Channel Bistable Self Locking Trigger Board offers reliable low level control for industrial automation applications. This compact relay module provides stable switching performance with dual channel use for enhanced system integration
Ideal for industrial control cabinets and PLC interface expansion, this trigger board simplifies wiring with standard pin design. The low pulse triggers ensures accurate signal response in complex electrical environments. Its strong anti-interference capability maintains consistent performance where electrical noise is present
Specifications:
Item Type: Relay module
Model: SL35B02
Trigger Mode: Low level trigger
Working Voltage: DC 6-24V (recommended DC 9V 12V)
Working Current: 1 relay pull-in 70MA, 2 relay pull-in 140MA
Relay Load Current: AC 250V / 10A, DC 30V / 10A
Static Working Current: 0.24mA

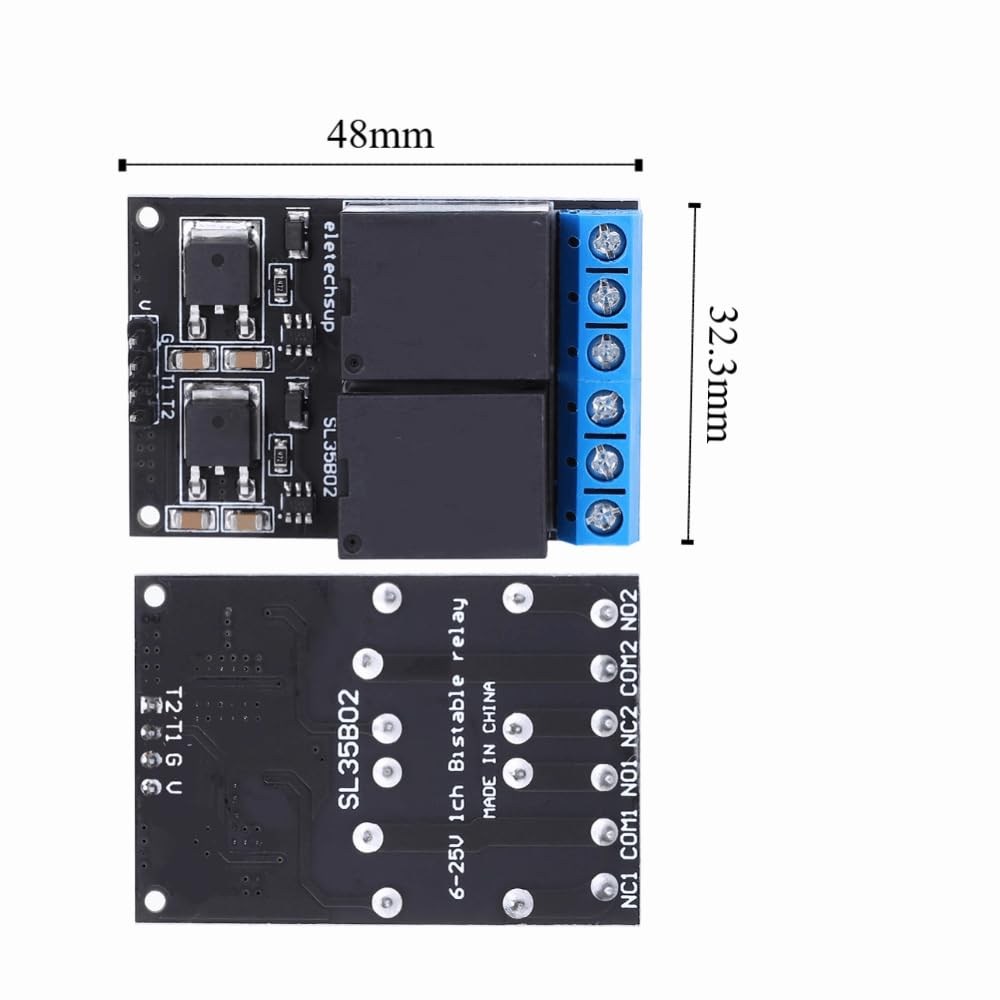

Size: 48 * 32.3 * 18.5mm(1.89 * 1.27 * 0.73in)
Weight: 27.6 g
Color: Black

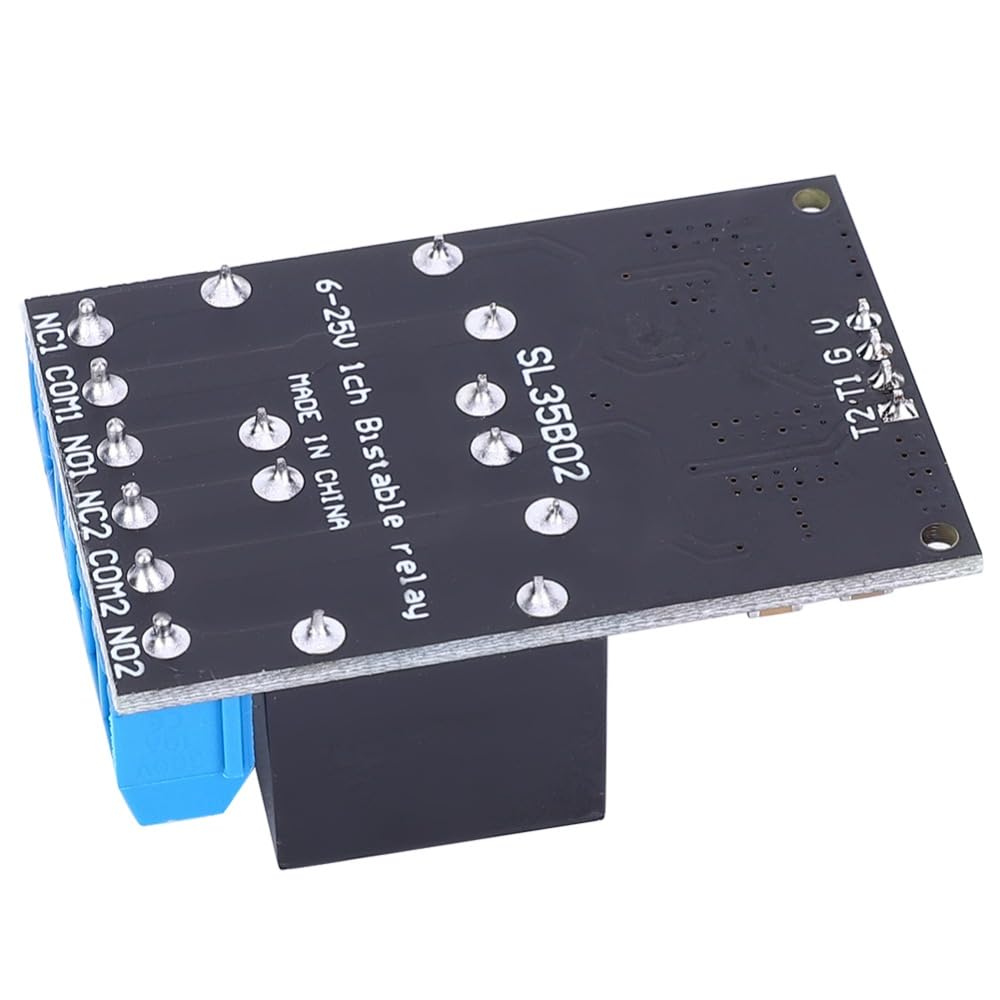

Pin Description:
V: Positive power supply
G: Negative terminal of power supply and ground terminal of trigger signal;
T (T1 / T2 / T3 / T4): Trigger signal input (0.2-2 second low pulse).
NO: Relay normally open port
COM: Relay common port
NC: Relay normally closed port
Instructions:
While at power-on, the relay opens. Click the trigger port (T1 / T2 / T3 / T4 port) relay to pull in (and hold), then click the relay again to disconnect, and so on.
Package List:
1 x Relay Module
