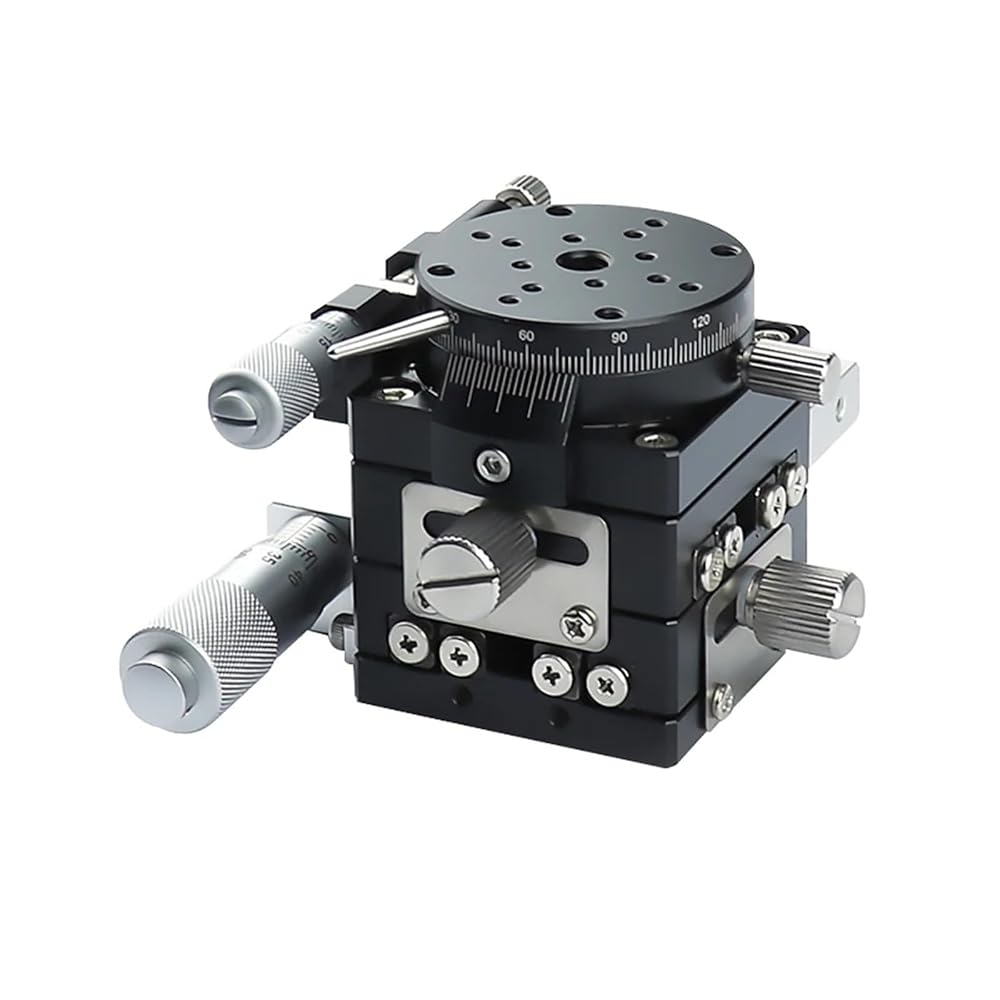

Linear Motion Guide Actuators

Parameter: LSP40-LM
1.The direction of movement: XY and RAxis High precision
2. Material: Aluminum
3. The table size: 40*40mm
4. Rail Type: V-rail (Cross Roller Guide)
5. Travel:XY:±6.5mm RAxis:360° ±5° fine tuning
6. Load: 8.8N (1kgf)
7. Accuracy: 0.01mm
8. Straightness: 0.01mm

Parameter:LSP60-LM
1.The direction of movement: XY and R Axis High precision
2. Material: Aluminum
3. The table size: 60*60mm
4. Rail Type: V-rail (Cross Roller Guide)
5. Travel:XY:±6.5mm R Axis:360° ±5° fine tuning
6. Load: 29.4N (3kgf)
7. Accuracy: 0.01mm
8. Straightness: 0.01mm

Parameter:LSP80-L
1.The direction of movement: XY and RAxis High precision
2. Material: Aluminum
3. The table size: 80*80mm
4. Rail Type: V-rail (Cross Roller Guide)
5. Travel:XY:±12.5mm RAxis:360° ±5° fine tuning
6. Load: 39.2N (4kgf)
7. Accuracy: 0.01mm
8. Straightness: 0.01mm

Parameter:LSP90-LM
1.The direction of movement: XY and RAxis High precision
2. Material: Aluminum
3. The table size: 90*90mm
4. Rail Type: V-rail (Cross Roller Guide)
5. Travel:XY:±12.5mm RAxis:360° ±5° fine tuning
6. Load: 39.2N (4kgf)
7. Accuracy: 0.01mm
8. Straightness: 0.01mm
